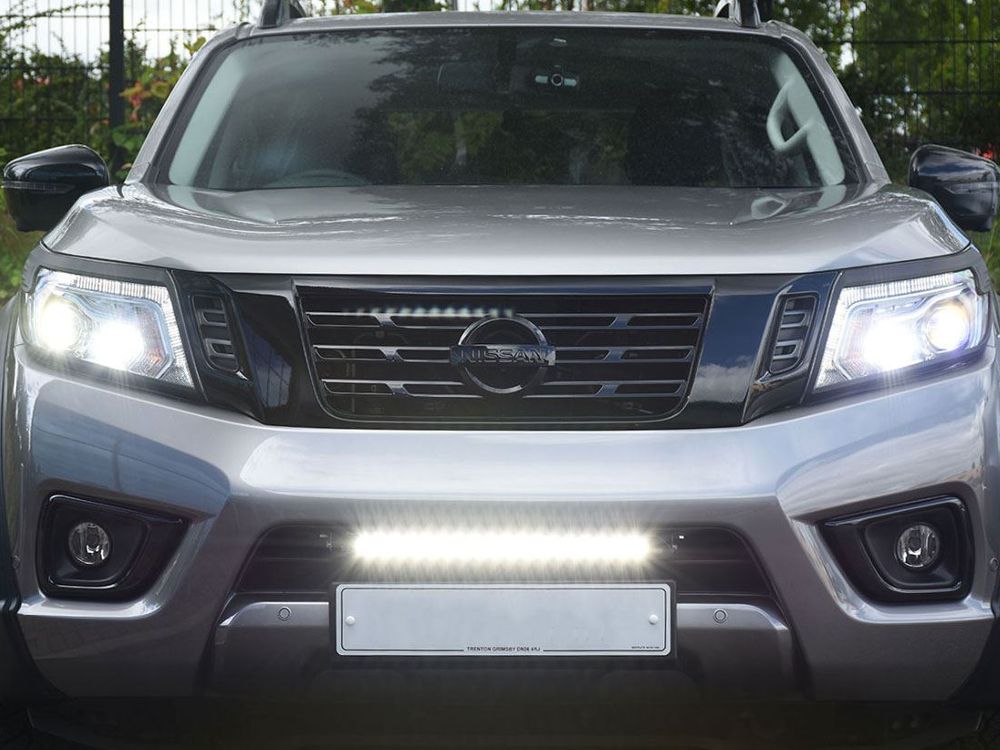

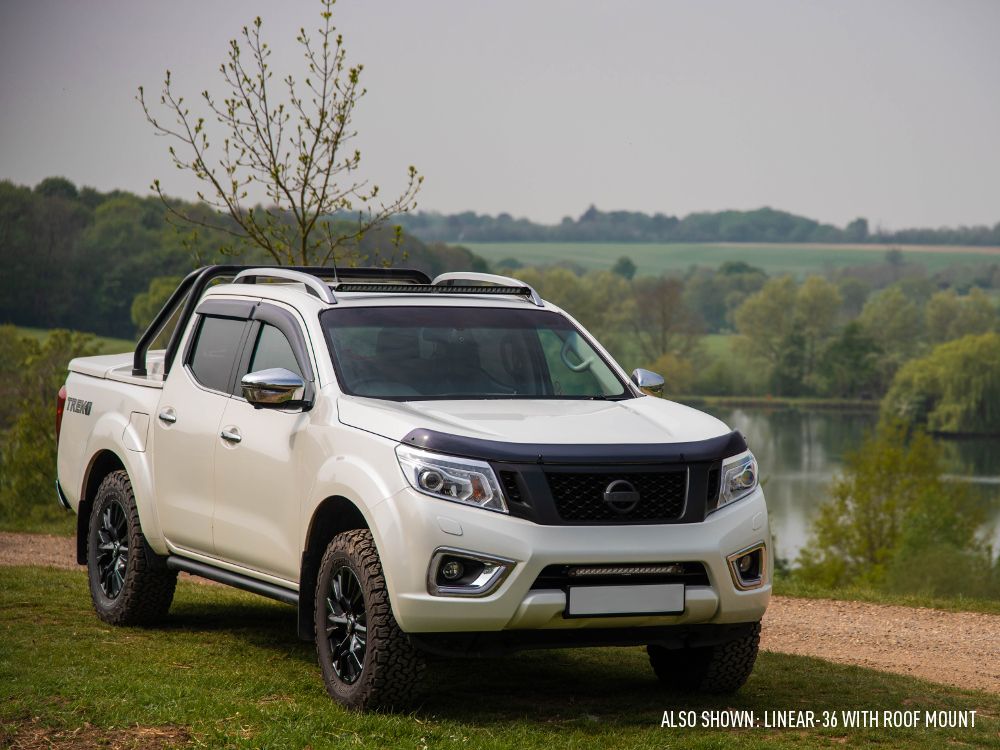

Effortlessly positioned into the lower front grille, the Lazer Lamps vehicle integration kit for the Nissan Navara, allows for flush mounting of our class-leading Linear-18 Standard, Elite (with or without Position light), or Elite with Intelligent Low Beam Assist, for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.
ECE compliance allows for connecting into the vehicle’s electrical system so that the light activates with the vehicle’s standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the Navara lighting upgrade kit delivers incredible levels of illumination for when the sun goes down. Where the vehicle utilises LED driving lights as standard, a CanM8 high beam interface is available as an optional part to complete a unified electrical install.
The mounting of the light is quick and simple, requiring only a slight modification to the original lower grille. The resulting setup is secure and robust, with anti-theft fasteners included when utilising the Linear-18 Elite light, and as an optional extra when using the equivalent Standard light. Like all lighting products from Lazer Lamps, the Linear-18’s are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

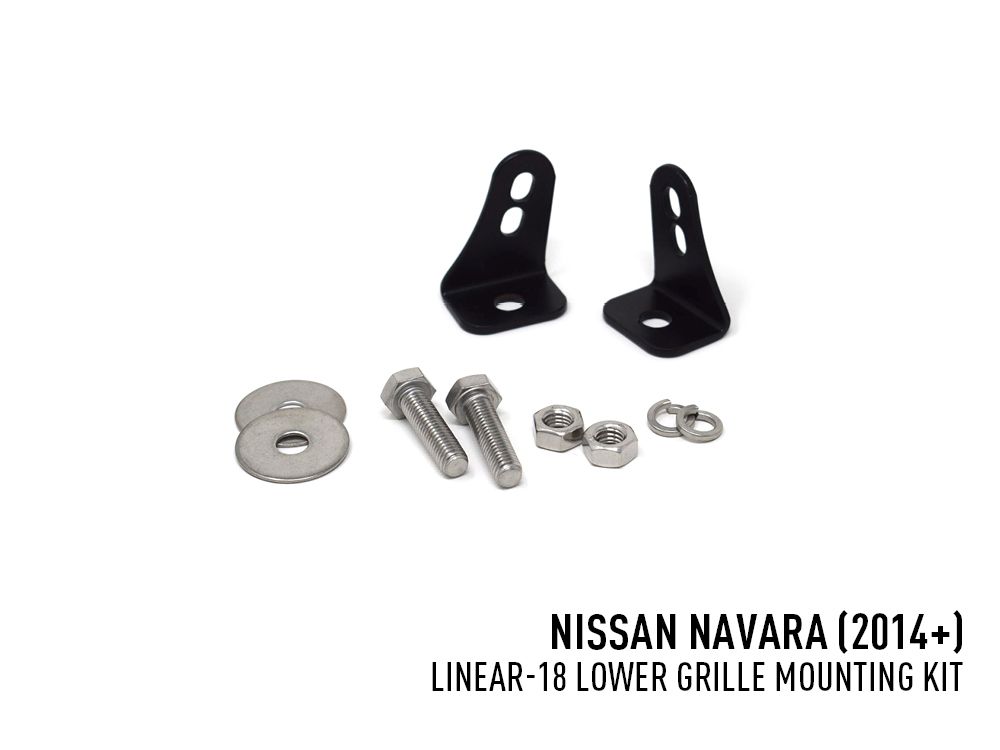

- Vehicle integration kit for Lazer LED Spotlight installation
- Optimised for Nissan Navara Lower Grille (MY 2014+)
- Utilises Linear-18 High Performance LED Spotlight
- Available in either Standard or Elite grade
- Full fitting kit requires; Linear-18 Std or Elite, One-Lamp Wiring Kit, CanM8 High Beam Interface (where required) and Fixing Kit
- Fully road-legal
- 5-year warranty
- Made in Britain
Technical information
Based on setup: 1x Linear-18 Elite High Performance LED Lamps:
| Voltage Range | 9-32V |
| LED Life | 50,000 hours |
| Weight | 1090 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 12150 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 45 |
| DIMENSIONS | |
| Width | 532 mm |
| Depth | 62 mm |
| Height | 40 mm |

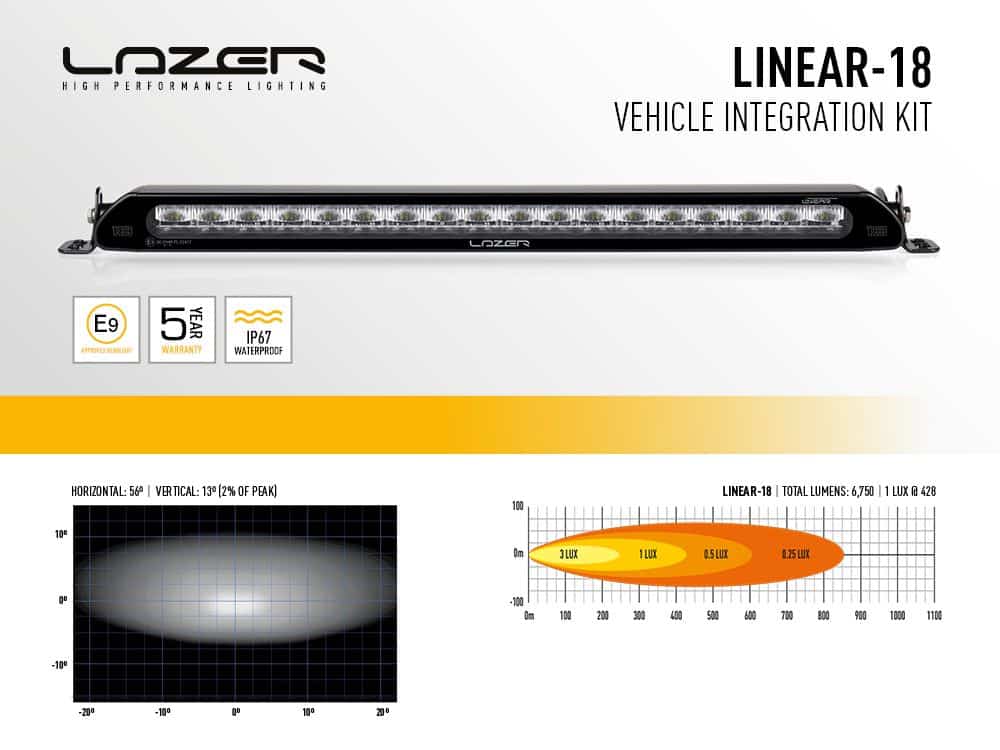

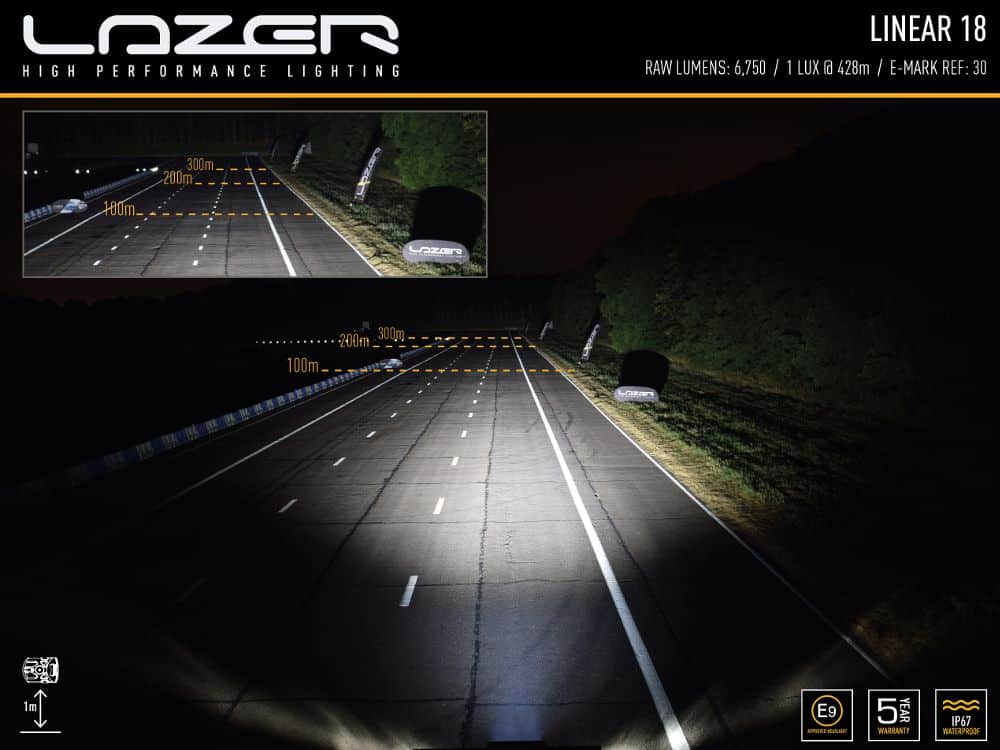

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 deg |
| 0.25 lx Line | 975 metres |
| 0.5 lx Line | 690 metres |
| 1 lx Line | 488 metres |
| 3 lx Line | 282 metres |
