Description

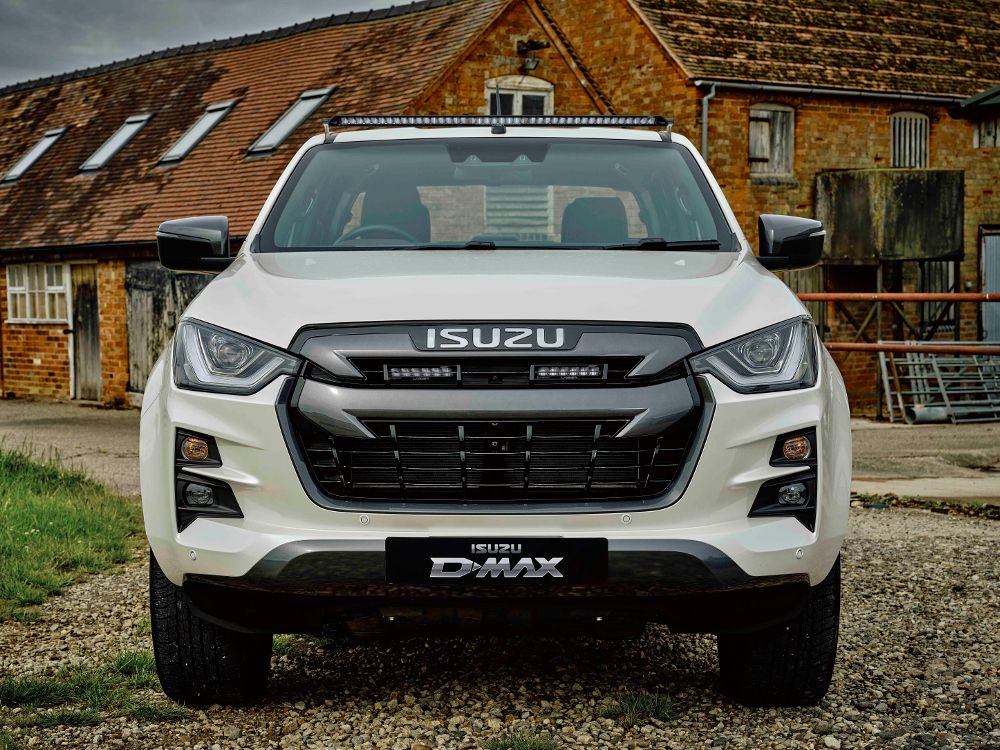

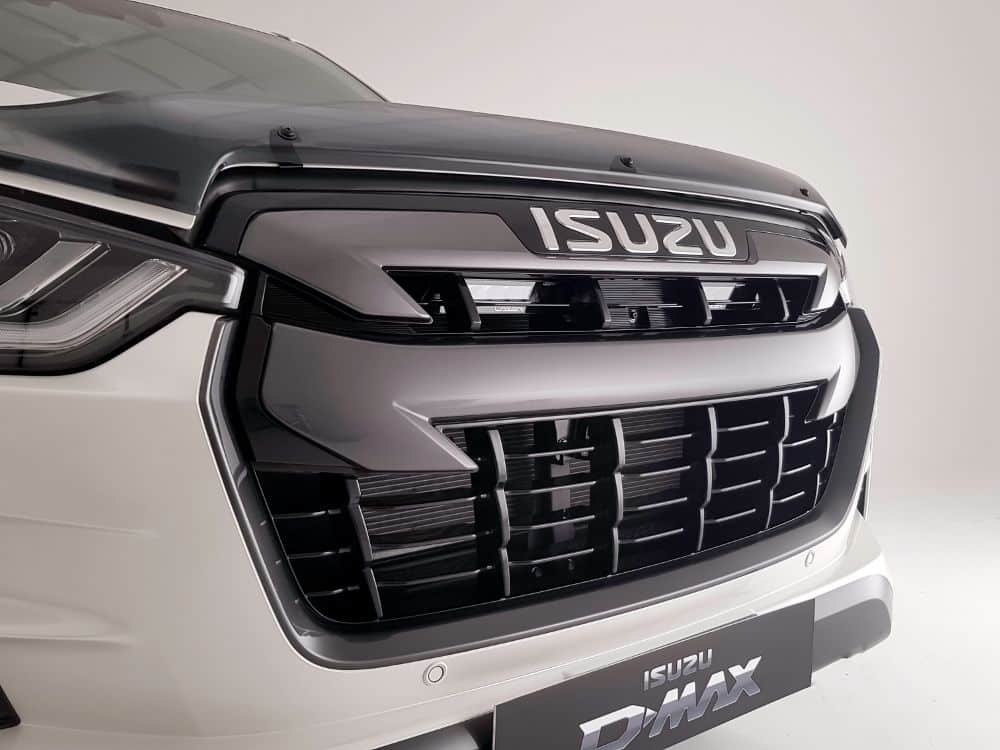

Αν ψάχνετε για μια διακριτική αλλά ισχυρή εγκατάσταση βοηθητικού φωτιστικού μεγάλης σκάλας για το D-Max σας, τότε μην κοιτάξετε πέρα ​​από ένα ζευγάρι προβολέων υψηλής απόδοσης Linear-6 από τα Lazer Lamps, τοποθετημένα διακριτικά και με ασφάλεια πίσω από την μπροστινή μάσκα. Τα φώτα είναι ασφαλισμένα πίσω από τη μάσκα, χρησιμοποιώντας το κιτ τοποθέτησης Grille Mount Kit για οχήματα μοντέλου έτους 2021+, παρέχοντας μια πλήρως οδική νόμιμη εγκατάσταση που θα σας αφήσει να βρείτε δικαιολογίες για να βγείτε έξω τη νύχτα!

Σχεδιασμένα για το Linear-6, Standard ή Elite, τα φώτα προσαρμόζονται ανά δύο στη μεταλλική ράβδο στήριξης πίσω από την μπροστινή γρίλια. Χρησιμοποιώντας βραχίονες στήριξης από ανοξείδωτο χάλυβα, η εγκατάσταση ολοκληρώνεται γρήγορα και απλά με τις παρεχόμενες οδηγίες τοποθέτησης και καλωδίωσης. Διατίθεται επίσης ένα κιτ καλωδίωσης δύο λαμπτήρων που επιτρέπει τη σύνδεση των φώτων σας είτε απευθείας με τις τυπικές φώτα μεγάλης σκάλας ή/και τη λειτουργία μέσω ενός ξεχωριστού διακόπτη στο ταμπλό σας.

Η επιλογή Linear-6 Standard προσφέρει μια εξαιρετική οικονομική λύση, η οποία προσφέρει σημαντική βελτίωση σε σχέση με τα τυπικά φώτα πορείας μεγάλης σκάλας στο όχημα. Οι επιλογές Linear-6 Elite προχωρούν περαιτέρω με διπλάσια απόδοση φωτός σε σύγκριση με τα ισοδύναμα φώτα Standard, παρέχεται 1 lux στα 400 μέτρα, με εξάπλωση φωτός 42 μοιρών αριστερά/δεξιά που αφήνει ελάχιστα στη φαντασία όταν πέσει το βράδυ.

Χωρίς συμβιβασμούς σε εξαρτήματα ή τεχνικές παραγωγής, όπως με όλα τα προϊόντα Lazer, έχουμε κάνει κάθε βήμα για να μεγιστοποιήσουμε την απόδοση φωτισμού και την ποιότητα κατασκευής, για να διασφαλίσουμε ότι η εγκατάσταση φωτισμού σας θα παραμείνει σε άριστη κατάσταση για τα επόμενα χρόνια, με την υποστήριξη της ολοκληρωμένης 5ετίας μας εγγύηση.

  • Βοηθητική εγκατάσταση φώτων πορείας μεγάλης σκάλας για Isuzu D-Max (έτος μοντέλου 2021+)

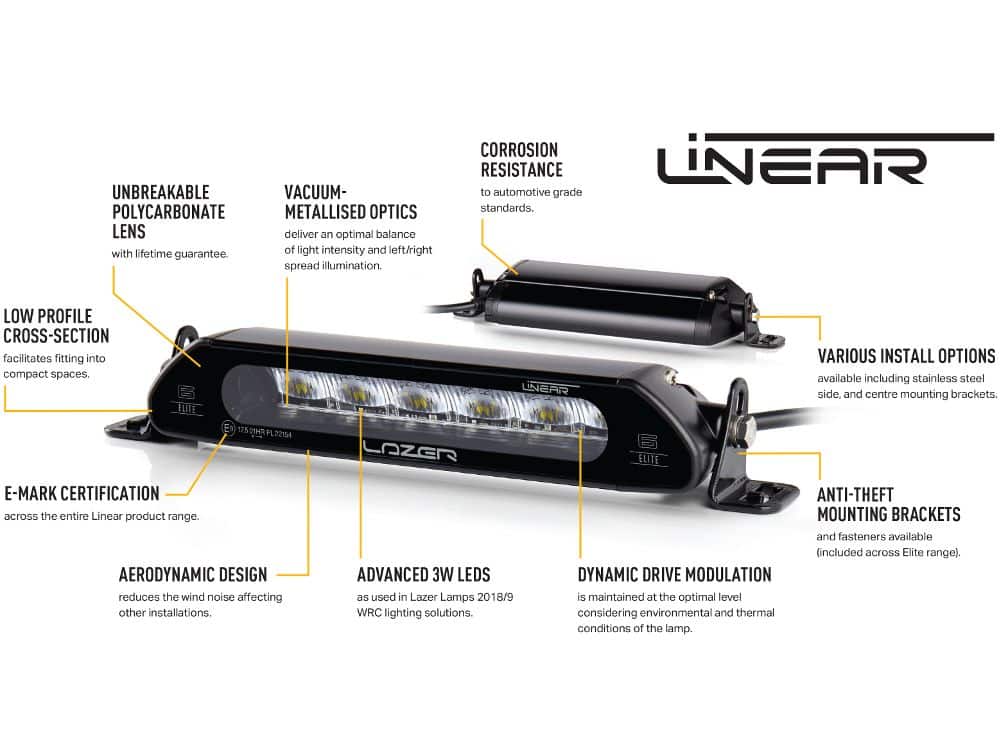

  • Βελτιστοποιημένη τοποθέτηση με ζευγάρι φώτα οδήγησης Linear-6 LED
  • Διατίθενται Standard ή Elite επιλογές φωτισμού

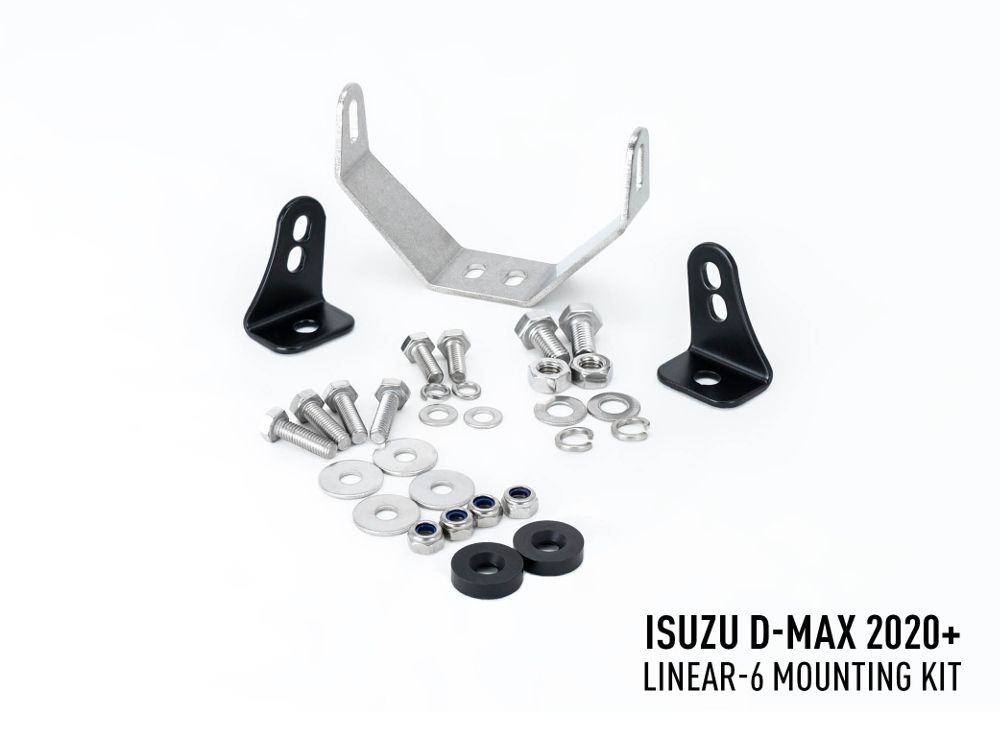

  • Τα ειδικά κατασκευασμένα στηρίγματα στερέωσης ασφαλίζουν σε μεταλλική στήριξη πίσω από την μπροστινή σχάρα

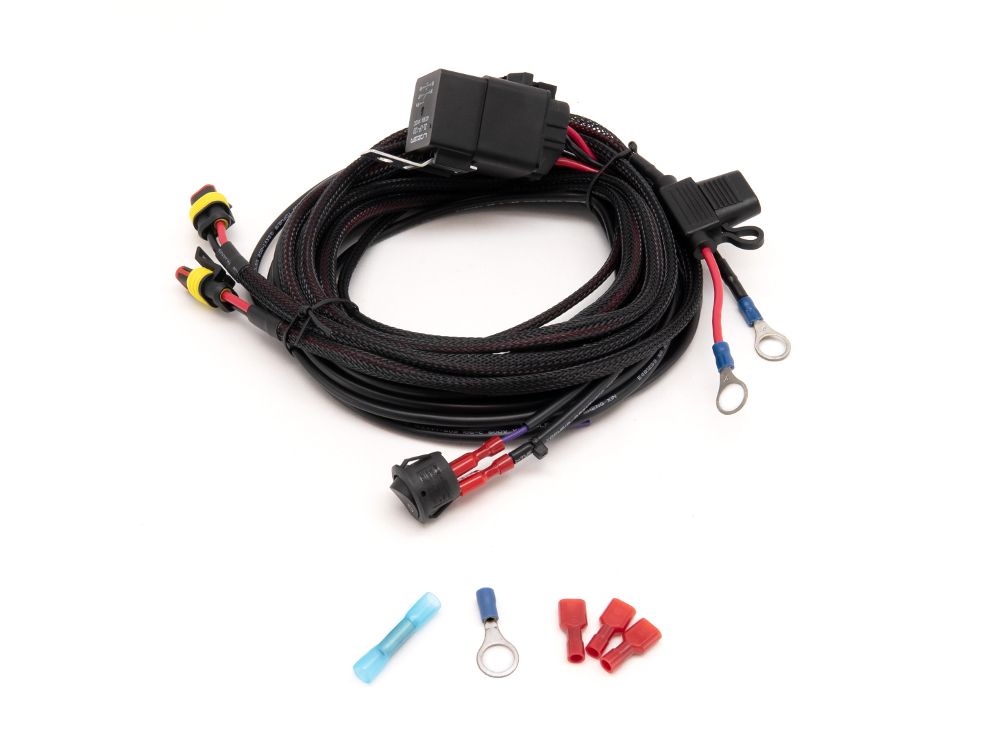

  • Διατίθενται κιτ καλωδίωσης οχήματος
  • Πλήρως νόμιμο για χρήση δρόμου
  • 5 χρόνια εγγύηση
  • Κατασκευασμένο στο Ηνωμένο Βασίλειο

Τεχνικές πληροφορίες

 2x Linear-6
Elite
2x Linear-6
Elite+
(E-Boost /
E-Mark)
2x Linear-6
Voltage Range (DC)10-32V10-32V10-32V
LED Life50,000 hours50,000 hours50,000 hours
Weight800 gr2x 800 gr800 gr
HIGH BEAM FUNCTION
Total Luminous Flux8100 Lm10200 /
5000 Lm
4500 Lm
Total Driver ‘FOV’ Flux †5767 Lm7290 /
3644 Lm
3204 Lm
Colour Temperature5000K 5000K
Number of High Output LEDs2 x 122 x 122 x 6
Power Consumption84 Watts96 / 48 Watts42 Watts
Current Draw (at 14.4V)5.8 Amps7.2 / 3.6 Amps2.92 Amps
CERTIFICATION
High BeamECE R112ECE R149ECE R112
ECE Reference2 x 17.52 x 12.52 x 12.5

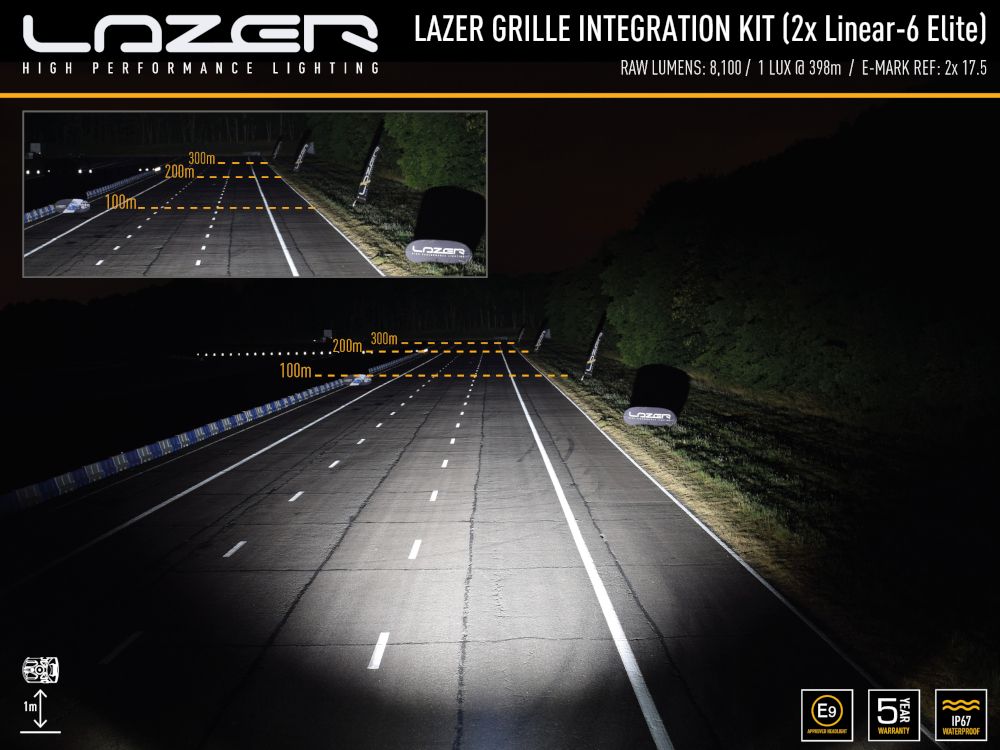

PHOTOMETRIC DATA
Horizontal Beam Angle64°84o56°
0.25 lx Line796m849 / 600m698m
0.5 lx Line563m600 / 424m494m
1 lx Line398m424 / 300m349m
3 lx Line230m245 / 173m202m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.

Βίντεο

Τί περιλαμβάνετε

  • 2 Μπάρες Led Linear 6
  • 1 Κιτ στερέωσης δοκού προφυλακτήρα
  • 1 Καλωδίωση
