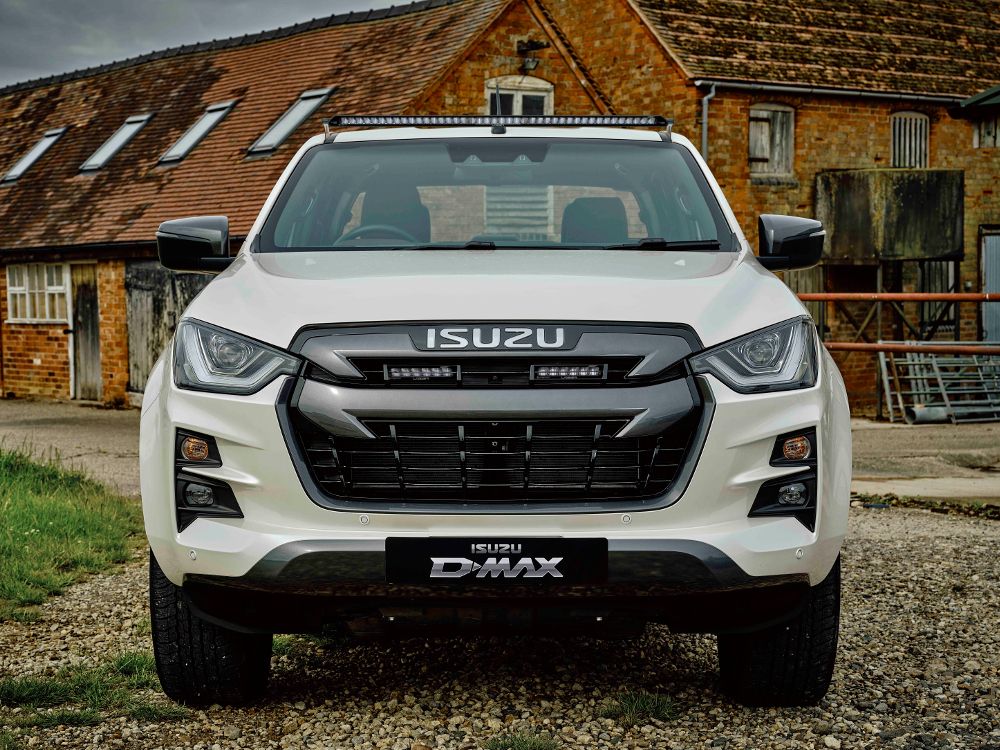

If looking for a discreet yet powerful auxiliary high beam driving light install for your D-Max, then look no further than a pair of Linear-6 high-performance spotlights from Lazer Lamps, discreetly and securely mounted behind the front grille. The lights are secured behind the grille, utilising our Grille Mount Kit for model year 2021+ vehicles, providing for a fully road legal installation that will leave you finding excuses to go out at night!

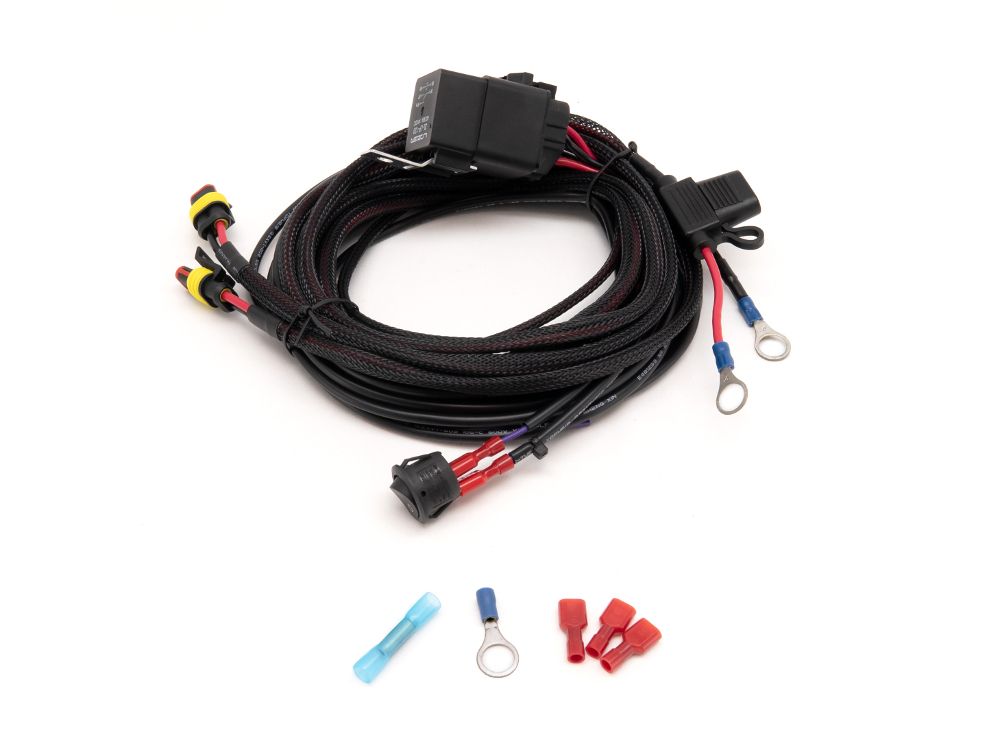

Designed for our Linear-6, Standard or Elite, the lights mount in pairs to the metal support bar behind the front grille. Utilising stainless steel mounting brackets, the installation is quick and simple to complete with supplied fitting and wiring instructions. A two-lamp wiring kit is also available allowing for connecting your lights either direct to your standard high beams, and/or operated via a separate switch on your dashboard.

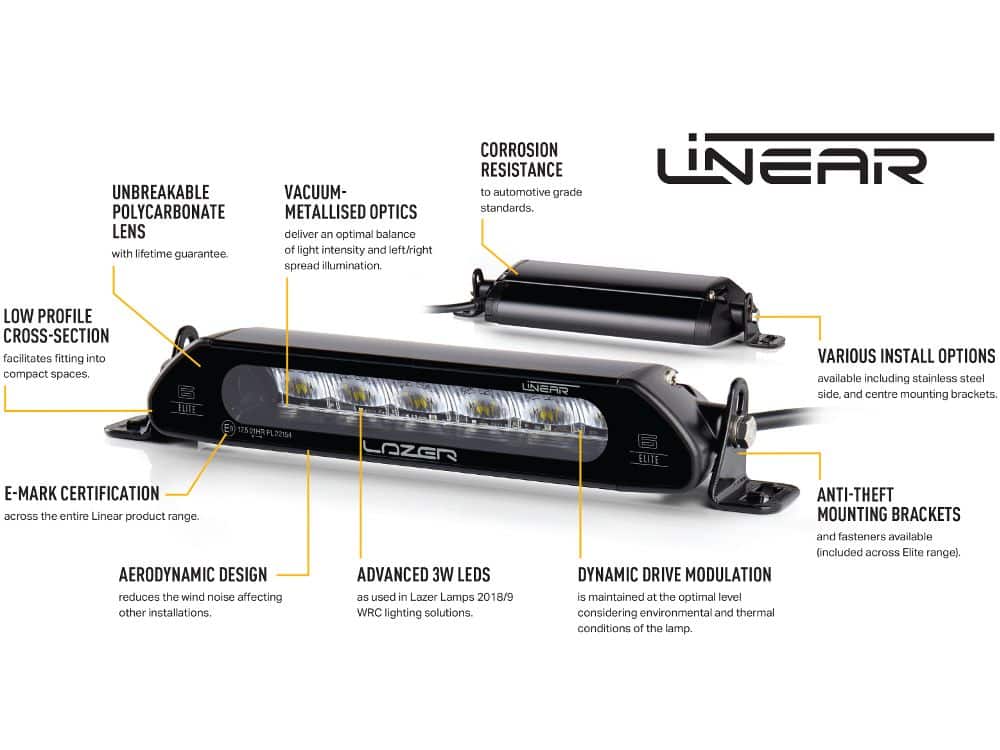

The Linear-6 Standard option delivers an excellent cost-effective solution, that delivers a significant improvement over the standard high beam driving lights on the vehicle. The Linear-6 Elite options goes further with double the light output compared to the equivalent Standard lights, 1 lux is delivered to 400m, with a 42 degree left/right spread of light which leaves little to the imagination come nightfall.
With no compromises in component parts or production techniques, as with all Lazer products, we have taken every step to maximise lighting performance, and build quality, to ensure your lighting installation remains in excellent condition for years to come, backed up by our comprehensive 5yr warranty.
- Auxiliary high beam driving light installation for Isuzu D-Max (model year 2021+)
- Optimised mounting with pair of Linear-6 LED driving lights
- Standard or Elite lighting options available

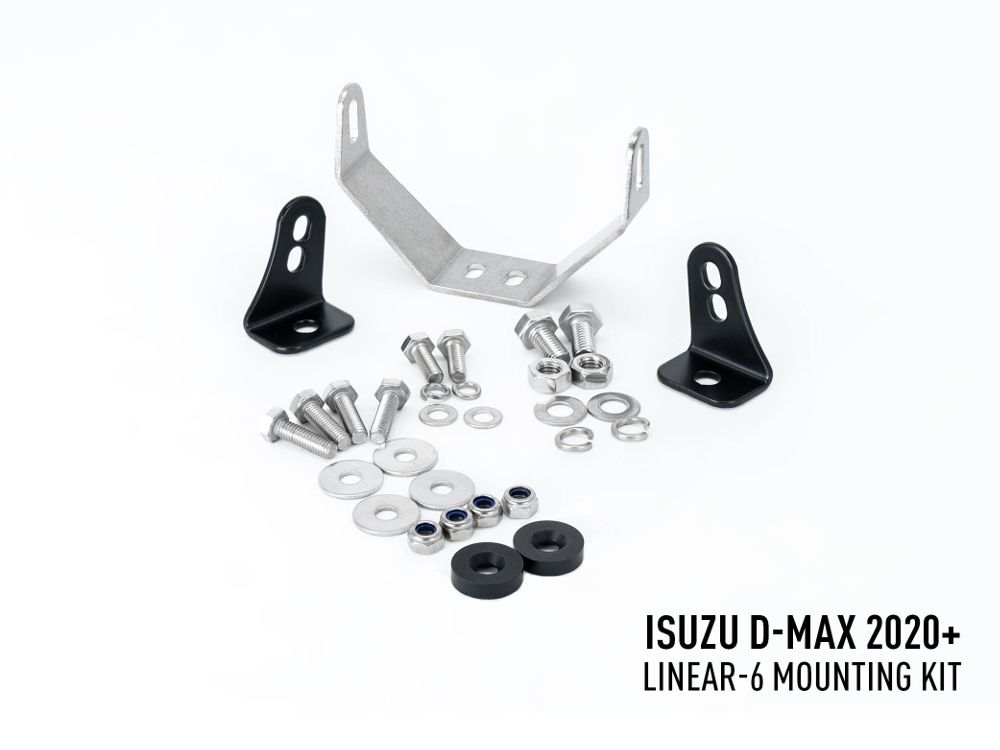

- Custom-made mounting brackets secures to metal support behind front grille
- Vehicle wiring kits available
- Fully road-legal
- 5-year warranty
- Made in UK
Technical information
Based on Elite setup i.e. x2 Linear-6 Elite High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 12150 Lm |
| Total Driver ‘FOV’ Flux † | 8651 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 2 x 6 |
| Power Consumption | 84 Watts |
| Current Draw (at 14.4V) | 5.8 Amps |
| Start-Up Time * | 100ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 17.5 x2 |

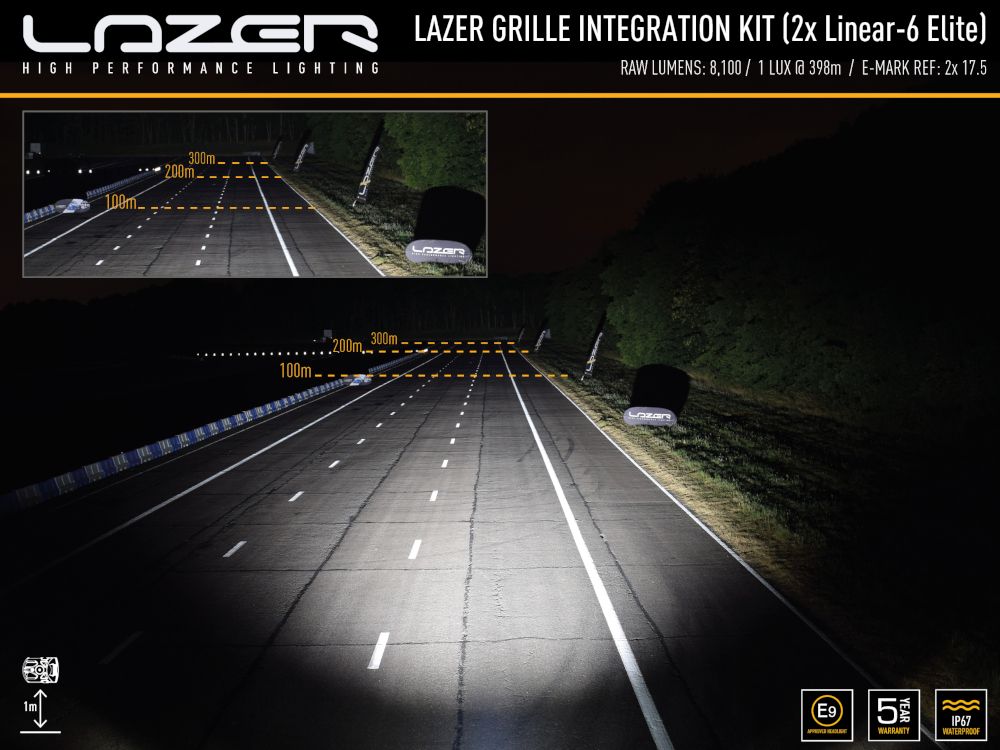

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 Degrees |
| 0.25 lx Line | 796 metres |
| 0.5 lx Line | 563 metres |
| 1 lx Line | 398 metres |
| 3 lx Line | 230 metres |
* ‘Start-up time’ is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.
