Description

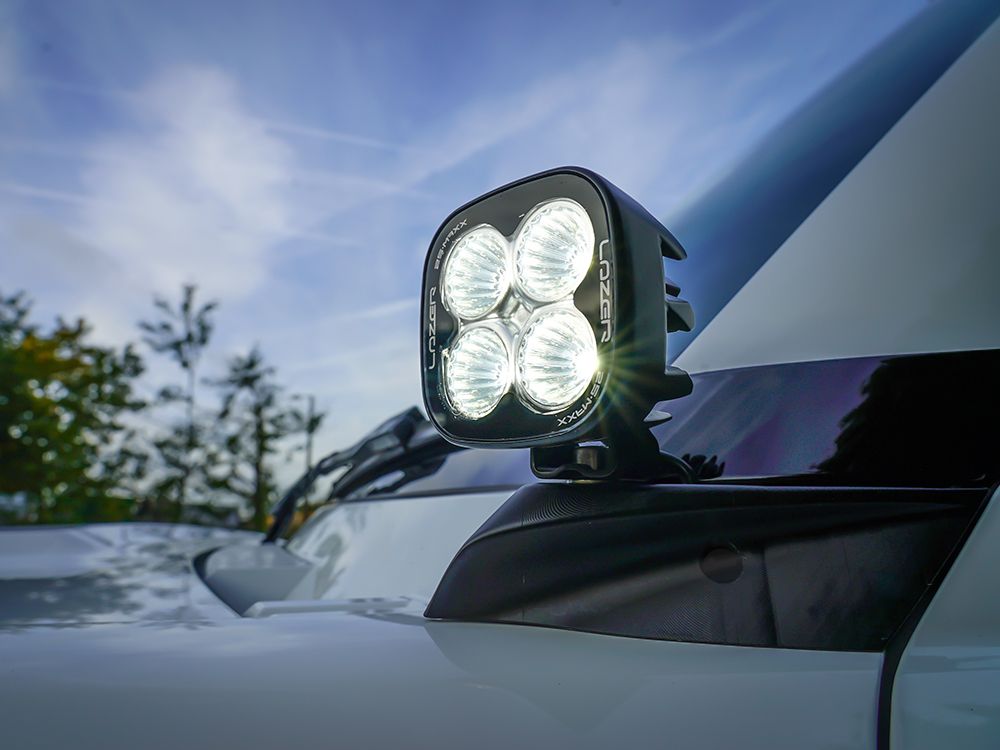

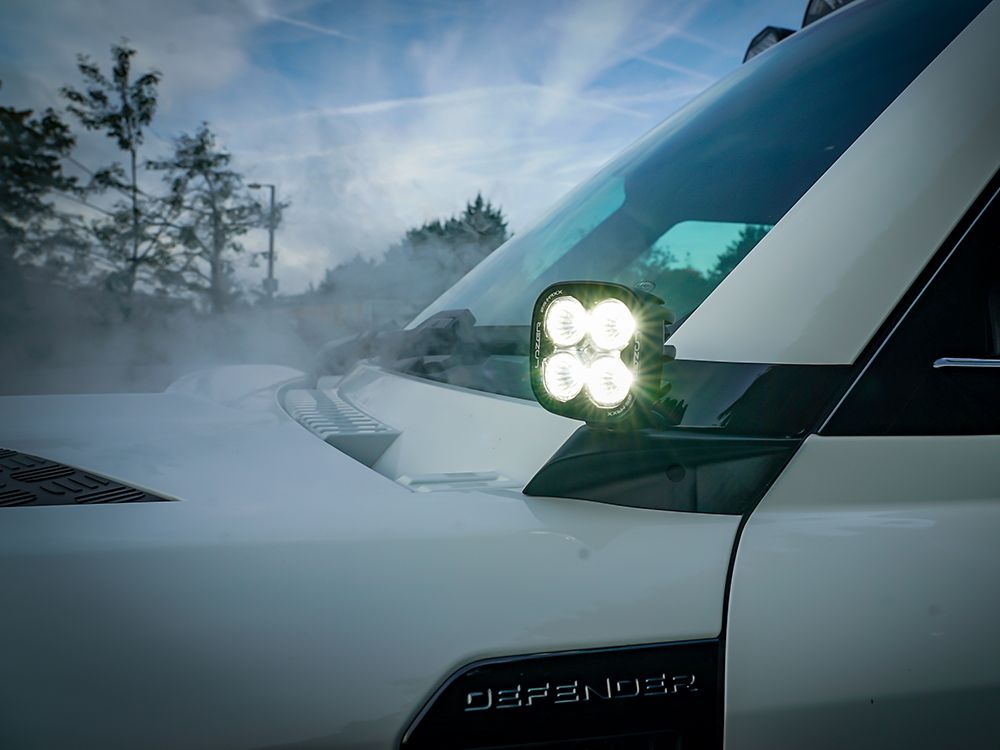

Ένα ζευγάρι ειδικά κατασκευασμένα στηρίγματα στήριξης, σχεδιασμένα γύρω από την κολόνα Α του Land Rover Defender (2020+), για να διευκολύνουν την τοποθέτηση των φώτων εργασίας LED Utility-25 ή Utility-25 MAXX. Οι ίδιοι οι βραχίονες βρίσκονται στα αρχικά εξαρτήματα του Defender, αντικαθιστώντας ένα μικρό κομμάτι υλικού επένδυσης στη βάση κάθε κολόνας Α και χωρίς να απαιτείται διάτρηση. Κατασκευασμένο από σύνθετο υλικό υψηλής αντοχής, με μαύρο ματ φινίρισμα, το τελικό αποτέλεσμα έχει πραγματική εμφάνιση και φινίρισμα OE.

Βελτιστοποιημένοι για την τοποθέτηση φώτων εργασίας Utility-25 ή Utility-25 MAXX, οι βραχίονες περιλαμβάνουν σχεδιαστικά χαρακτηριστικά που διευκολύνουν την εγκατάσταση των φώτων καθώς και τη δρομολόγηση των καλωδίων και της καλωδίωσης των λαμπτήρων.

  • Βάσεις στήριξης κολόνας Α που αποτελούνται από αριστερό και δεξιό μέρος
  • Προσαρμοσμένη εφαρμογή για Land Rover Defender (MY 2020+)
  • Συμβατό με: Utility-25 / Utility-25 MAXX LED φώτα εργασίας
  • Παράγεται από υψηλής αντοχής, σταθερό στην υπεριώδη ακτινοβολία, σύνθετο υλικό
  • Εύκολη εγκατάσταση χωρίς να απαιτείται διάτρηση
  • 5 χρόνια εγγύηση
  • Κατασκευάζεται στη Βρετανία

Τεχνικές πληροφορίες

Τεχνικές προδιαγραφές
 1 Utility-25 1 Utility-25 MAXX
Εύρος τάσης (DC)10-32V10-32V
Ζωή LED50.000 ώρες50.000 ώρες
Θερμοκρασία χρώματος5,000 Kelvin5,000 Kelvin
Βάρος360 gr360 gr
ΛΕΙΤΟΥΡΓΕΙΑ ΠΡΟΒΟΛΕΑ
Total Luminous Flux3016 Lm4560 Lm
Θερμοκρασία χρώματος5000K5000K
Αριθμός LED υψηλής απόδοσης44
Κατανάλωση ενέργειας25 Watts45 Watts
Current Draw (at 14.4V)1.6 Amps3.1 Amps
ΠΙΣΤΟΠΟΙΗΣΗ
Work LampECE R10ECE R10
Διαβάθμιση IPIP69KIP69K
Δοκιμή ψεκασμού αλατιούISO 9227 (1000H)ISO 9227 (1000H)
Προστασία EMCCISPR-25 (Class 5†)CISPR-25 (Class 4)
ΣΥΝΘΗΚΕΣ ΛΕΙΤΟΥΡΓΙΑΣ
Vibration (BS EN 60068-2-64)10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Θερμοκρασία λειτουργίας-40deg C … +90degC-40deg C … +90degC
ΔΙΑΣΤΑΣΕΙΣ
Πλάτος80 mm80 mm
Βάθος56 mm56 mm
Υψος80 mm80 mm

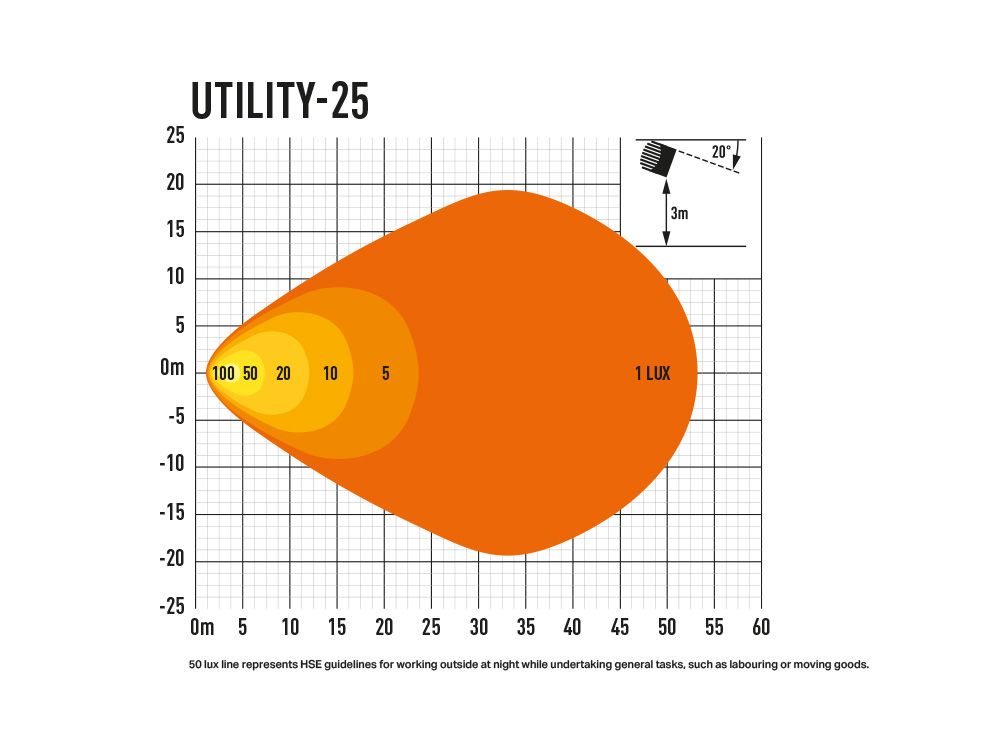

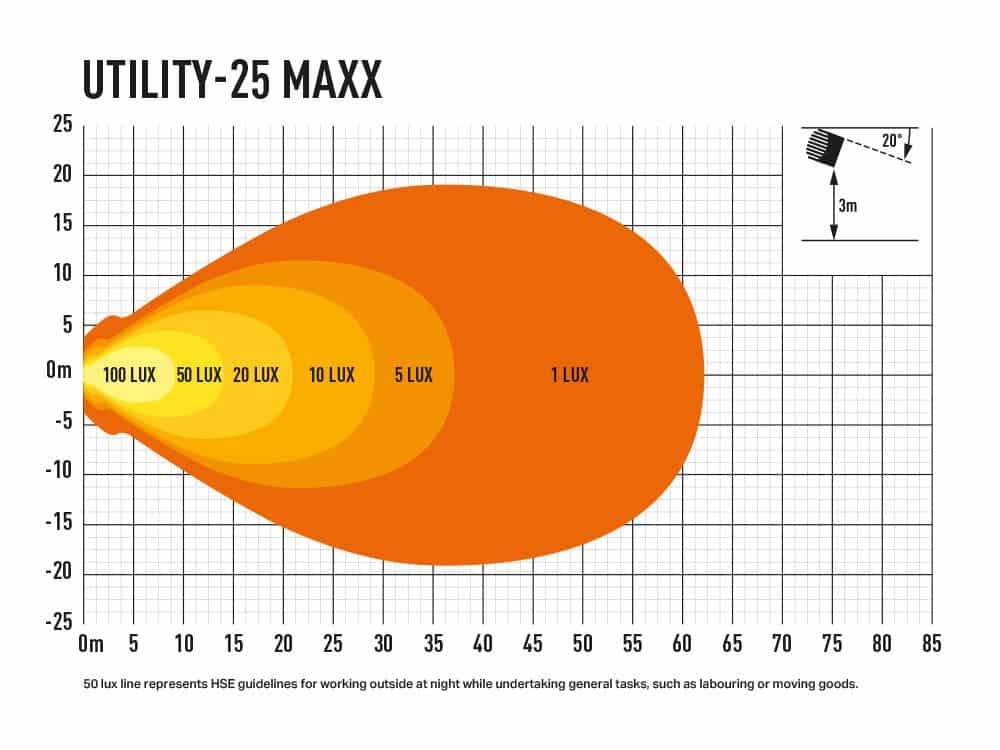

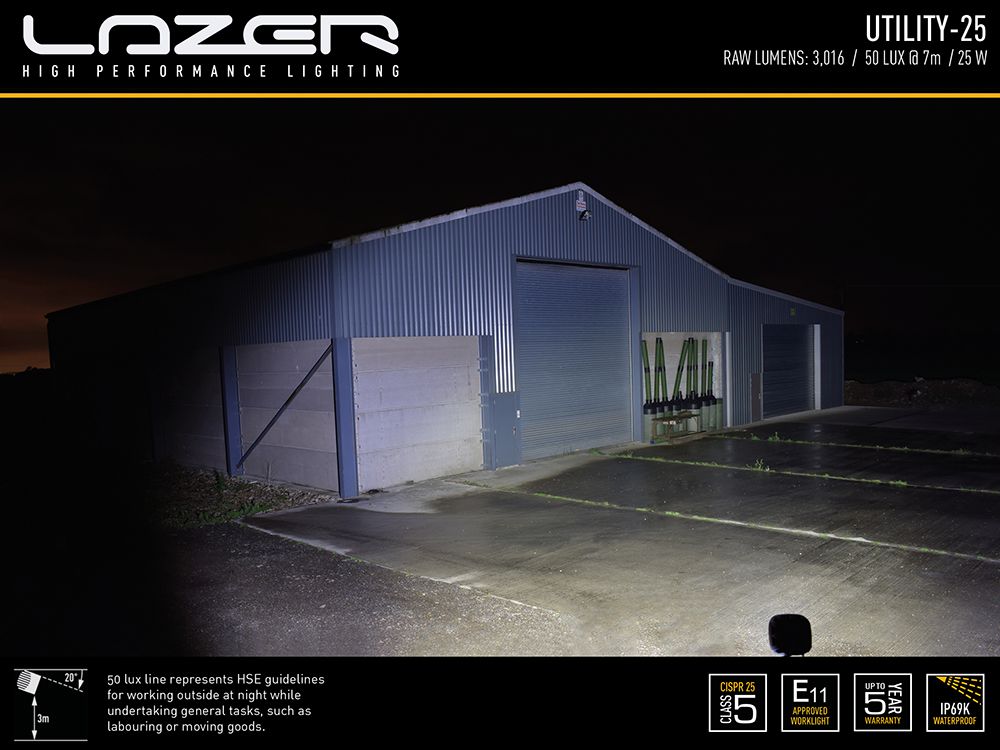

ΦΩΤΟΜΕΤΡΙΚΑ ΔΕΔΟΜΕΝΑ
1Lx Line @54 μέτρα62 μέτρα
5Lx Line @24 μέτρα37 μέτρα
20Lx Line @12 μέτρα21 μέτρα
50Lx Line @7 μέτρα*14m*

* – Το 50Lx αντιπροσωπεύει τις οδηγίες HSE για αποτελεσματικό φωτισμό όταν εργάζεστε σε εξωτερικούς χώρους τη νύχτα.

Τι περιλαμβάνεται

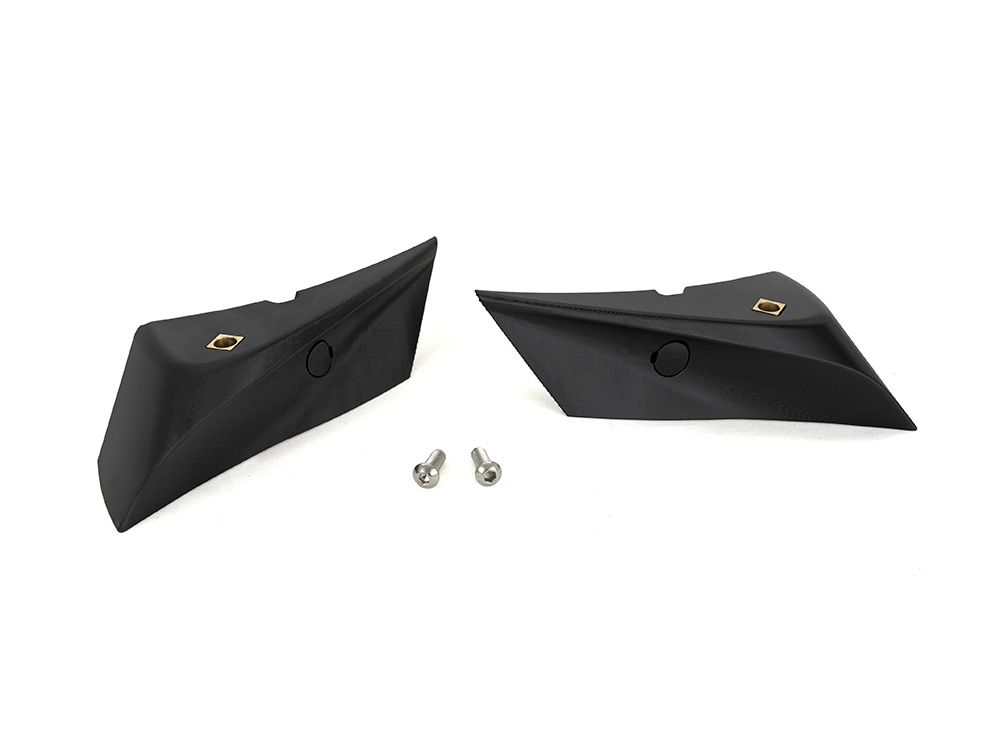

  • Βάσεις στήριξης LH/RH
  • Συνδετήρες M6

A pair of custom-made mounting brackets, designed around the A-pillar of the Land Rover Defender (2020+), to facilitate the mounting of Utility-25 or Utility-25 MAXX LED work lights. The brackets themselves locate in the original fixtures on the Defender, replacing a small piece of trim material at the base of each A-pillar, and with no drilling required. Made from a high-strength composite material, with matt black finish, the end-result has a real OE look and finish.

Optimised for mounting either Utility-25 or Utility-25 MAXX work lights, the brackets include design features to facilitate the installation of the lights as well as routing of the lamp cables and wiring.

  • A-pillar mounting brackets comprising left-hand and right-hand parts
  • Custom fit for Land Rover Defender (MY 2020+)
  • Compatible with: Utility-25 / Utility-25 MAXX LED work lights
  • Produced from high strength, UV-stable, composite material
  • Easy installation with no drilling required
  • 5-year warranty
  • Made in Britain
Technical Specifications
 1x Utility-25 1x Utility-25 MAXX
Voltage Range (DC)10-32V10-32V
LED Life50,000 hours50,000 hours
Colour Temperature5,000 Kelvin5,000 Kelvin
Weight360 gr360 gr
HIGH BEAM FUNCTION
Total Luminous Flux3016 Lm4560 Lm
Colour Temperature5000K5000K
Number of High Output LEDs44
Power Consumption25 Watts45 Watts
Current Draw (at 14.4V)1.6 Amps3.1 Amps
CERTIFICATION
Work LampECE R10ECE R10
IP RatingIP69KIP69K
Salt Spray TestISO 9227 (1000H)ISO 9227 (1000H)
EMC ProtectionCISPR-25 (Class 5†)CISPR-25 (Class 4)
OPERATING CONDITIONS
Vibration (BS EN 60068-2-64)10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Operating Temperature-40deg C … +90degC-40deg C … +90degC
DIMENSIONS
Width80 mm80 mm
Depth56 mm56 mm
Height80 mm80 mm
PHOTOMETRIC DATA
1Lx Line @54m62m
5Lx Line @24m37m
20Lx Line @12m21m
50Lx Line @7m*14m*

* – 50Lx represents HSE guidelines for effective illumination when working outdoors at night.

Additional information
Weight 0,50000 kg
