For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

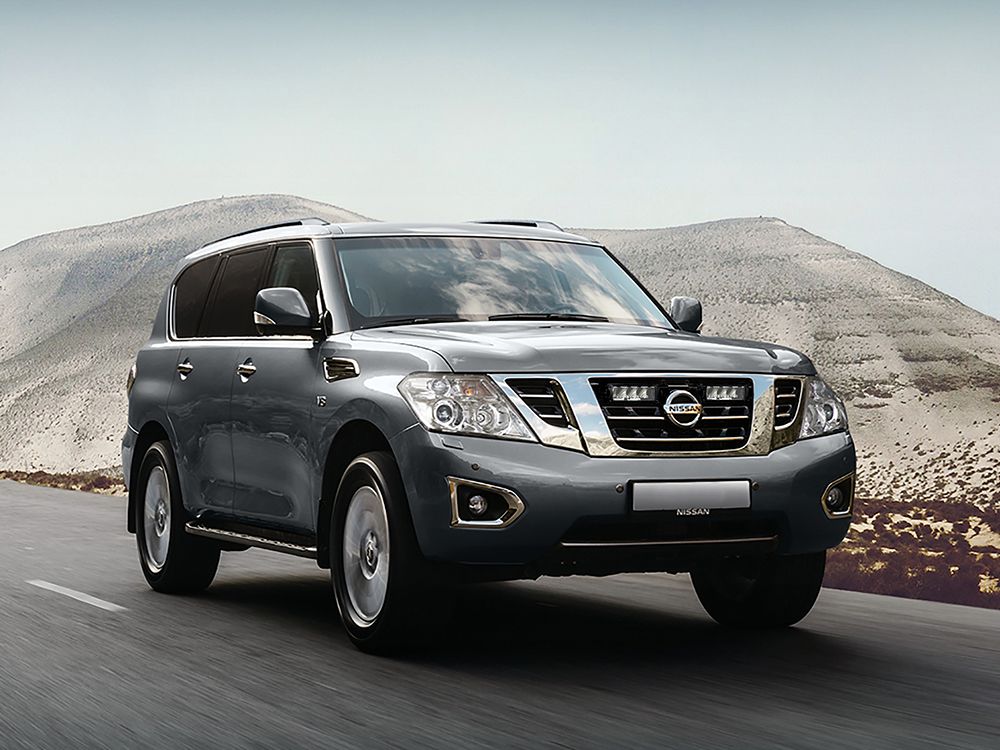

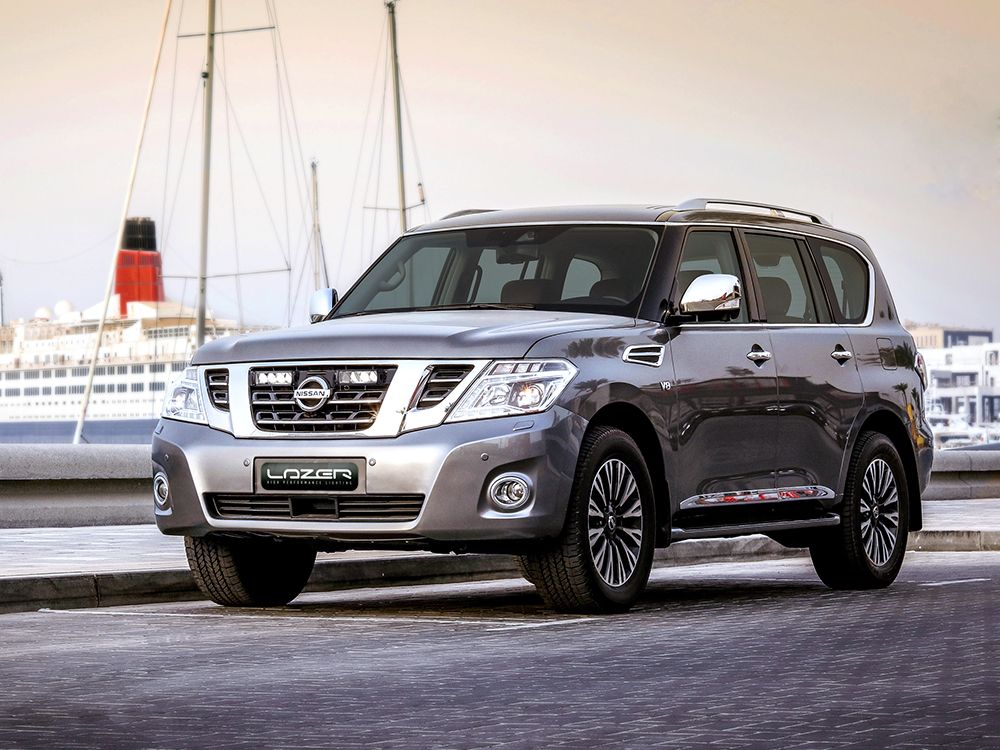

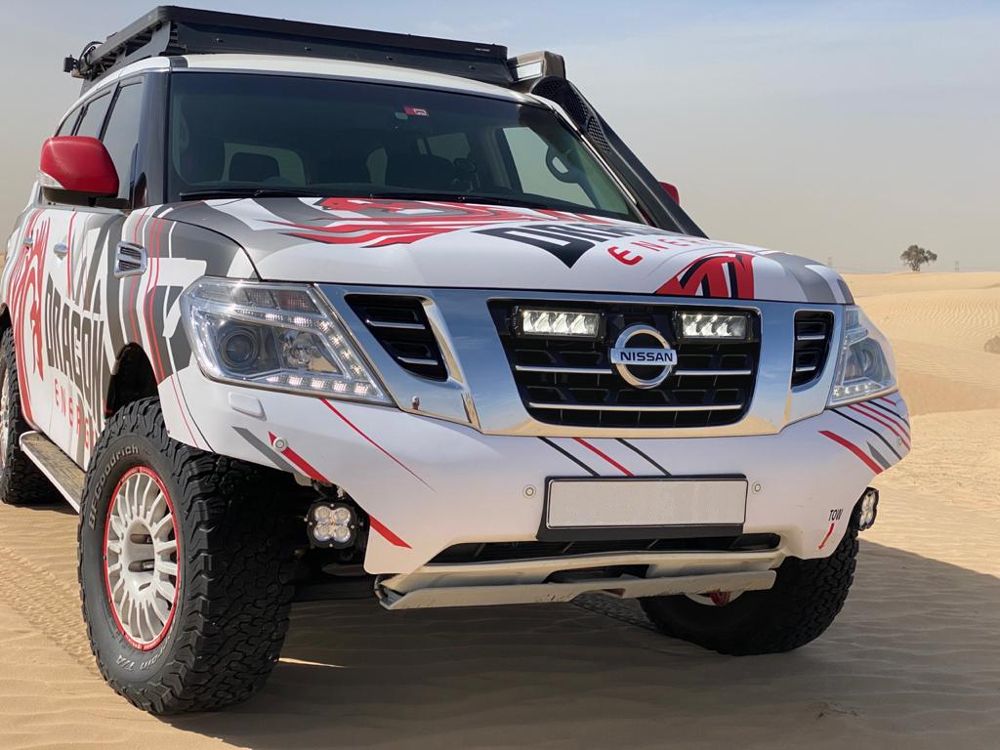

The Nissan Patrol Y62 kit, designed for 2010-2019 vehicles, features 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Specially manufactured from a carbon-fibre and nylon composite material (CF-PA12), material specially selected for the Y62 to withstand extremes of temperature, the brackets provide excellent strength and UV stability, to ensure your installation is fully weather and chemical resistant staying in great condition year after year.

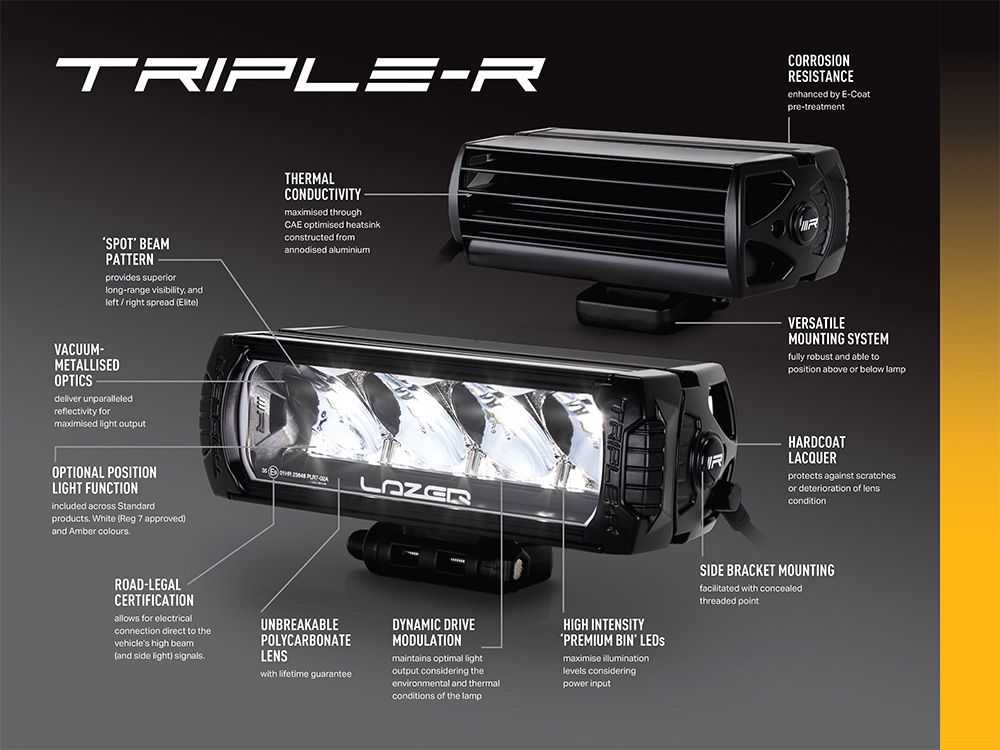

Lazer Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED Spotlights.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances, it will be necessary to complete the electrical installation using a CanM8 High Beam Interface.
Key Features
- Bespoke mounting bracket kit for Lazer LED Spotlight installation
- Custom fit for Nissan Patrol Y62 (model year 2010-2019)
- Mounting kits include: 4x brackets and fasteners
- Made from carbon-fibre and nylon composite material to withstand extremes of temperature
- Optimised for use with Triple-R 750 LED Spotlights
- Wiring harness kits available
- 5-year warranty
- Made in Britain
Technical Information
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
| Voltage Range | 9-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| 1 lx Line | 612 metres |
| 3 lx Line | 354 metres |
What’s included
For Triple-R 750 (GK-Y62-G2-1K)
– x2 Triple-R 750 (00R4-G2-B)

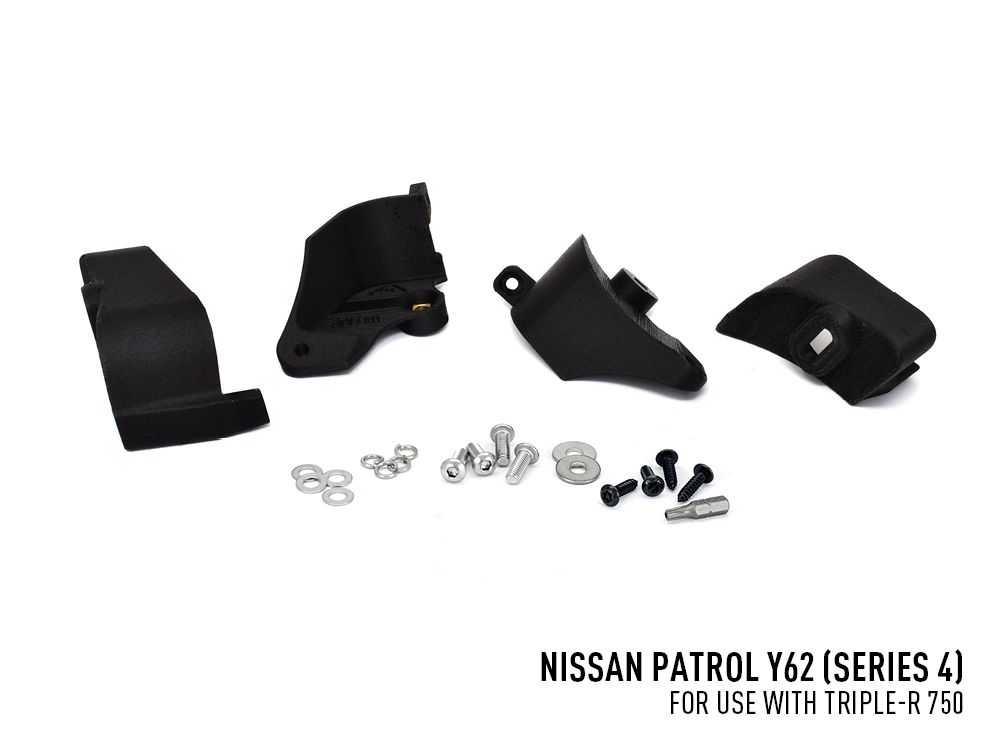

– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-Y62-01K)
– x1 Cutting Guide (comprising 4x Brackets)

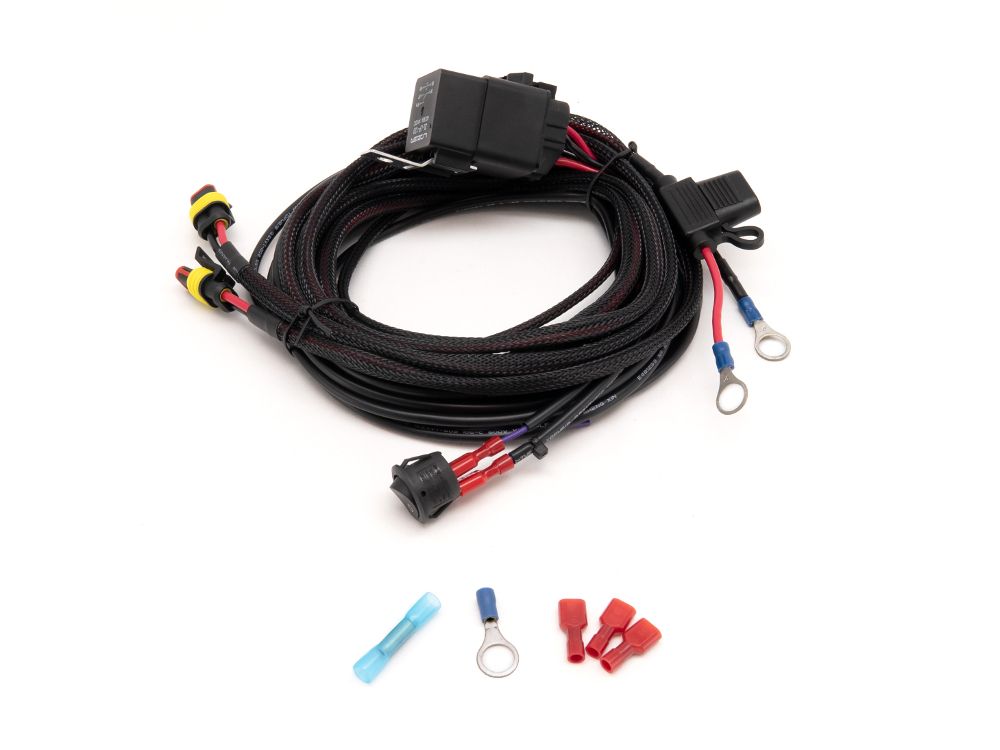

– x1 Two-Lamp Wiring Kit (2L-LP-PL-120)
– x1 Installation instructions

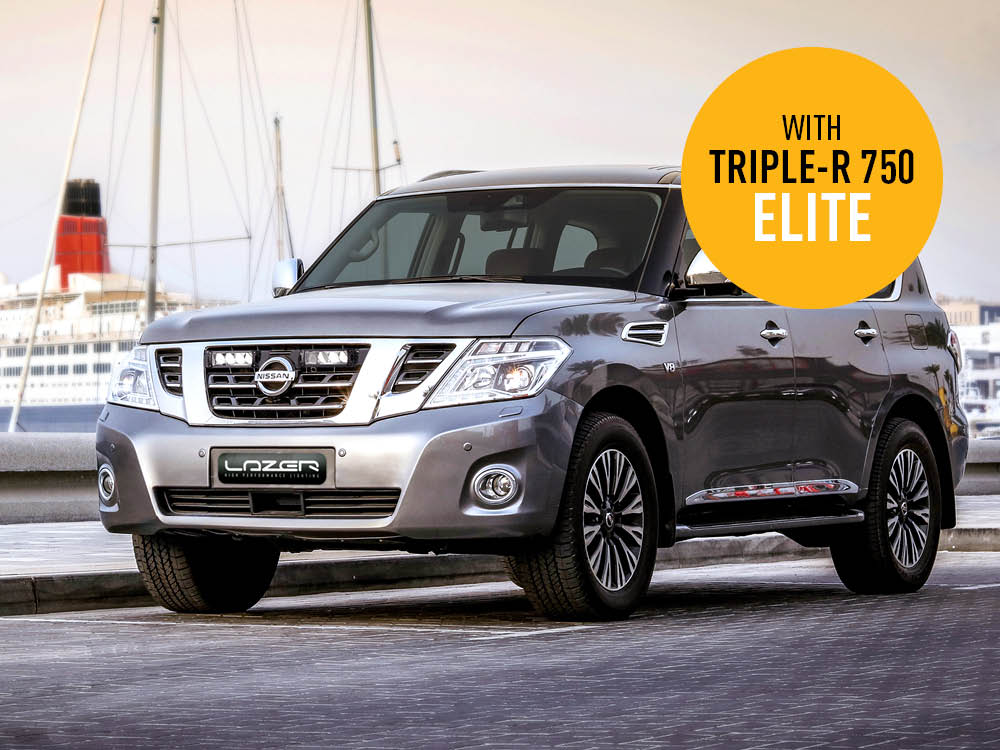

For Triple-R 750 Elite (GK-Y62-Elite-G2-1K)
– x2 Triple-R 750 Elite (00R4-G2-EL-B)
– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-Y62-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-120)
– x1 Installation instructions
