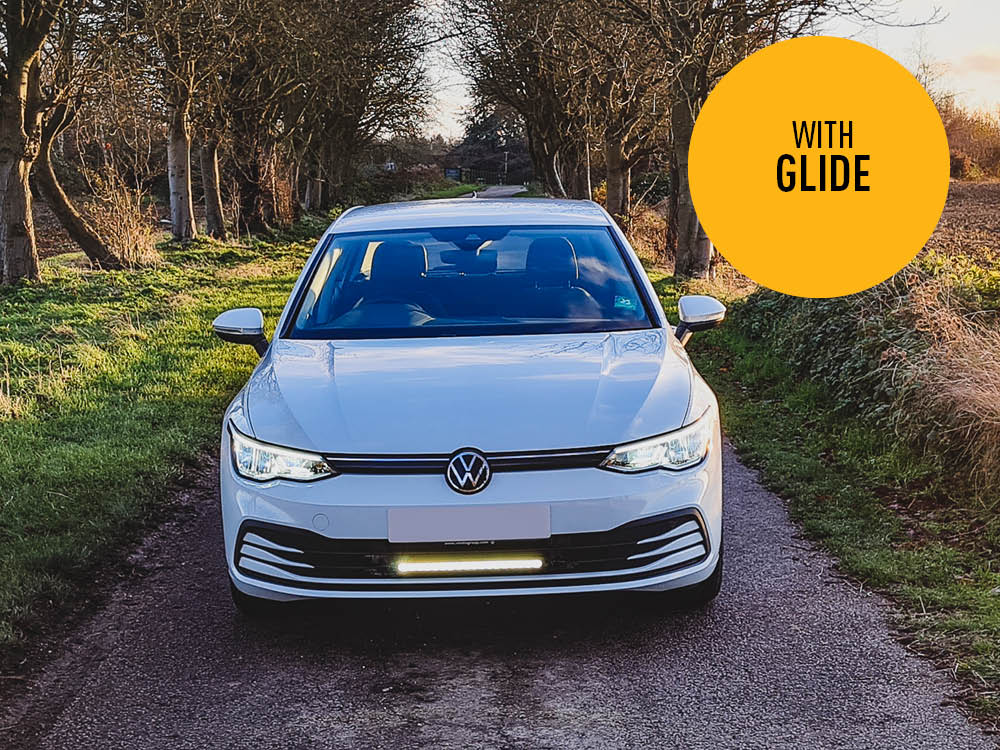

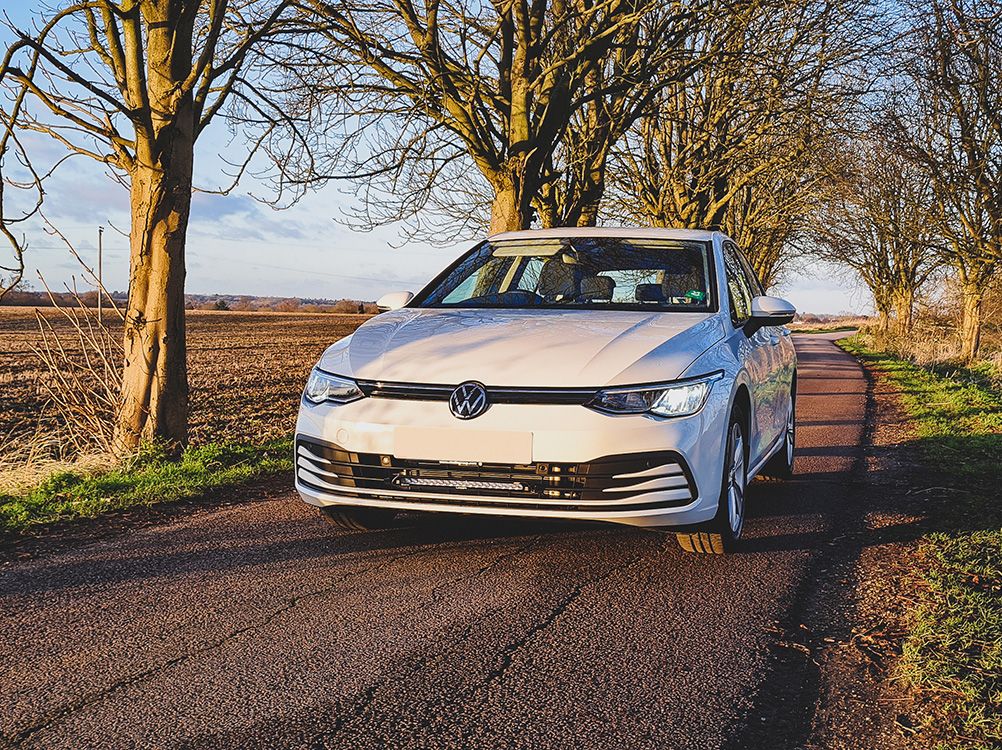

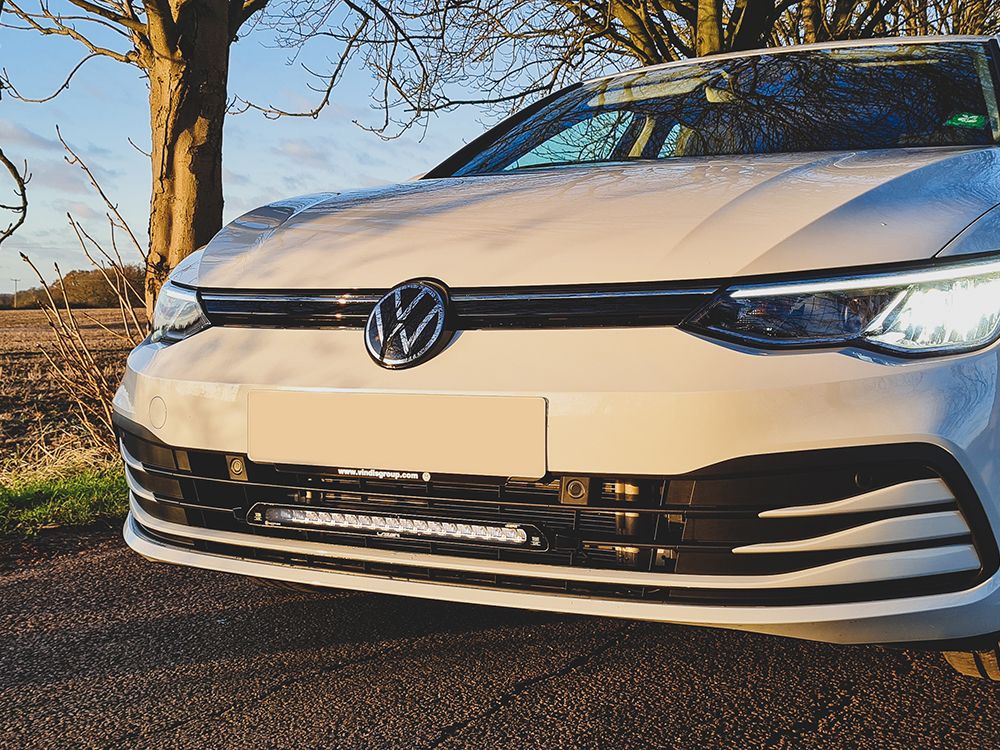

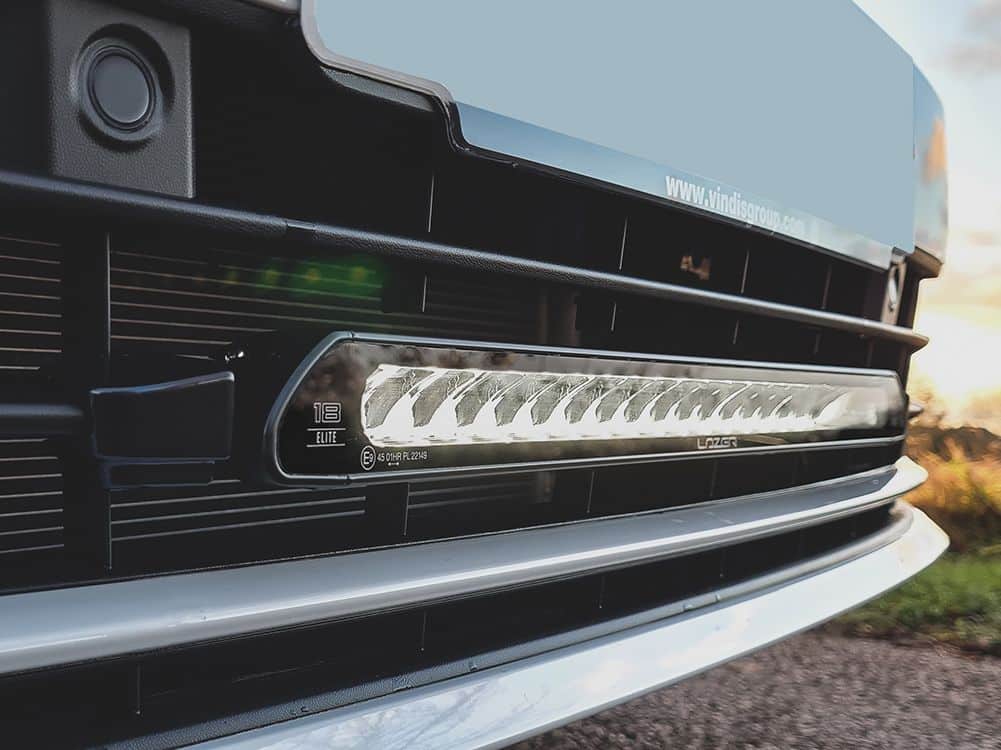

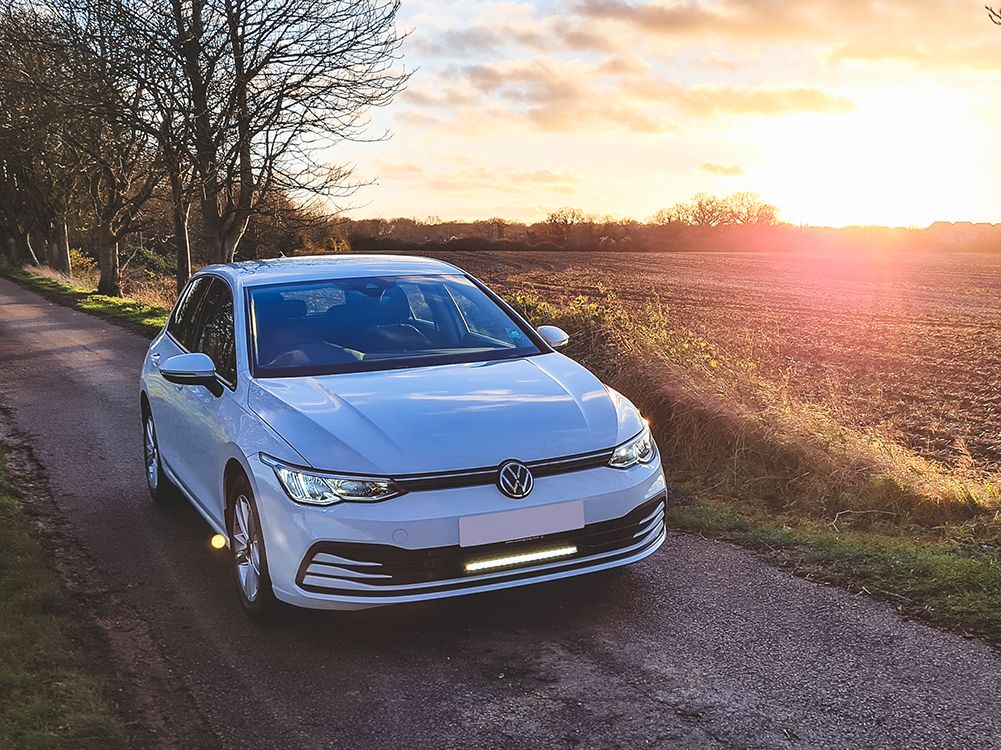

Σετ γρίλιας για VW Golf MK8 (2020+) με Glide 11500 Lumens Lazerlamps
SKU:
GK-VWG8-0G-01K
Category: Έτοιμες λύσεις
Description
Για μια εγκατάσταση βοηθητικής ράβδου φωτός ποιότητας OE, τα κιτ ενσωμάτωσης Lazer Grille περιλαμβάνουν ειδικά σχεδιασμένους βραχίονες στήριξης που διευκολύνουν τη γρήγορη και απρόσκοπτη τοποθέτηση των φωτιστικών ράβδων LED High Performance Lazer στις μπροστινές γρίλιες δημοφιλών αυτοκινήτων δρόμου, pick-up φορτηγών και ελαφρών επαγγελματικών οχημάτων. Κατασκευασμένη για να συμπληρώνει το αρχικό στυλ κάθε οχήματος, η ενσωματωμένη ρύθμιση είναι στιβαρή, ασφαλής και διαθέτει πρόσθετη αντικλεπτική προστασία.
Το κιτ ενσωμάτωσης γρίλιας VW Golf MK8 (2020-2024) διαθέτει την επιλογή σας Glide (Standard/Elite – με ή χωρίς Position Light) ή Linear-18 (Standard, Elite ή Elite i-LBA) High Performance LED lightbar, μαζί με κιτ καλωδίωσης και τέλεια προσαρμοσμένη στην κεντρική σχάρα κινητήρα του οχήματος. Για πρόσθετη ανθεκτικότητα και ενίσχυση, το κιτ περιλαμβάνει βίδες με αυτοκόλλητη (πλαστικές) βίδες για επιπλέον κράτημα.
Κατασκευασμένα από ένα στιβαρό σύνθετο υλικό που φημίζεται για την εξαιρετική του αντοχή και την αντοχή στην υπεριώδη ακτινοβολία, τα στηρίγματα έχουν σχεδιαστεί για να αντέχουν σε δύσκολες καιρικές συνθήκες και χημικά, εξασφαλίζοντας μακροχρόνια απόδοση. Επιπλέον, το κιτ συνοδεύεται από ακριβείς οδηγούς κοπής που απλοποιούν τη διαδικασία εγκατάστασης, προσφέροντας τέλεια εφαρμογή κάθε φορά—δεν χρειάζεται να αφαιρέσετε εξαρτήματα γρίλια ή προφυλακτήρα.
Το κιτ ενσωμάτωσης γρίλιας VW Golf MK8 (2020-2024) είναι προσεκτικά προσαρμοσμένο και βελτιστοποιημένο για απρόσκοπτη συμβατότητα με τις μπάρες φωτός Glide και Linear-18 LED. Η εγγύησή μας δεν καλύπτει τις βάσεις σχάρας που είναι εφοδιασμένες με επώνυμα προϊόντα που δεν είναι Lazer Lamps.

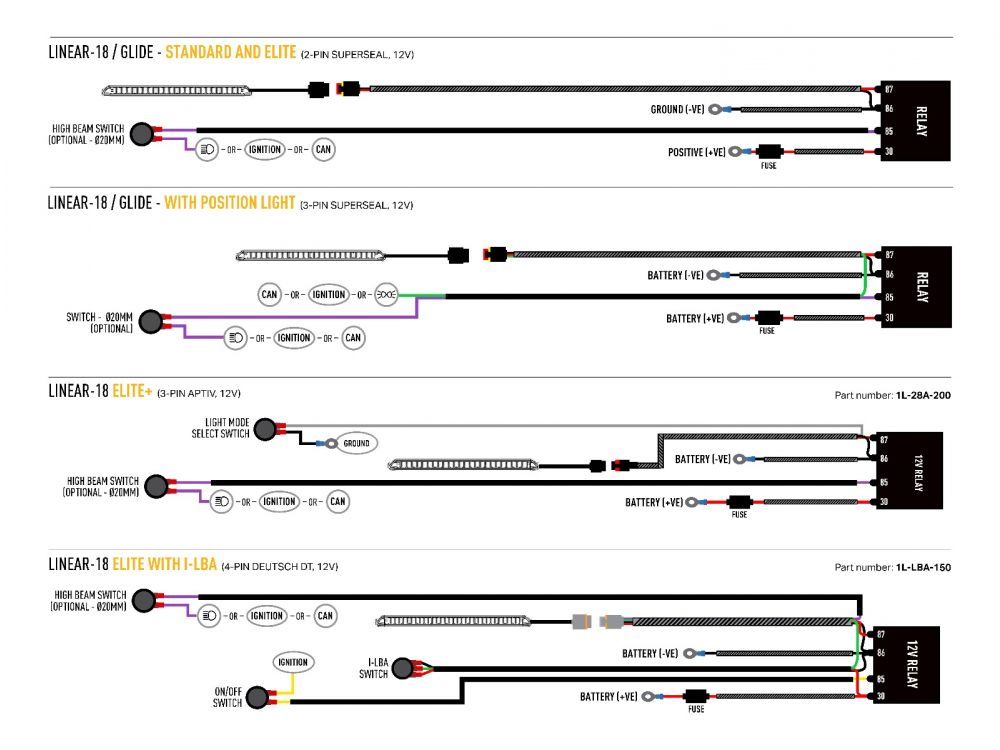

Όταν το όχημα διαθέτει προβολείς Xenon ή LED ως στάνταρ, ενδέχεται να μην είναι δυνατός ο εντοπισμός σήματος μεγάλης σκάλας 12 V. Σε αυτές τις περιπτώσεις θα χρειαστεί να ολοκληρώσετε την ηλεκτρική εγκατάσταση χρησιμοποιώντας μια Διασύνδεση CAN, με τη προτεινόμενη λύση μας να είναι μια Διασύνδεση CANNY.

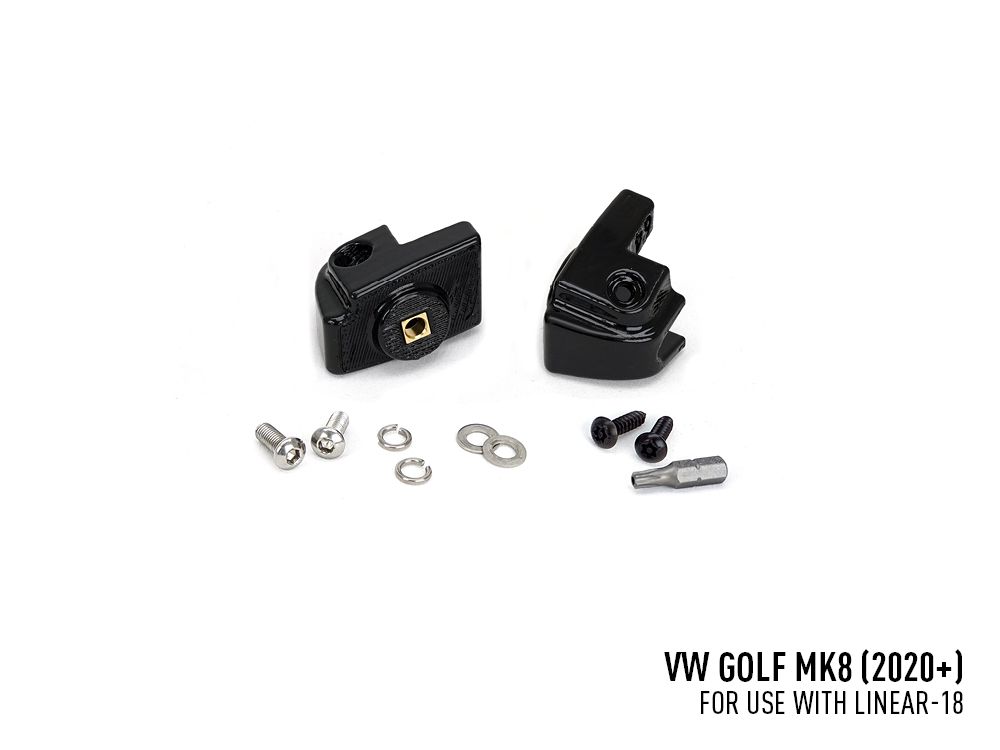

- Ειδικά στηρίγματα οχημάτων για απρόσκοπτη ενσωμάτωση
- Προσαρμοσμένη εφαρμογή για VW Golf MK8 (2020-2024)
- Συμβατό με Linear-18 / Glide LED Lightbars
- Το κιτ περιλαμβάνει επίσης ειδικούς βραχίονες στήριξης και κιτ καλωδίωσης
- Περιλαμβάνονται οδηγοί κοπής
- Στηρίγματα κατασκευασμένα από υψηλής αντοχής, σταθερό στην υπεριώδη ακτινοβολία, σύνθετο υλικό
- Πλήρως νόμιμο
- 5 χρόνια εγγύηση
- Κατασκευάζεται στη Βρετανία
Τεχνικές πληροφορίες
LINEAR-18 | GLIDE (BOOST) | LINEAR-18 ELITE | GLIDE ELITE (BOOST) | LINEAR-18 ELITE I-LBA (BOOST) | |
---|---|---|---|---|---|
Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs | 50,000 hrs |
Weight | 1.1 kg | 0.68 kg | 1.1 kg | 0.68 kg | 1.1 kg |
HIGH BEAM FUNCTION | |||||
Total Luminous Flux | 6,750 Lm | 11,500 Lm | 13,500 Lm | 12,800 Lm | 18,000 Lm |
Total Driver ‘FOV’ Flux † | 4,806 Lm | 6,958 Lm | 9,612 Lm | 8,012 Lm | 12,816 Lm |
Colour Temperature | 5000K | 5000K | 5000K | 5000K | 5000K |
Power Consumption | 63 Watts | 120 Watts | 130 Watts | 130 Watts | 135 Watts |
Current Draw (14.4V) | 4.4 Amps | 8.3 Amps | 9 Amps | 9.2 Amps | 15 Amps |
Connector | 2-Pin Superseal (+25cm Cable) | 2-Pin/3-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) | 2-Pin/3-Pin Superseal (+25cm Cable) | 4-Pin Deutsch DT (+25cm Cable) |
CERTIFICATION | |||||
IP Rating # | IP68 | IP68 | IP68 | IP68 | IP68 |
High Beam (E9 approval) | ECE R112 (Ref: 30) | ECE R149 (Ref: 12.5*) | ECE R112 (Ref: 2x 25) | ECE R149 (Ref: 12.5*) | ECE R112 (Ref: 17.5*) |
EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |
PHOTOMETRIC DATA | |||||
Horizontal/Vertical Beam Angle | 56° / 13° | 60° / 13° | 64° / 15° | 66° / 14° | 60° / 20° |
0.25 lux | 855m | 1095m | 1023m | 1249m | 1,043m |
0.5 lux | 605m | 775m | 723m | 883m | 738m |
1 lux | 428m | 548m | 511m | 624m | 522m |
3 lux | 247m | 316m | 295m | 361m | 301m |
* – The lamp is compliant with UNECE regulations only when operating in low-output mode.
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
Βίντεο
Τι περιλαμβάνεται
- 1 Κιτ τοποθέτησης γρίλιας (Περιλαμβάνει οδηγούς κοπής)
- 1 Μπάρα Led Linear-18 ή Glide

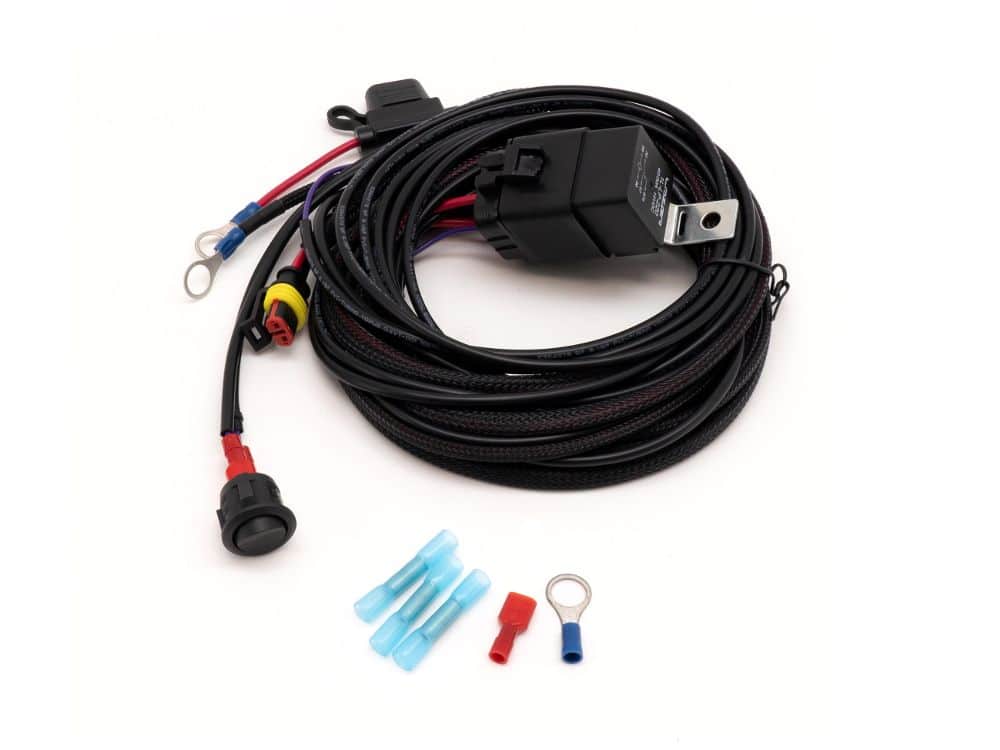

- Καλωδίωση
- Οδηγίες Εγκατάστασης
