For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

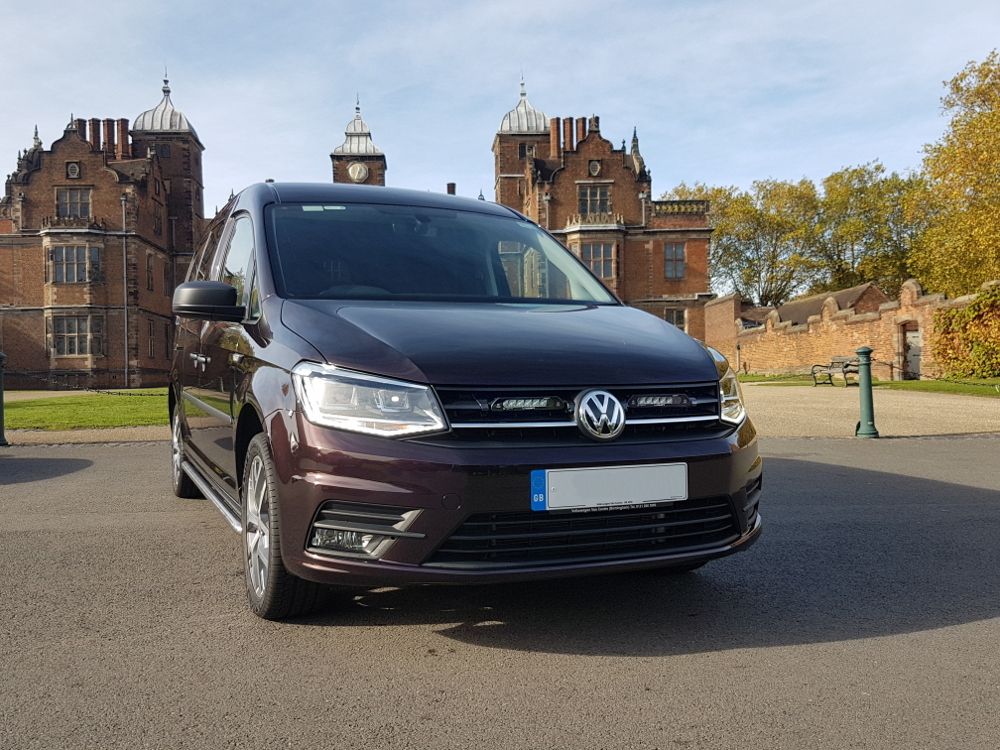

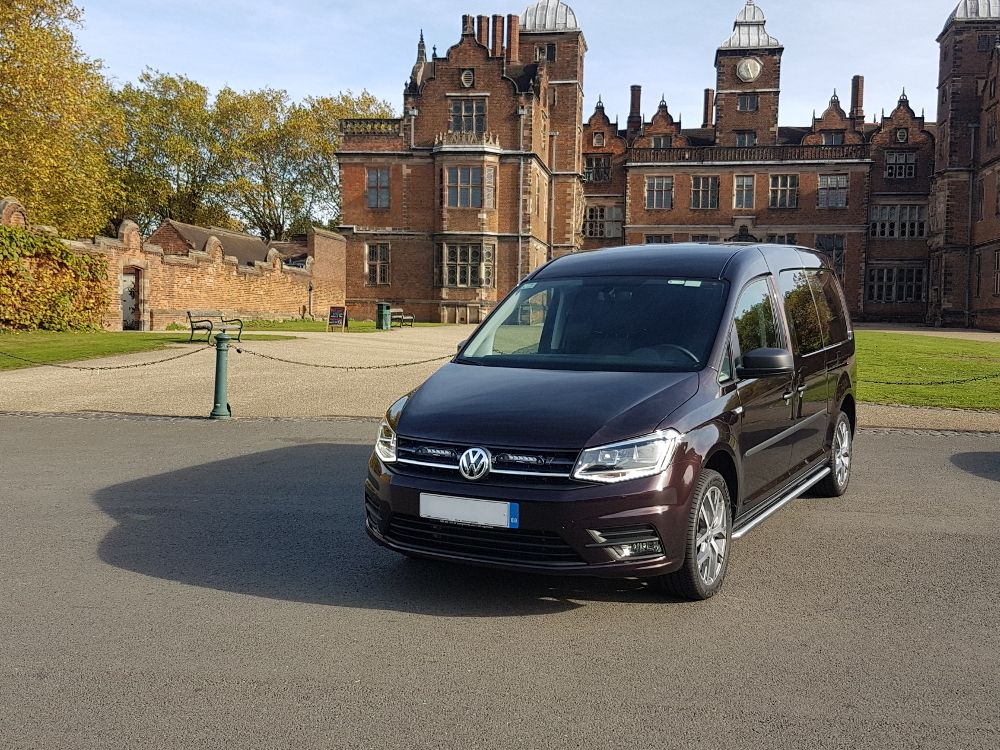

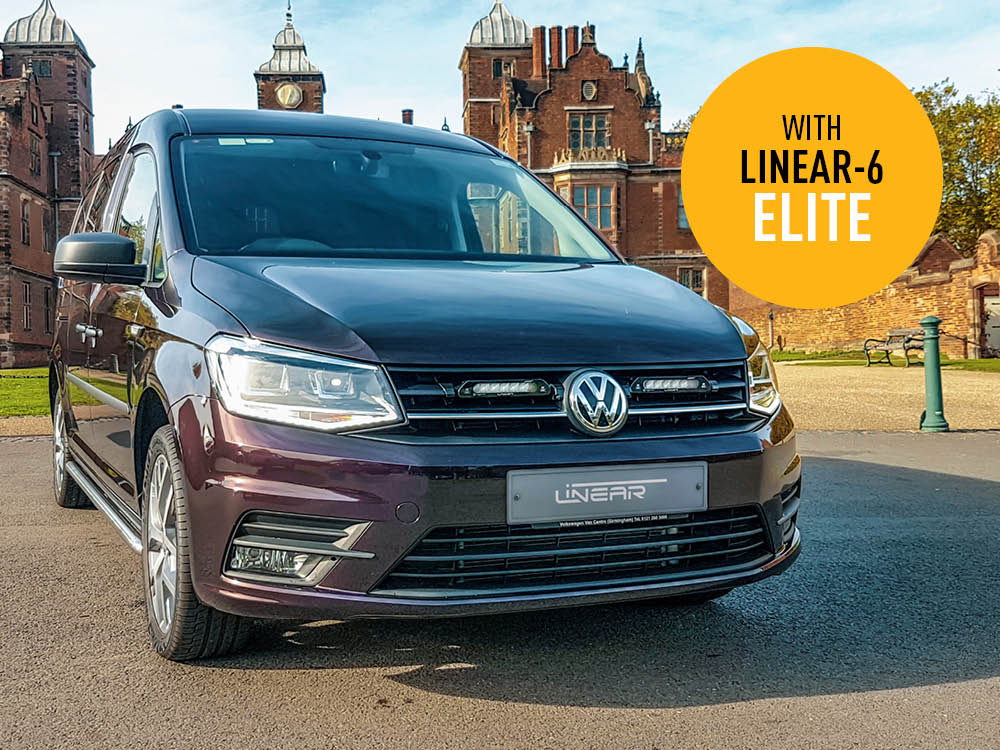

The VW Caddy kit, designed for MY15 vehicles onwards, includes a pair of Linear-6 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

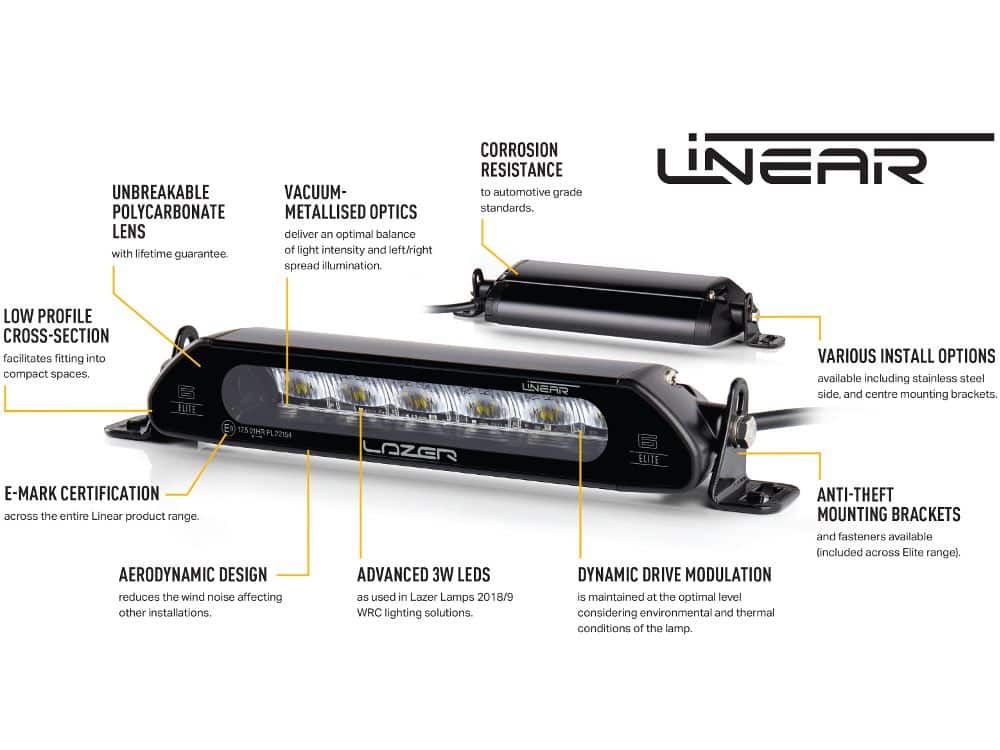

The Lazer Grille Integration Kit for the VW Caddy is optimised for use with Linear-6 High Performance LED Spotlights.
Key Features
Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for VW Caddy (2015+)
Designed for use with Linear-6 High Performance LED Spotlights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain
Technical Information
Based on Elite setup i.e. x2 Linear-6 Elite High Performance LED Lamps:
Voltage Range | 9-32V |
LED Life | 50,000 hours |
Weight | 1 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 8100 Lm |
Colour Temperature | 5000k |
Number of High Output LEDs | 2 x 6 |
Power Consumption | 84 Watts |
Current Draw (at 14.4V) | 5.8 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
E-Mark Ref | 17.5 x2 |

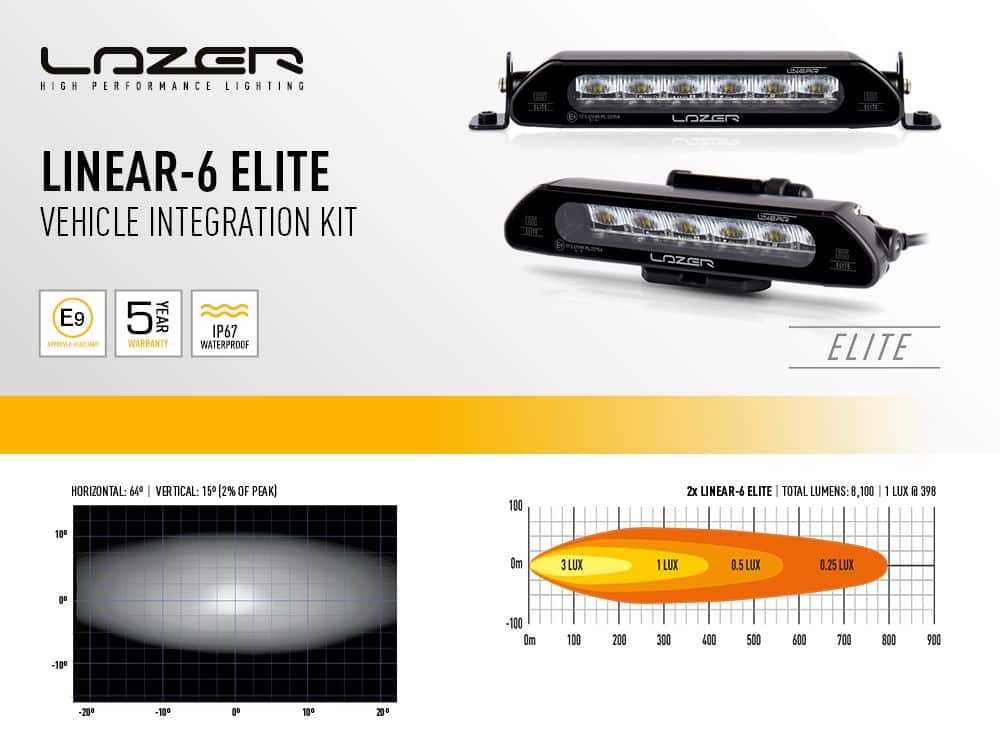

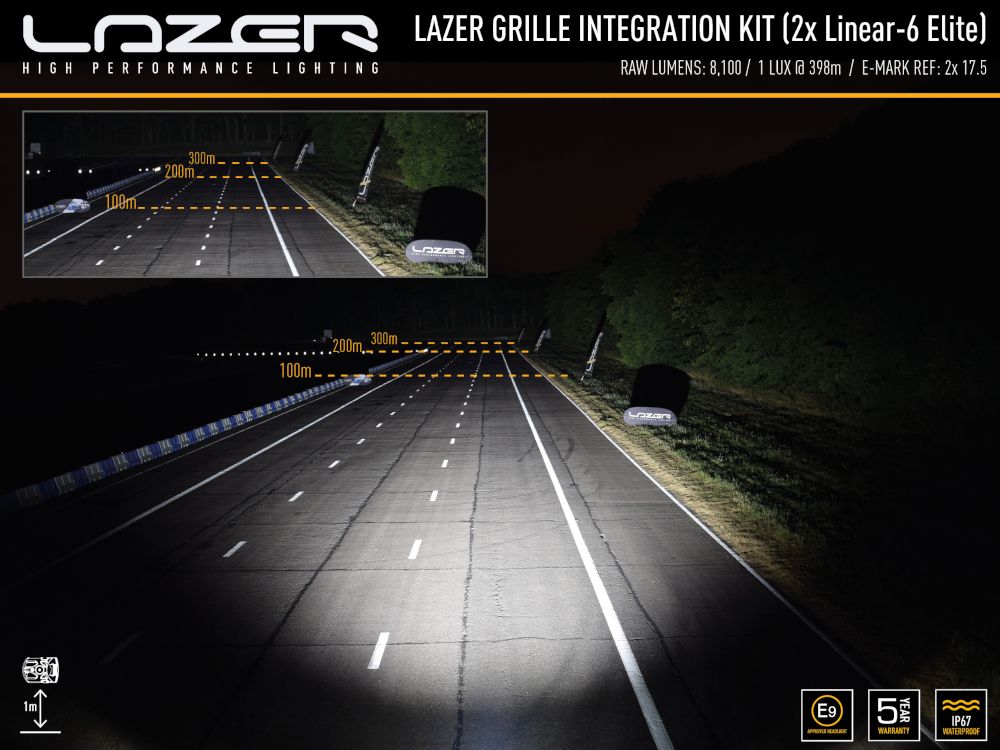

PHOTOMETRIC DATA | |
Horizontal Beam Angle | 42 Degrees |
0.25 lx Line | 796 metres |
0.5 lx Line | 563 metres |
1 lx Line | 398 metres |
3 lx Line | 230 metres |
What’s included
With Linear-6 Std (GK-VWCA-02K)
– x2 Linear-6 High Performance LED Spotlights (0L06-LNR)

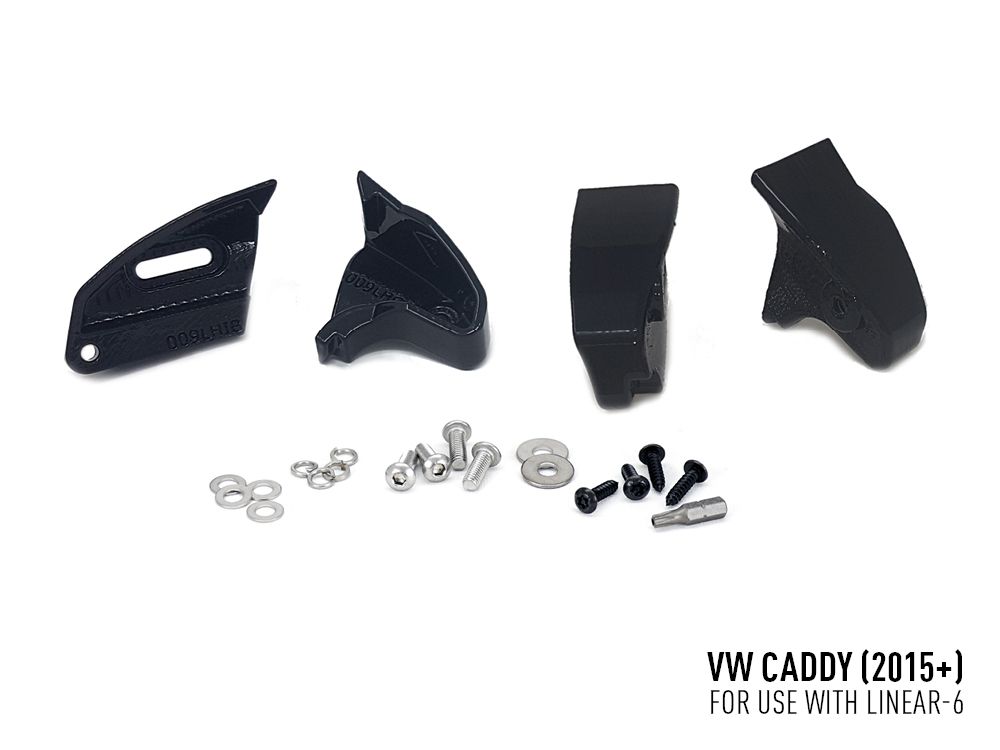

– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-VWCA-02K)
– x1 Cutting Guide (comprising 4x Brackets)

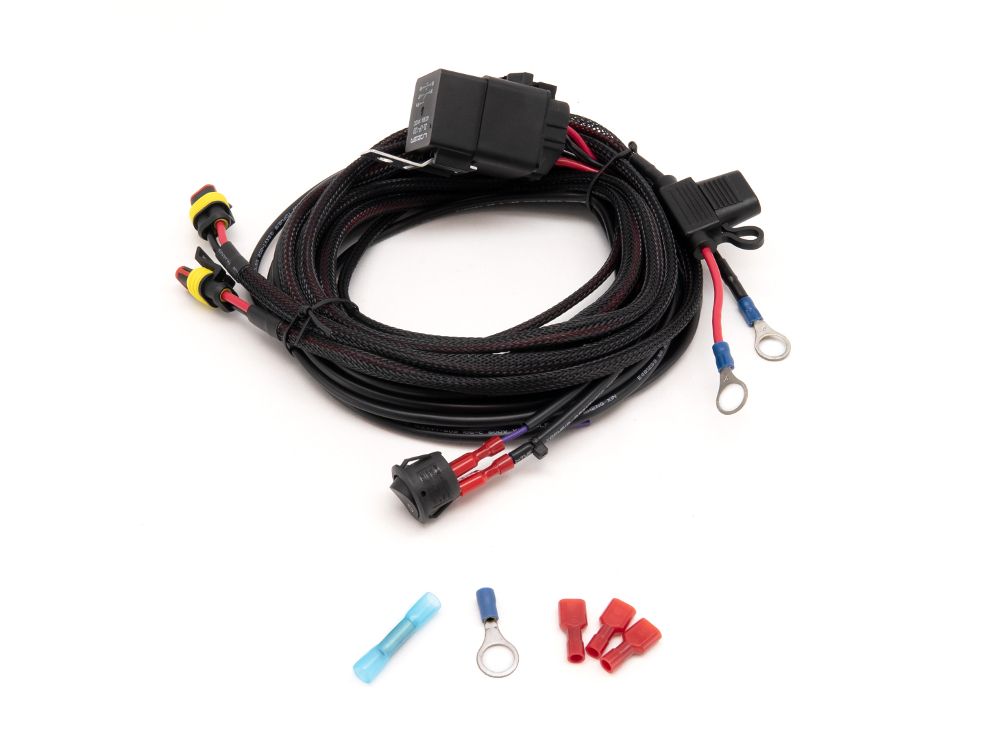

– x1 Two-Lamp Wiring Kit (8232-12V-SP)
– x1 Installation instructions
