Name: Grille Mount Kit for VW Amarok (2023+) with Triple-R 750 Elite 10136 Lumens
Brand: Lazerlamps
SKU: GK-VWA-ELITE-03K
Availability: PreOrder

Description

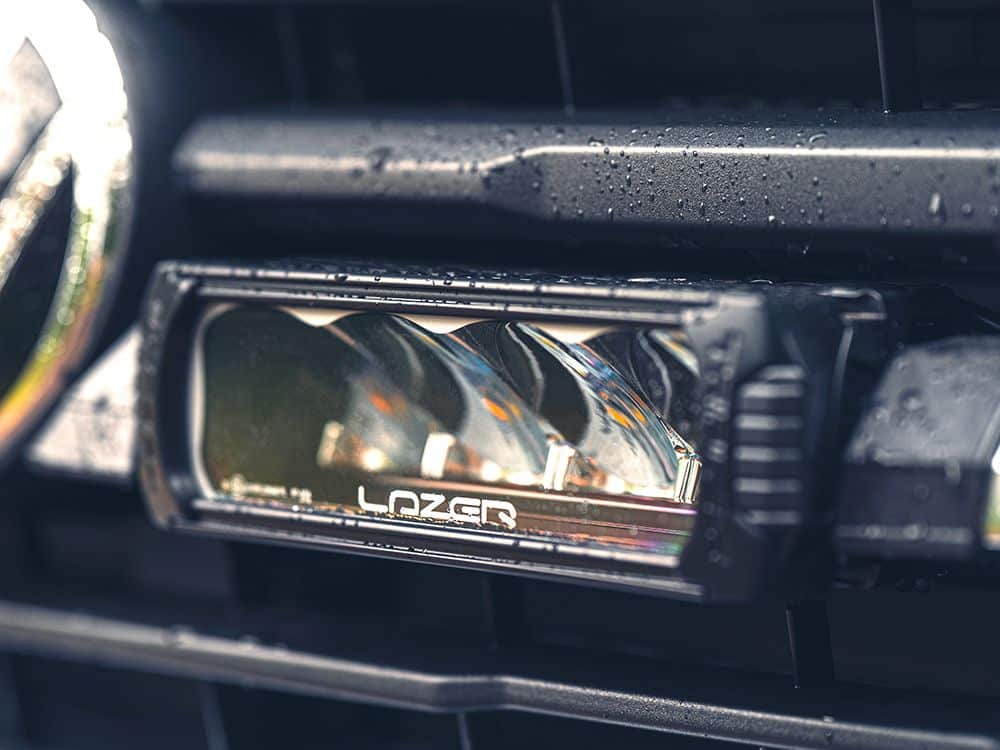

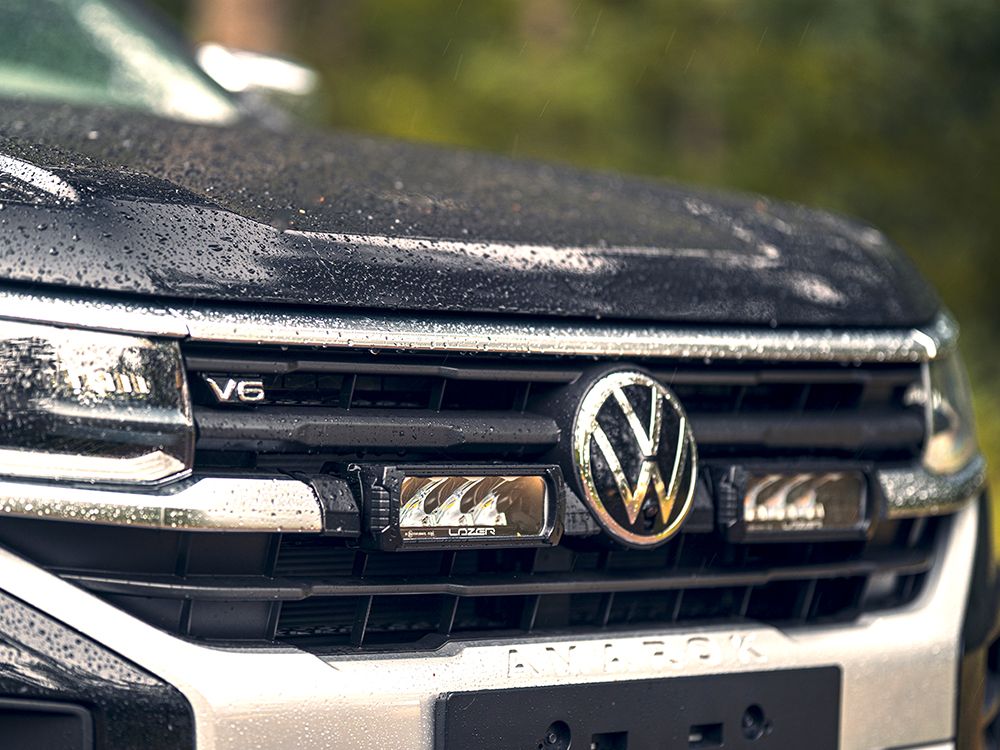

For an OE quality, auxiliary LED light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

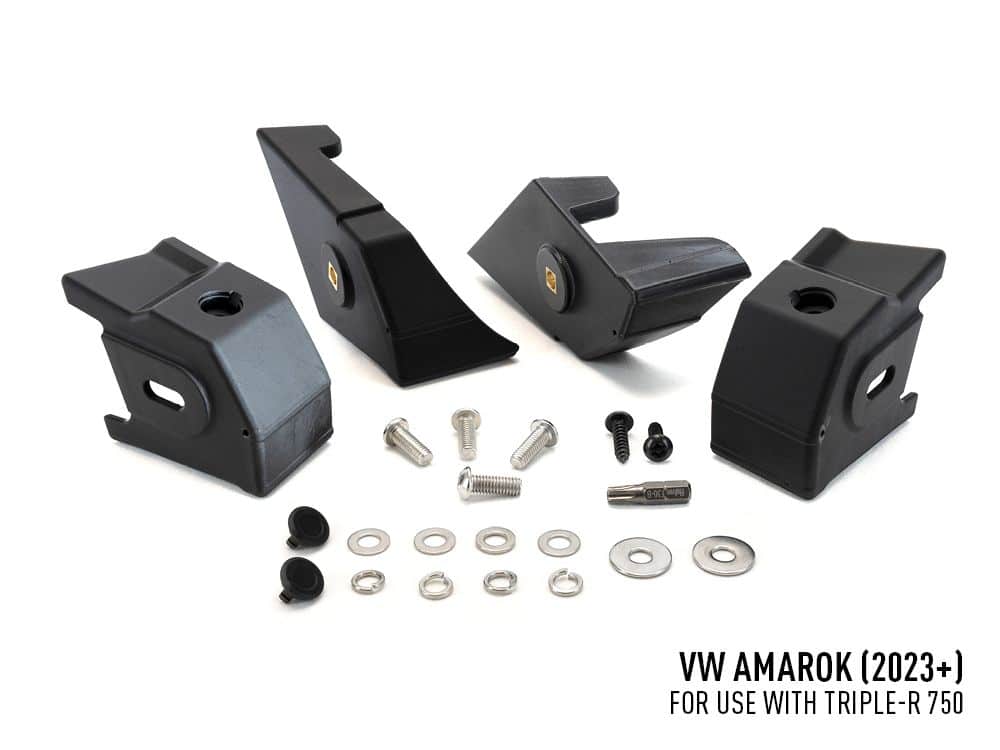

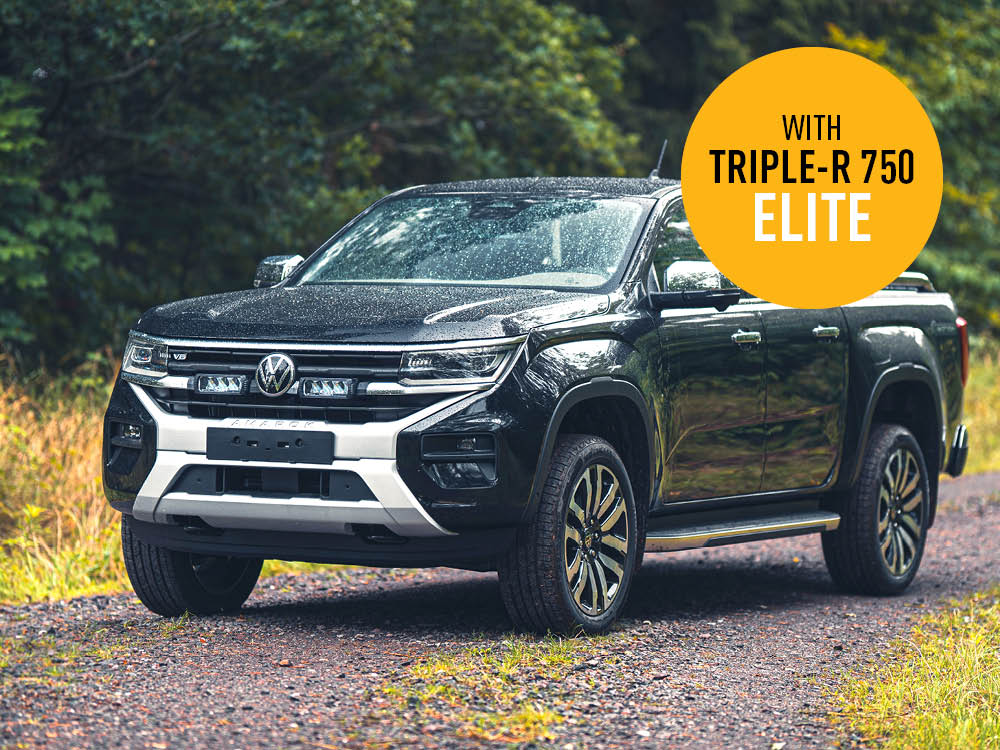

The VW Amarok kit, designed for MY23 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

The VW Amarok (2023+) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

Bespoke vehicle integration kit for Lazer LED light installation
Custom fit for VW Amarok (2023+)
Available with: Triple-R 750 High Performance LED lights

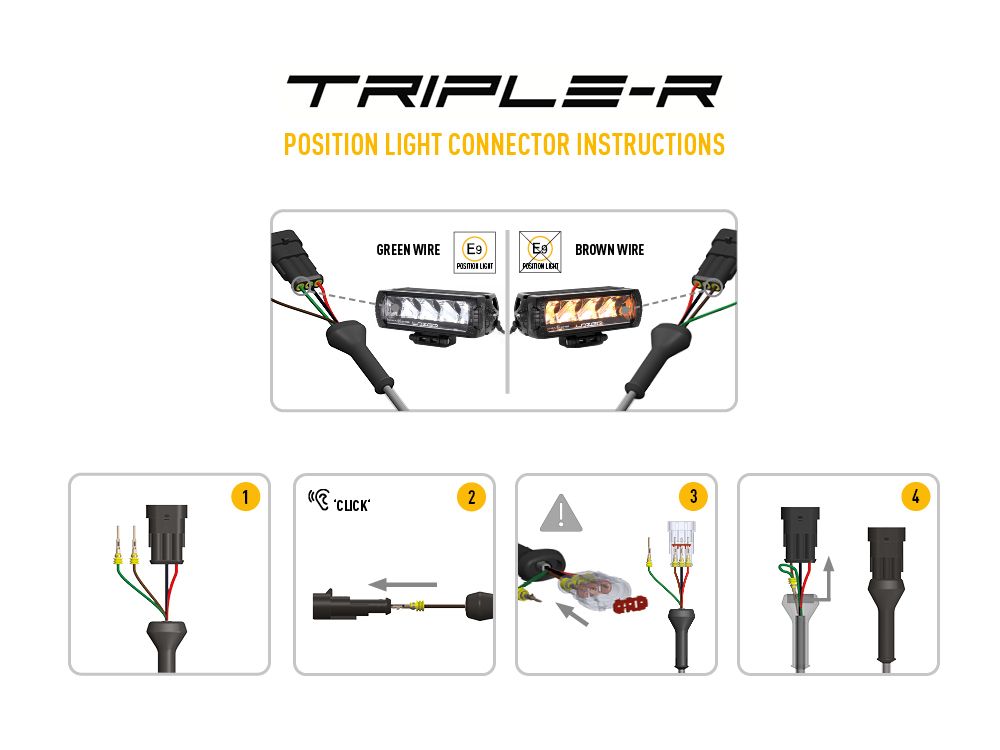

Added option for white or amber position/side light function (Standard model only)
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, composite material
Fully road-legal
5-year warranty
Made in Britain

Technical Specifications

	2x Triple-R 750 Elite (E-Boost Mode)	2x Triple-R 750
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs
Weight	2 kg	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	10136 Lm	9240 Lm
Total Driver ‘FOV’ Flux †	6680 Lm	5572 Lm
Colour Temperature	5000K	5000K
Number of High Output LEDs	2 x 4	2 x 4
Power Consumption	104 Watts	88 Watts
Current Draw (at 14.4V)	7.2 Amps	6.2 Amps
CERTIFICATION
High Beam	ECE R112	ECE R112
ECE Reference	N/A (12.5 x2 – E-Mark Mode)	35 x2
Position Light (White only)	N/A	ECE R7

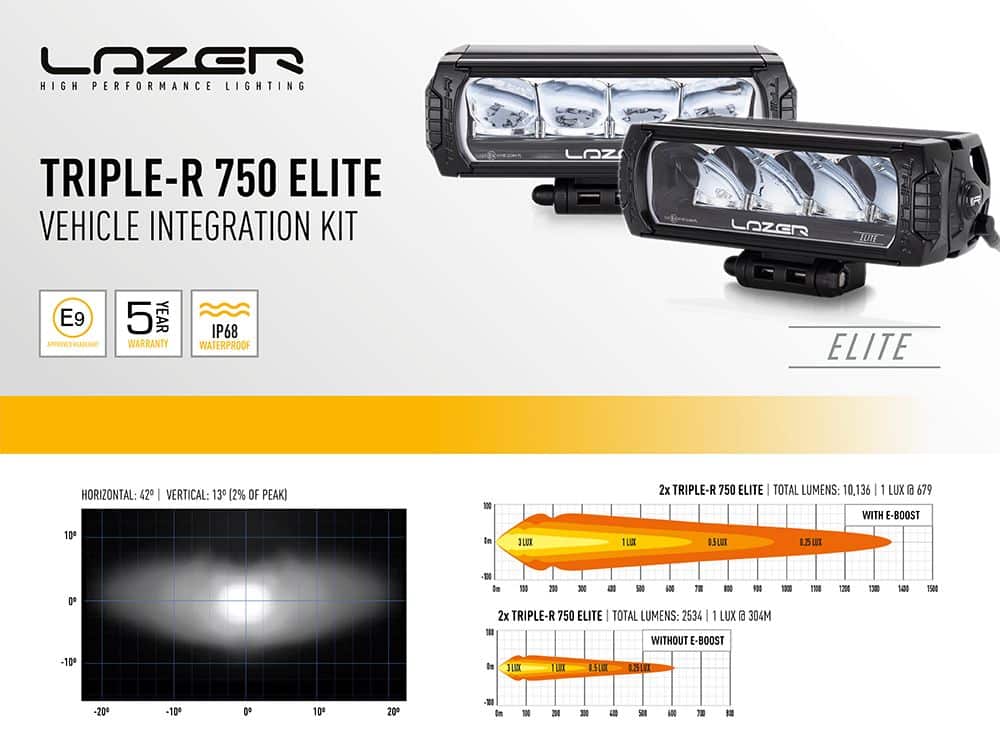

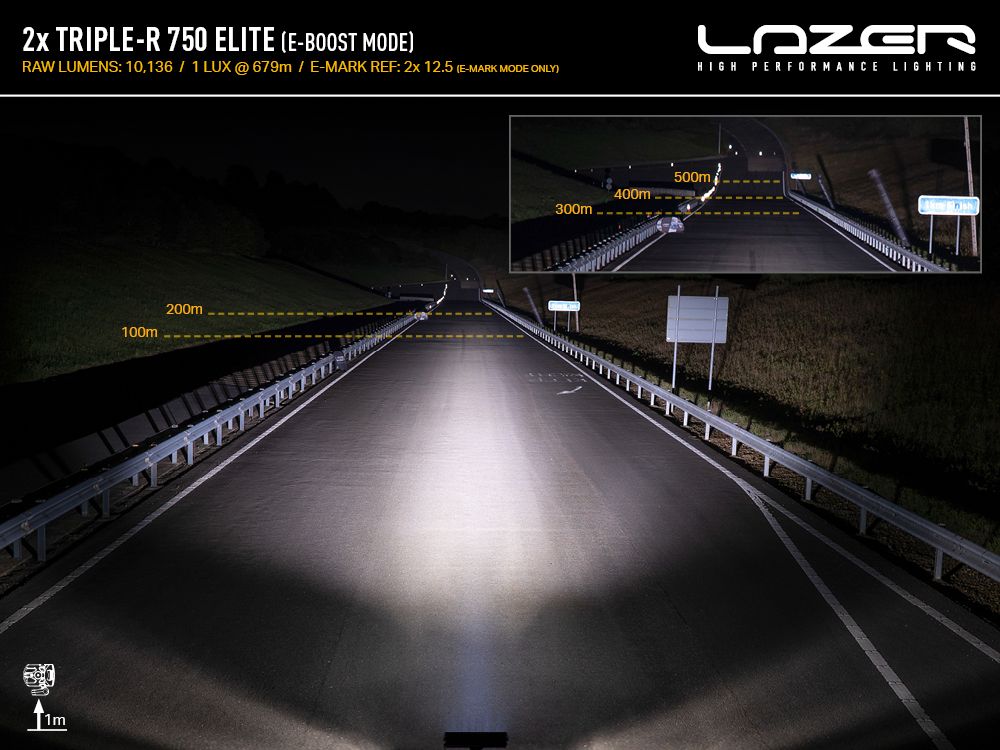

PHOTOMETRIC DATA
Horizontal Beam Angle	42°	19°
0.25 lx Line	1358m	1225m
0.5 lx Line	960m	866m
1 lx Line	679m	612m
3 lx Line	392m	354m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.

What’s Included
1x Grille Mounting Kit (Includes cutting guides) 2x Triple-R 750 LED Lamps 1x Two-Lamp Wiring Kit Installation Instructions

Additional information

Weight	3,00000 kg

About Lazerlamps

See more... Go Safer... Go faster!

LAZERLAMPS

Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.

SHOP NOW

Triple-R Series

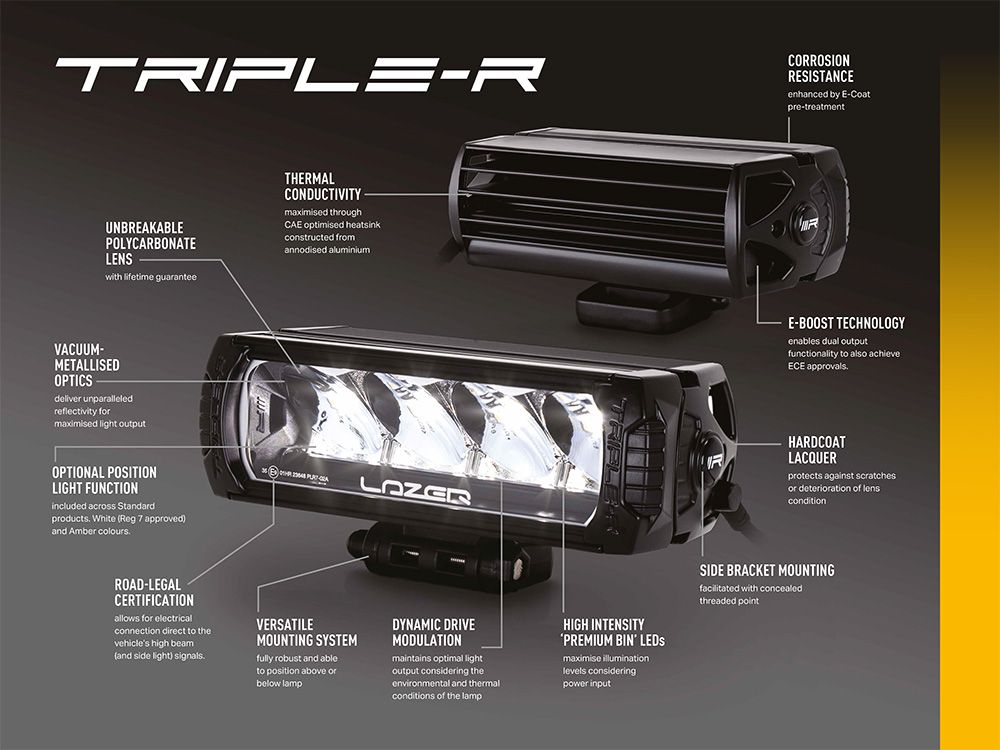

The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.
