Name: Grille kit for Mercedes Vito (2020+) - ST4 8272 Lumens
Brand: Lazerlamps
SKU: GK-VITO-02K
Availability: PreOrder

Description

For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

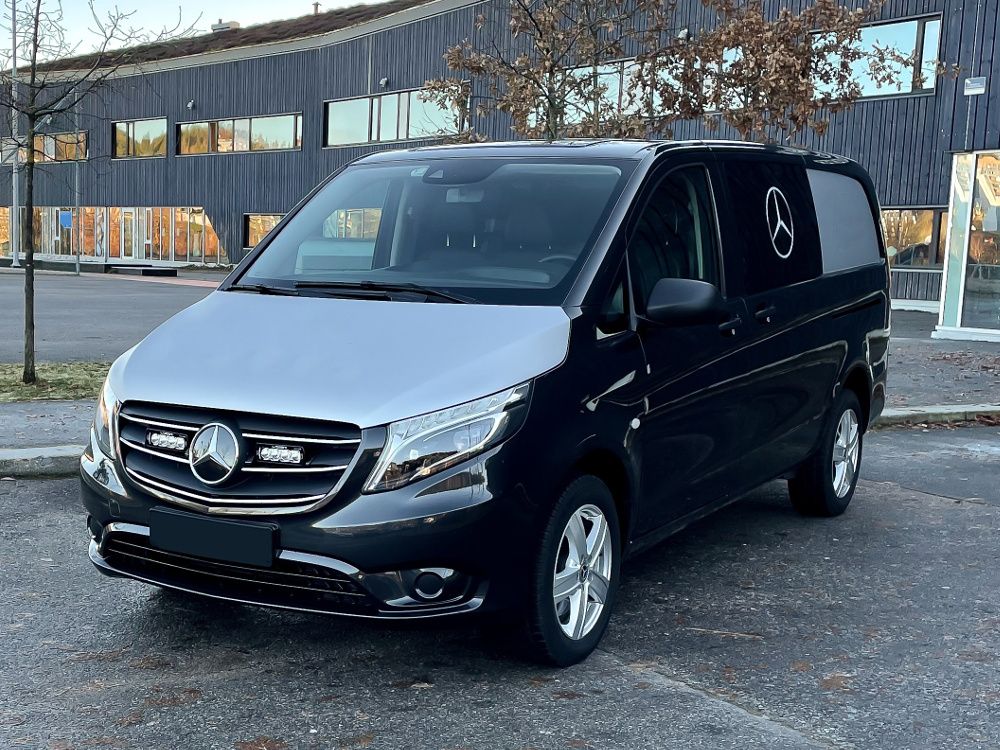

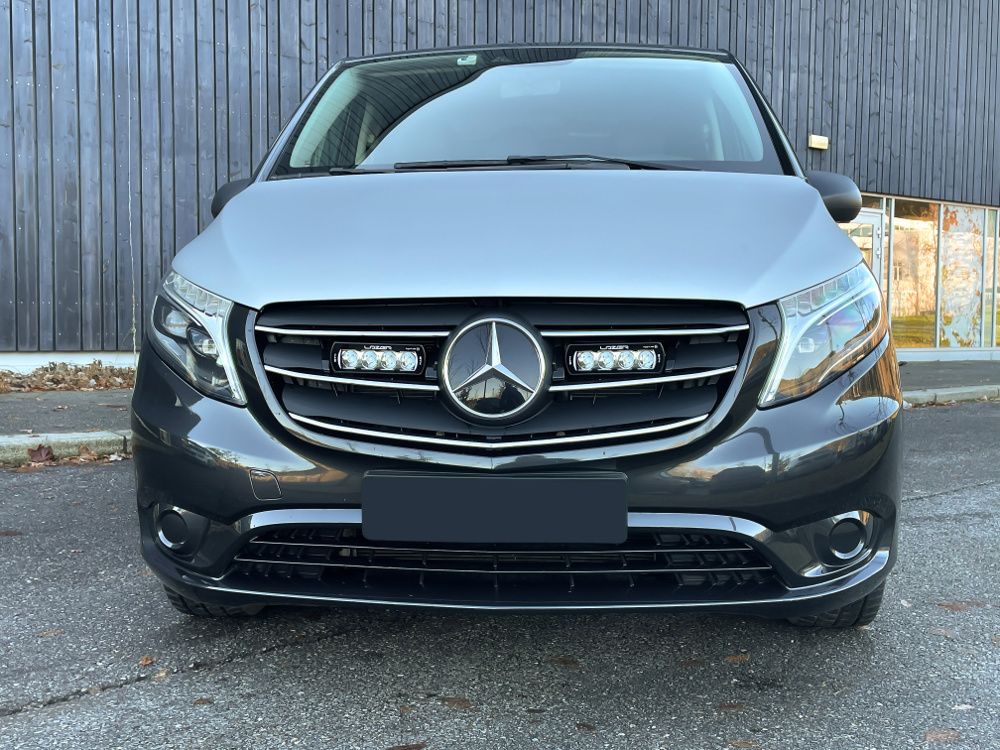

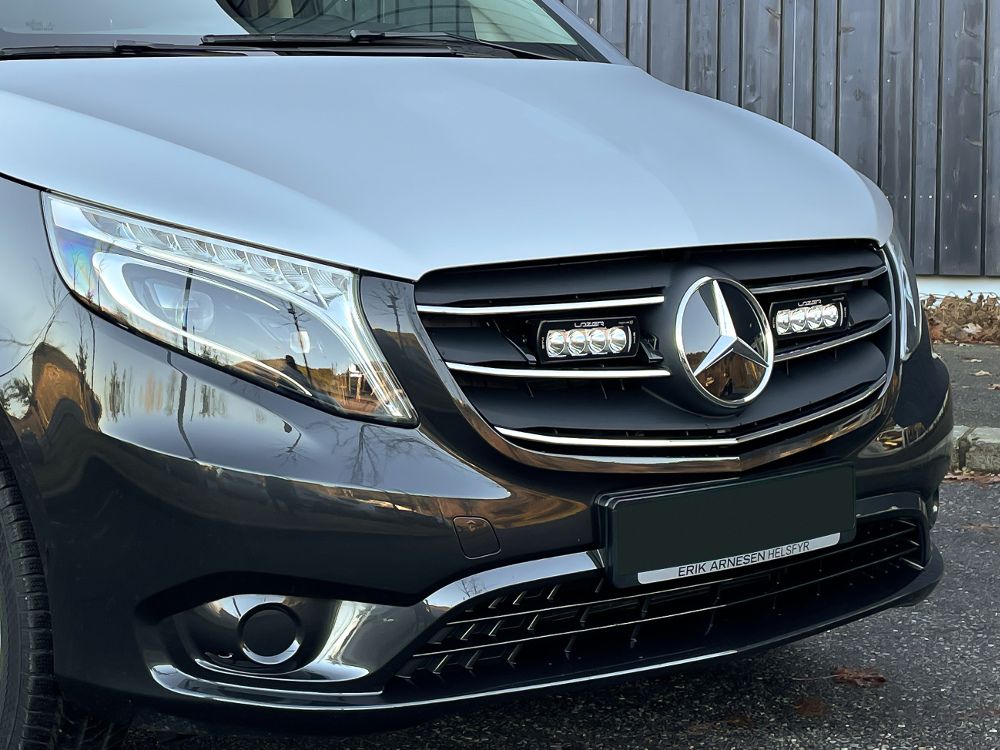

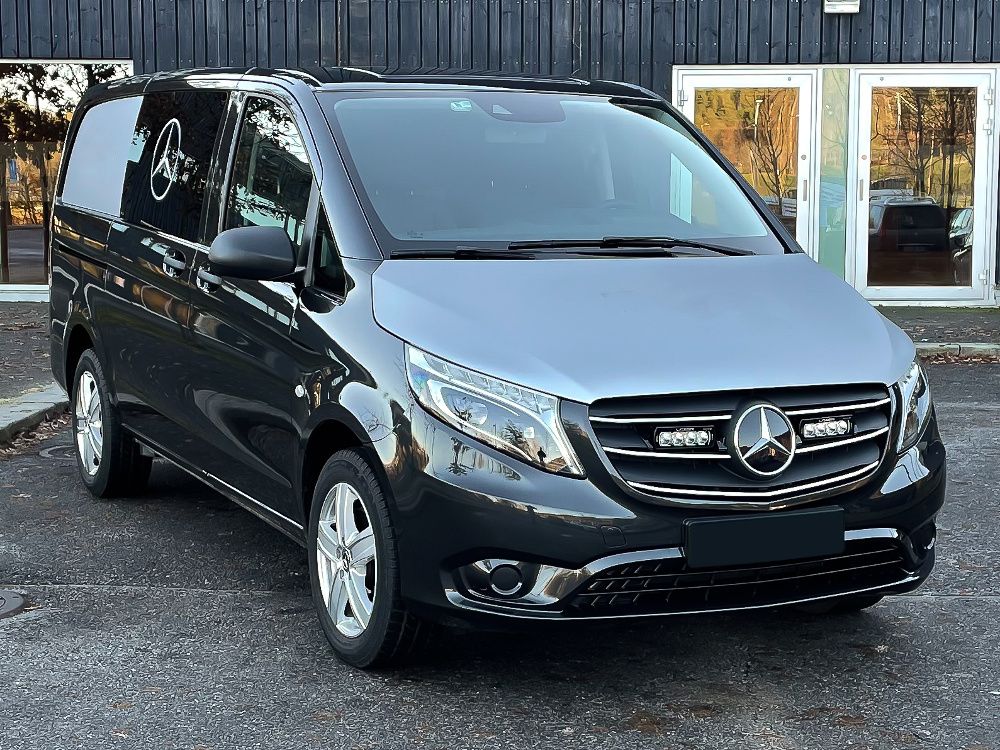

The Mercedes Vito kit, for model year 2020+ vehicles, includes a pair of ST4 Evolution lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied anti-theft self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.

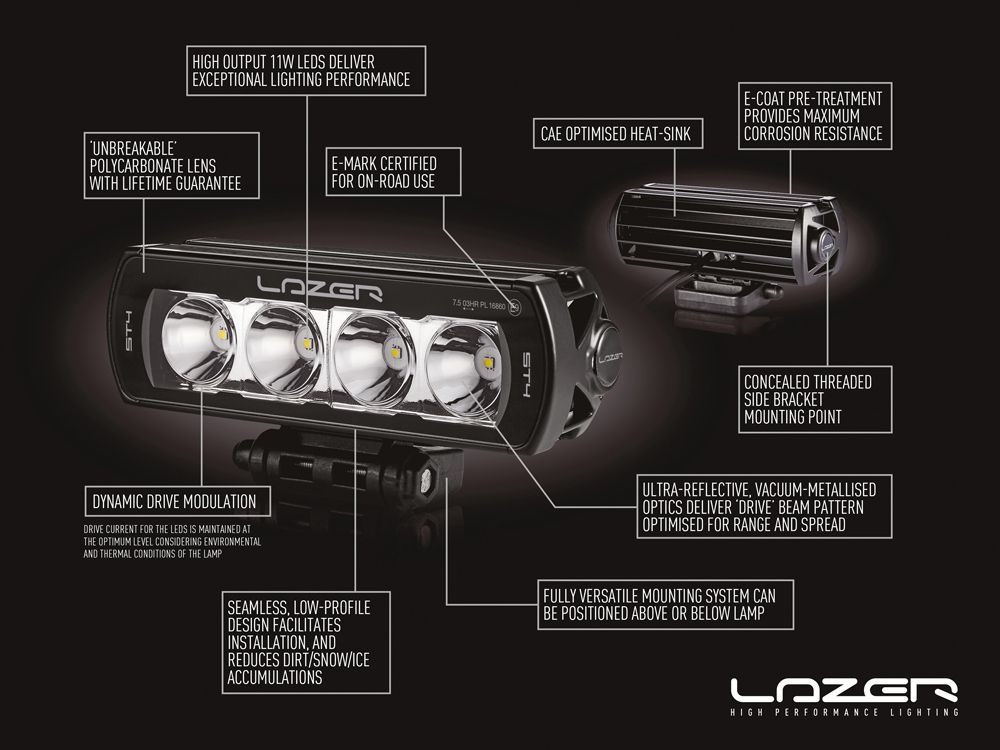

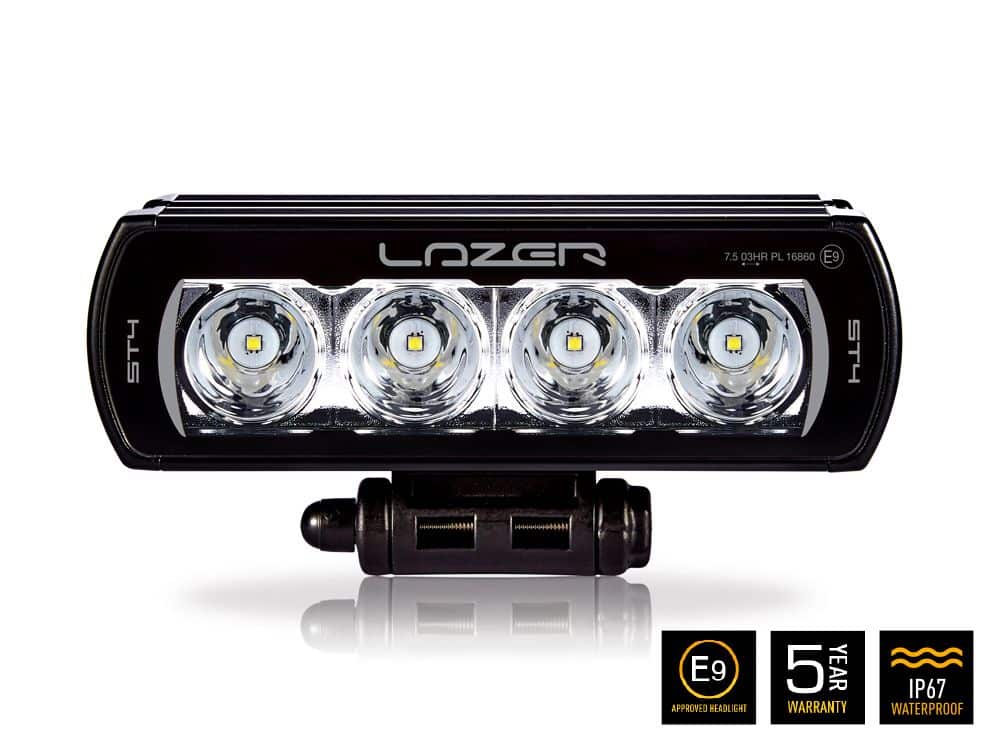

Custom-fit for Lazer ST4 Evolution auxiliary high beam driving lights
Suitable for Mercedes Vito (2020+)

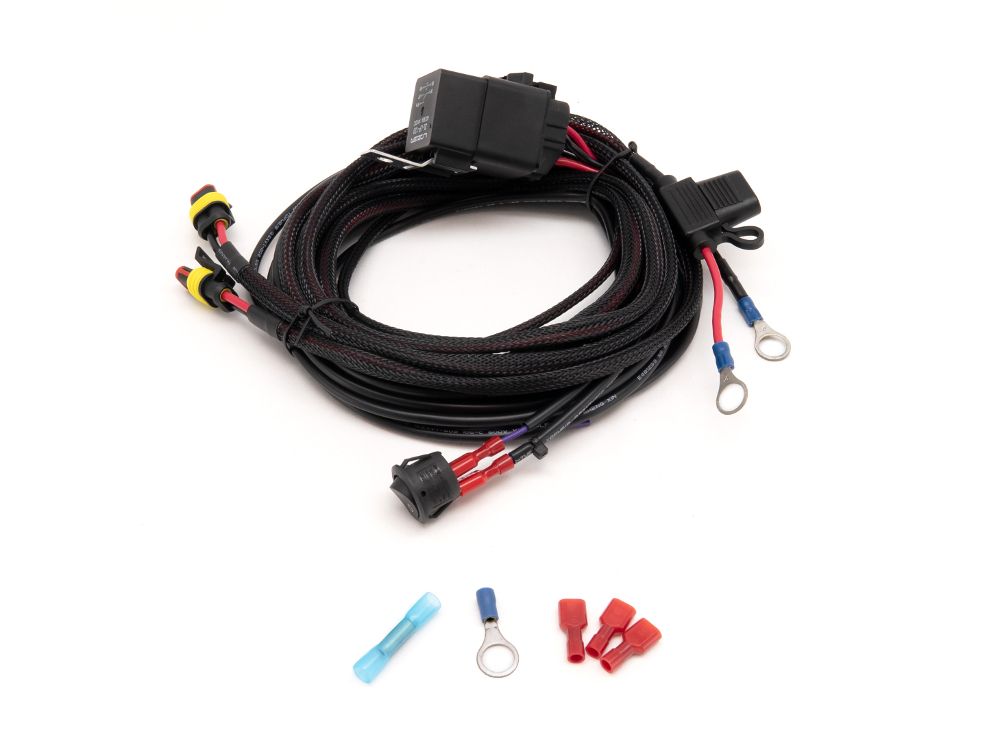

Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Includes anti-theft fasteners
Fully road-legal
5-year warranty
Made in Britain

Technical information

Based on standard setup i.e. x2 ST4 Evolution Lazer High Performance LED Lamps:

E-Mark Ref	10 x2
Voltage Range	10-32V
LED Life	50,000 hours
Weight	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	8272 Lm
Number of High Output LEDs	2 x 4
Power Consumption	94 Watts
Current Draw (at 14.4V)	6.6 Amps
CERTIFICATION
High Beam	ECE R112

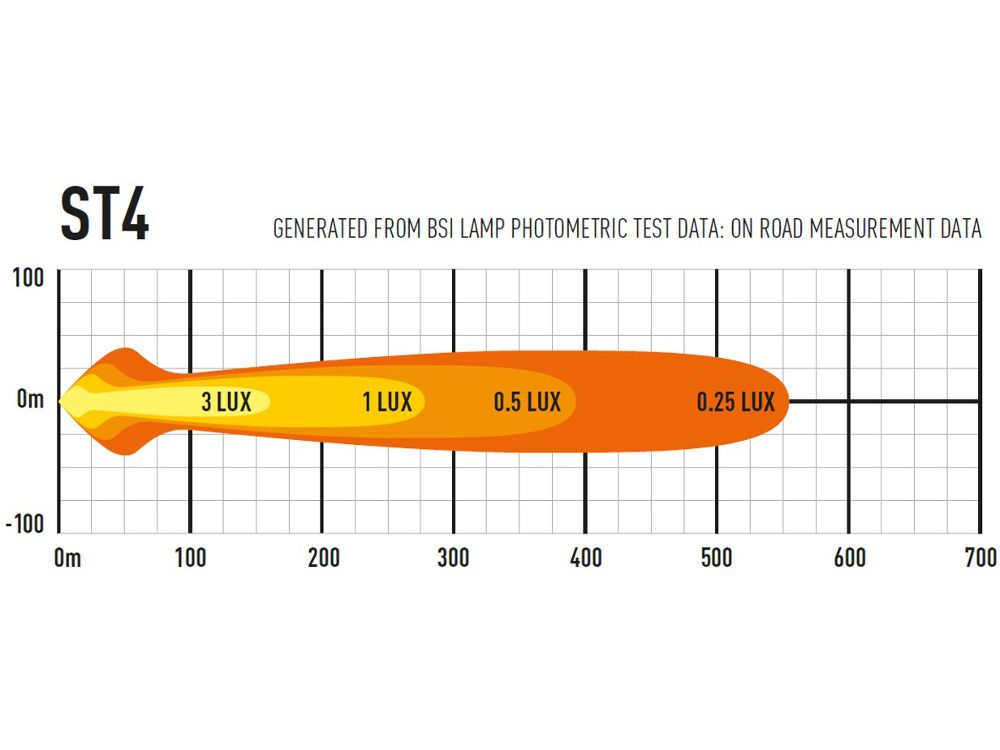

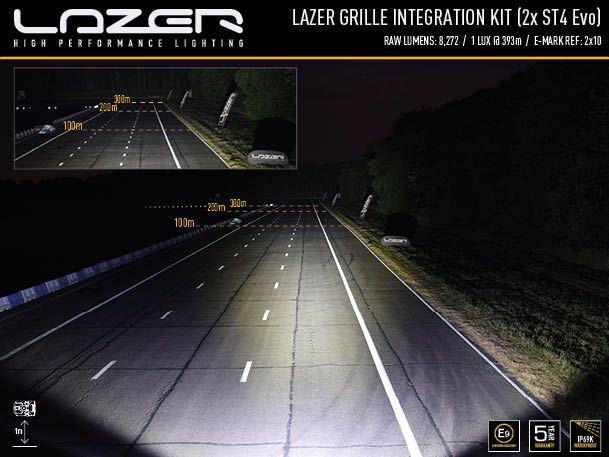

PHOTOMETRIC DATA
Horizontal Beam Angle	28 Degrees
0.25 lx Line	786 metres
0.5 lx Line	555 metres
1 lx Line	393 metres
3 lx Line	227 metres

Additional information

Weight	3,00000 kg
