Description

Για μια εξαιρετικά ποιοτική OE βοηθητική εγκατάσταση προβολέων, τα Lazer Grille Integration Kits είναι προσαρμοσμένα στηρίγματα στήριξης που επιτρέπουν τη γρήγορη και εύκολη τοποθέτηση των προβολέων LED υψηλής απόδοσης Lazer μέσα στην μπροστινή μάσκα των πιο δημοφιλών οδικών αυτοκινήτων, pick-up και ελαφρά επαγγελματικά οχήματα. Σχεδιασμένο για να συνδυάζεται άψογα με το αρχικό στυλ κάθε οχήματος, η προκύπτουσα διάταξη φωτισμού παραμένει πλήρως στιβαρή και ασφαλής.

Το κιτ ενσωμάτωσης VW T7 (2022+) περιλαμβάνει ένα ζευγάρι φώτα οδήγησης LED High Performance Linear-6 (Standard ή Elite), συν κιτ καλωδίωσης, μαζί με 4 βραχίονες που έχουν σχεδιαστεί με ακρίβεια για τέλεια σύνδεση με την τυπική κεντρική γρίλια του οχήματος, με πρόσθετη αντοχή και ασφάλεια που παρέχεται από τις παρεχόμενες αντικλεπτικές βίδες με αυτοκόλλητο. Κατασκευασμένο από σύνθετο υλικό υψηλής αντοχής, γνωστό ότι είναι εξαιρετικά στιβαρό και σταθερό στην υπεριώδη ακτινοβολία. Οι βραχίονες είναι πλήρως ανθεκτικοί στις καιρικές συνθήκες και στα χημικά για να διασφαλίσουν ότι η εγκατάστασή σας παραμένει σε άριστη κατάσταση χρόνο με το χρόνο.

Τα κιτ ενσωμάτωσης γρίλιας VW T7 είναι βελτιστοποιημένα για χρήση με προβολείς LED υψηλής απόδοσης Linear-6. Η εγγύησή μας δεν καλύπτει τις βάσεις σχάρας που είναι εφοδιασμένες με επώνυμα προϊόντα της Lazer Lamps.

Όταν το όχημα διαθέτει προβολείς Xenon ή LED ως στάνταρ, ενδέχεται να μην είναι δυνατή η ανίχνευση σήματος υψηλής φωτεινότητας 12V.

  • Ειδικό κιτ βραχίονα στήριξης για εγκατάσταση Spotlight LED Lazer
  • Προσαρμοσμένη εφαρμογή για VW T7 (2022+)
  • Βελτιστοποιημένο για χρήση με Linear-6 LED Spotlights

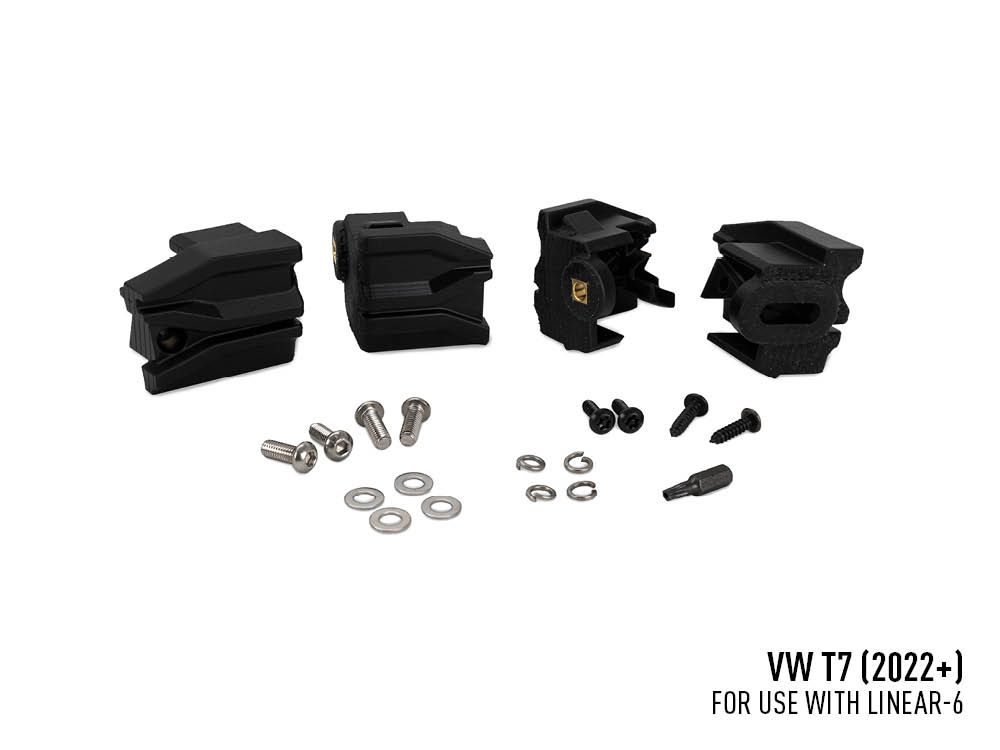

  • Τα κιτ περιλαμβάνουν: 4 μπρακέτα, οδηγούς κοπής και συνδέσμους
  • Κατασκευασμένο από υψηλής αντοχής, σταθερό στην υπεριώδη ακτινοβολία, σύνθετο υλικό
  • 5 χρόνια εγγύηση
  • Κατασκευάζεται στη Βρετανία

Βίντεο

Τεχνικές πληροφορίες

Technical Specifications
 2x LINEAR-62x LINEAR-6
ELITE

Voltage Range (DC)10-32V10-32V
LED Life50,000 hours50,000 hours
Weight0.99 kg0.99 kg

HIGH BEAM FUNCTION
Total Luminous Flux4500 Lm8100 Lm
Total Driver ‘FOV’ Flux †3204 Lm5767 Lm
Colour Temperature5000K5000K
Power Consumption42 W84 W
Current Draw (14.4V)2.92 A5.8 A
Connector2-Pin Superseal
(+25cm Cable)
2-Pin Superseal
(+25cm Cable)

CERTIFICATION
IP Rating #IP68IP68
High Beam (e9 approval)ECE R112 – Ref: 2x 12.5ECE R112 – Ref: 2x 17.5
EMC CertificationECE R10ECE R10
Salt Spray TestISO 9227ISO 9227
Dump Load ProtectionISO 7637-2ISO 7637-2

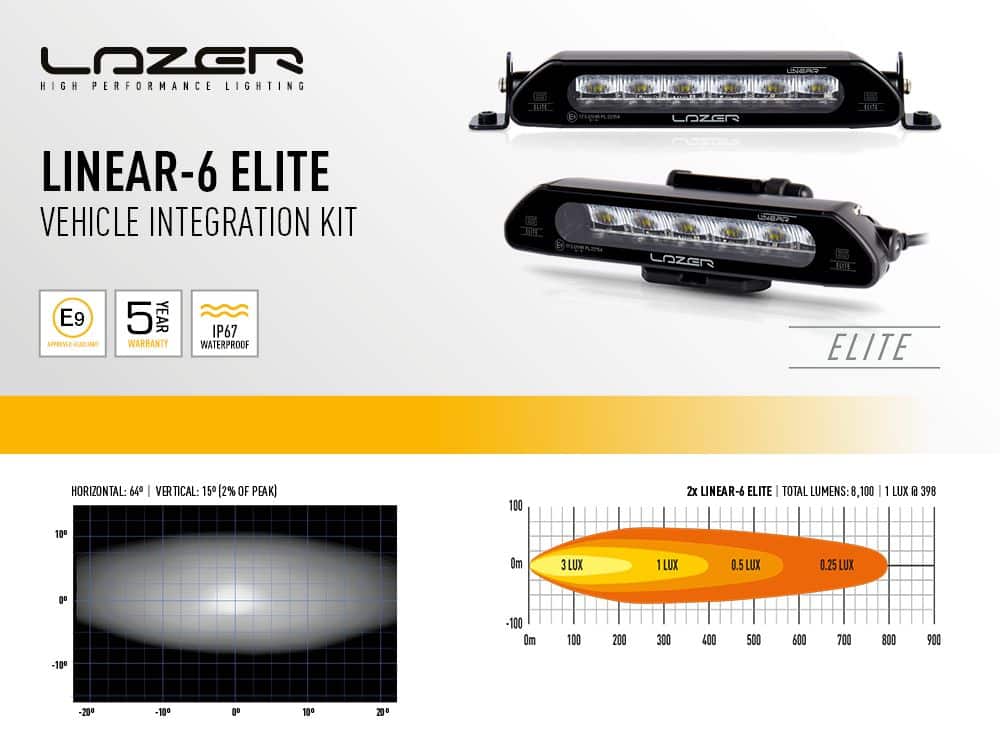

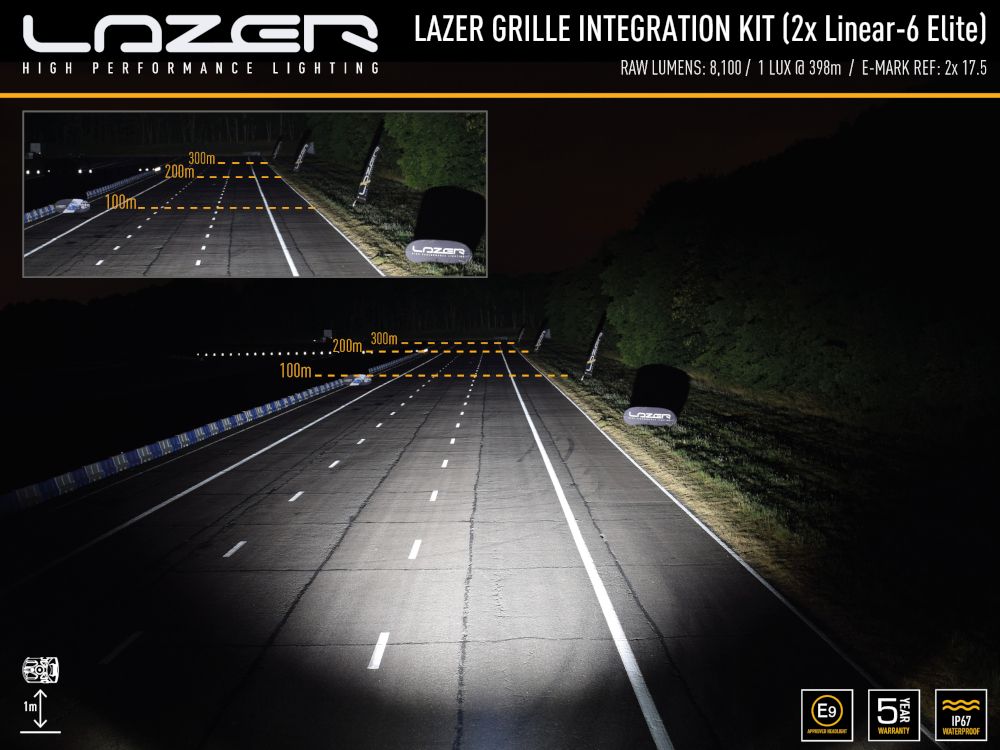

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle56° / 13°64° / 15°
0.25 lx Line698m796m
0.5 lx Line494m563m
1 lx Line349m398m
3 lx Line202m230m




† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down.

# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

Τι Περιλαμβάνεται

  • 1 Κιτ τοποθέτησης γρίλιας (Περιλαμβάνει οδηγούς κοπής)
  • 2 Προβολείς Led Linear-6
  • 1 Κιτ καλωδίωσης δύο λαμπτήρων
  • Οδηγίες Εγκατάστασης
Additional information
Weight 2,60000 kg
