Name: Grille Mount Kit for VW Transporter T6.1 (2019+) - Triple-R 750 Elite 10136 Lumens
Brand: Lazerlamps
SKU: GK-T61-Elite-G2-01K
Availability: PreOrder

Description

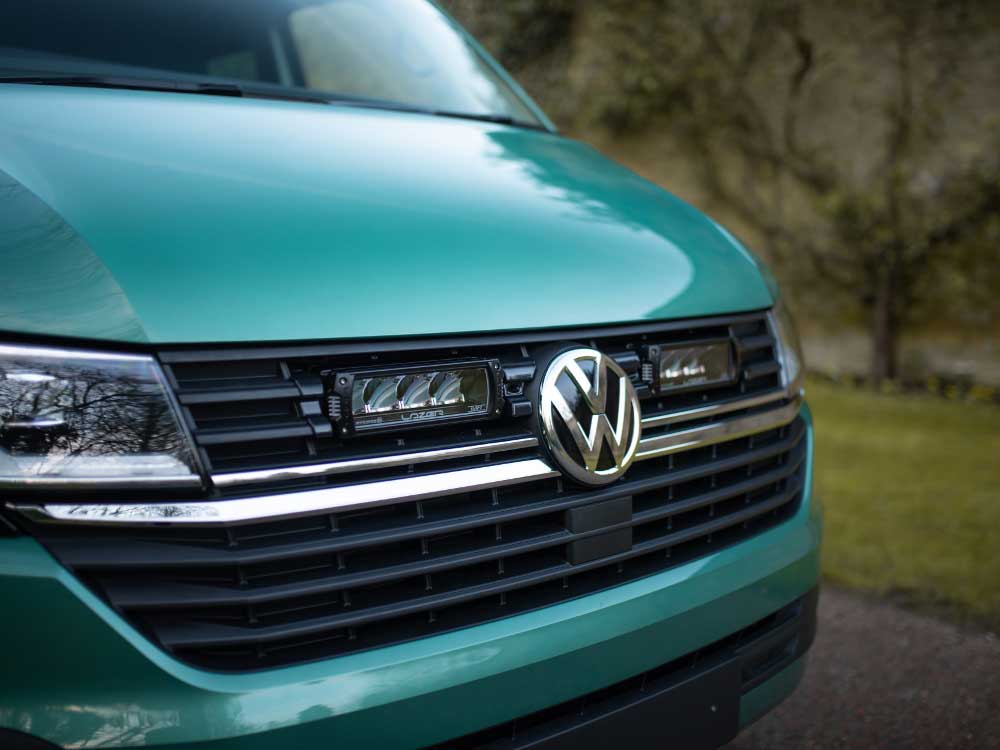

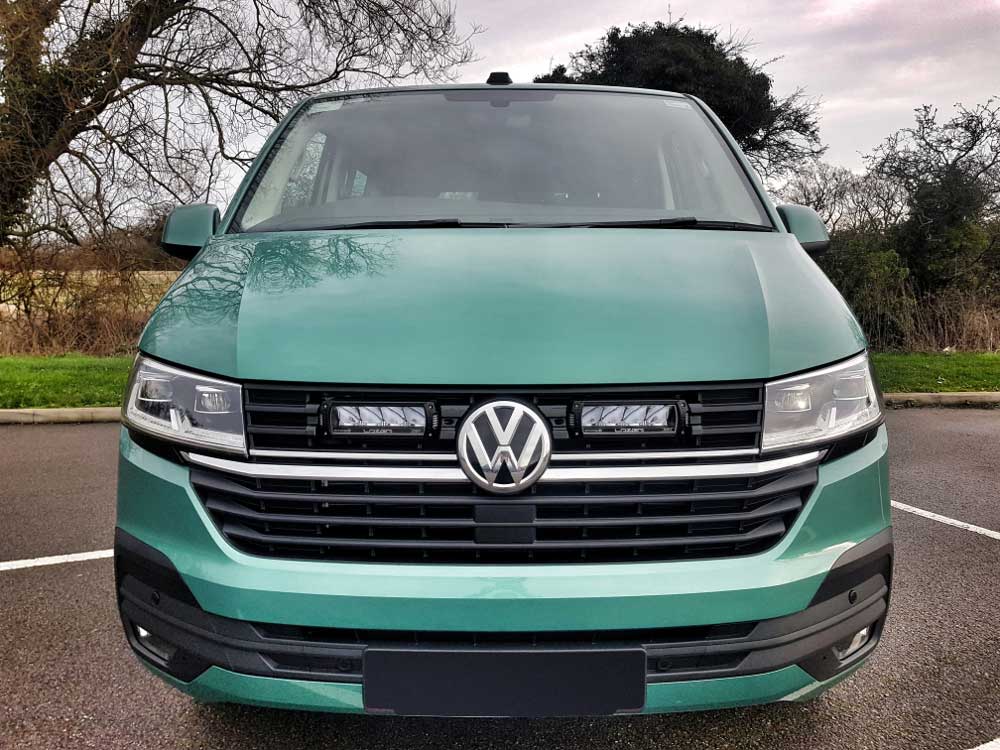

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

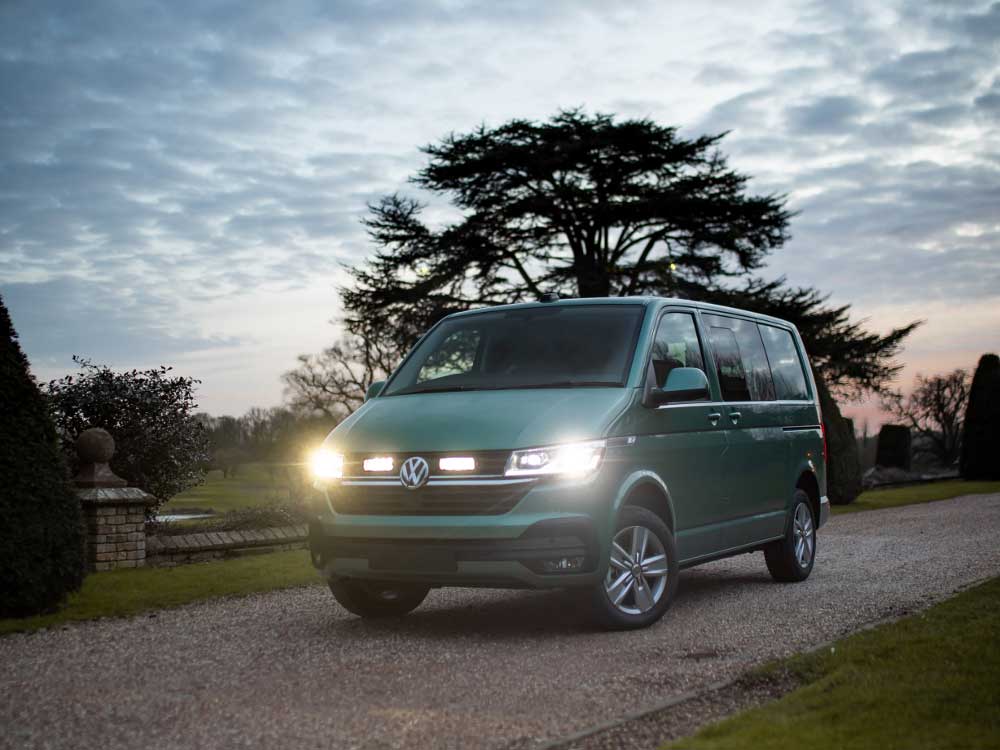

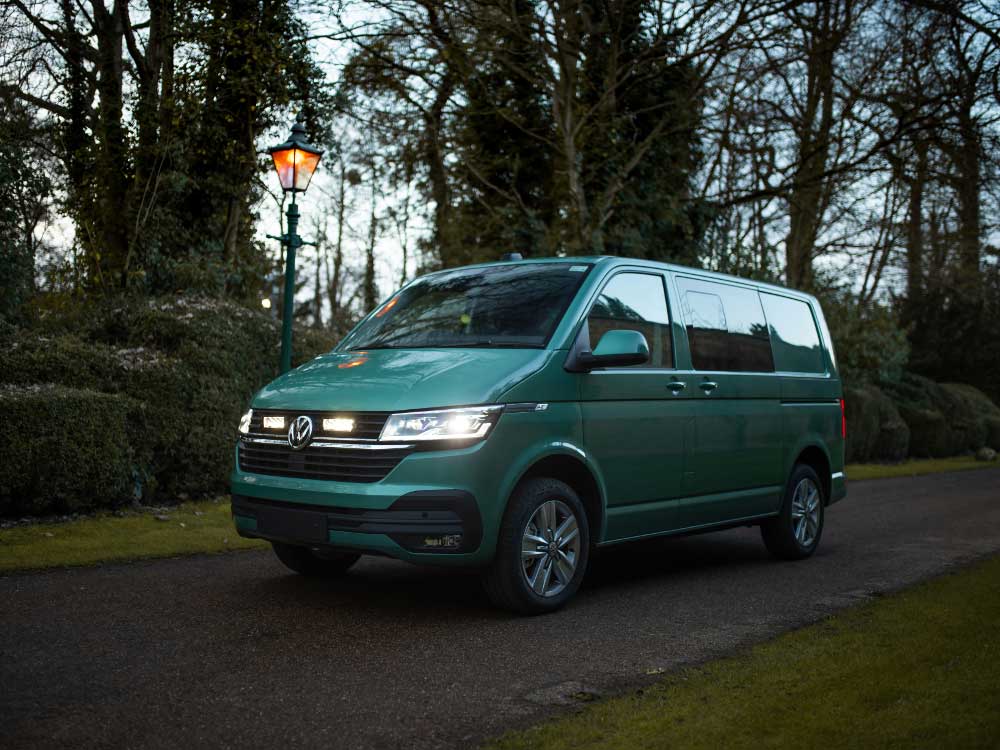

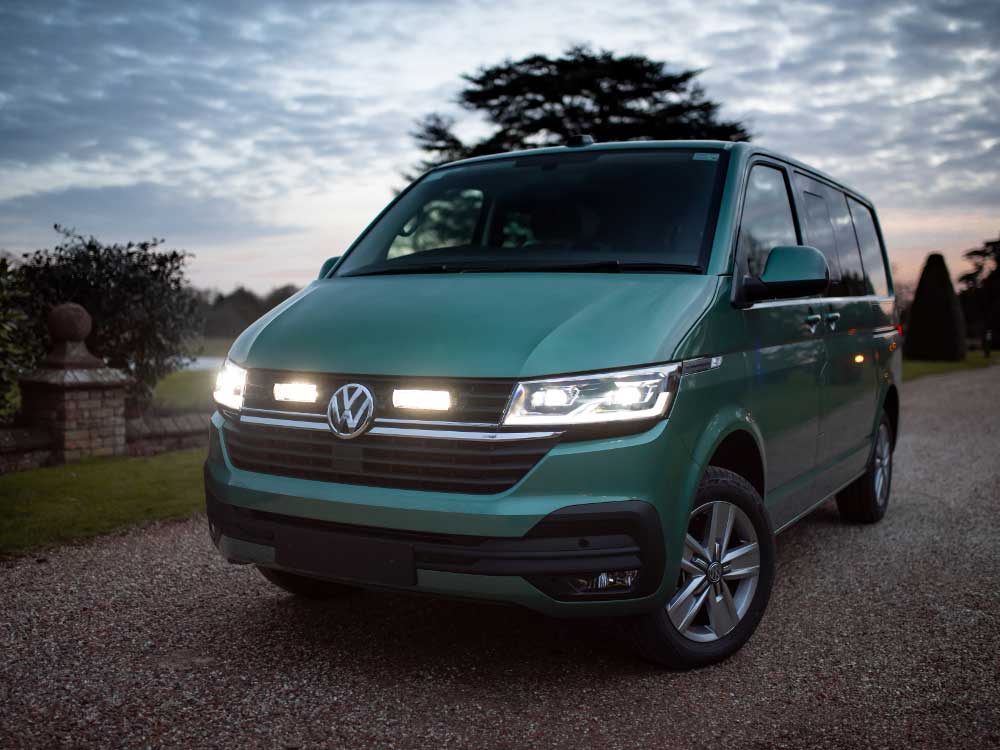

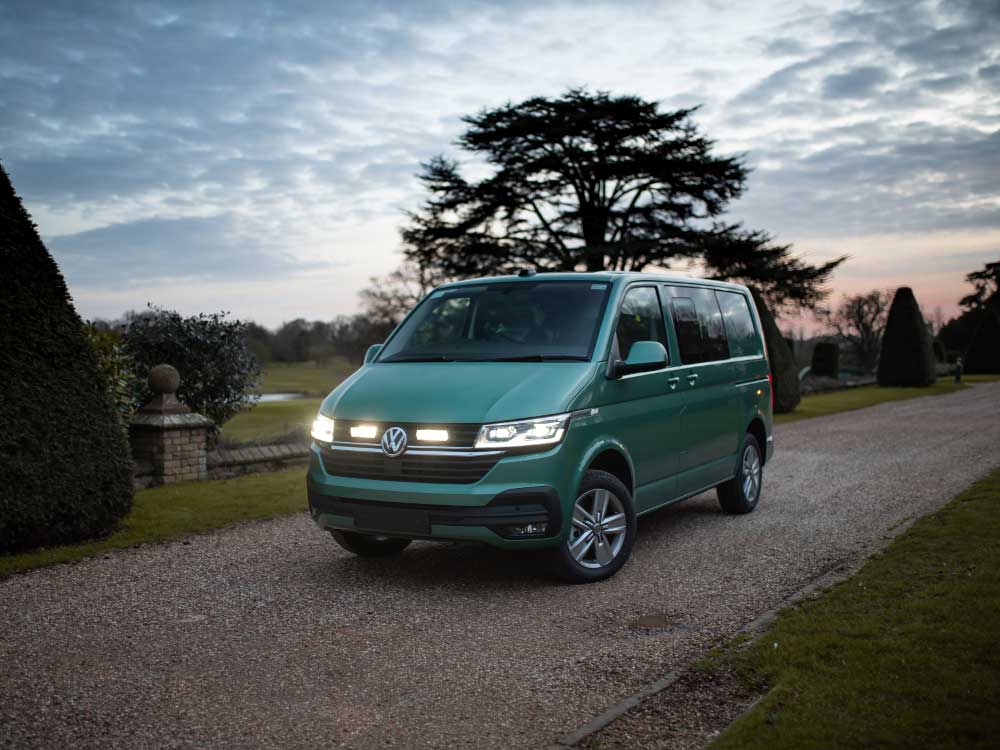

The VW Transporter T6.1 kit, designed for Startline and Highline models, is available with either a pair of ST4 Evolution, or Triple-R 750 High Performance LED driving lights. Where the T6.1 is fitted with air-con, any installation of the Triple-R 750 kit will require removal of the bumper prior to commencing the installation. For fitting to vehicles without air-con, or any installation of the ST4’s (with or without air-con), the install can be more quickly and easily started with the grille left in-situ on the vehicle.

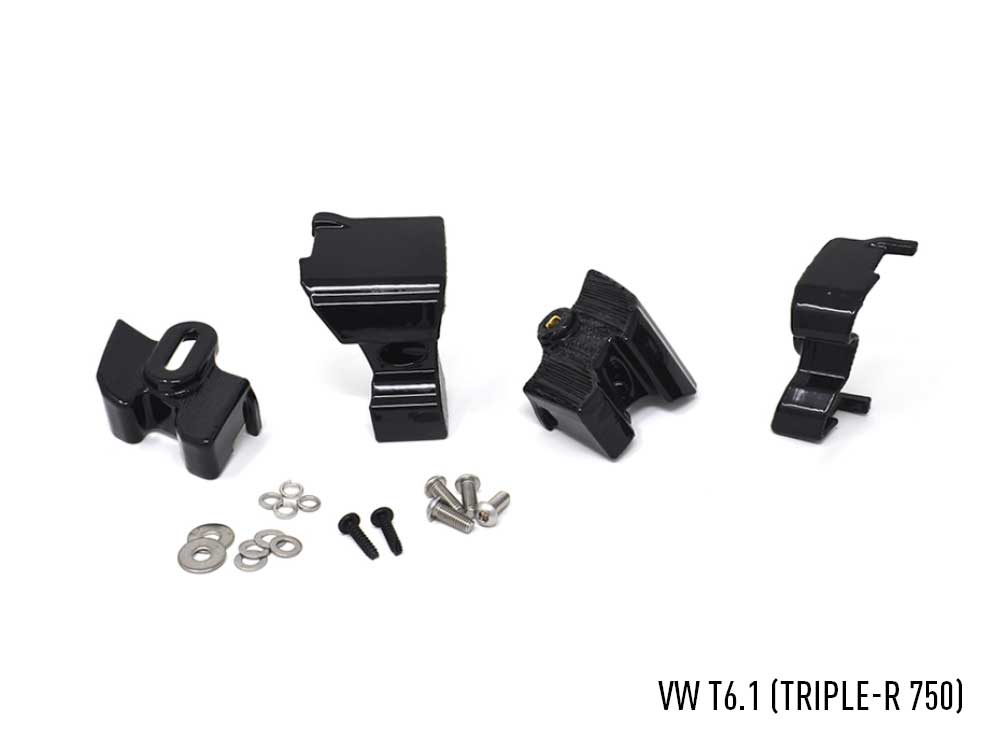

Aside from the pair of high performance auxiliary driving lights, each kit also includes a wiring kit (for connecting directly into the standard high beam driving lights on the vehicle), alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.
Where the vehicle has LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances, and where the lights want to operate with the standard high beam driving lights, it will be necessary to complete the electrical installation using a CanM8 High Beam Interface.

Key Features

Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for VW Transporter T6.1 (Startline and Highline models)
Available with: Triple-R 750 or ST4 Evolution High Performance LED Spotlights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain

Technical Information

Technical Specifications

	2x Triple-R 750 Elite (E-Boost Mode)	2x Triple-R 750
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs
Weight	2 kg	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	10136 Lm	9240 Lm
Total Driver ‘FOV’ Flux †	6680 Lm	5572 Lm
Colour Temperature	5000K	5000K
Number of High Output LEDs	2 x 4	2 x 4
Power Consumption	104 Watts	88 Watts
Current Draw (at 14.4V)	7.2 Amps	6.2 Amps
CERTIFICATION
High Beam	ECE R112	ECE R112
ECE Reference	N/A (12.5 x2 – E-Mark Mode)	35 x2
Position Light (White only)	N/A	ECE R7

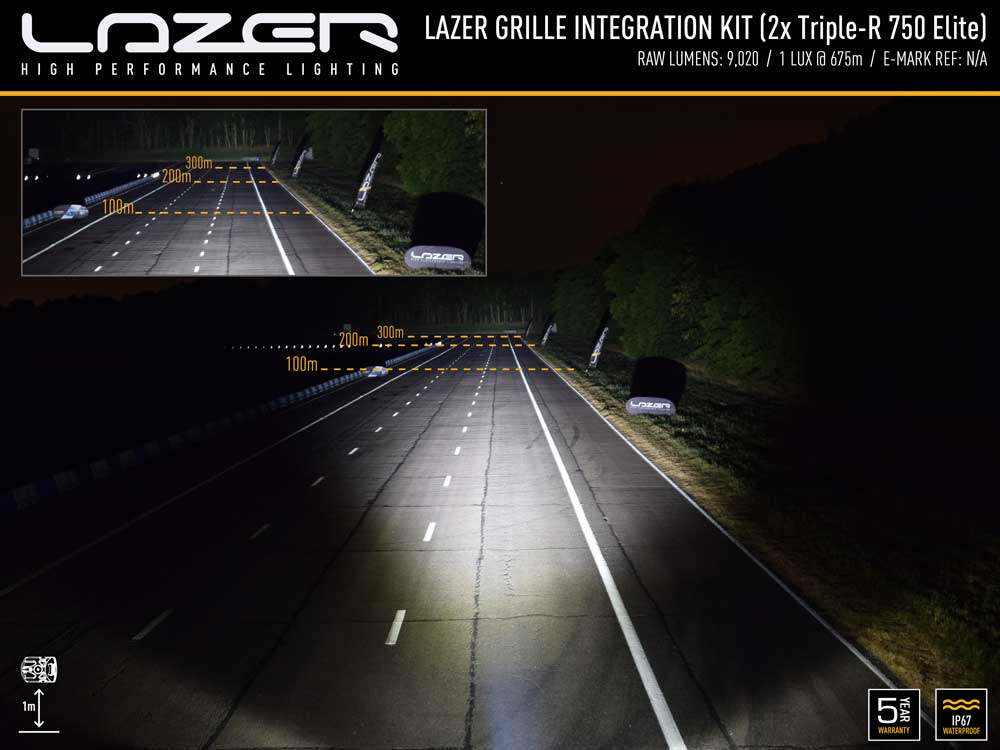

PHOTOMETRIC DATA
Horizontal Beam Angle	42°	19°
0.25 lx Line	1358m	1225m
0.5 lx Line	960m	866m
1 lx Line	679m	612m
3 lx Line	392m	354m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.

What’s included

For Triple-R 750 (GK-T61-G2-1K)

– x2 Triple-R 750 (00R4-G2-B)
– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-T61-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-PL-120)
– x1 Installation instructions

For Triple-R 750 Elite (GK-T61-Elite-G2-1K)

– x2 Triple-R 750 Elite (00R4-G2-EL-B)
– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-T61-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-120)
– x1 Installation instructions

Additional information

Weight	3,00000 kg
