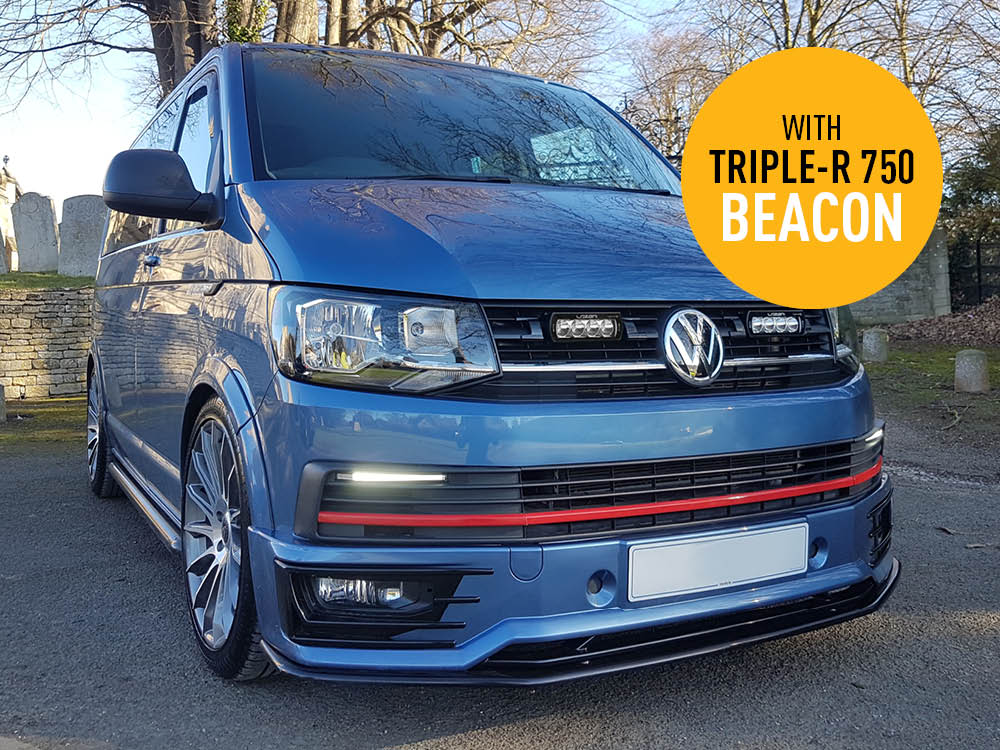

Σέτ γρίλιας για VW Transporter T6 (2016+) (Highline/Trendline) με Triple-R 750 BCN 10800 Lumens Lazerlamps
SKU:
GK-T6-BCN-02K
Category: Έτοιμες λύσεις
Description
Για ποιότητα OE, βοηθητική εγκατάσταση προβολέων, τα Lazer Grille Integration Kits περιλαμβάνουν ειδικά στηρίγματα που επιτρέπουν τη γρήγορη και εύκολη τοποθέτηση των προβολέων LED υψηλής απόδοσης Lazer μέσα στην μπροστινή μάσκα των πιο δημοφιλών οδικών αυτοκινήτων, φορτηγών και ελαφρών επαγγελματικών οχήματα. Σχεδιασμένο να συνδυάζεται άψογα με το αρχικό στυλ κάθε οχήματος, η εγκατάσταση φωτισμού παραμένει στιβαρή και ασφαλής, με επιπλέον προστασία από κλοπή.
Το κιτ VW Transporter T6, περιλαμβάνει είτε ένα ζευγάρι Triple-R 750 ή ST4 Evolution φώτα LED υψηλής απόδοσης, συν κιτ καλωδίωσης, μαζί με 4 βραχίονες σχεδιασμένους με ακρίβεια για τέλεια εφαρμογή με την τυπική κεντρική γρίλια στο το όχημα, με πρόσθετη αντοχή και ασφάλεια που παρέχεται από τις παρεχόμενες βίδες (πλαστικές). Κατασκευασμένο από υλικό ASA, γνωστό για την εξαιρετική του αντοχή και ανθεκτικότητα σε UV, τα στηρίγματα είναι πλήρως ανθεκτικά στις παλιές συνθήκες και στις χημικές ουσίες για να διασφαλίσετε ότι η εγκατάσταση σας παραμένει σε άριστη κατάσταση.
Μαζί με τους βραχίονες στερέωσης παρέχεται και ένα σετ οδηγών κοπής, σχεδιασμένοι να διευκολύνουν την εγκατάσταση και να εξασφαλίζουν τέλεια εφαρμογή κάθε φορά.
Λάβετε υπόψη ότι οι βραχίονες στήριξης διαφέρουν ανάλογα με το αν η εγκατάσταση φωτός είναι για φώτα Triple-R 750 ή ST4 και μοντέλα Startline έναντι Highline/Trendline.
Ιδιότητες
- Ειδικό κιτ ενσωμάτωσης οχημάτων για εγκατάσταση Spotlight LED Lazer
- Προσαρμοσμένη εφαρμογή για VW Transporter T6
- Διατίθεται με: Προβολείς LED υψηλής απόδοσης Triple-R 750 ή ST4 Evolution
- Το κιτ περιλαμβάνει επίσης ειδικά στηρίγματα και κιτ καλωδίωσης δύο λαμπτήρων
- Στηρίγματα κατασκευασμένα από υψηλής αντοχής, UV -ανθεκτικά από υλικό ASA
- Πλήρως νόμιμο για χρήση δρόμου
- 5 χρόνια εγγύηση
- Κατασκευάζεται στη Βρετανία
Τεχνικές πληροφορίες
2x ST4 EVOLUTION | ||
---|---|---|
Voltage Range (DC) | 10-32V | |
LED Life | 50,000 hours | |
Weight | 1.34 kg | |
HIGH BEAM FUNCTION | ||
Total Luminous Flux | 8,272 Lm | |
Total Driver ‘FOV’ Flux † | 4,980 Lm | |
Colour Temperature | 5000K | |
Power Consumption | 94 Watts | |
Peak Current Draw | 11 Amps | |
Current Draw (14.4V) | 6.6 Amps | |
Connector | 2-Pin Superseal (+25cm Cable) | |
CERTIFICATION | ||
IP Rating # | IP68 | |
High Beam (E9 approval) | ECE R149 – Ref: 2x 10 | |
EMC Certification | ECE R10 | |
Salt Spray Test | ISO 9227 | |
Dump Load Protection | ISO 7637-2 | |
PHOTOMETRIC DATA | ||
Horizontal / Vertical Beam Angle | 40° / 25° | |
0.25 lx Line | 786m | |
0.5 lx Line | 555m | |
1 lx Line | 393m | |
3 lx Line | 227m | |
2x TRIPLE-750 WIDE | 2x TRIPLE-R 750 | 2x TRIPLE-R 750 BEACON (BOOST MODE) | 2x TRIPLE-R 750 ELITE (BOOST MODE) | |
---|---|---|---|---|
Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
Weight | 2.6 kg | 2.6 kg | 2.6 kg | 2.6 kg |
HIGH BEAM FUNCTION | ||||
Total Luminous Flux | 9240 Lm | 9240 Lm | 10800 Lm | 10136 Lm |
Total Driver ‘FOV’ Flux † | 5266 Lm | 5572 Lm | 2484 Lm | 6680 Lm |
Colour Temperature | 5000K | 5000K | 5000K | 5000K |
Power Consumption | 88 Watts | 88 Watts | 104 Watts | 104 Watts |
Current Draw (14.4V) | 6.2 Amps | 6.2 Amps | 7.4 Amps | 7.2 Amps |
Connector | 2-Pin Superseal (+25cm Cable) | 3-Pin Superseal (+25cm Cable) | 6-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) |
CERTIFICATION | ||||
IP Rating # | IP68 | IP68 | IP68 | IP68 |
High Beam (E9 approval) | ECE R149 – Ref: 2x 20 | ECE R112 – Ref: 2x 35 | ECE R149 – Ref: 2x 10 (Low Output Mode) | ECE R112 – Ref: 2x 12.5 (Low Output Mode) |
Position Light (White) | N/A | ECE R7 | ECE R7 | N/A |
EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |
PHOTOMETRIC DATA | ||||
Horizontal / Vertical Beam Angle | 40° / 20° | 19° / 18° | 28° / 16° | 42° / 13° |
0.25 Lux | 829m | 1225m | 1249m | 1358m |
0.5 Lux | 587m | 866m | 883m | 960m |
1 Lux | 415m | 612m | 624m | 679m |
3 Lux | 239m | 354m | 361m | 392m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
Τι περιλαμβάνεται
- 1 Κιτ τοποθέτησης γρίλιας (Περιλαμβάνει οδηγούς κοπής)
- 2 Μπάρες Led ST4 Evolution ή Triple-R 750
- 1 Κιτ καλωδίωσης δύο λαμπτήρων
- Οδηγίες εγκατάστασης
Βίντεο
Additional information
Weight | 0,00000 kg |
---|
About Lazerlamps
See more... Go Safer... Go faster!
LAZERLAMPS
Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.
Triple-R Series
The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.
The lights are powered by high-quality LEDs, which produce a bright, white light that is optimized for long-range visibility and reduced eye fatigue. The lights also incorporate sophisticated electronics, including thermal management systems and intelligent dimming functions, which ensure that they operate safely and reliably in all conditions.
Overall, the Triple-R Gen2 Series from LazerLamps represents a cutting-edge solution for off-road lighting, providing exceptional performance, durability, and versatility for a range of different applications.
Linear series
The Linear Series from LazerLamps is a range of high-performance LED driving lights that have been designed to offer a sleek and streamlined lighting solution for a wide range of vehicles. These lights use advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on cars, trucks, and other vehicles used for on and off-road activities.
Build to last!
All Lazerlamp products have been designed and upgraded from experience in the hardest conditions, like WRC, LeMan, Paris Dakar. With 5 year warranty, you can rest assure that Lazerlamps gives absolute quality.
