For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

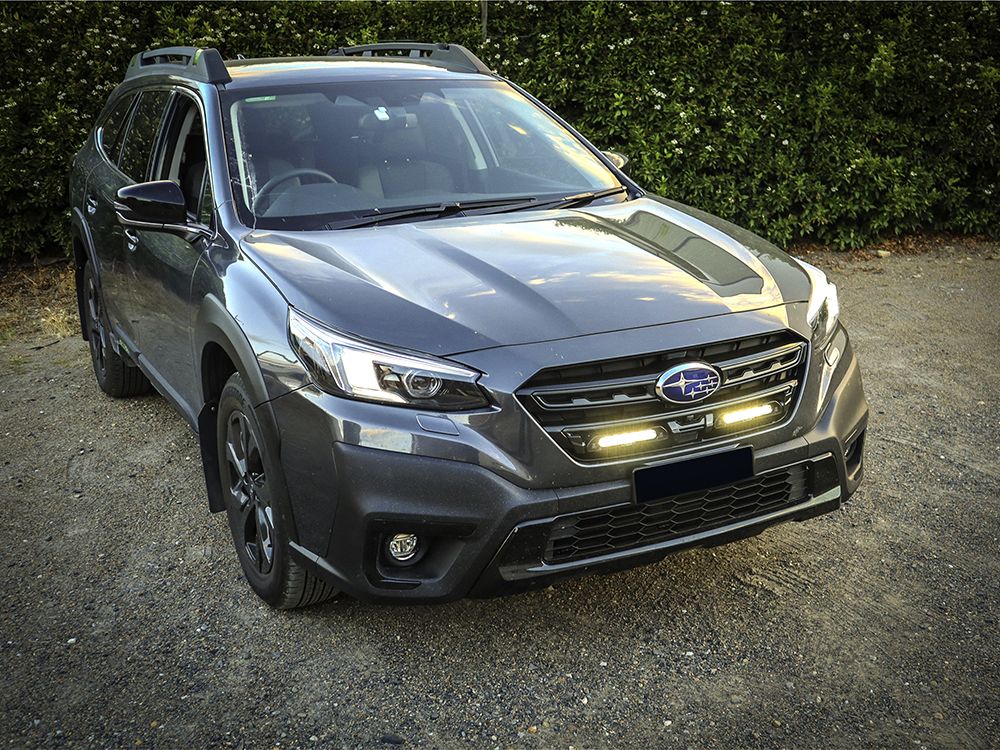

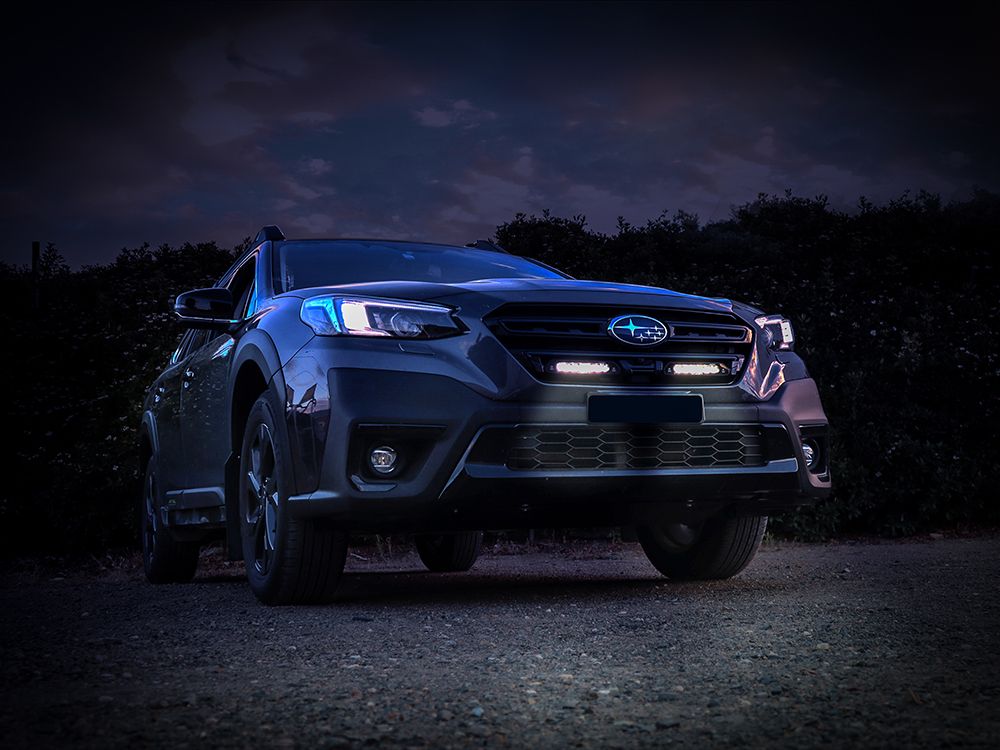

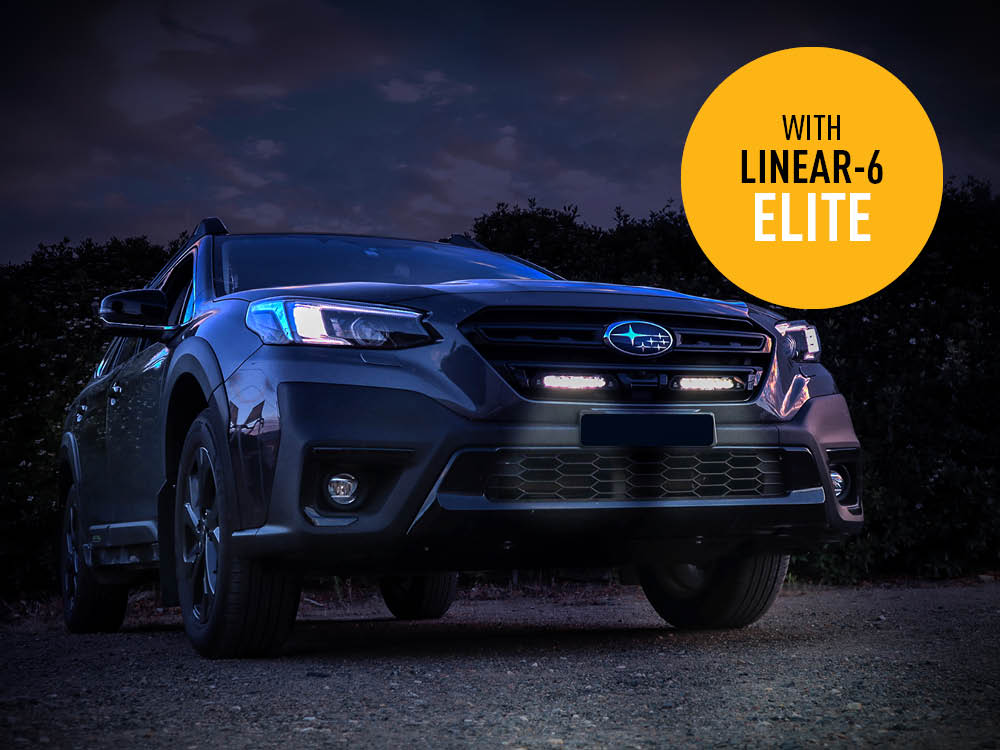

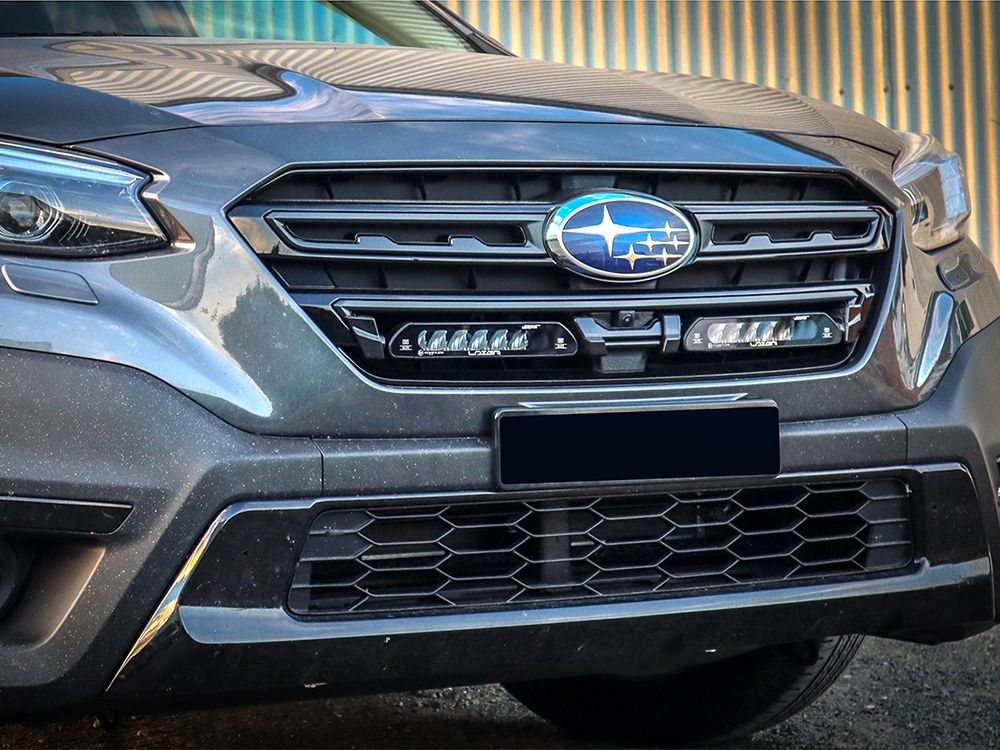

The Subaru Outback kit, designed for 2020 vehicles onwards, includes a pair of Linear-6 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
The Lazer Grille Integration Kit for the Subaru Outback is optimised for use with Linear-6 High Performance LED Spotlights.
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for Subaru Outback (2020+)
- Designed for use with Linear-6 High Performance LED Spotlights (Standard or Elite)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Brackets made from high strength, UV -stable, ASA material
- Fully road-legal
- 5-year warranty
- Made in Britain
Technical Information
| Based on Elite setup i.e. x2 Linear-6 Elite High Performance LED Lamps: | |
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 12150 Lm |
| Total Driver ‘FOV’ Flux † | 8651 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 2 x 6 |
| Power Consumption | 84 Watts |
| Current Draw (at 14.4V) | 5.8 Amps |
| Start-Up Time * | 100ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 17.5 x2 |

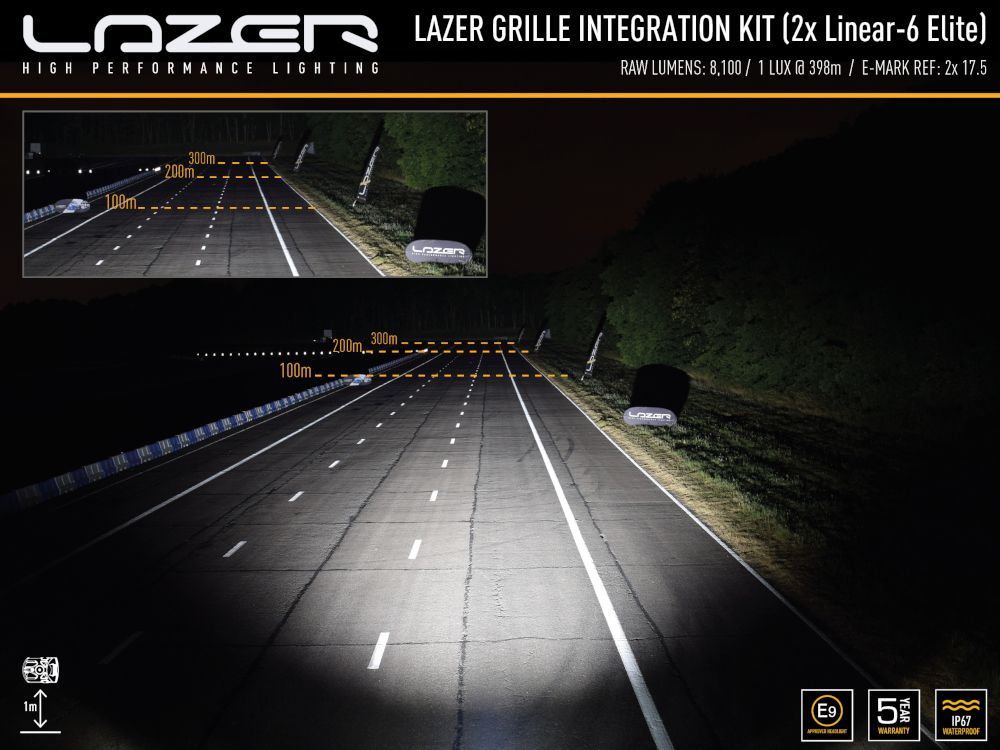

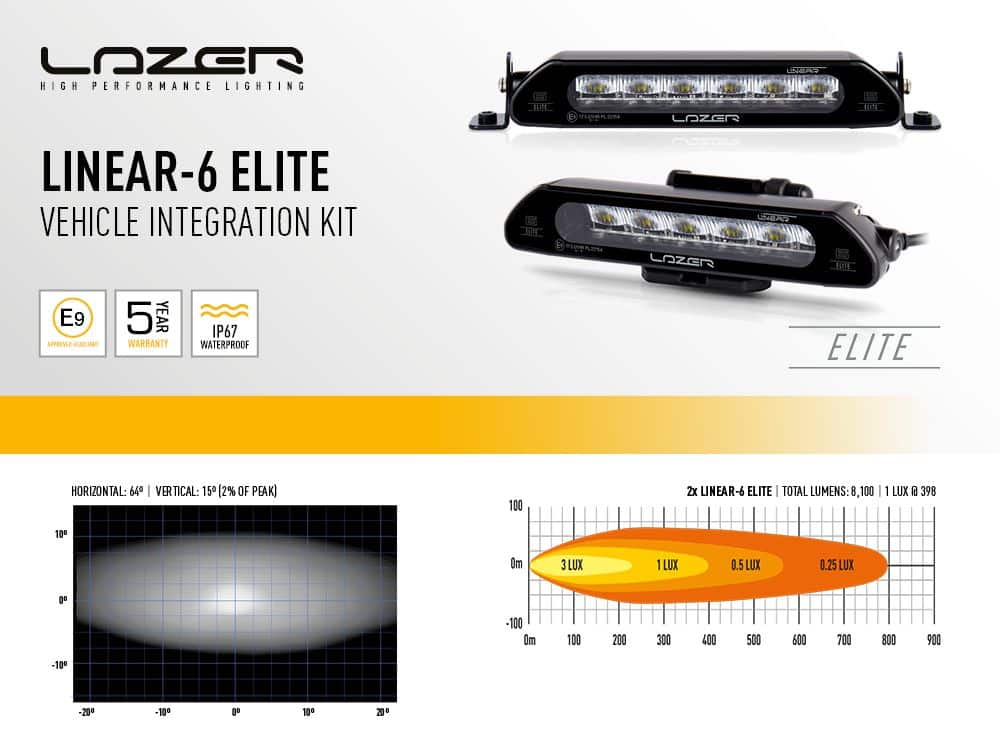

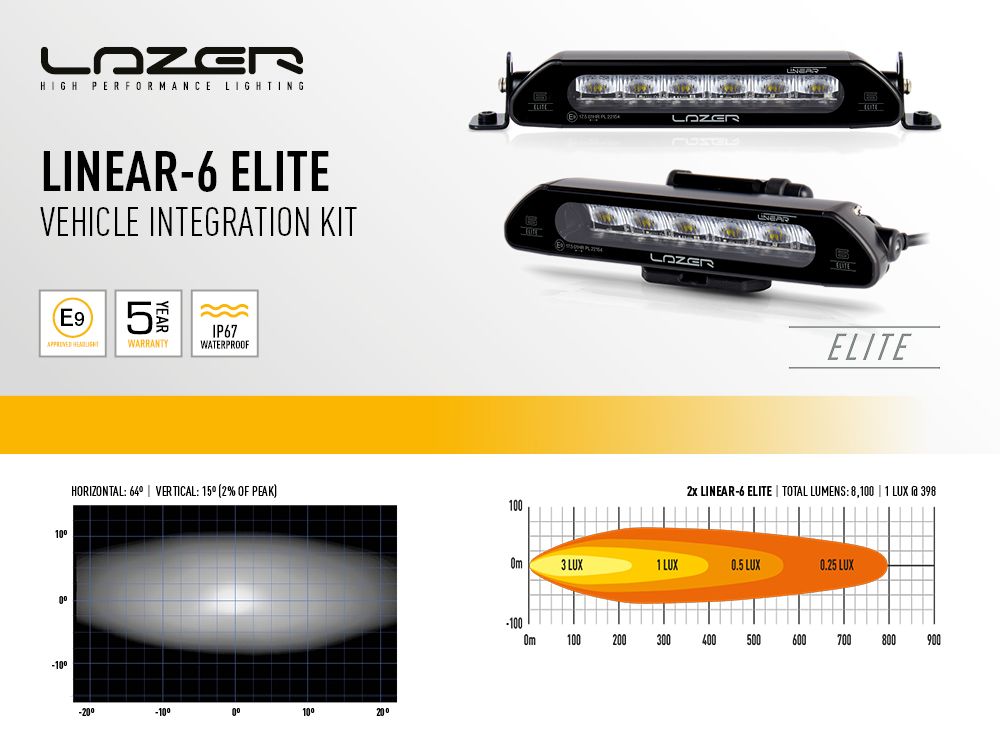

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 Degrees |
| 0.25 lx Line | 796 metres |
| 0.5 lx Line | 563 metres |
| 1 lx Line | 398 metres |
| 3 lx Line | 230 metres |
| * ‘Start-up time’ is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance. | |
What’s included
– x2 Linear-6 High Performance LED Spotlights
– x1 Mounting Kit (comprising 4x Brackets and fasteners)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit
– x1 Installation instructions
