Grille Mount Kit for Renault Trafic (2019+) – Triple-R 750 Std 9240 Lumens Lazerlamps
Description

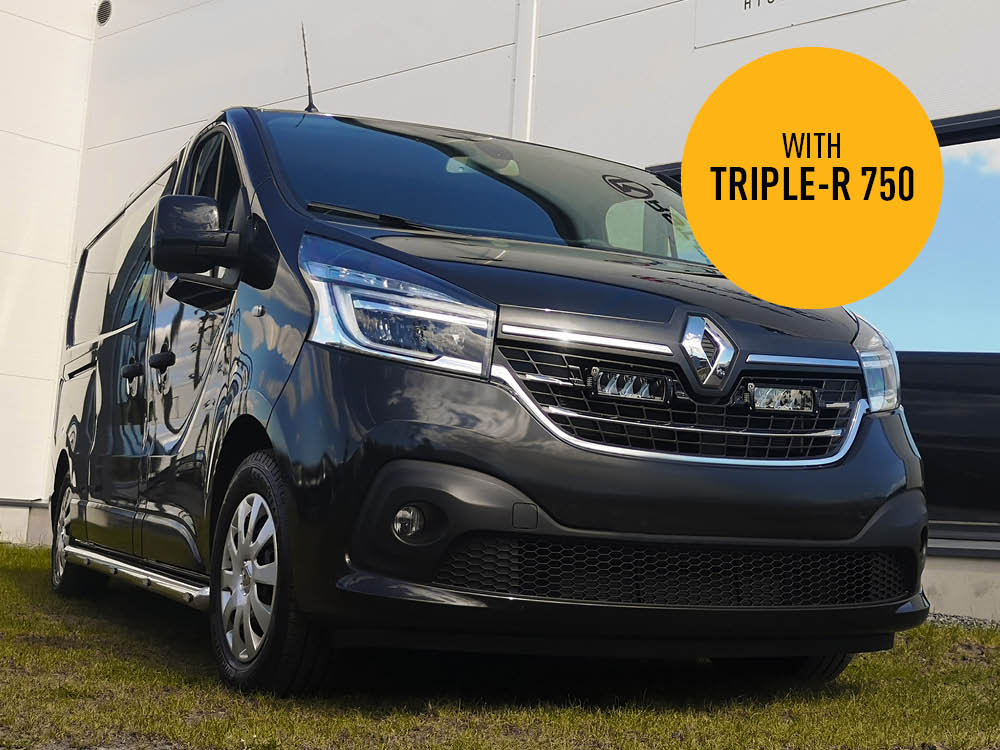

Whatever the job, whatever the destination, get there quicker, get there safer, get there in style with our bespoke grille integration kit, featuring a pair of our Triple-R 750 high performance LED spotlights, effortlessly set within the front grille of the Renault Trafic.
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Renault Trafic kit, designed for MY19 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.
- Bespoke vehicle integration kit for Lazer LED Spotlight installation

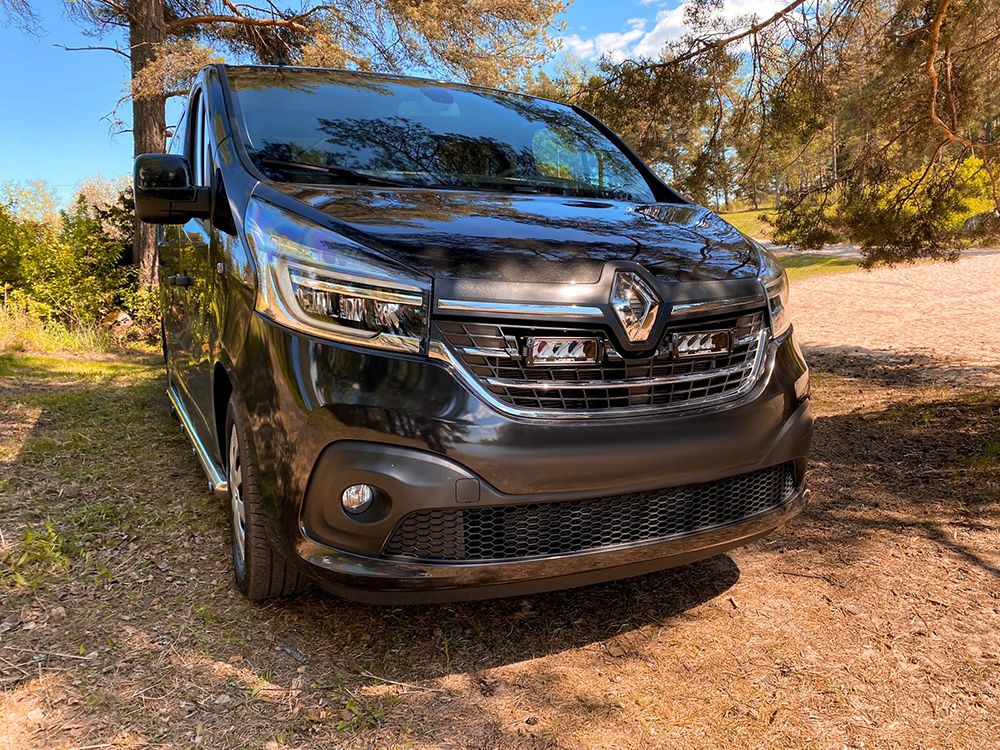

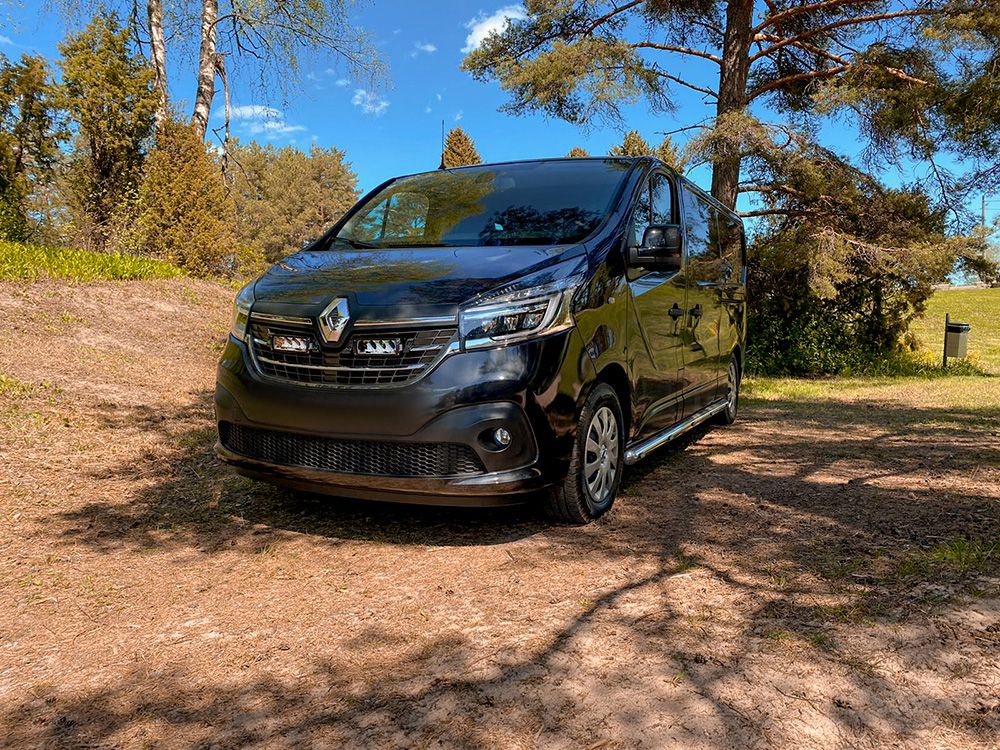

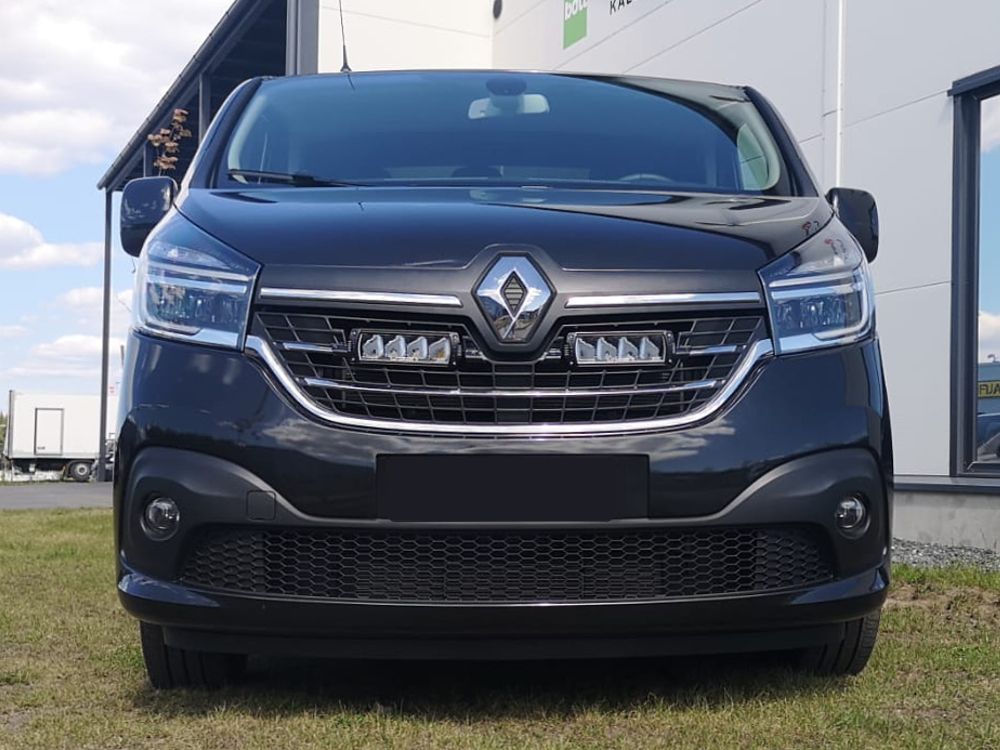

- Custom fit for Renault Trafic (2019+)
- Designed for use with Triple-R 750 High Performance LED Spotlights
- Added option for white or amber position/side light function (Standard model only)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Brackets made from high strength, UV -stable, ASA material
- Installation completed with grille left in-situ on vehicle (cutting guides included)
- Fully road-legal
- 5-year warranty
- Made in Britain
2x | 2x Triple-R 750 | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2 kg | 2 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 10136 Lm | 9240 Lm |
| Total Driver ‘FOV’ Flux † | 6680 Lm | 5572 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 4 | 2 x 4 |
| Power Consumption | 104 Watts | 88 Watts |
| Current Draw (at 14.4V) | 7.2 Amps | 6.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | N/A | 35 x2 |
| Position Light (White only) | N/A | ECE R7 |

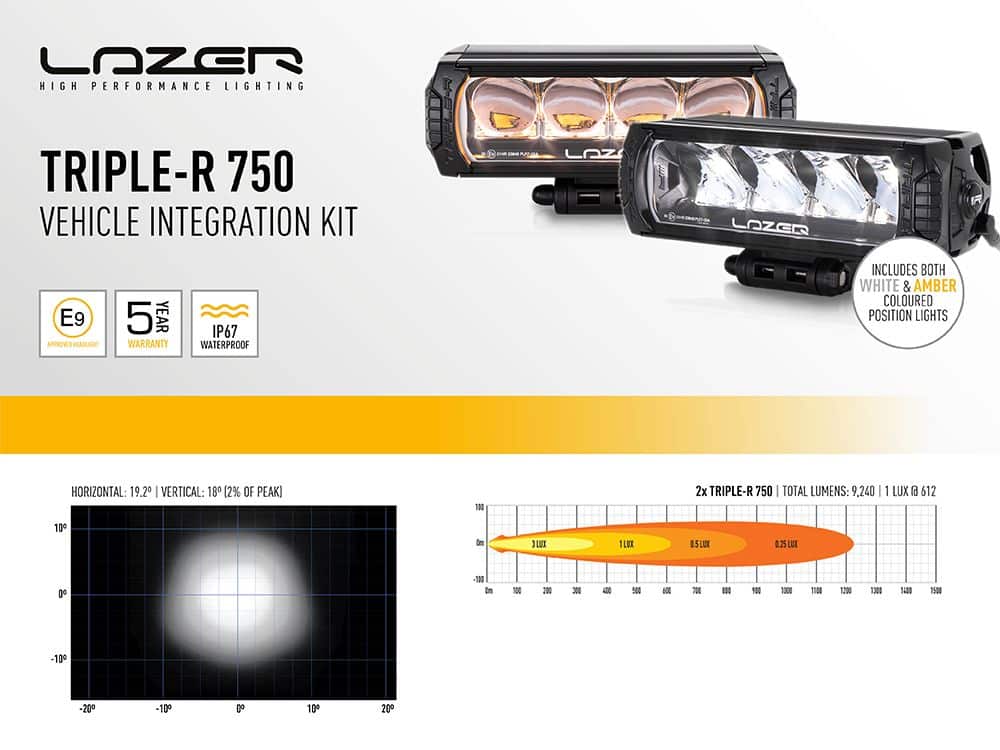

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 42° | 19° |

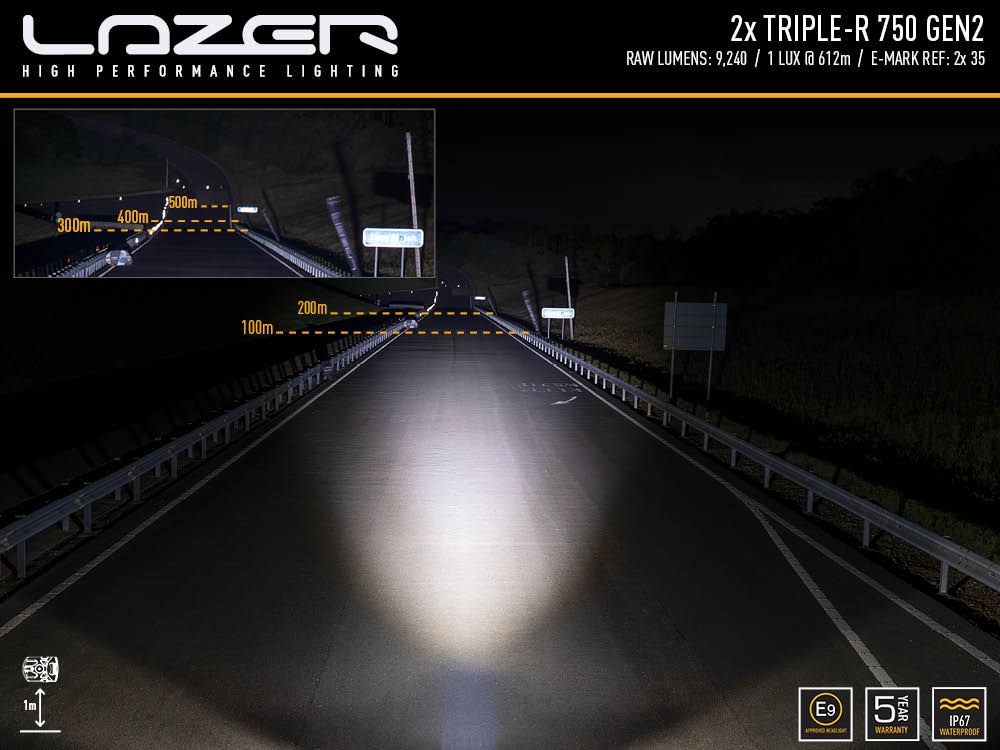

| 0.25 lx Line | 1358m | 1225m |
| 0.5 lx Line | 960m | 866m |
| 1 lx Line | 679m | 612m |
| 3 lx Line | 392m | 354m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.
What’s included
For Triple-R 750 (GK-RNTR-G2-1K)
– x2 Triple-R 750 (00R4-G2-B)

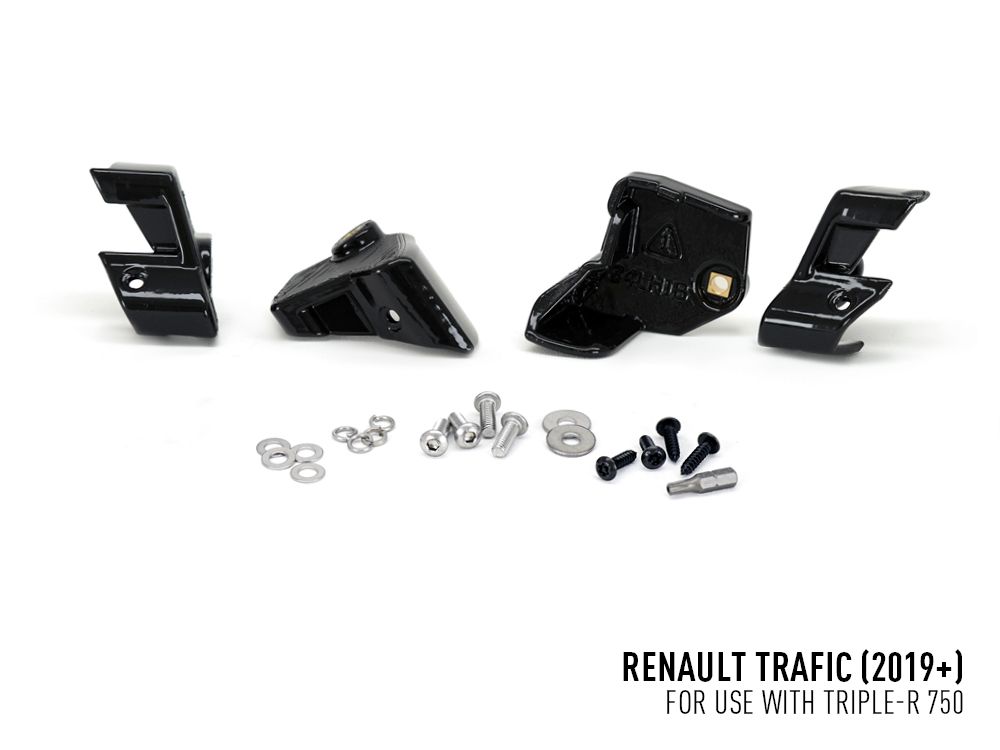

– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-RNTR-01K)
– x1 Cutting Guide (comprising 4x Brackets)

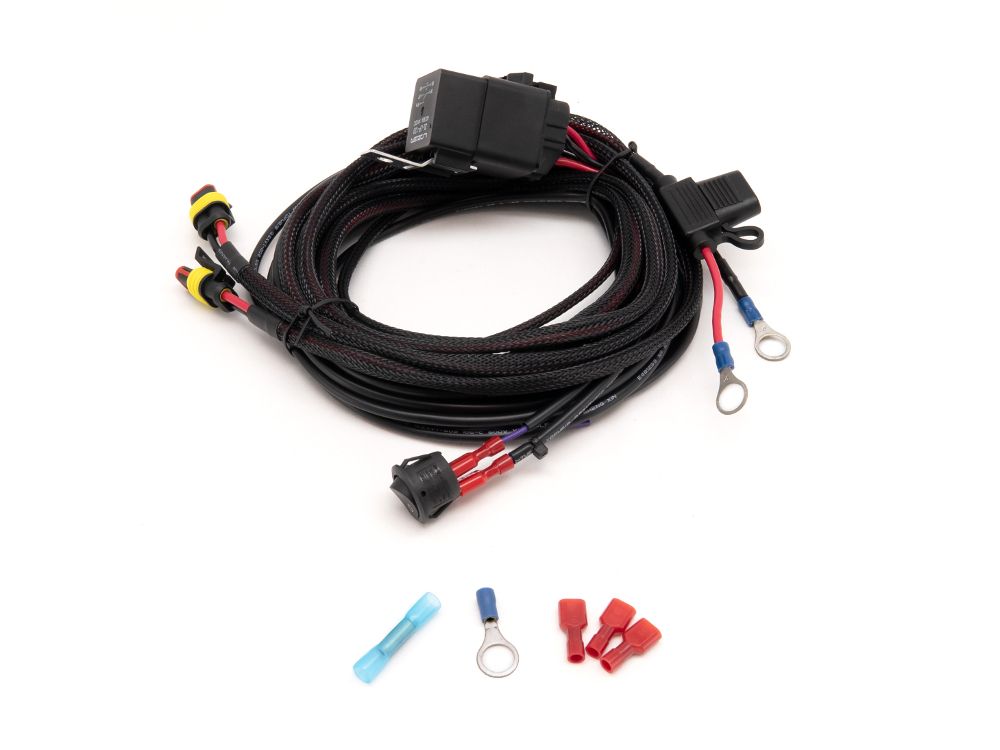

– x1 Two-Lamp Wiring Kit (2L-LP-PL-120)
– x1 Installation instructions
For Triple-R 750 Elite (GK-RNTR-Elite-G2-1K)
– x2 Triple-R 750 Elite (00R4-G2-EL-B)
– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-RNTR-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-120)
– x1 Installation instructions
Additional information
| Weight | 3,00000 kg |
|---|
About Lazerlamps
See more... Go Safer... Go faster!
LAZERLAMPS
Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.
Triple-R Series

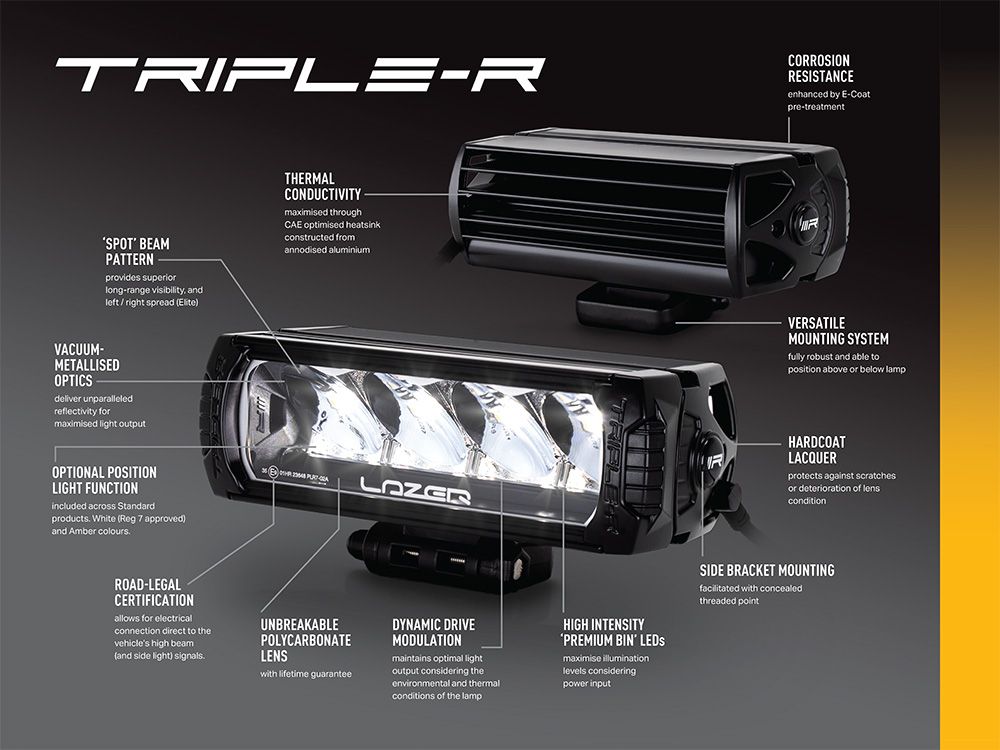

The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.
The lights are powered by high-quality LEDs, which produce a bright, white light that is optimized for long-range visibility and reduced eye fatigue. The lights also incorporate sophisticated electronics, including thermal management systems and intelligent dimming functions, which ensure that they operate safely and reliably in all conditions.
Overall, the Triple-R Gen2 Series from LazerLamps represents a cutting-edge solution for off-road lighting, providing exceptional performance, durability, and versatility for a range of different applications.
Linear series
The Linear Series from LazerLamps is a range of high-performance LED driving lights that have been designed to offer a sleek and streamlined lighting solution for a wide range of vehicles. These lights use advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on cars, trucks, and other vehicles used for on and off-road activities.
Build to last!
All Lazerlamp products have been designed and upgraded from experience in the hardest conditions, like WRC, LeMan, Paris Dakar. With 5 year warranty, you can rest assure that Lazerlamps gives absolute quality.
