Description

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

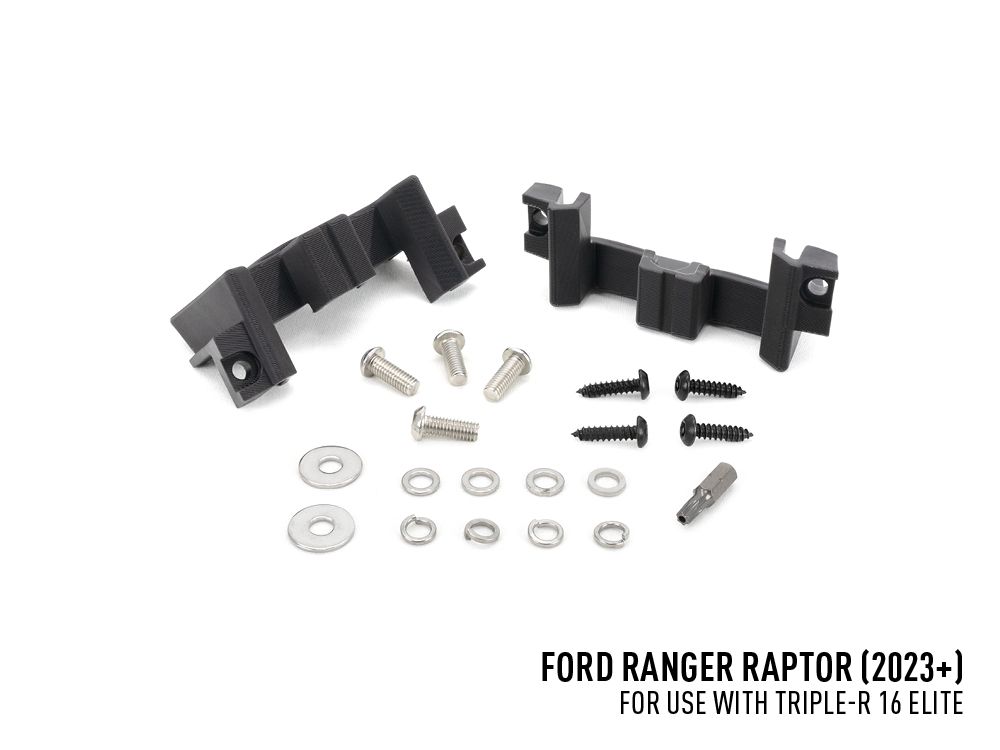

The Ford Ranger Raptor, for vehicles produced since 2023+, includes a Triple-R 16 Elite High Performance LED driving light, plus wiring kit, alongside x2 brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

The Ford Ranger Raptor (2023+) Grille Integration Kit is carefully engineered and optimised for use with our Triple-R 16 Elite High Performance LED lightbar. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

  • Bespoke vehicle integration kit for Lazer LED Spotlight installation
  • Custom fit for Ford Ranger Raptor (2023+)
  • Compatible with Triple-R 16 Elite LED Spotlight
  • Kit also includes bespoke mounting brackets and wiring kit with switch
  • Cutting guides included
  • Brackets made from high strength, UV -stable, composite material
  • 5-year warranty
  • Made in Britain

 Technical Information

 1x Triple-R 16 Elite
Voltage Range (DC)10-32V
LED Life50,000 hrs
Weight3.2 kg
HIGH BEAM FUNCTION
Total Luminous Flux

18040 Lm

Total Driver ‘FOV’ Flux †11888 Lm
Colour Temperature5000k
Number of High Output LEDs16
Power Consumption208 Watts
Current Draw (at 14.4V)14.4 Amps
CERTIFICATION
High BeamN/A
E-Mark RefN/A
PHOTOMETRIC DATA
Horiz Beam Angle30 Deg
0.25 lx Line1920 metres
0.5 lx Line1358 metres
1 lx Line960 metres
3 lx Line554 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.

What’s included

  • 1x Grille Mounting Kit (includes cutting guides)
  • 1x Triple-R 16 Elite LED Lamp
  • 1x One-Lamp Wiring Kit
  • Installation Instructions
Additional information
Weight 3,00000 kg
About Lazerlamps

See more... Go Safer... Go faster!

LAZERLAMPS

Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.

Triple-R Series

The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.

The lights are powered by high-quality LEDs, which produce a bright, white light that is optimized for long-range visibility and reduced eye fatigue. The lights also incorporate sophisticated electronics, including thermal management systems and intelligent dimming functions, which ensure that they operate safely and reliably in all conditions.

Overall, the Triple-R Gen2 Series from LazerLamps represents a cutting-edge solution for off-road lighting, providing exceptional performance, durability, and versatility for a range of different applications.

Linear series

The Linear Series from LazerLamps is a range of high-performance LED driving lights that have been designed to offer a sleek and streamlined lighting solution for a wide range of vehicles. These lights use advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on cars, trucks, and other vehicles used for on and off-road activities.

Build to last!

All Lazerlamp products have been designed and upgraded from experience in the hardest conditions, like WRC, LeMan, Paris Dakar. With 5 year warranty, you can rest assure that Lazerlamps gives absolute quality.
