Name: Grille Kit for RAM 1500 (2013-2018) – Triple-R 750 Elite 10136 Lumens
Brand: Lazerlamps
SKU: GK-R1500-Elite-01K
Availability: PreOrder

Description

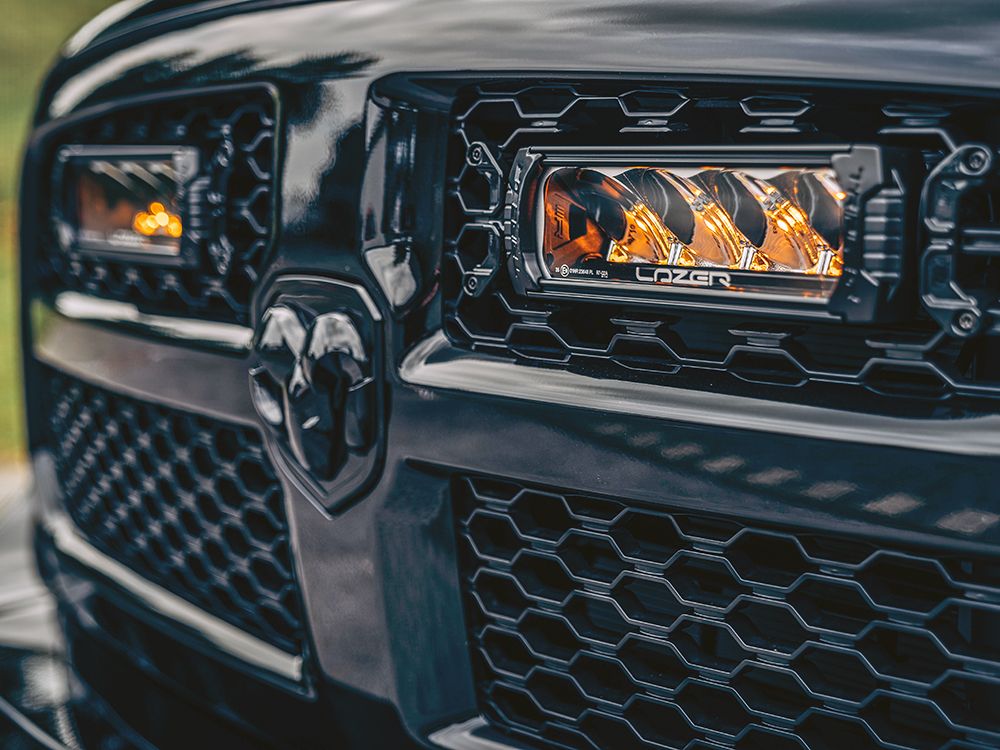

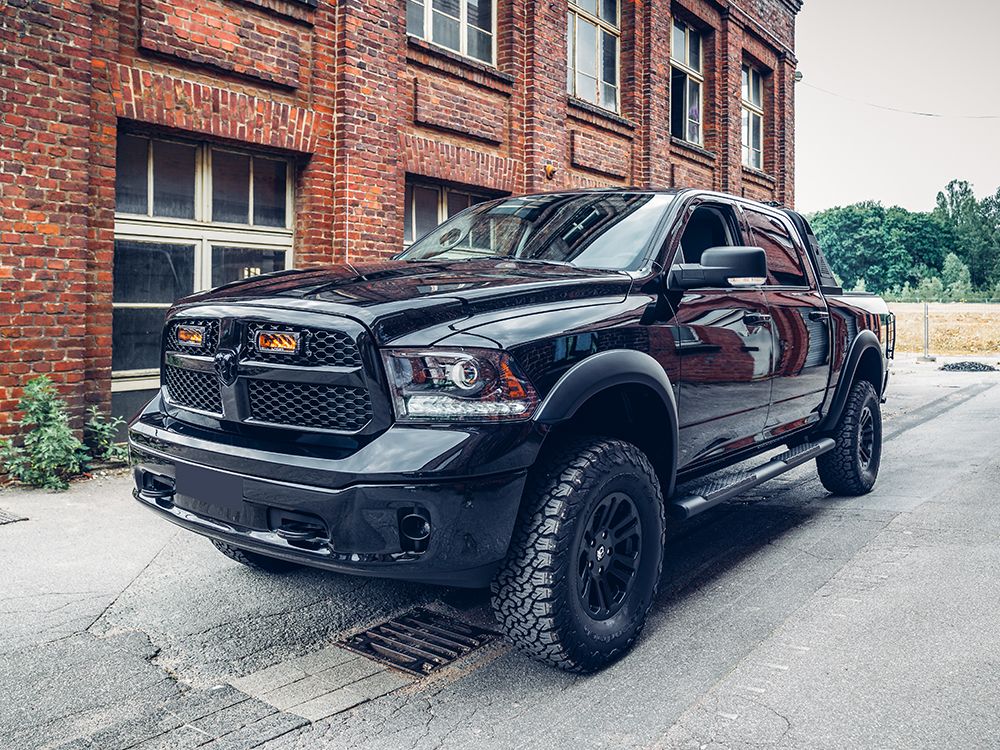

For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting road-legal lighting setup remains fully robust and secure, while delivering night-time visibility that leaves little to the imagination.

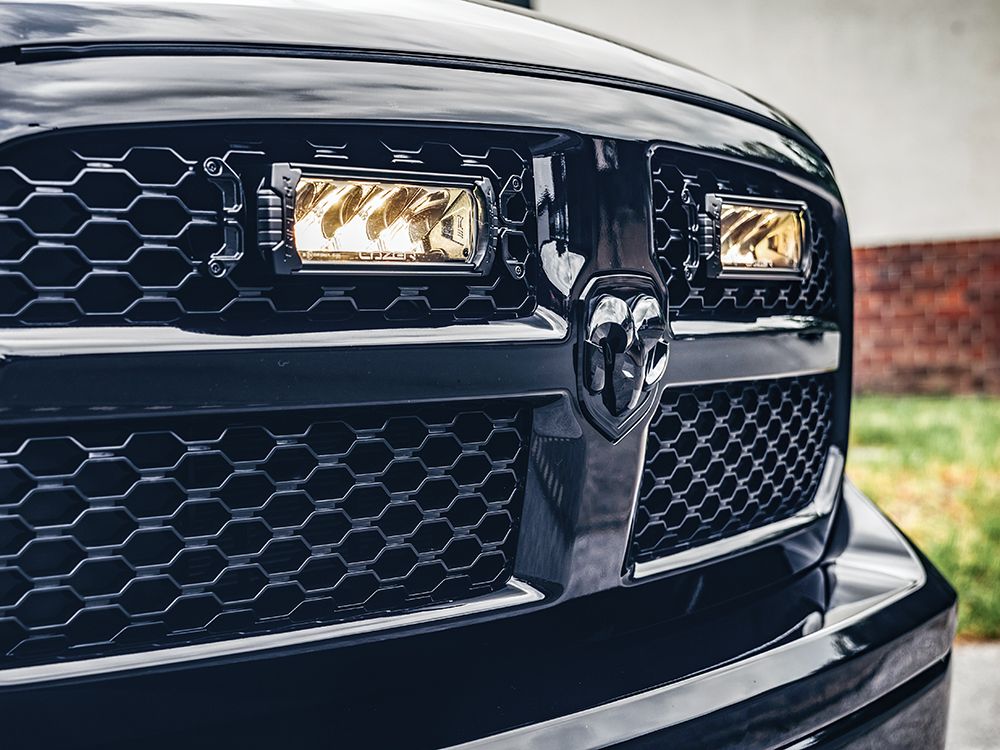

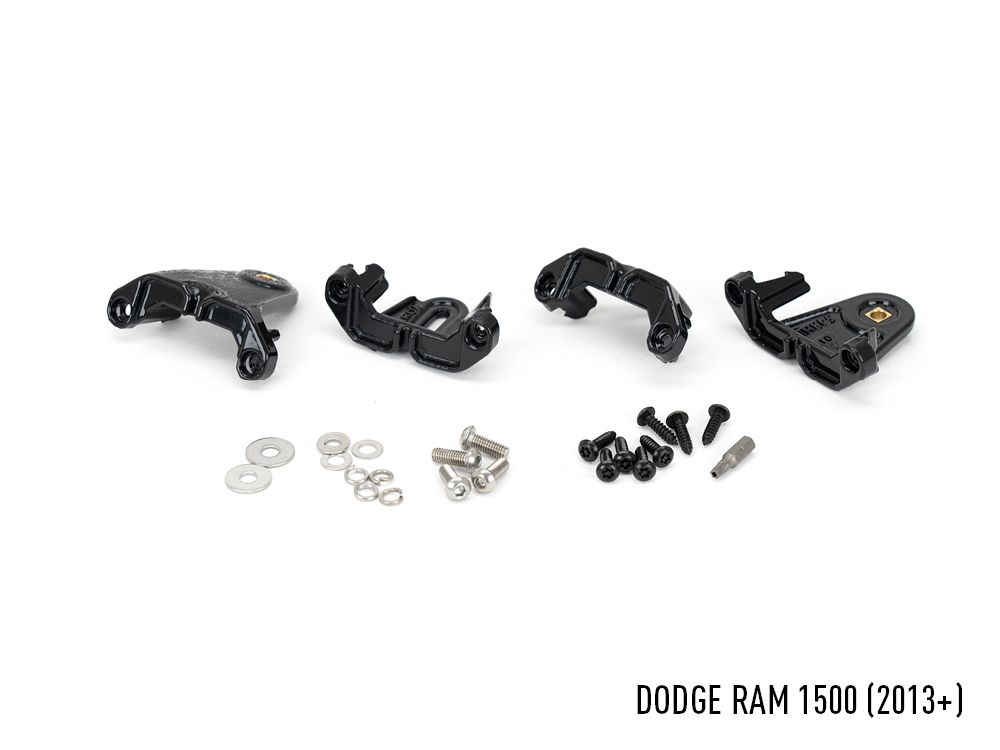

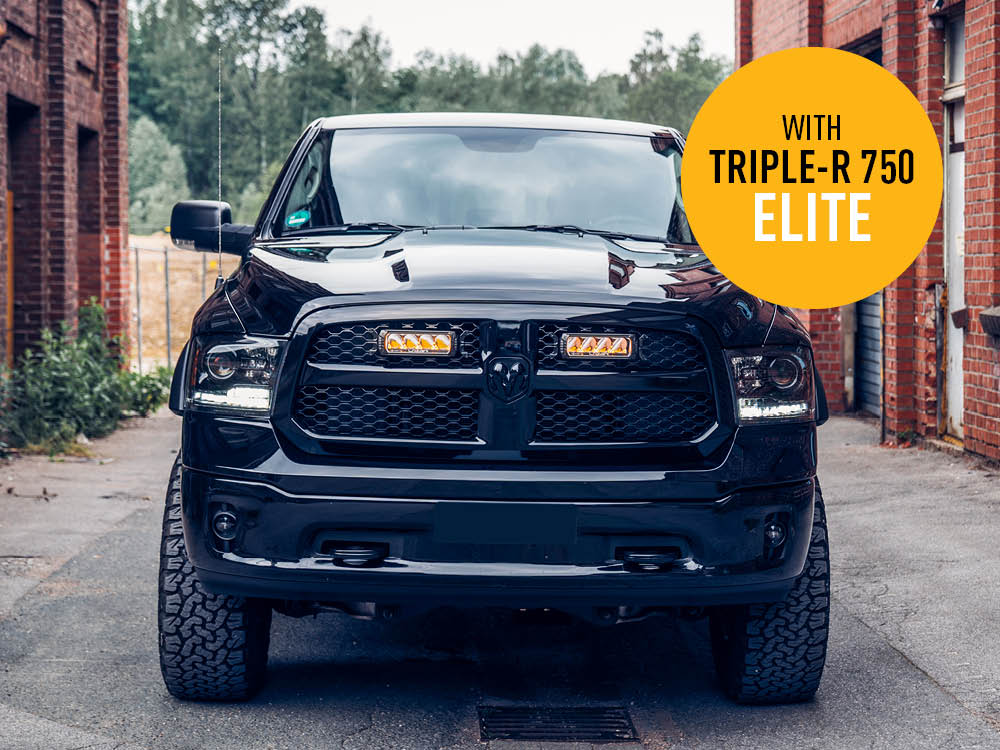

The RAM 1500 kit, designed and engineered for model year 2013+ vehicles, features a pair of Triple-R 750 (Standard or Elite) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
The RAM 1500 (2013+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 Performance LED driving lights.

Bespoke vehicle integration kit for Lazer LED Driving Light installation
Custom fit for RAM 1500 (2013+)
For use with Triple-R 750 Performance LED driving lights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain

Technical information

Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:

Voltage Range	10-32V
LED Life	50,000 hours
Weight	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	9240 Lm
Colour Temperature	5000K
Number of High Output LEDs	2 x 4
Power Consumption	88 Watts
Current Draw (at 14.4V)	6.2 Amps
CERTIFICATION
High Beam	ECE R112
E-Mark Ref	35 x2

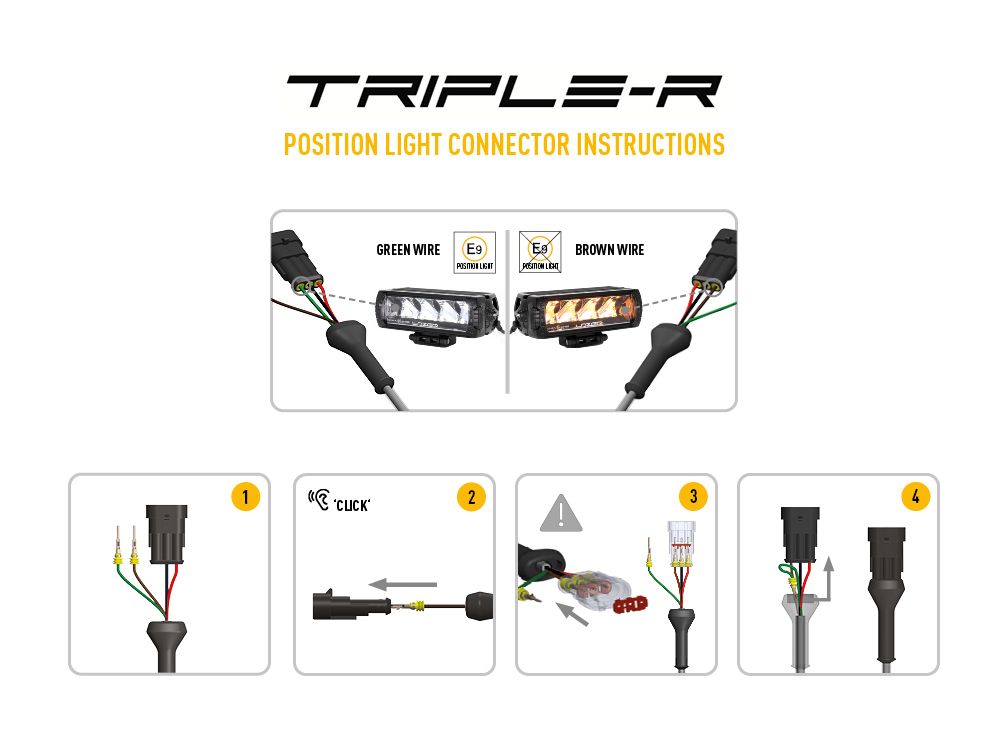

Position Light (White only)	ECE R7

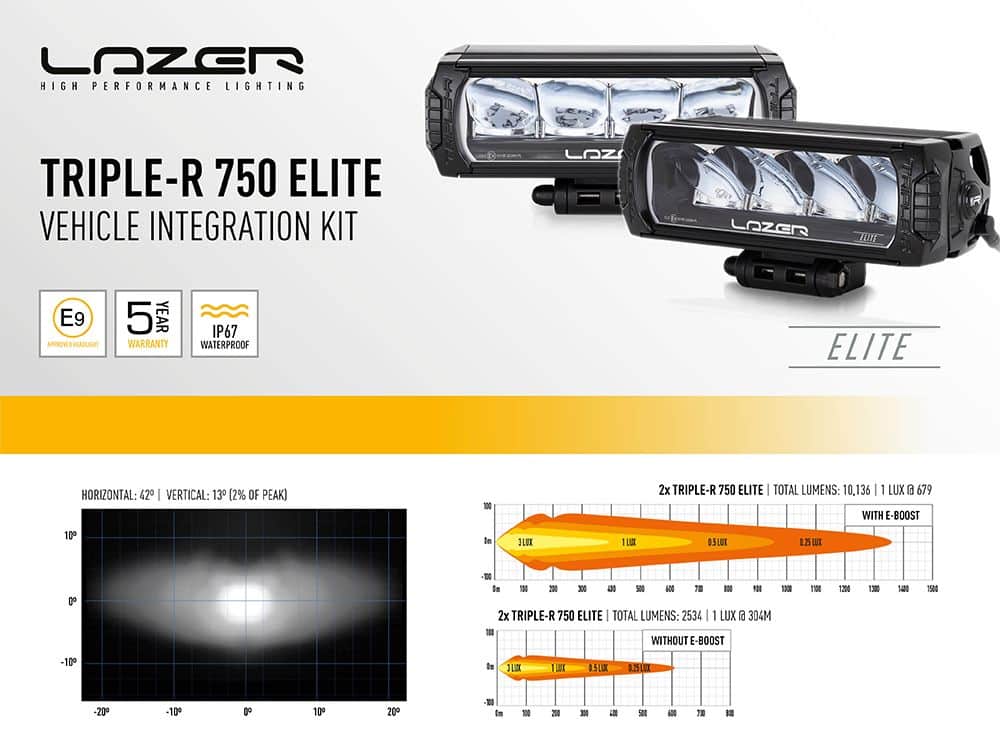

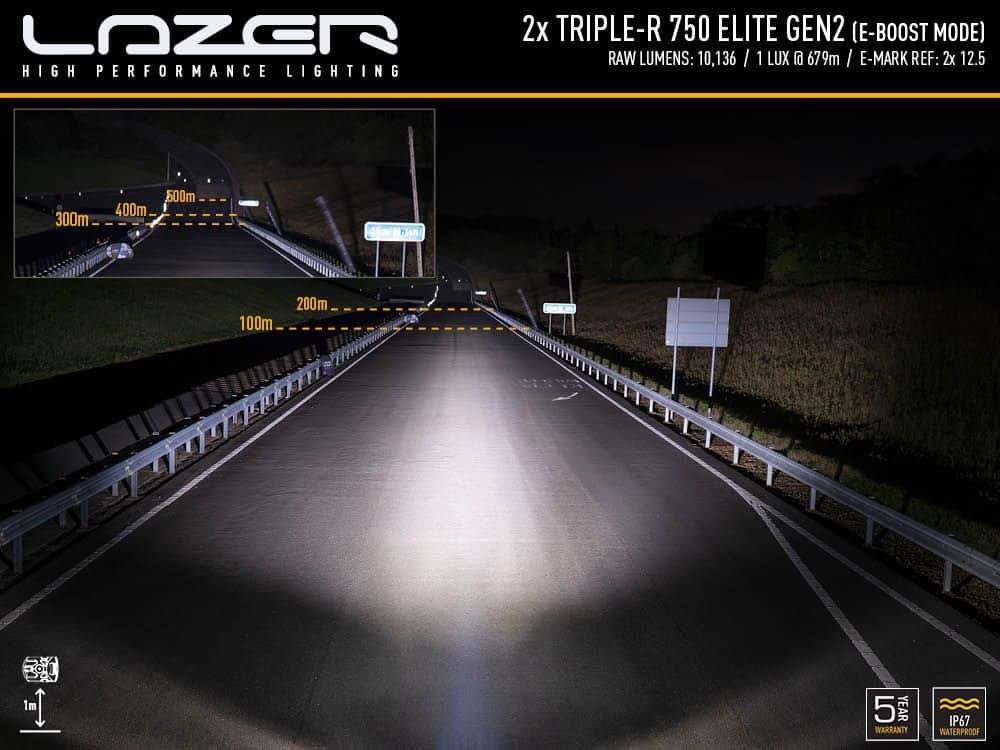

PHOTOMETRIC DATA
Horizontal Beam Angle	19 Degrees
0.25 lx Line	1225 metres
0.5 lx Line	866 metres
1 lx Line	612 metres
3 lx Line	354 metres

What’s included

– 2x Triple-R 750 High Performance LED Driving Lights
– 1x Mounting Kit (comprising 4x Brackets & Fasteners)
– 1x Cutting Guide Set
– 1x Two-Lamp Wiring Kit
– 1x Installation Instructions

Additional information

Weight	3,00000 kg
