Grille kit for Peugeot Expert (2016+) – Linear 18 Elite With Ilba 18000 Lumens
Description
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Peugeot Expert Grille Kit, for vehicles produced since 2016, includes a Linear-18 (Standard, Elite or Elite with i-LBA grade) High Performance LED driving light, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

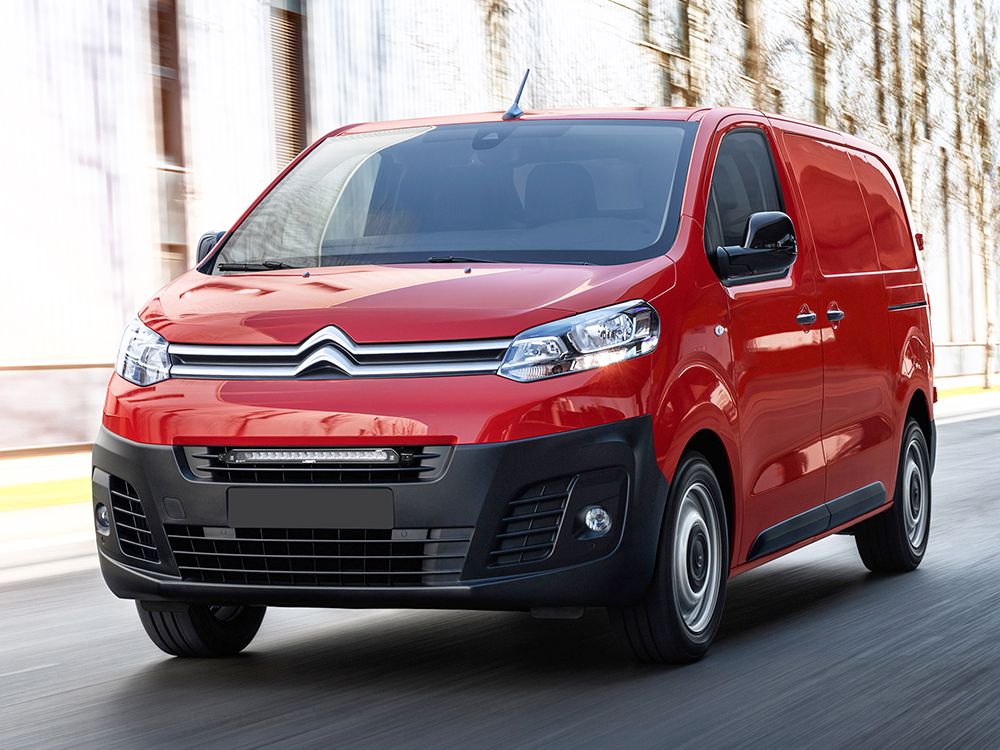

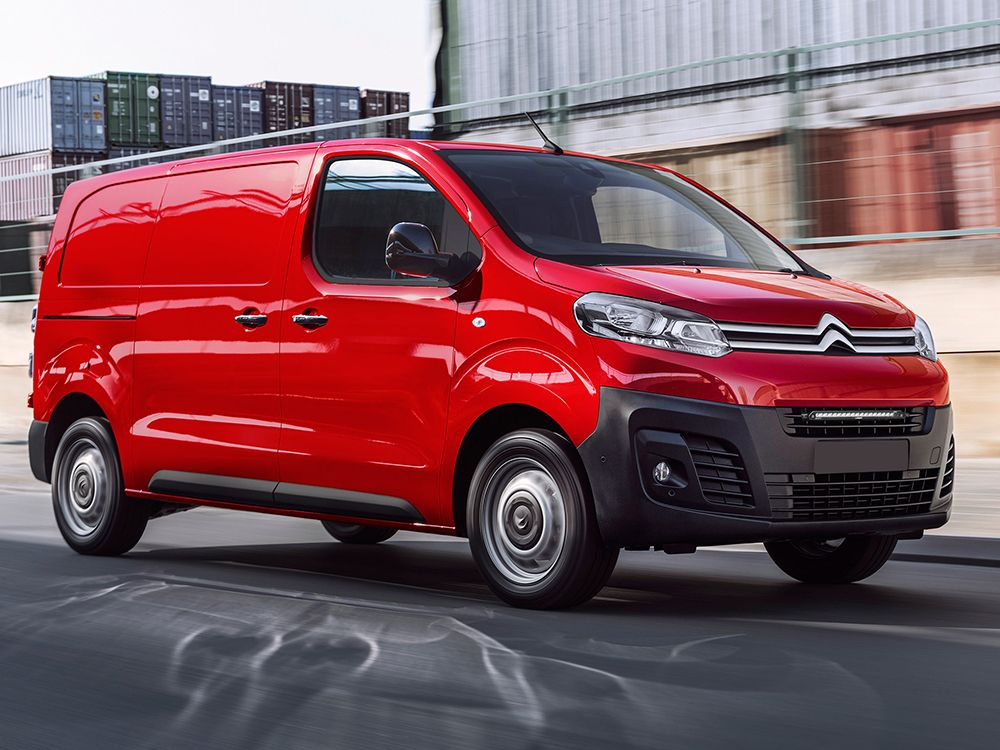

Please note, the Peugeot Expert 2016+ Grille Integration Kit is is also compatible with Vauxhall Vivaro 2019+ and Citroen Dispatch 2016+ and carefully engineered and optimised for use with our Linear-18 High Performance LED Spotlight.
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for Peugeot Expert (2016+)
- Available with: Linear-18 (Standard, Elite or Elite with i-LBA) LED Spotlight
- Kit also includes bespoke mounting brackets and wiring kit
- Cutting guides included
- Brackets made from high strength, UV -stable, ASA material
- Fully road-legal
- 5-year warranty
Technical Information
Based on setup: 1x Linear-18 Elite High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1090 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 12150 Lm |
| Total Driver ‘FOV’ Flux † | 8651 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| Start-Up Time * | 100ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 45 |
| DIMENSIONS | |
| Width | 532 mm |
| Depth | 62 mm |
| Height | 40 mm |

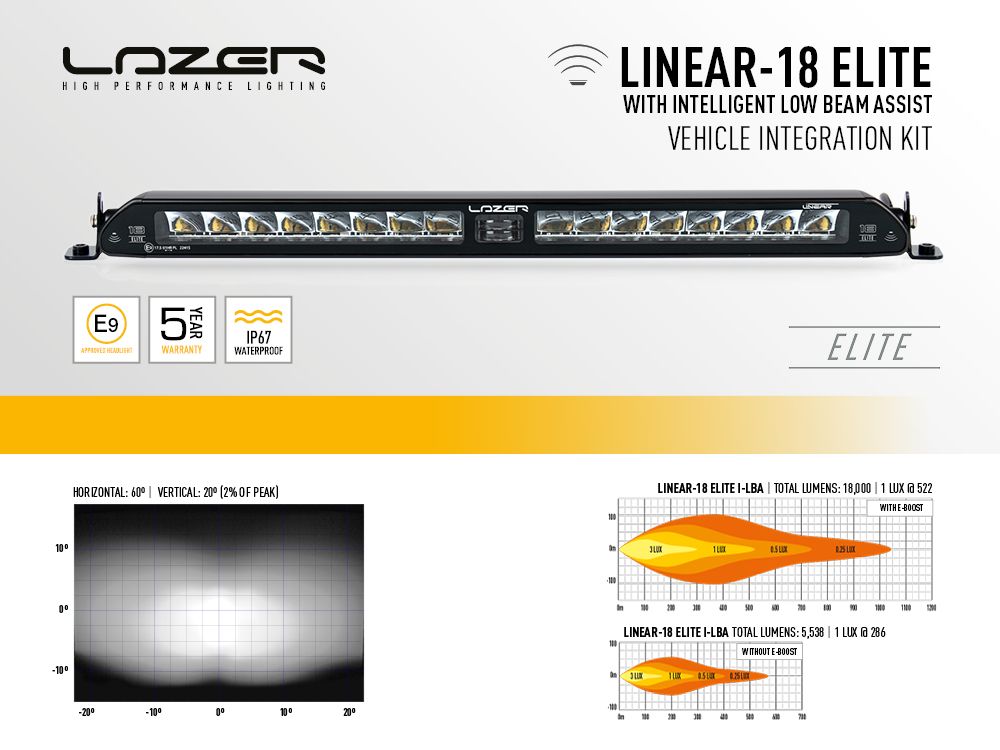

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 deg |
| 0.25 lx Line | 975 metres |
| 0.5 lx Line | 690 metres |
| 1 lx Line | 488 metres |
| 3 lx Line | 282 metres |
* ‘Start-up time’ is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.
Additional information
| Weight | 2,80000 kg |
|---|
