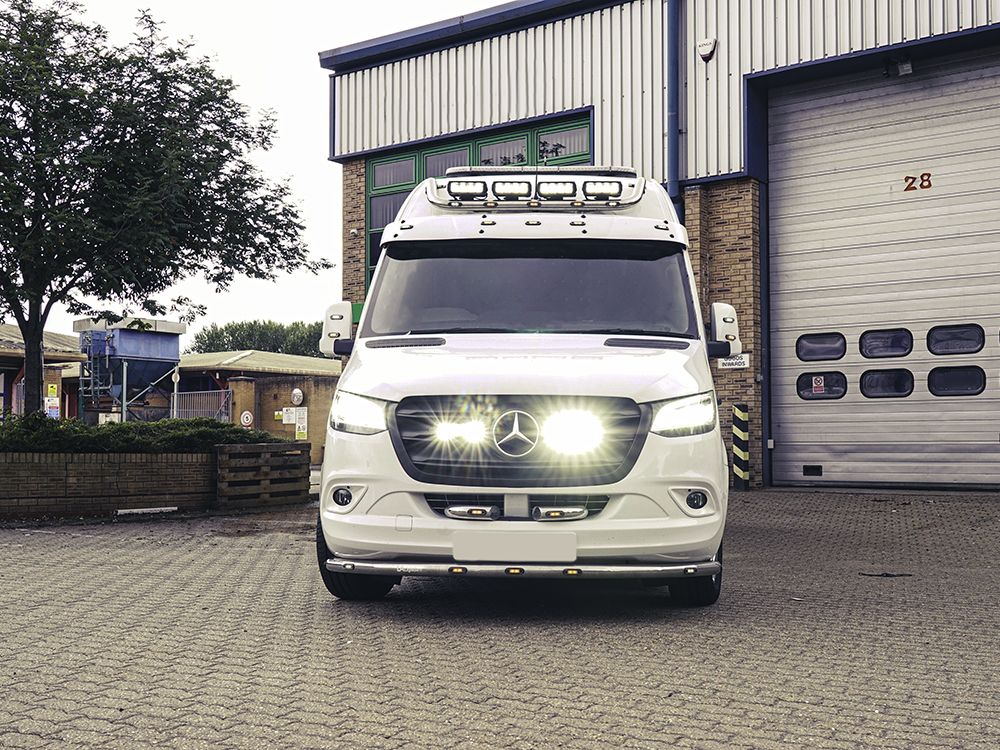

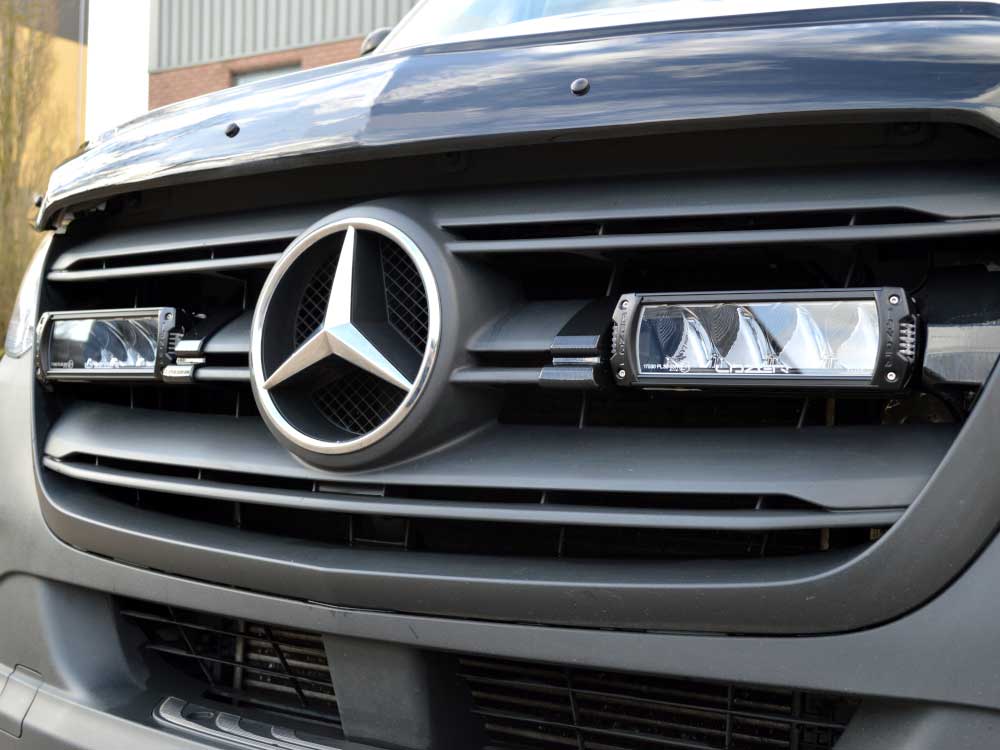

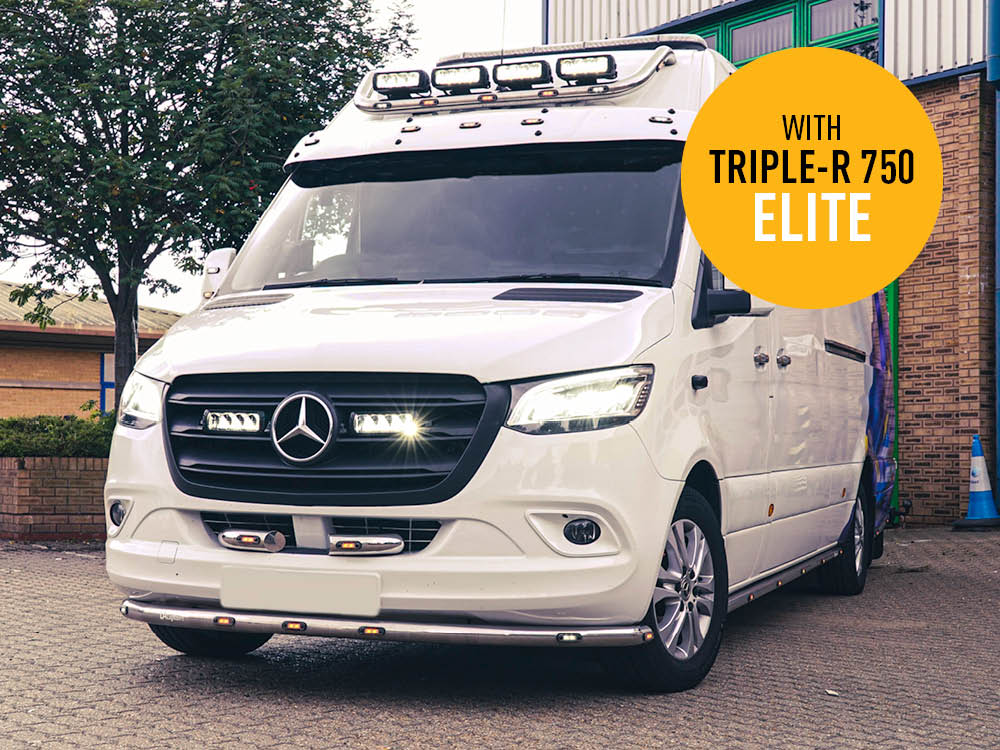

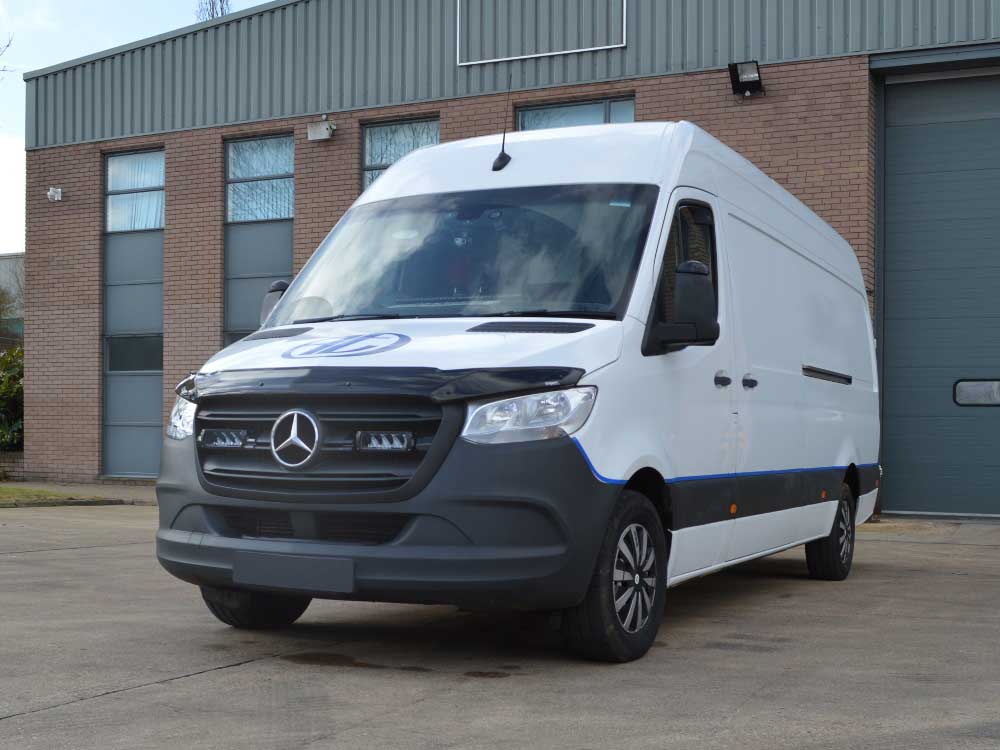

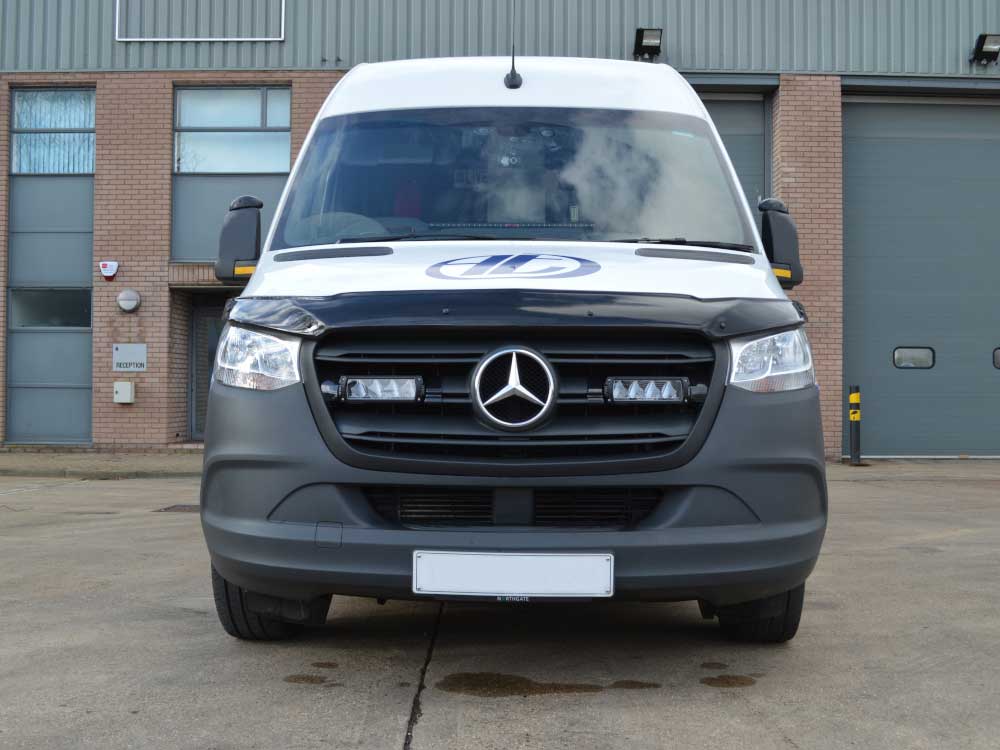

Whatever the job, whatever the destination, get there quicker, get there safer, get there in style with our bespoke grille integration kit, featuring a pair of our Triple-R 750 high performance LED spotlights, effortlessly set within the front grille of the Mercedes Sprinter.
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
The Mercedes Sprinter kit, designed for MY18 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.
Please note – not suitable for vehicles with front wheel drive.
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for Mercedes Sprinter (2018+)
- Designed for use with Triple-R 750 High Performance LED Spotlights
- Added option for white or amber position/side light function (Standard model only)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Brackets made from high strength, UV-stable, ASA material
- Installation completed with grille left in-situ on vehicle (cutting guides included)
- Fully road-legal
- 5-year warranty
- Made in Britain
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
Voltage Range | 9-32V |
LED Life | 50,000 hours |
Weight | 2 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 9240 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 2 x 4 |
Power Consumption | 88 Watts |
Current Draw (at 14.4V) | 6.2 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
E-Mark Ref | 35 x2 |
Position Light (White only) | ECE R7 |
PHOTOMETRIC DATA | |
Horizontal Beam Angle | 19 Degrees |
0.25 lx Line | 1225 metres |
0.5 lx Line | 866 metres |
1 lx Line | 612 metres |
3 lx Line | 354 metres |
