For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

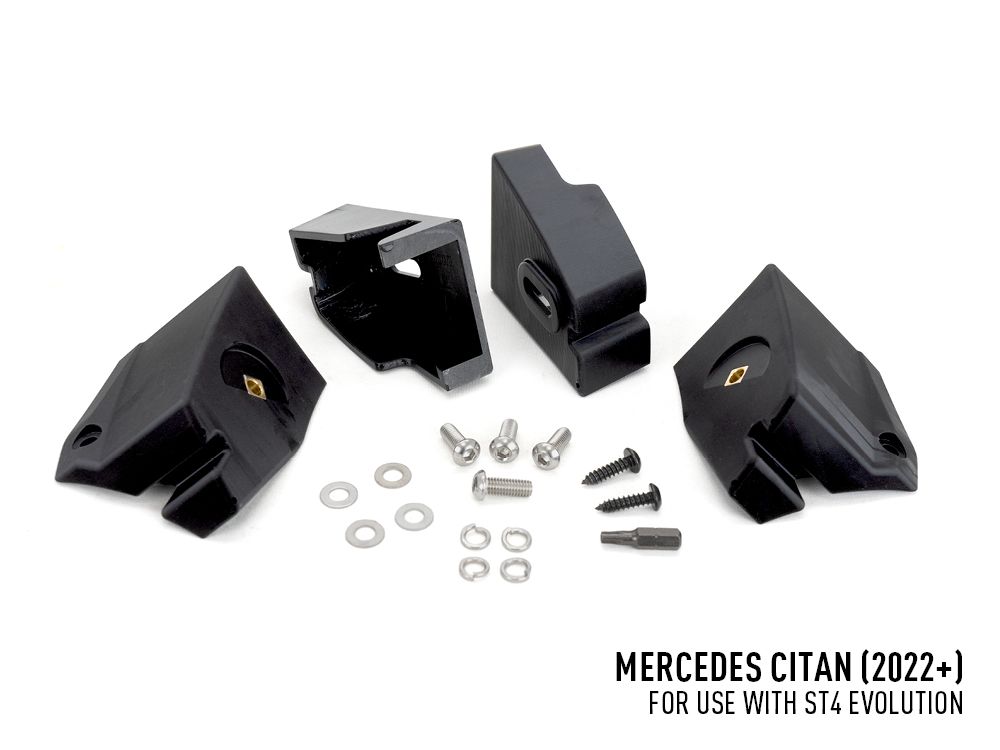

The Mercedes Citan kit, for model year 2022+ vehicles, includes a pair of ST4 Evolution lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied anti-theft self-tapping (plastic) screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
The Mercedes Citan (2022+) Grille Integration Kit is carefully engineered and optimised for use with ST4 Evolution High Performance LED Spotlights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
- Custom-fit for ST4 Evolution LED driving lights
- Suitable for Mercedes Citan (2022+)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Cutting guides included
- Brackets made from high strength, UV -stable, composite material
- Includes anti-theft fasteners
- Fully road-legal
- 5-year warranty
- Made in Britain
Technical Information
| x2 ST4 Evolution | |
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1340g |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8272 Lm |
| Total Driver ‘FOV’ Flux † | 4980 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 94 Watts |
| Current Draw (at 14.4V) | 6.6 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 10 x2 |

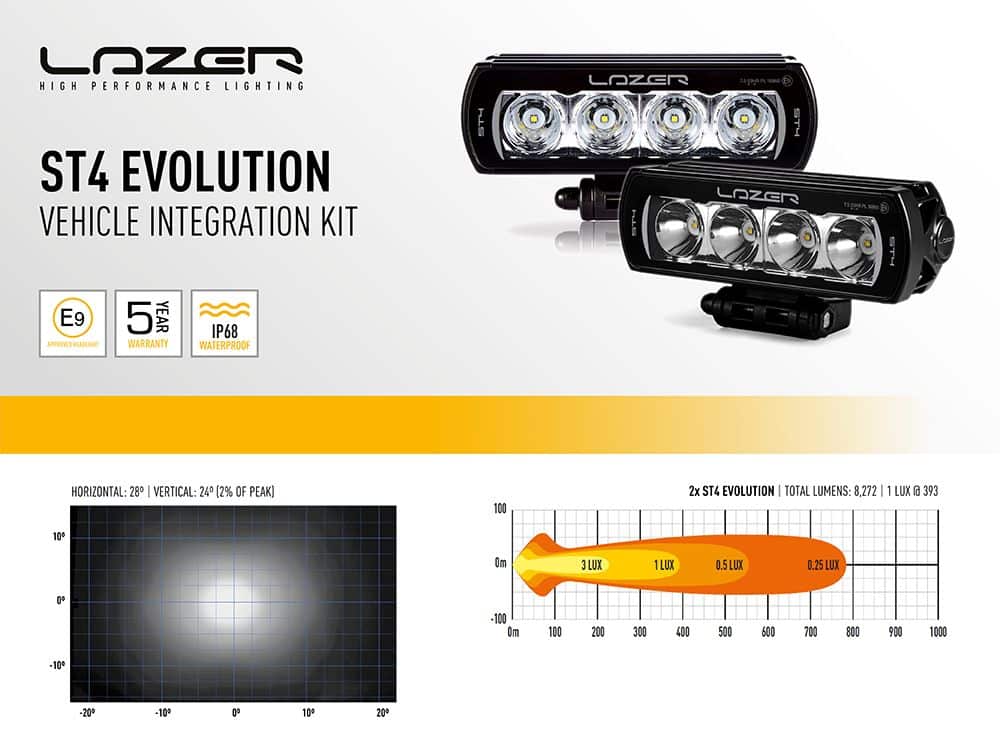

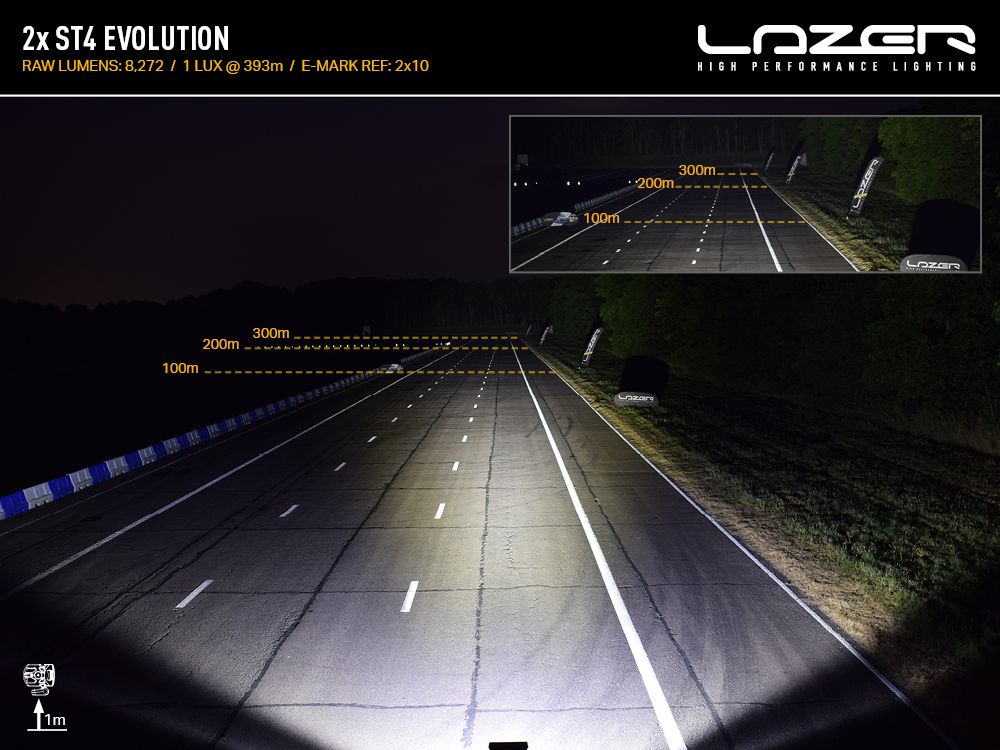

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 40° |
| 0.25 lx Line | 786m |
| 0.5 lx Line | 555m |
| 1 lx Line | 393m |
| 3 lx Line | 227m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.
What’s included
- x2 ST4 Evolution LED Lamps
- x1 Grille Mounting Kit (Includes cutting guides)
- x1 Two-Lamp Wiring Kit
- x1 Installation instructions
