For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

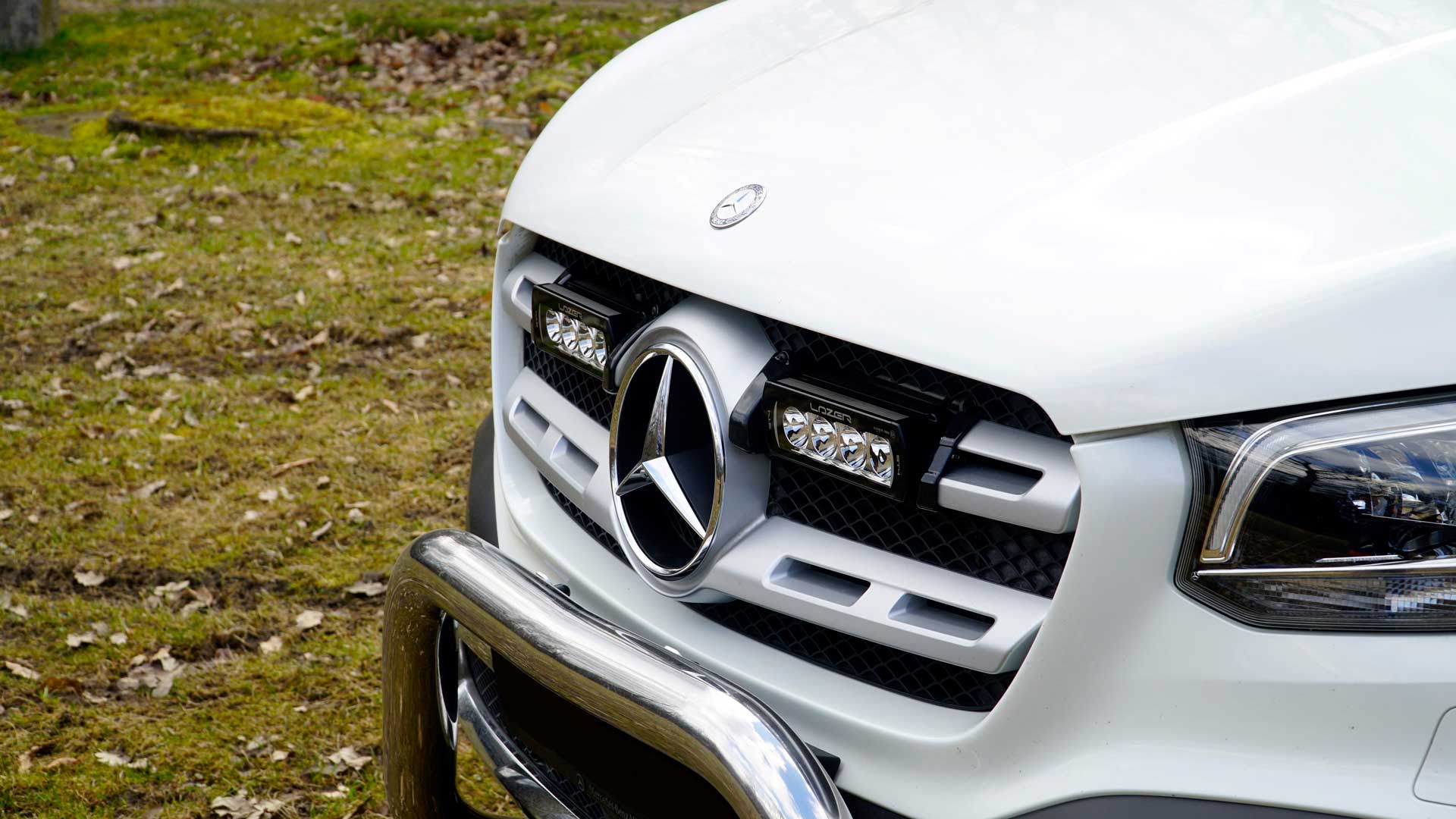

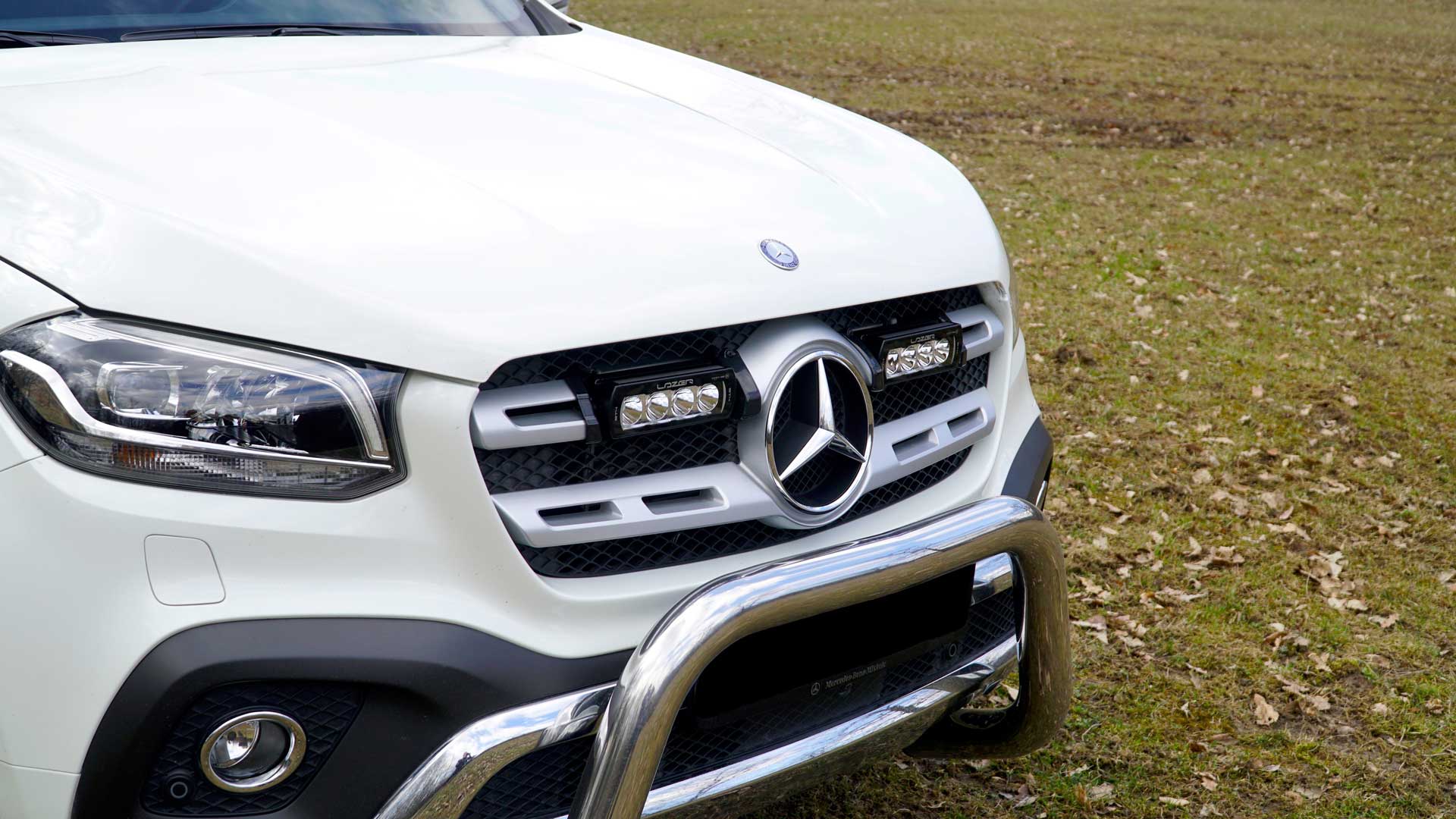

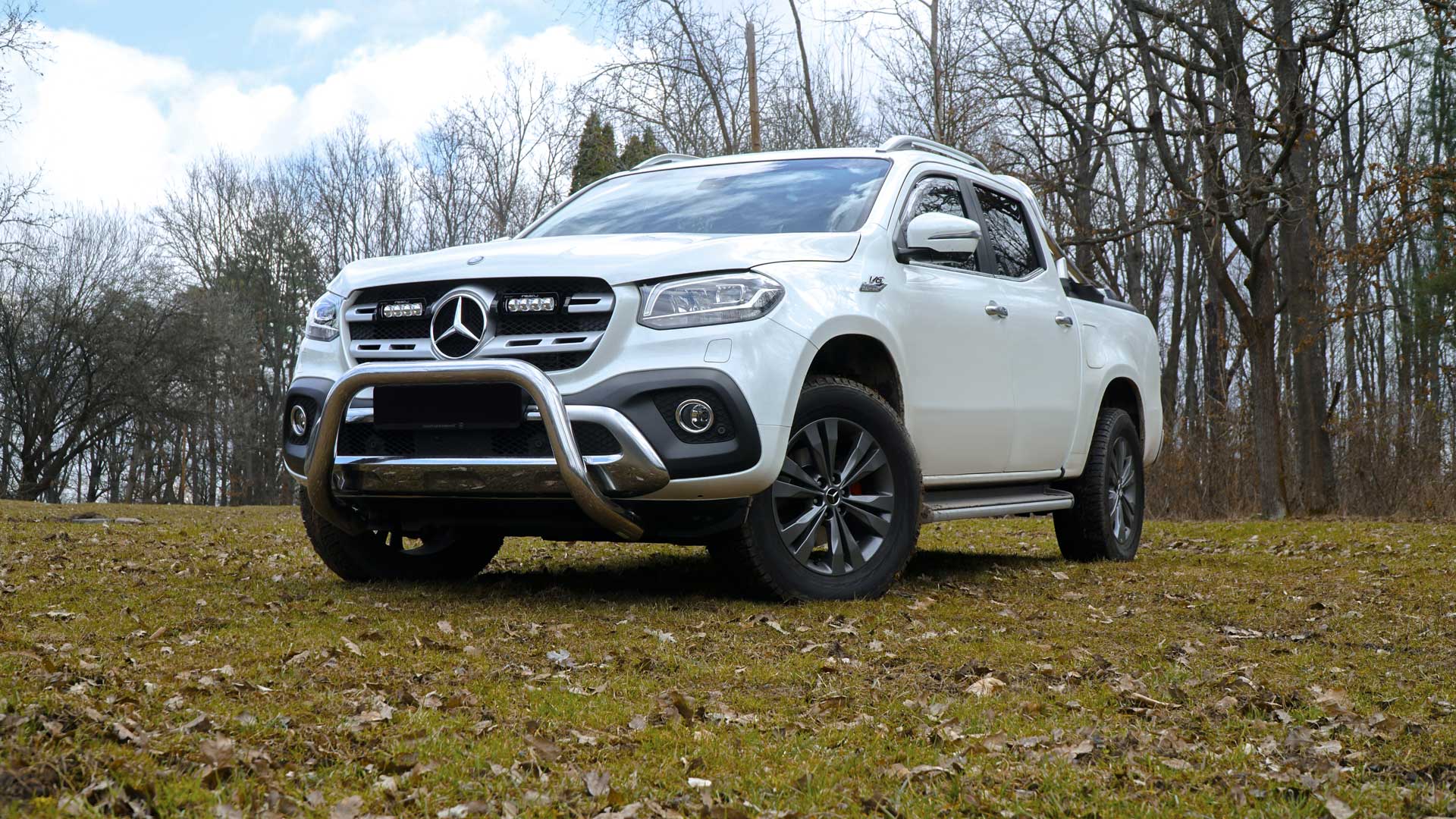

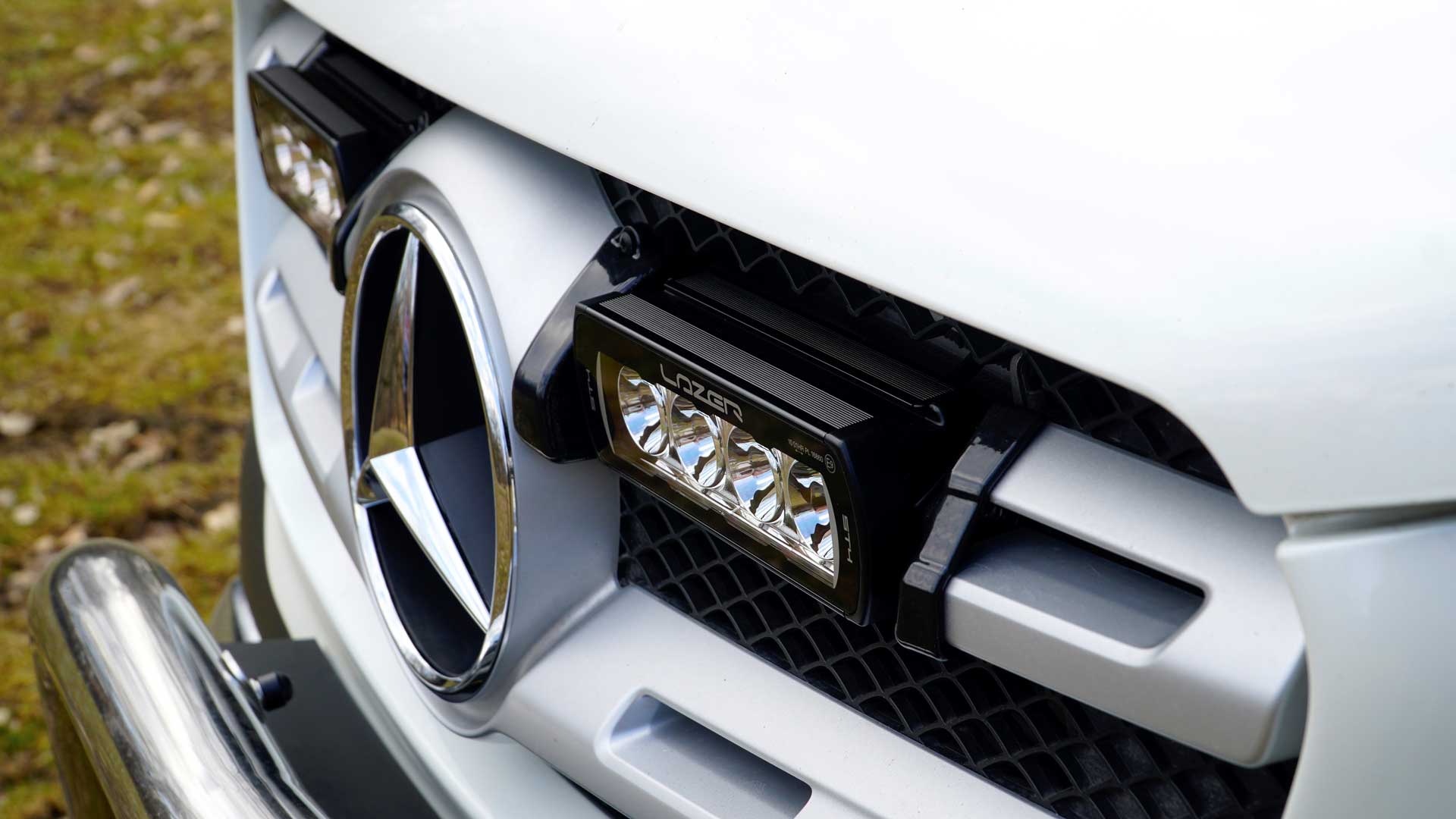

The Mercedes X-Class integration kit is available for either a pair of ST4 Evolution or Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.
Please note the mounting brackets are different depending on whether the light installation is for Triple-R 750 or ST4 lights. It is recommended when fitting the grille kit to the V6 model X-Class to use ST4 lights, given the improved fit considering the larger intercooler behind the front grille.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface.
Please note, due to excessive demand current lead times for delivery of Grille Kit products maybe up to 2 weeks.
- Bespoke mounting bracket kit for Lazer LED Spotlight installation
- Custom fit for Mercedes X-Class

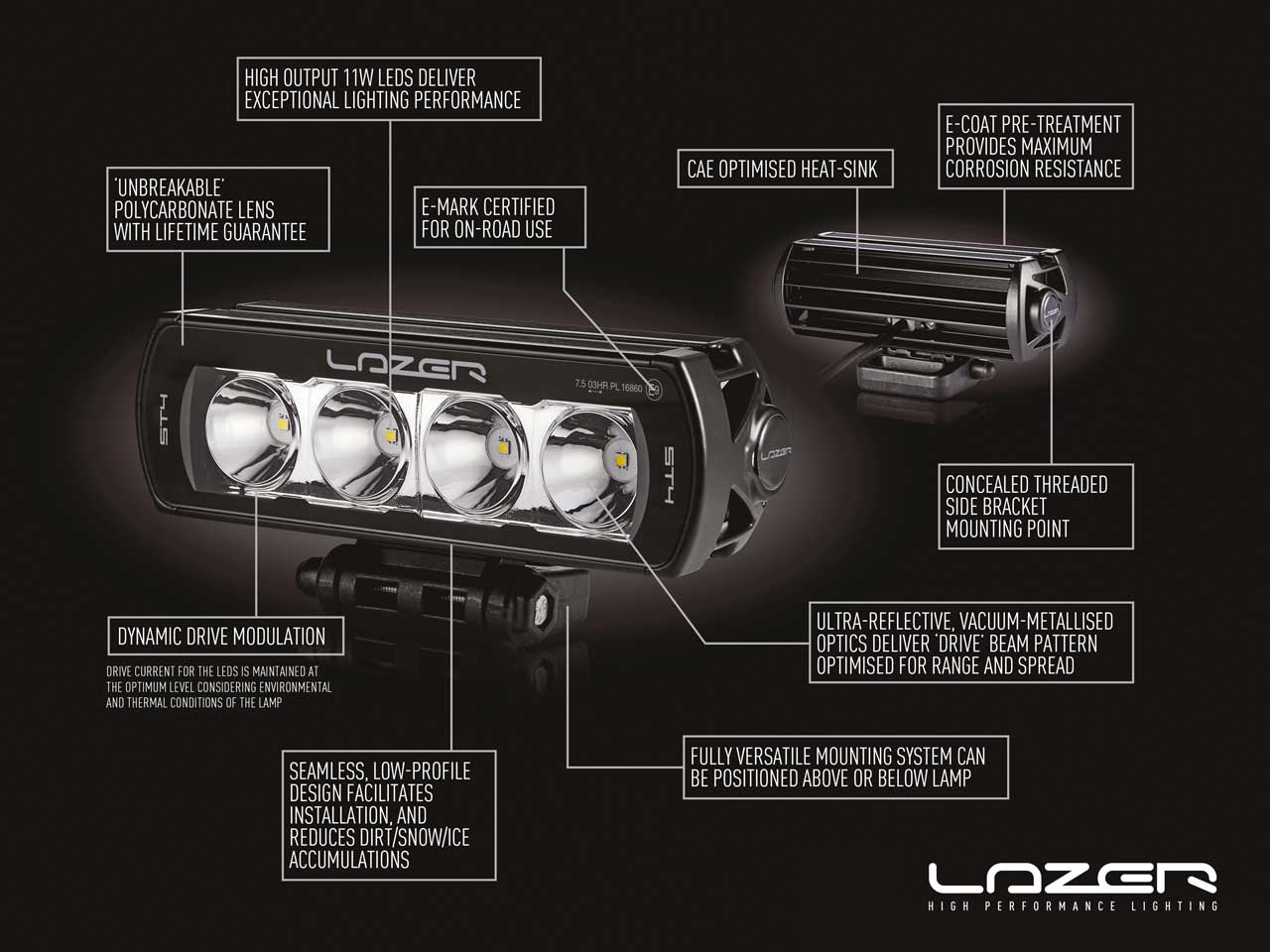

- Available with: Triple-R 750 or ST4 Evolution High Performance LED Spotlights
- Kits include: 4x brackets, cutting guides, wiring loom, and fasteners
- Made from high strength, UV-stable, ASA material
- Fully UNECE approved for on-road use
- 5-year warranty
- Made in Britain
Technical Information
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
| Voltage Range | 9-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |

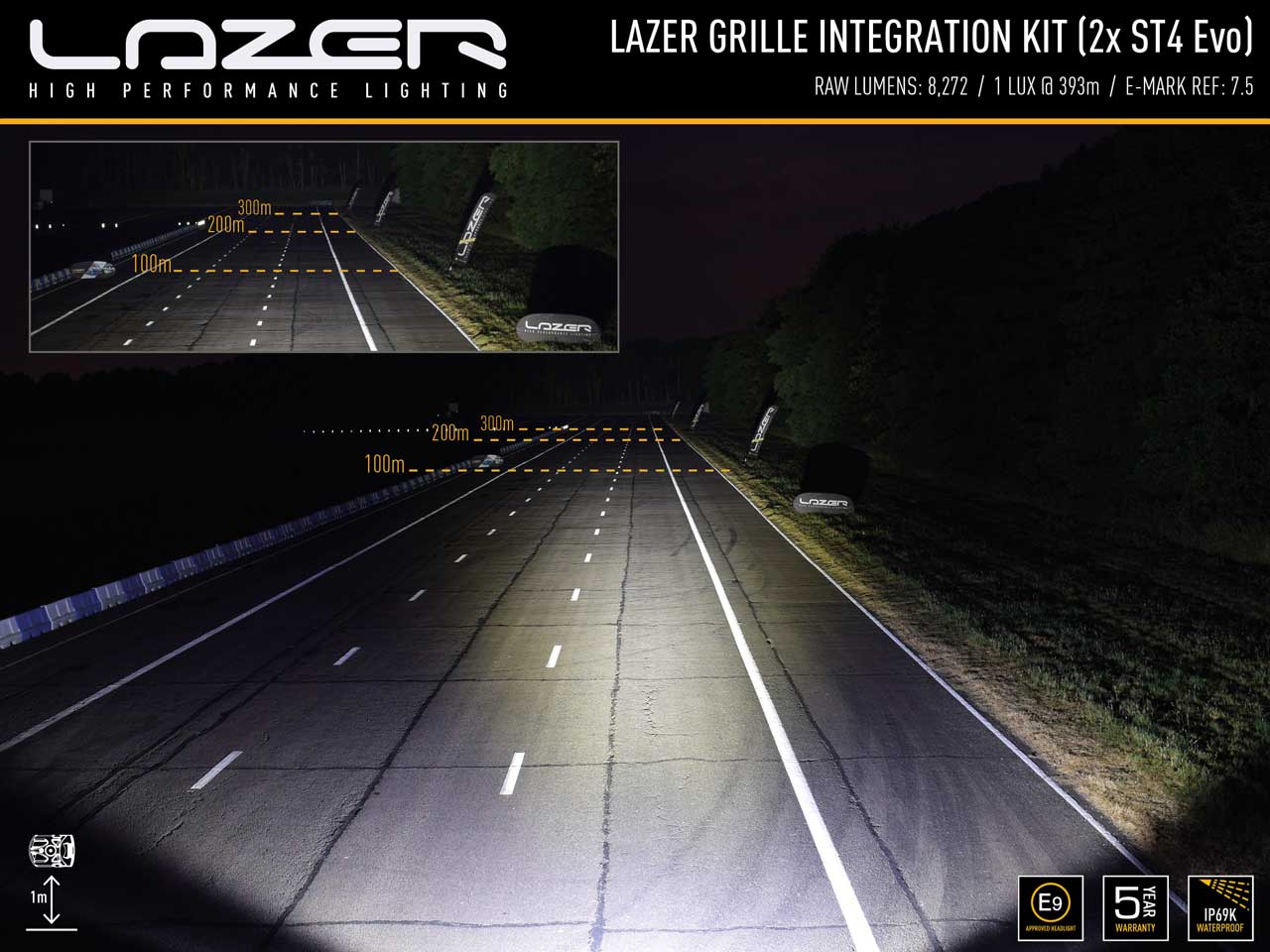

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| 1 lx Line | 612 metres |
| 3 lx Line | 354 metres |
What’s included
For Triple-R 750
– x2 Triple-R 750 (00R4-G2-B)
– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-MBX-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-PL-120)
– x1 Installation instructions
For Triple-R 750 Elite
– x2 Triple-R 750 Elite (00R4-G2-EL-B)
– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-MBX-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-120)
– x1 Installation instructions

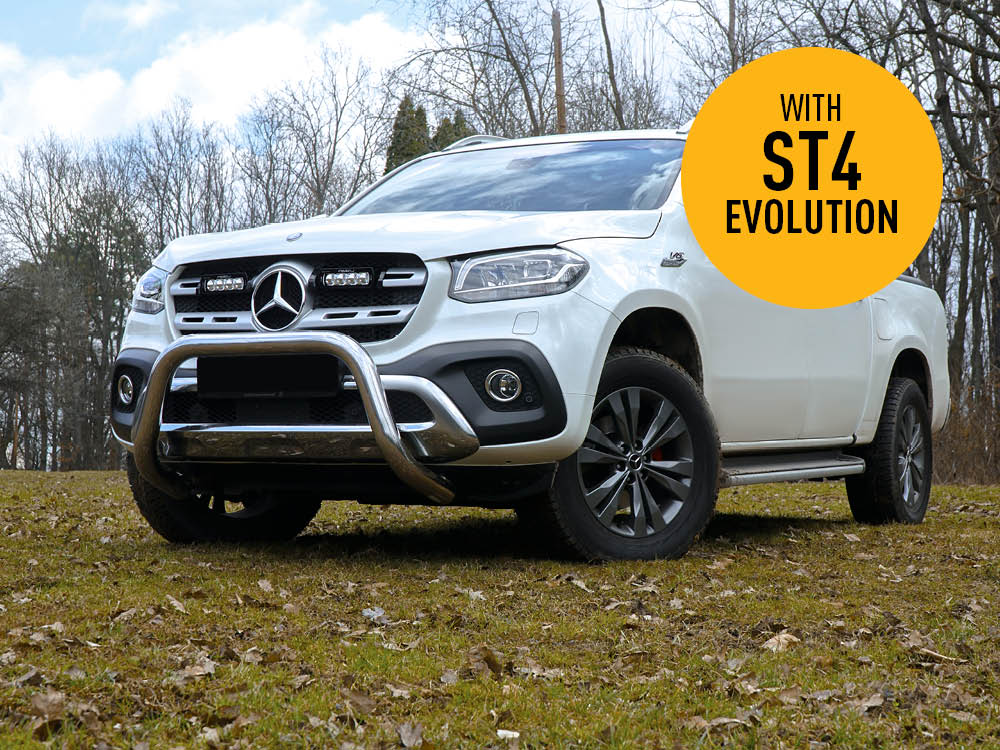

For ST4 Evolution
– x2 ST4 Evolution (0004-EVO-B)

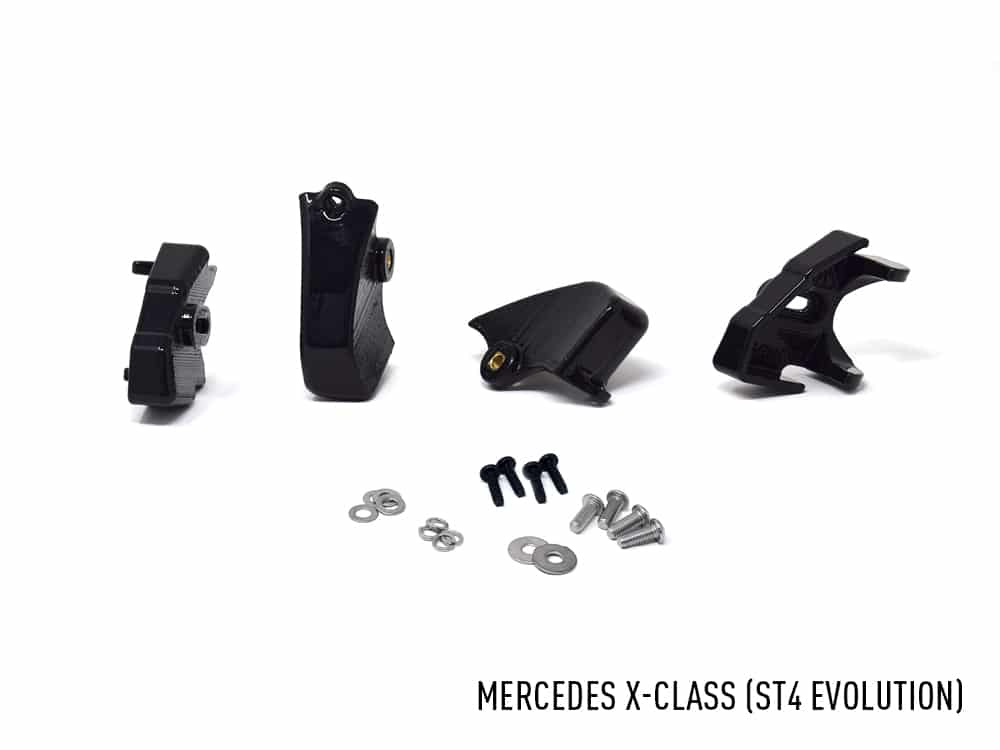

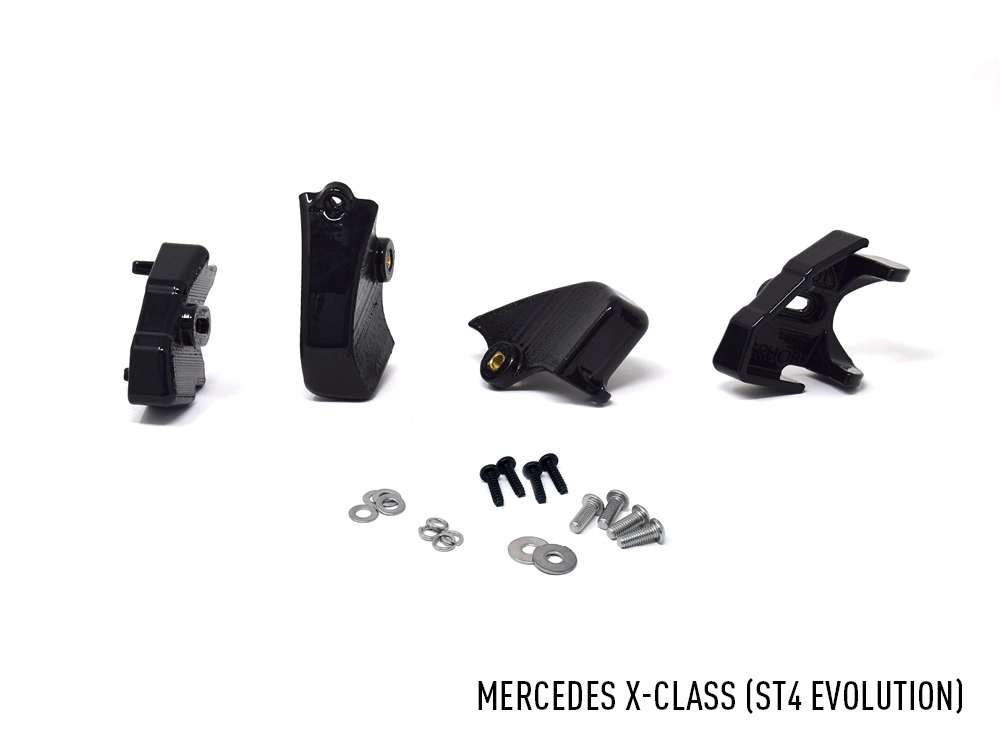

– x1 Grille Mount- Compatiable with V6 (comprising 4x Brackets and fasteners) (GM-MBX-02K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-120)
– x1 Installation instructions
