Για εγκατάσταση βοηθητικού φωτισμού ποιότητας OE, τα κιτ ενσωμάτωσης Lazer Grille είναι προσαρμοσμένα στηρίγματα στήριξης που επιτρέπουν τη γρήγορη και εύκολη τοποθέτηση των φώτων LED υψηλής απόδοσης Lazer στην μπροστινή μάσκα των πιο δημοφιλών αυτοκινήτων δρόμου, pick-up φορτηγών και ελαφρών επαγγελματικών οχημάτων. Σχεδιασμένο για να συνδυάζεται άψογα με το αρχικό στυλ κάθε οχήματος, η προκύπτουσα διάταξη φωτισμού παραμένει πλήρως στιβαρή και ασφαλής.

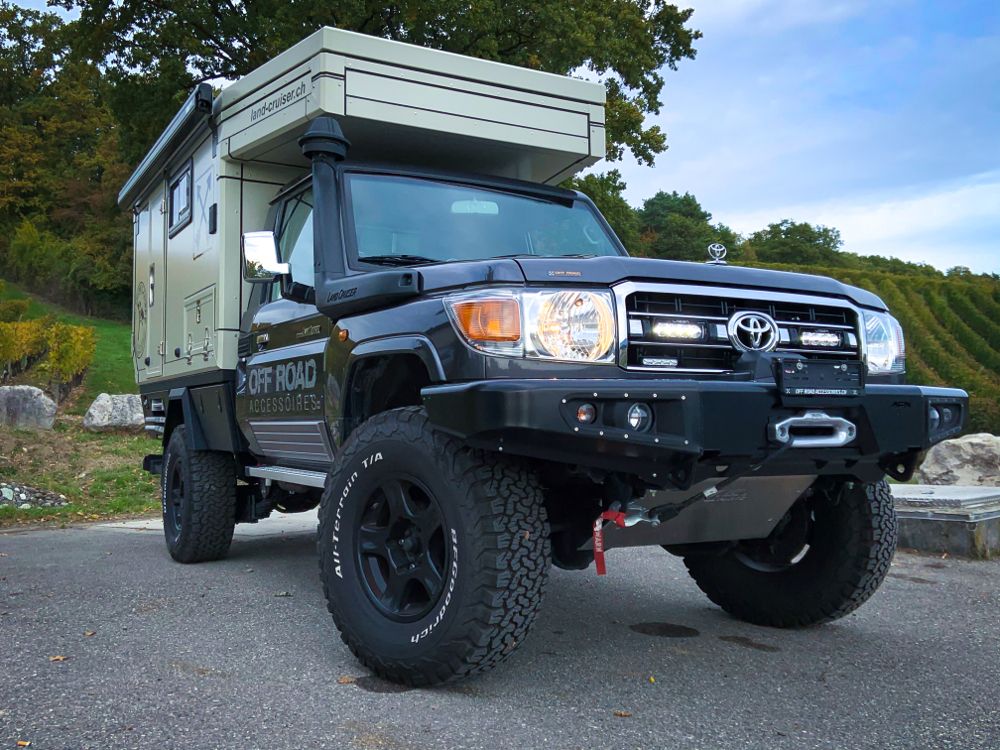

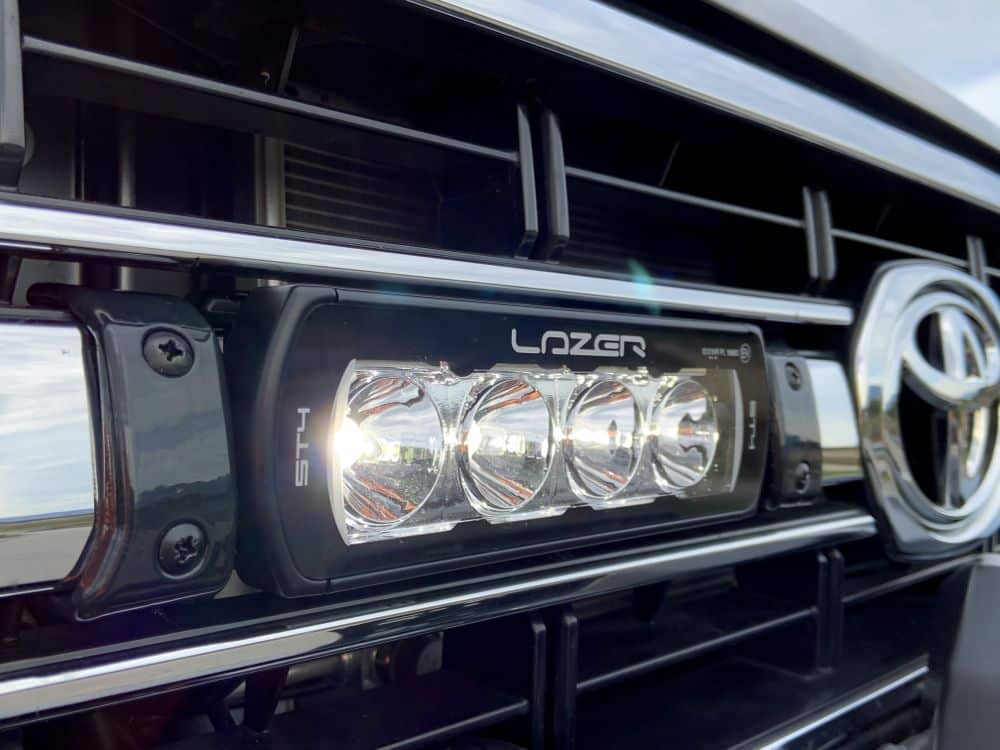

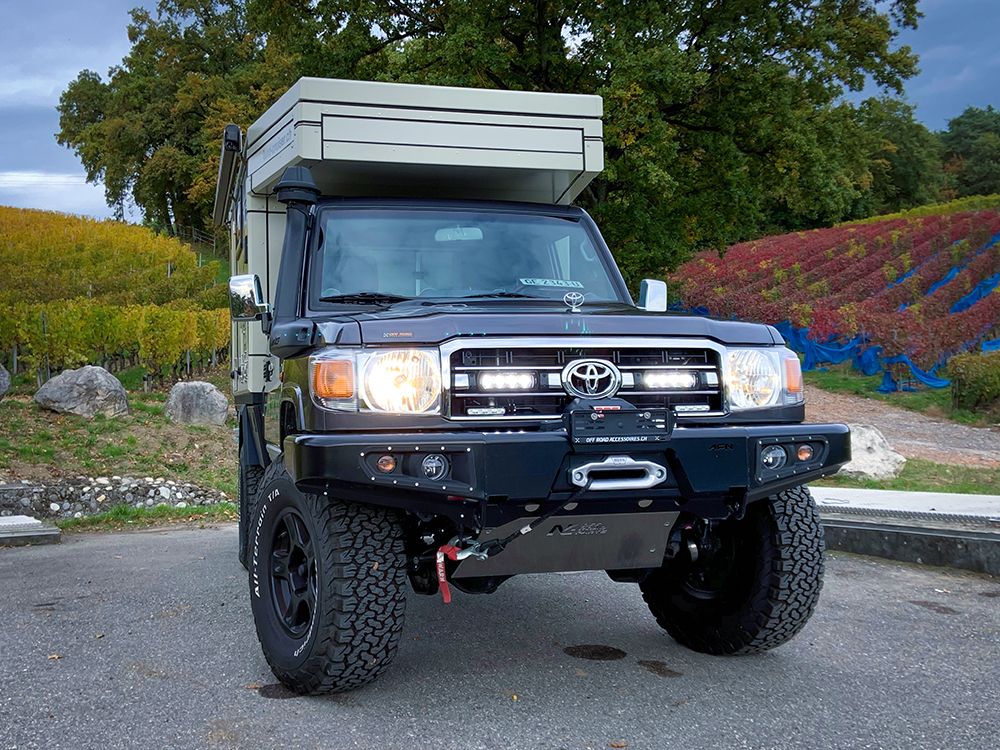

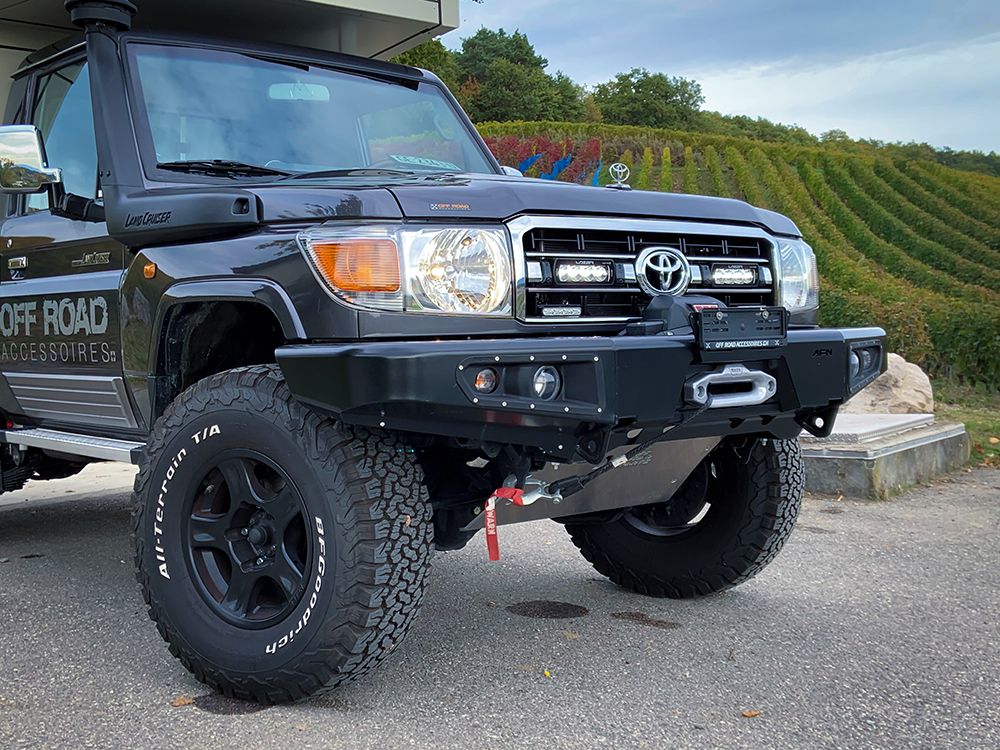

Το κιτ ενσωμάτωσης Toyota Land Cruiser 70 Series (2007-2023) περιλαμβάνει ένα ζευγάρι φώτα οδήγησης LED υψηλής απόδοσης ST4 Evolution, ιδανικά για όλους τους τύπους οδήγησης εντός και εκτός δρόμου. Το κιτ περιλαμβάνει κιτ καλωδίωσης, μαζί με 4x στηρίγματα σχεδιασμένα με ακρίβεια για τέλεια σύνδεση με την τυπική κεντρική γρίλια του οχήματος, με πρόσθετη αντοχή και ασφάλεια που παρέχονται από τις παρεχόμενες αντικλεπτικές βίδες με αυτοκόλλητο. Κατασκευασμένα από σύνθετο υλικό, γνωστό για την εξαιρετική του αντοχή και σταθερότητα στην υπεριώδη ακτινοβολία, τα στηρίγματα είναι πλήρως ανθεκτικά στις καιρικές συνθήκες και τα χημικά για να διασφαλίσουν ότι η εγκατάστασή σας παραμένει σε άριστη κατάσταση χρόνο με το χρόνο.

Το κιτ ενσωμάτωσης γρίλιας Toyota Land Cruiser 70 Series (2007-2023) είναι βελτιστοποιημένο για χρήση με φώτα LED υψηλής απόδοσης ST4 Evolution. Η εγγύησή μας δεν καλύπτει τις βάσεις σχάρας που είναι εφοδιασμένες με επώνυμα προϊόντα που δεν είναι Lazer Lamps.

  • Εξατομικευμένο κιτ ενσωμάτωσης οχήματος για εγκατάσταση φωτιστικών LED Lazer
  • Προσαρμοσμένη εφαρμογή για Toyota Land Cruiser 70 Series (2007-2023)
  • Σχεδιασμένο για χρήση με φώτα LED υψηλής απόδοσης ST4 Evolution
  • Το κιτ περιλαμβάνει βραχίονες στήριξης κατά παραγγελία και κιτ καλωδίωσης δύο λαμπτήρων
  • Στηρίγματα κατασκευασμένα από υψηλής αντοχής, σταθερό στην υπεριώδη ακτινοβολία, σύνθετο υλικό
  • Πλήρως νόμιμο για χρήση στο δρόμο
  • 5 χρόνια εγγύηση
  • Κατασκευάζεται στη Βρετανία

Βίντεο

Τεχνικές πληροφορίες

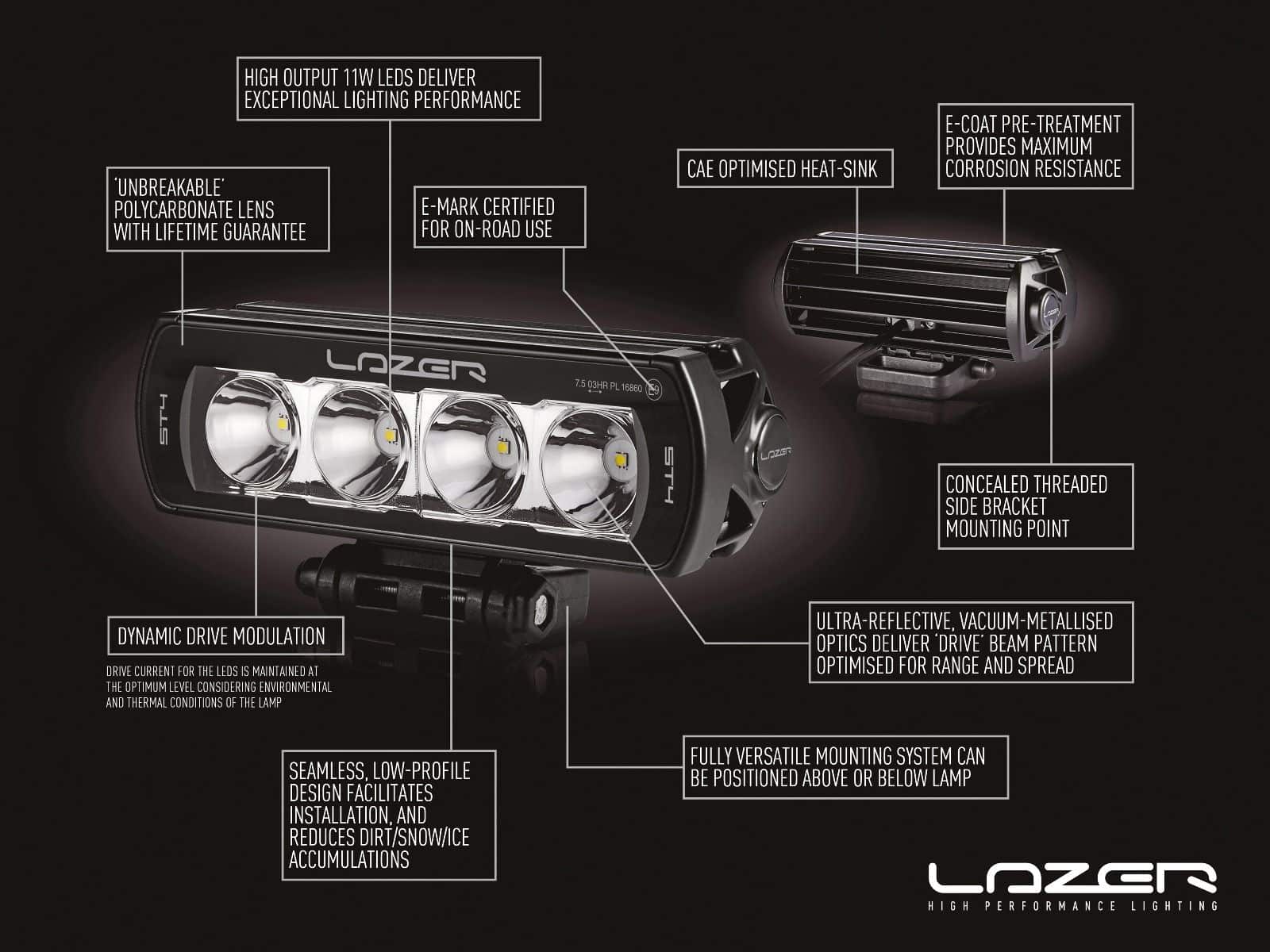

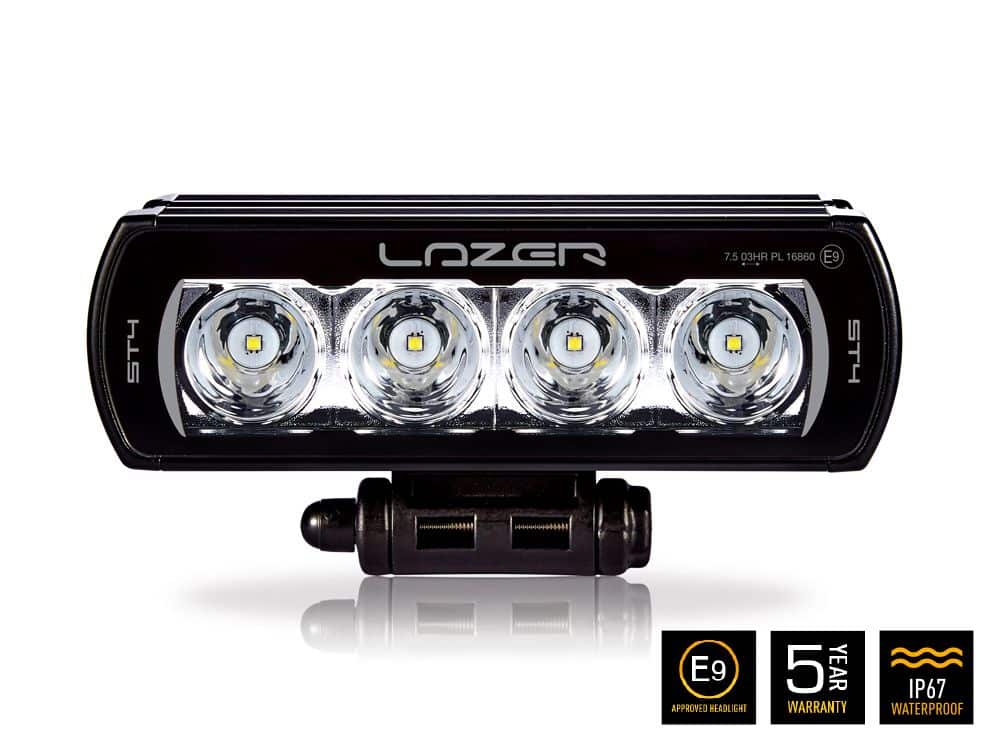

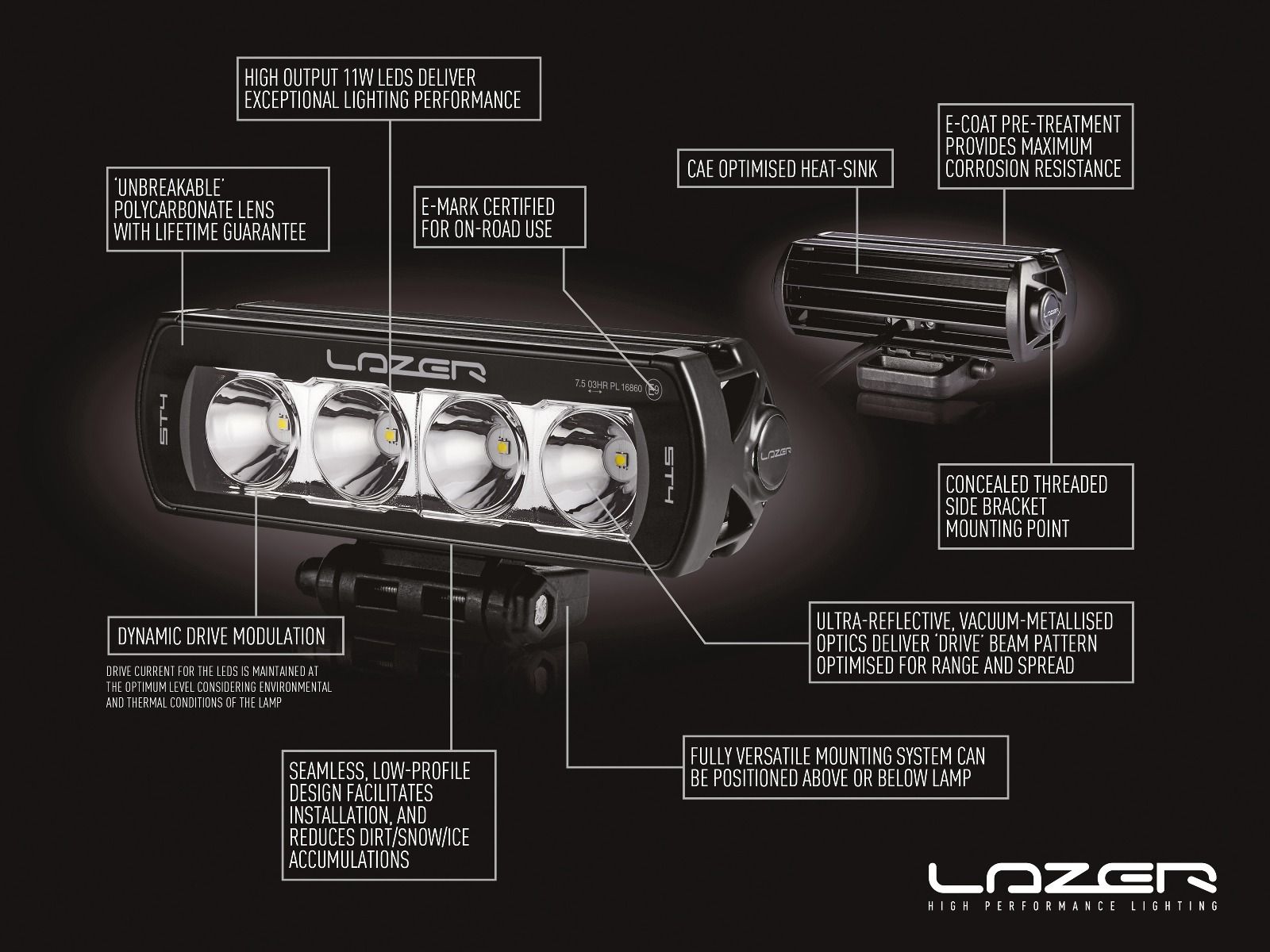

 2x ST4 EVOLUTION

Voltage Range (DC)10-32V
LED Life50,000 hours
Weight1.34 kg

HIGH BEAM FUNCTION
Total Luminous Flux8,272 Lm
Total Driver ‘FOV’ Flux †4,980 Lm
Colour Temperature5000K
Power Consumption94 Watts
Peak Current Draw11 Amps
Current Draw (14.4V)6.6 Amps
Connector2-Pin Superseal (+25cm Cable)

CERTIFICATION
IP Rating #IP68
High Beam (E9 approval)ECE R149 – Ref: 2x 10
EMC CertificationECE R10
Salt Spray TestISO 9227
Dump Load ProtectionISO 7637-2

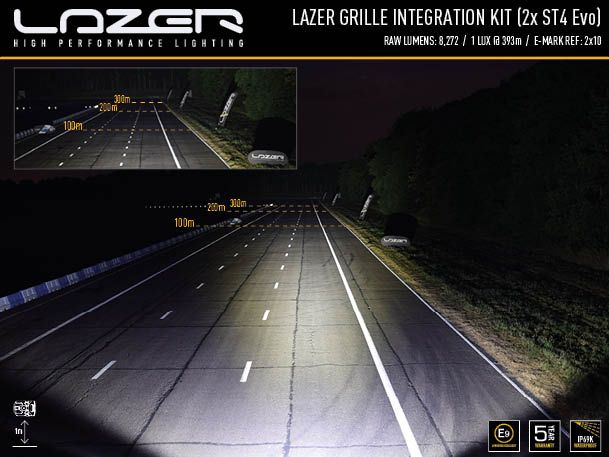

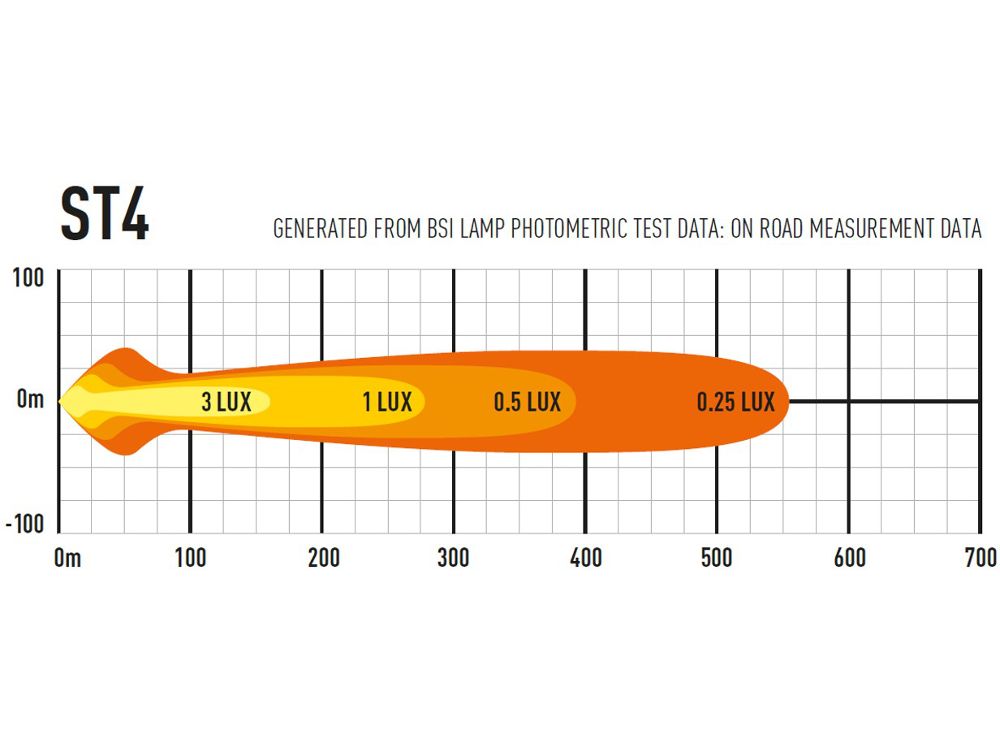

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle40° / 25°
0.25 lx Line786m
0.5 lx Line555m
1 lx Line393m
3 lx Line227m




† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down.

# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.

Τί περιλαμβάνεται

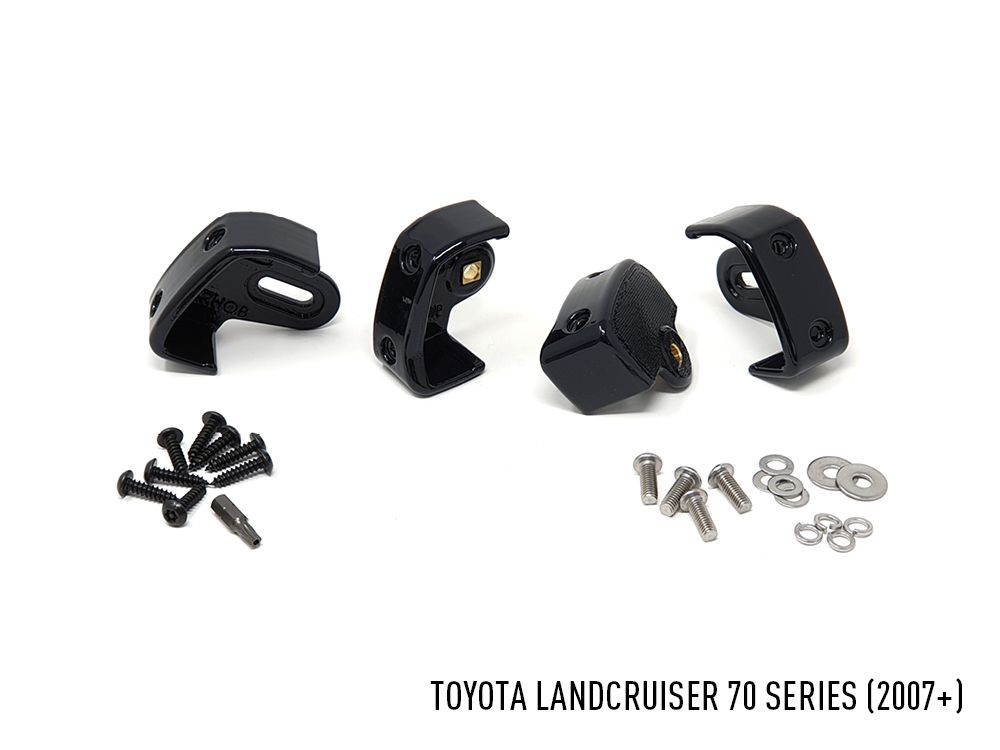

  • 1 κιτ τοποθέτησης γρίλιας (περιλαμβάνει οδηγούς κοπής)
  • 2 Μπάρες Led ST4 Evolution
  • 1 Κιτ καλωδίωσης δύο λαμπτήρων
  • Οδηγίες εγκατάστασης
Additional information
Weight 3,00000 kg
