Name: Grille kit for Toyota Hilux (2021+) With 2 Linear 6 Elite 8100 lumens
Brand: Lazerlamps
SKU: GK-HILUX-EL-LNR-04K
Availability: PreOrder

Description

For an OE quality, auxiliary high beam driving light installation, the Lazer Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting road-legal lighting setup remains fully robust and secure, while delivering night-time visibility that leaves little to the imagination.

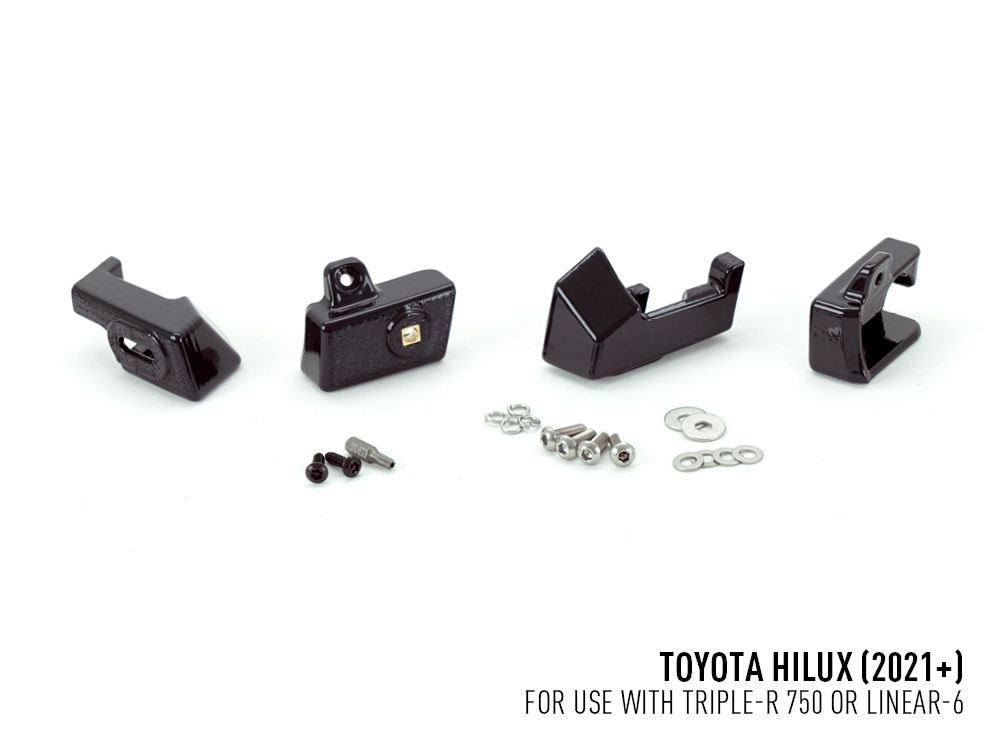

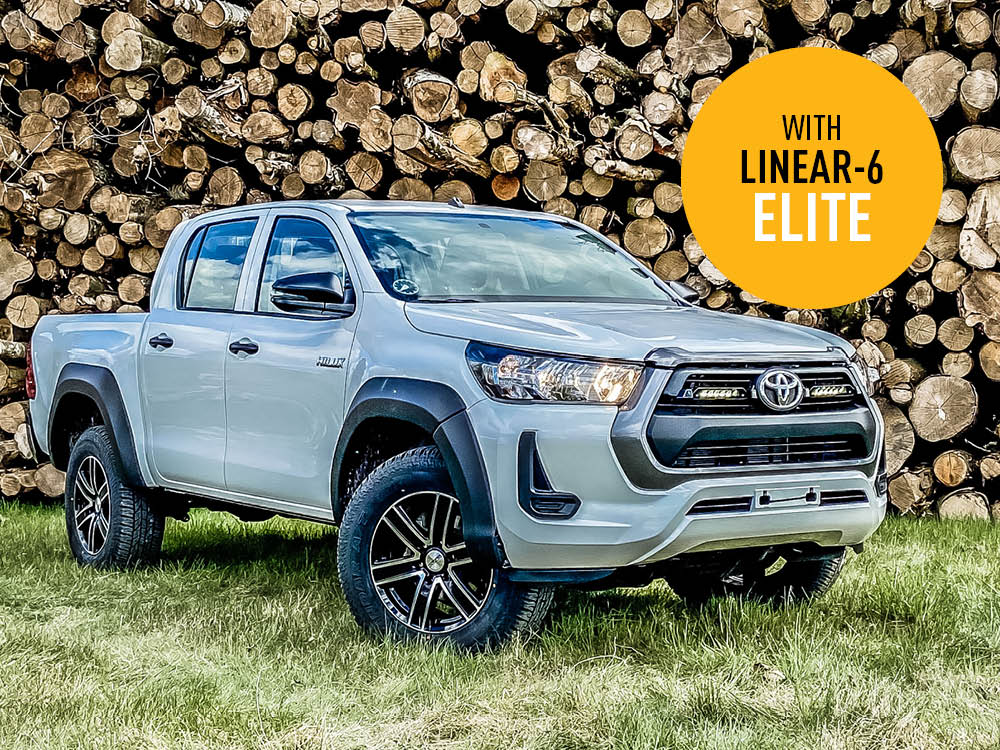

The Toyota Hilux kit, designed and engineered for model year 2021+ vehicles, across Active / DLX / Comfort / SR / Icon / Duty / Invincible (or country equivalent trim levels) features either a pair of Triple-R 750 or Linear-6 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
The Toyota Hilux Invincible (2021+) Grille Integration Kit is carefully engineered and optimised for use with Triple-R 750 or Linear-6 High Performance LED driving lights. The same mounting brackets are used for installation of both types of lights.

Bespoke vehicle integration kit for Lazer LED Driving Light installation
Custom fit for Toyota Hilux Active / DLX / Comfort / SR / Icon / Duty / Invincible (or country specific equivalent spec)
For use with Triple-R 750 or Linear-6 High Performance LED driving lights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain

Technical information

Technical Specifications

	Triple-R 750	Linear-6 Elite
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hours	50,000 hours
Weight	1 kg	0.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux	4620 Lm	4050 Lm
Colour Temperature	5000k	5000k
Number of High Output LEDs	4	12
Power Consumption	44 Watts	42 Watts
Current Draw (at 14.4V)	3.1 Amps	2.9 Amps
CERTIFICATION
High Beam	ECE R112	ECE R112
ECE Reference	35	17.5
DIMENSIONS
Width	230 mm	232 mm
Depth	105 mm	62 mm
Height	73 mm	40 mm

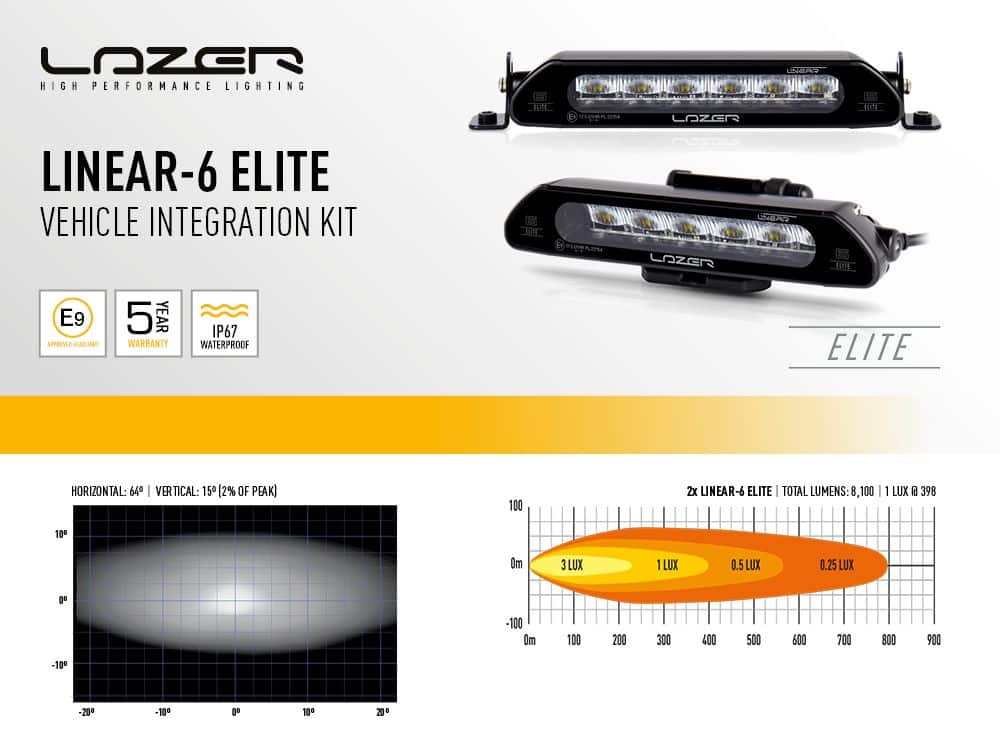

PHOTOMETRIC DATA
Horizontal Beam Angle	19^o	64^o
0.25 lx Line	866 metres	563 metres
0.5 lx Line	612 metres	398 metres
1 lx Line	433 metres	282 metres
3 lx Line	250 metres	163 metres

What’s included

x2 Linear-6 / Triple-R 750 LED Lights
– x1 Mounting Kit (comprising 4x Brackets and fasteners)
– x1 Cutting Guide (comprising 4x Brackets)

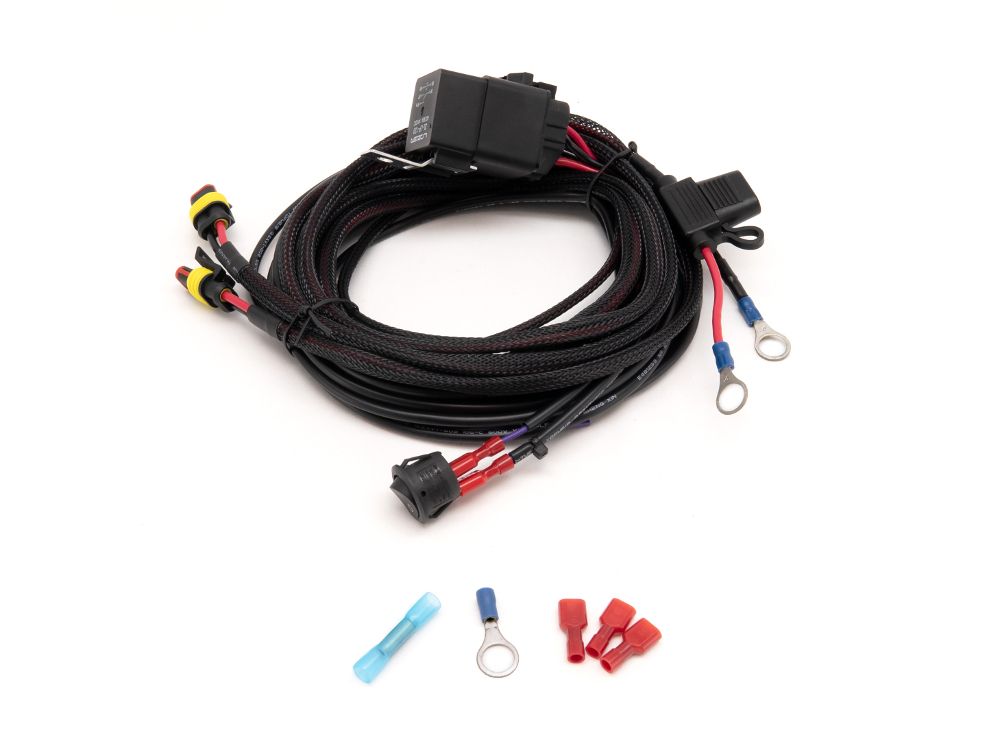

– x1 Two-Lamp Wiring Kit
– x1 Installation instructions

Additional information

Weight	3,00000 kg

About Lazerlamps

See more... Go Safer... Go faster!

LAZERLAMPS

Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.

SHOP NOW

Triple-R Series

The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.

The lights are powered by high-quality LEDs, which produce a bright, white light that is optimized for long-range visibility and reduced eye fatigue. The lights also incorporate sophisticated electronics, including thermal management systems and intelligent dimming functions, which ensure that they operate safely and reliably in all conditions.

Overall, the Triple-R Gen2 Series from LazerLamps represents a cutting-edge solution for off-road lighting, providing exceptional performance, durability, and versatility for a range of different applications.

See all Triple-R products here

Linear series

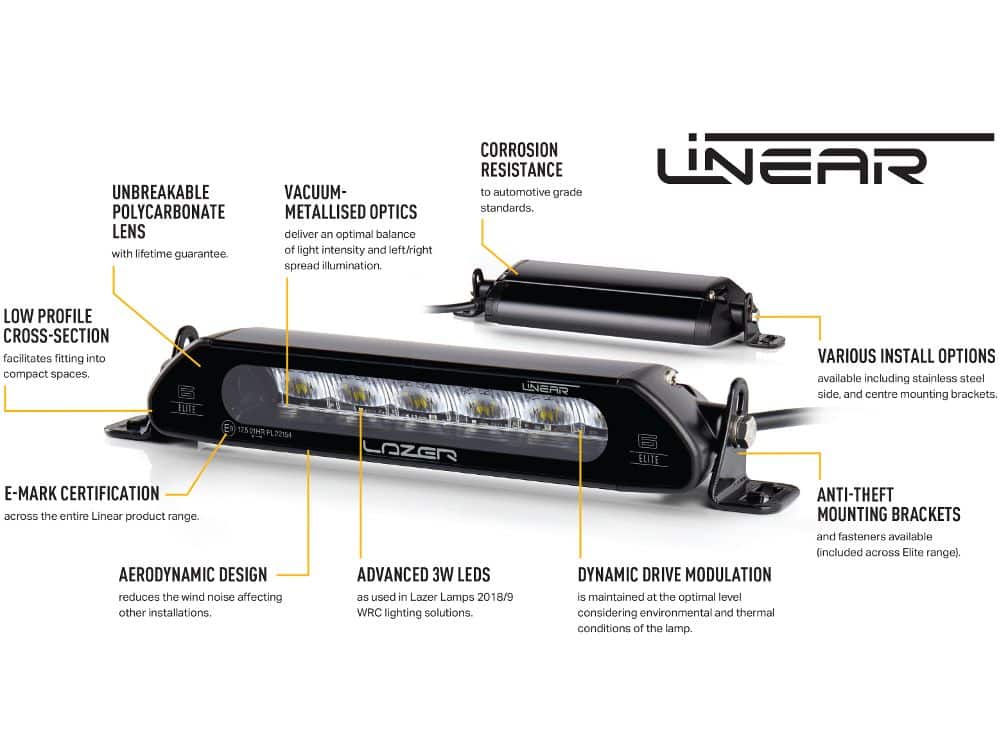

The Linear Series from LazerLamps is a range of high-performance LED driving lights that have been designed to offer a sleek and streamlined lighting solution for a wide range of vehicles. These lights use advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on cars, trucks, and other vehicles used for on and off-road activities.
