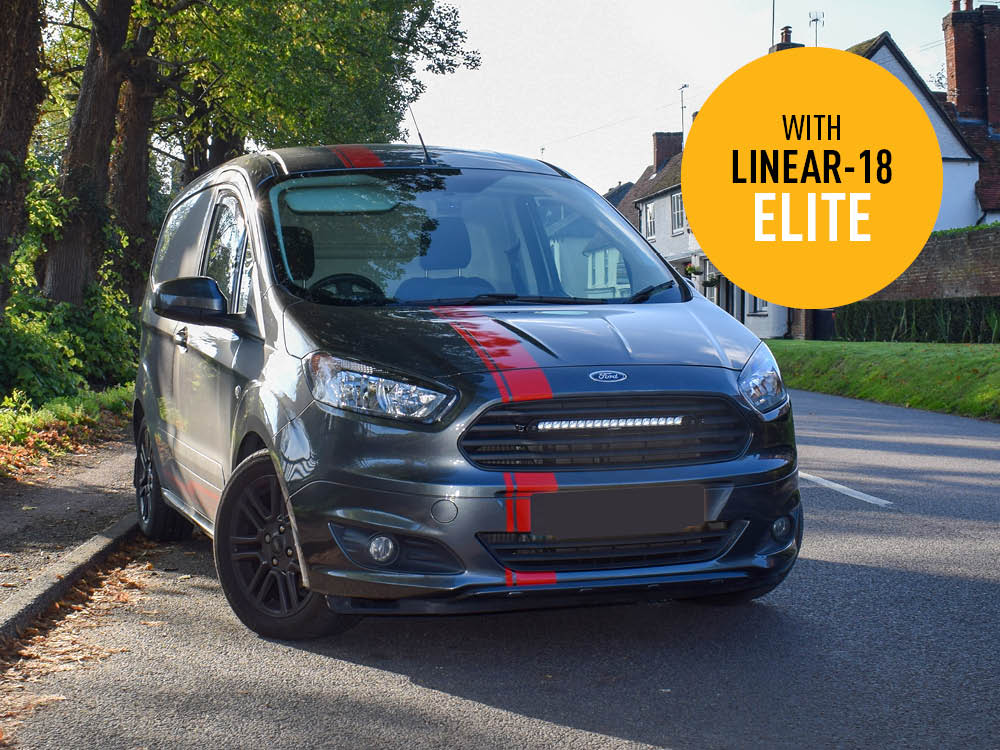

Name: Grille Mount Kit for Ford Transit Courier (2014+) - Linear 18 Elite 12150 Lumens
Brand: Lazerlamps
SKU: GK-FTCOUR-Elite-01K
Availability: PreOrder

Description

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

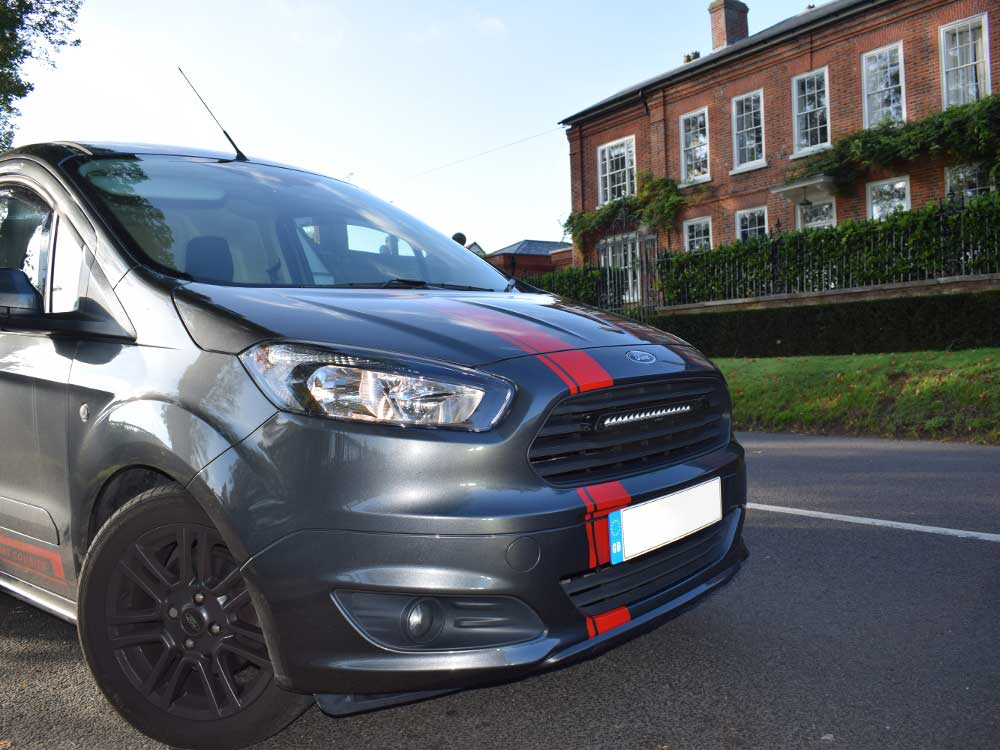

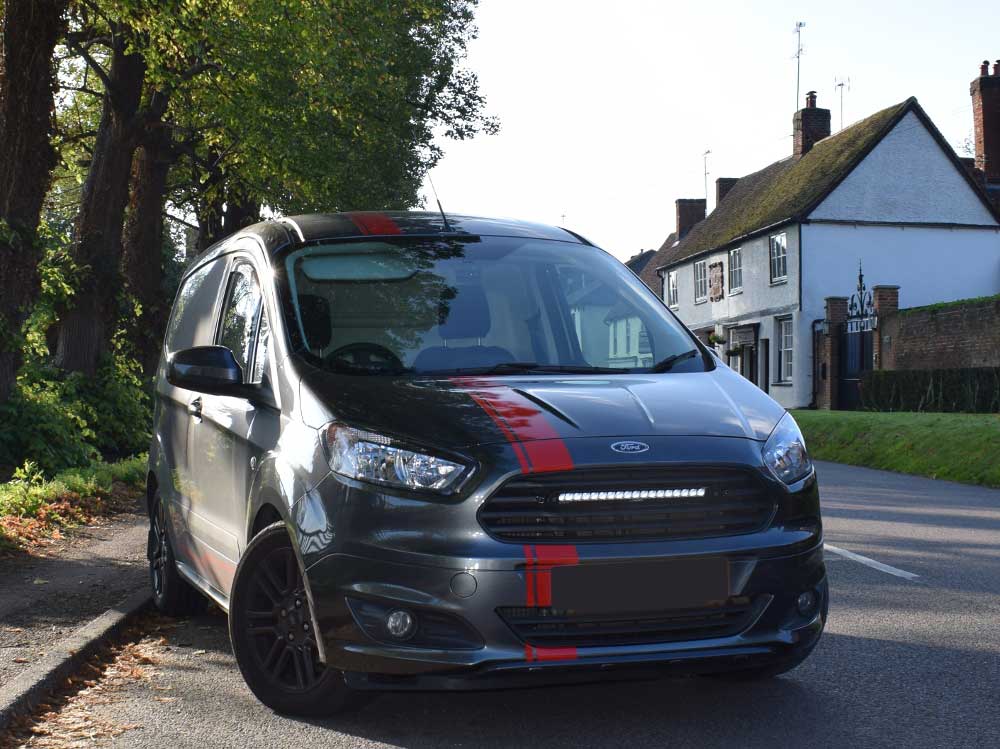

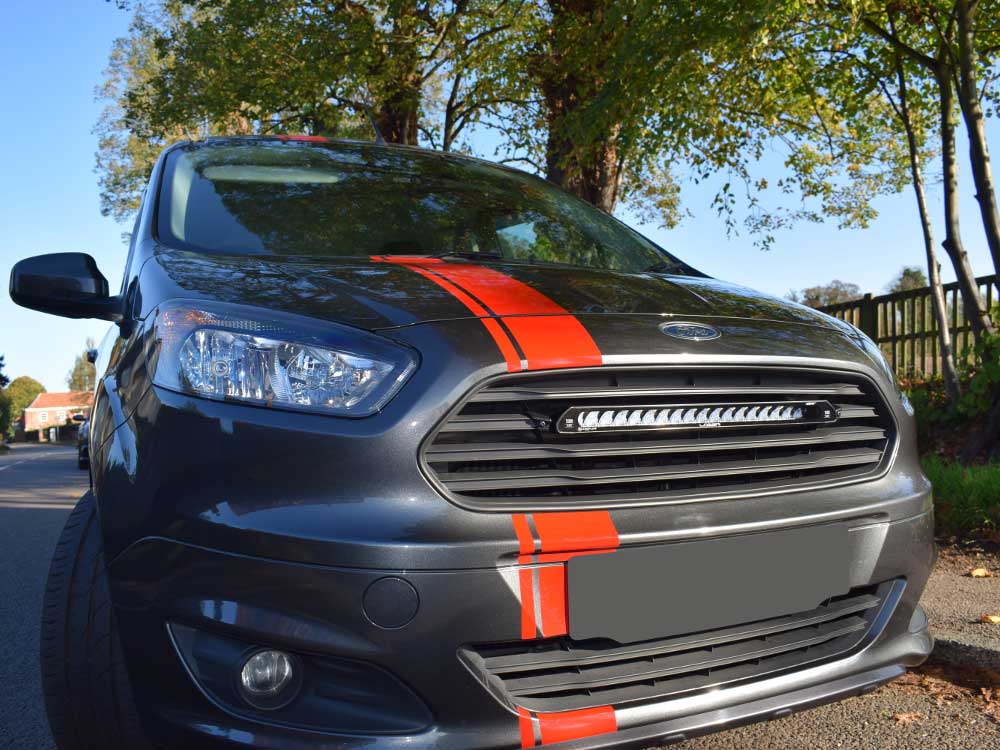

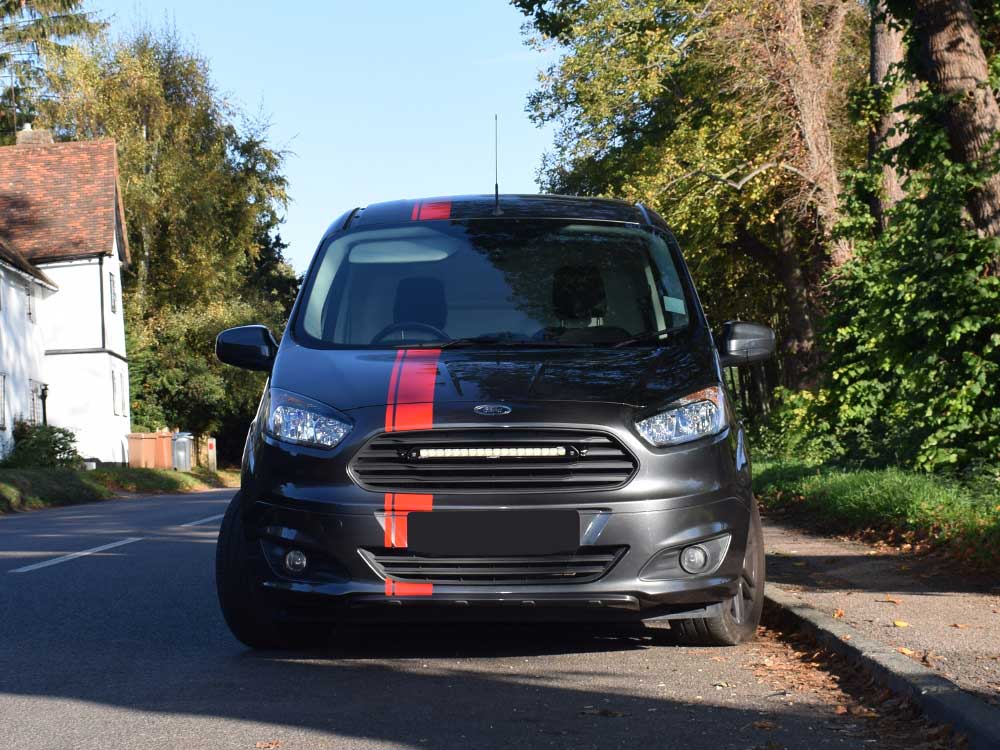

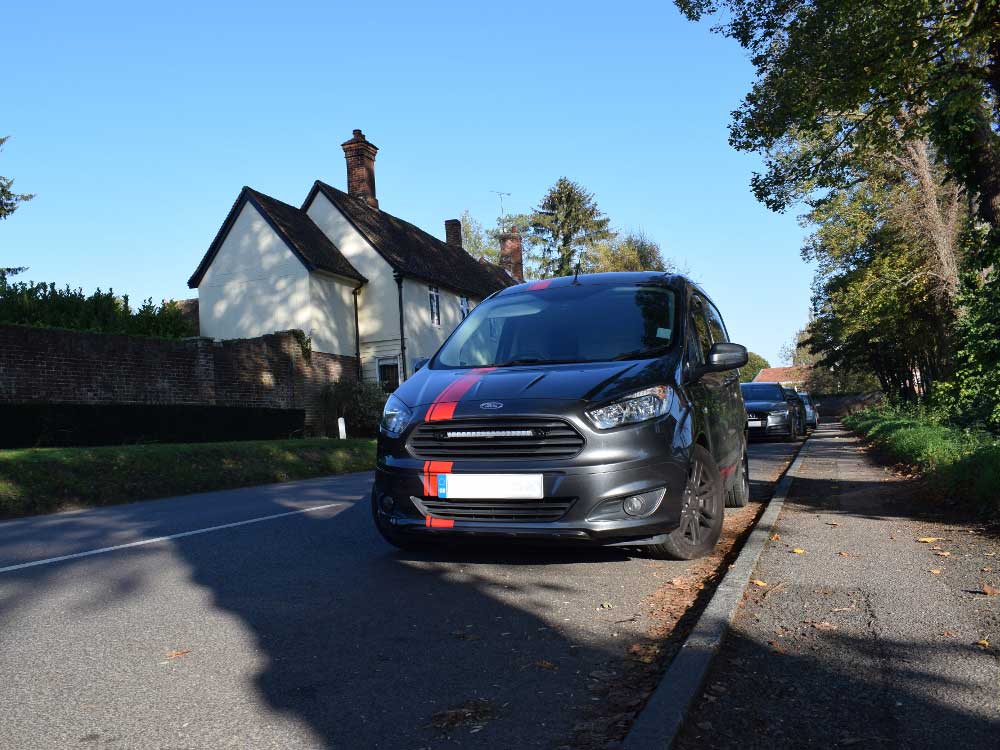

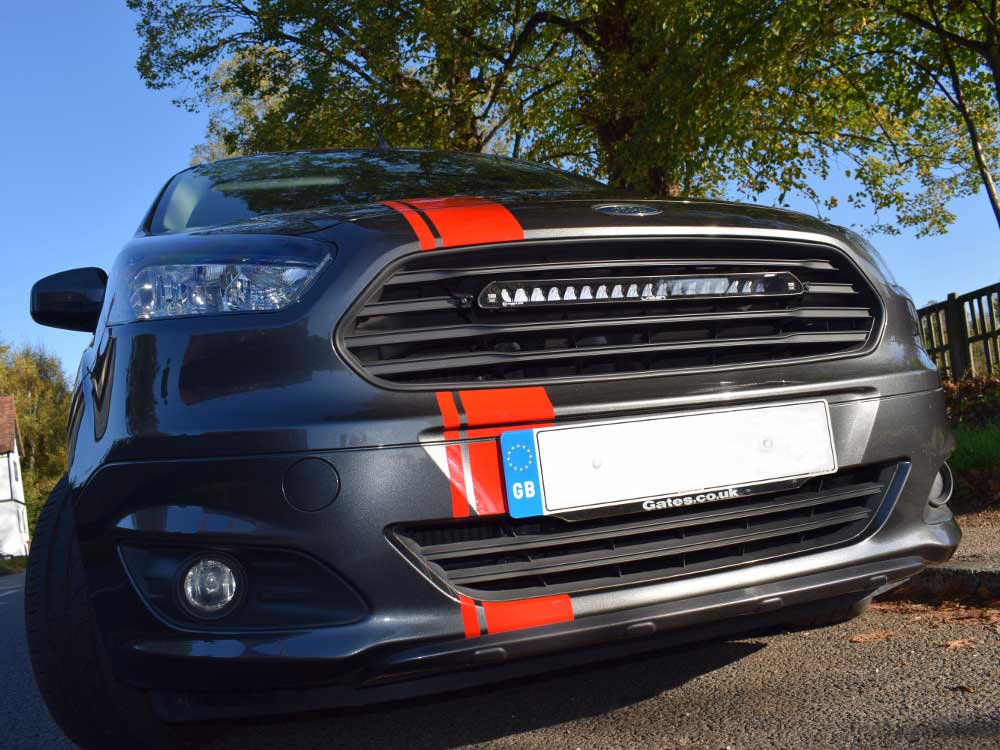

The Ford Transit Courier kit includes a Linear-18 (Standard or Elite grade), High Performance LED driving light, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
Please note, the Ford Transit Courier Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED Spotlight.

Key Features

Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Ford Transit Courier (2014+)
Available with: Linear-18 (Standard or Elite) LED Spotlight
Kit also includes bespoke mounting brackets and wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain

Technical Information

Based on Elite setup i.e. x1 Linear-18 Elite High Performance LED Lamp:

Voltage Range	9-32V
LED Life	50,000 hours
Weight	1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux	12150 Lm
Number of High Output LEDs	36
Power Consumption	126 Watts
Current Draw (at 14.4V)	8.8 Amps
CERTIFICATION
High Beam	ECE R112
ECE Reference	45
DIMENSIONS
Width	532 mm
Depth	62 mm
Height	40 mm

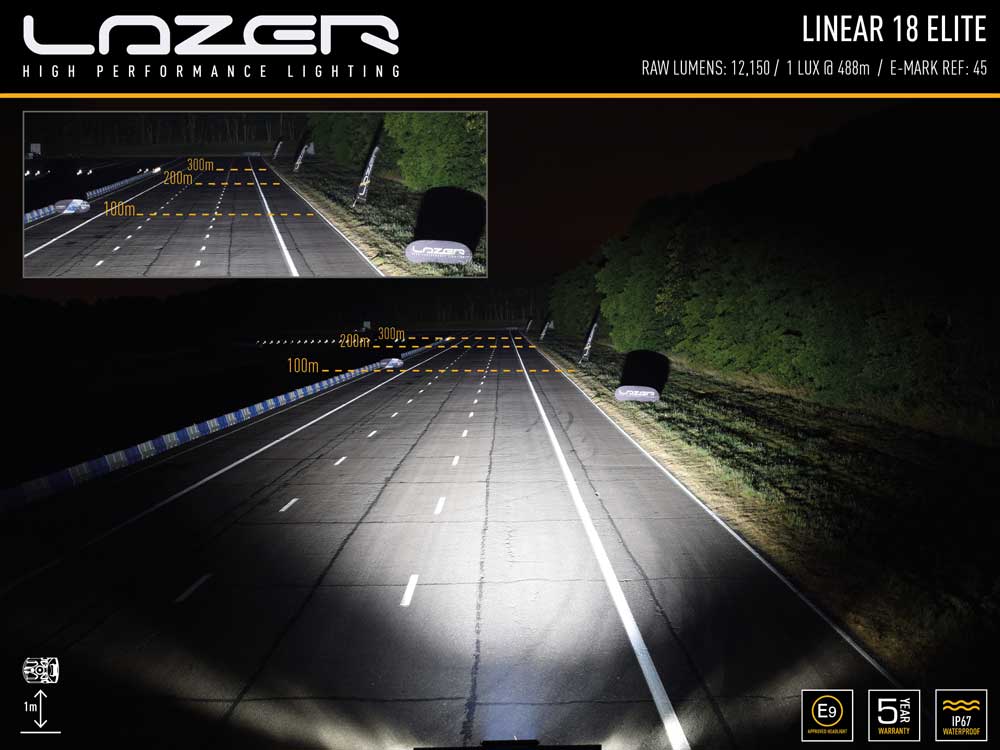

PHOTOMETRIC DATA
Horizontal Beam Angle	42 Degrees
0.25 lx Line	975 metres
0.5 lx Line	690 metres
1 lx Line	488 metres
3 lx Line	282 metres

What’s included

For Linear-18 Elite (GK-FTCOUR-Elite-01K):
– x1 Linear-18 High Performance LED Spotlight Elite (0L18-EL-LNR)

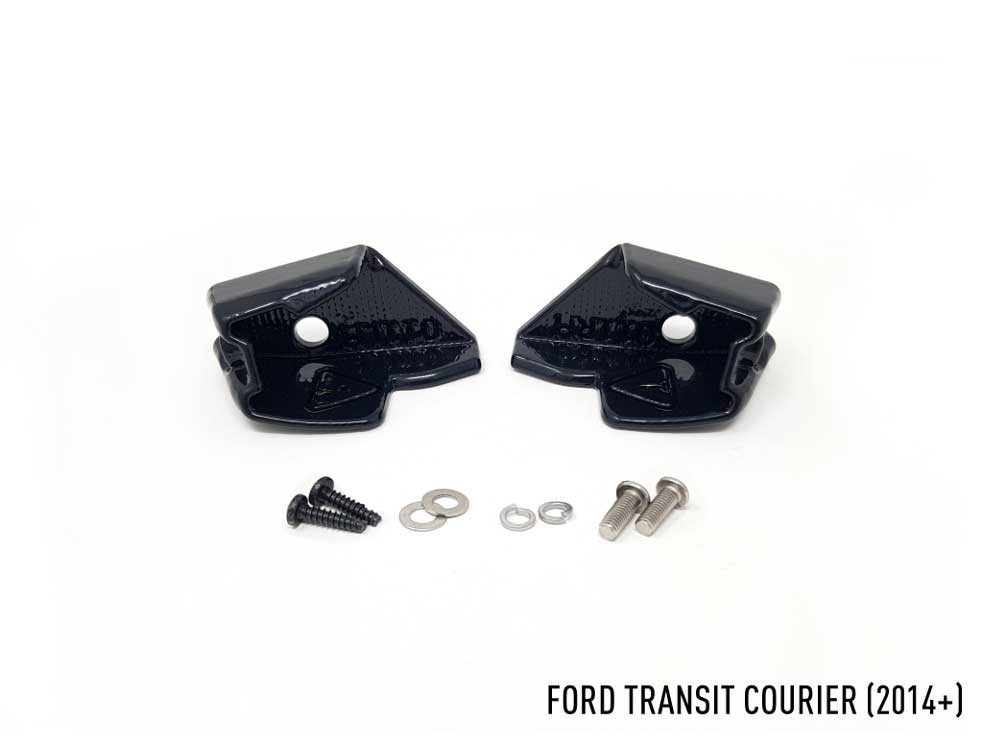

– x1 Mounting Kit (comprising 2x Brackets and fasteners) (GM-FTCOUR-01K)
– x1 Cutting Guide (comprising 2x Brackets)
– x1 One-Lamp Wiring Kit (8226-12V-SP)
– x1 Installation instructions

For Linear-18 STD (GK-FTCOUR-01K):
– x1 Linear-18 High Performance LED Spotlight Standard (0L18-LNR)
– x1 Mounting Kit (comprising 2x Brackets and fasteners) (GM-FTCOUR-01K)
– x1 Cutting Guide (comprising 2x Brackets)
– x1 One-Lamp Wiring Kit (8226-12V-SP)
– x1 Installation instructions

Additional information

Weight	2,80000 kg

About Lazerlamps

See more... Go Safer... Go faster!

LAZERLAMPS

Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.

SHOP NOW

Triple-R Series

The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.

The lights are powered by high-quality LEDs, which produce a bright, white light that is optimized for long-range visibility and reduced eye fatigue. The lights also incorporate sophisticated electronics, including thermal management systems and intelligent dimming functions, which ensure that they operate safely and reliably in all conditions.

Overall, the Triple-R Gen2 Series from LazerLamps represents a cutting-edge solution for off-road lighting, providing exceptional performance, durability, and versatility for a range of different applications.

See all Triple-R products here

Linear series

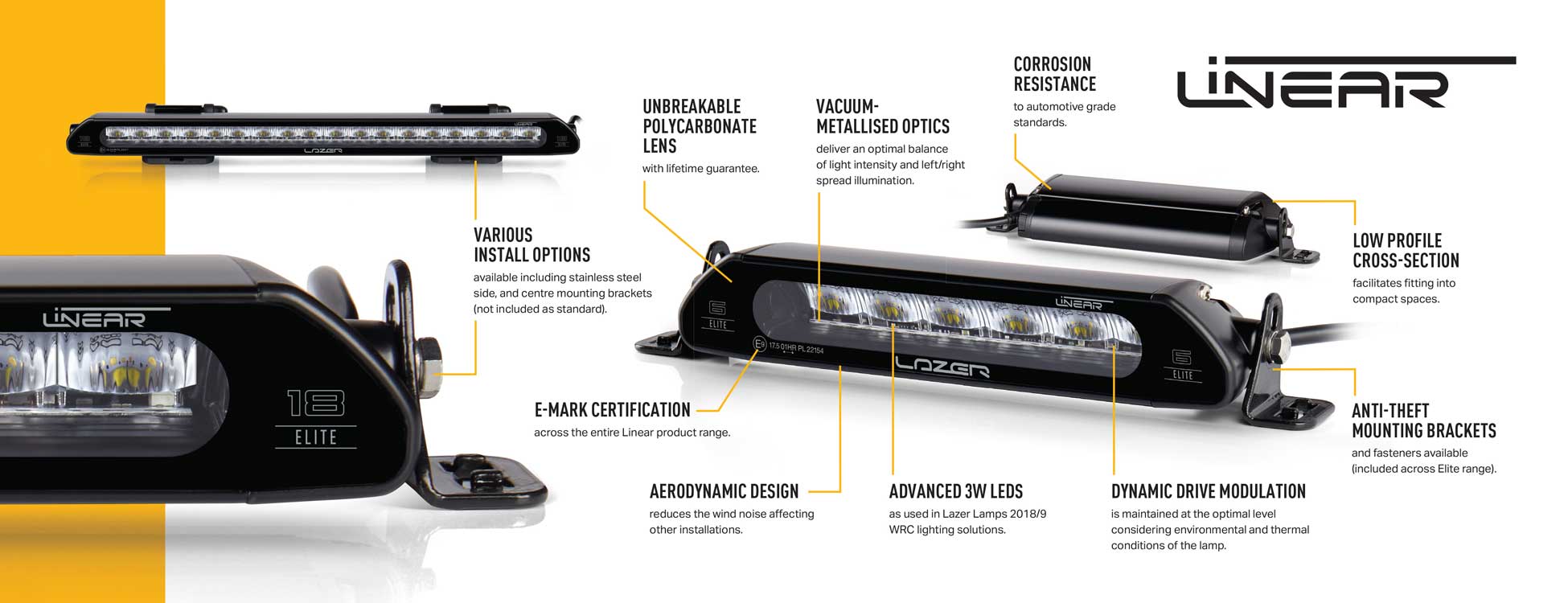

The Linear Series from LazerLamps is a range of high-performance LED driving lights that have been designed to offer a sleek and streamlined lighting solution for a wide range of vehicles. These lights use advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on cars, trucks, and other vehicles used for on and off-road activities.
