Grille Mount Kit for Ford Transit Courier (2014+) – Linear 18 Std 6750 Lumens
Description
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

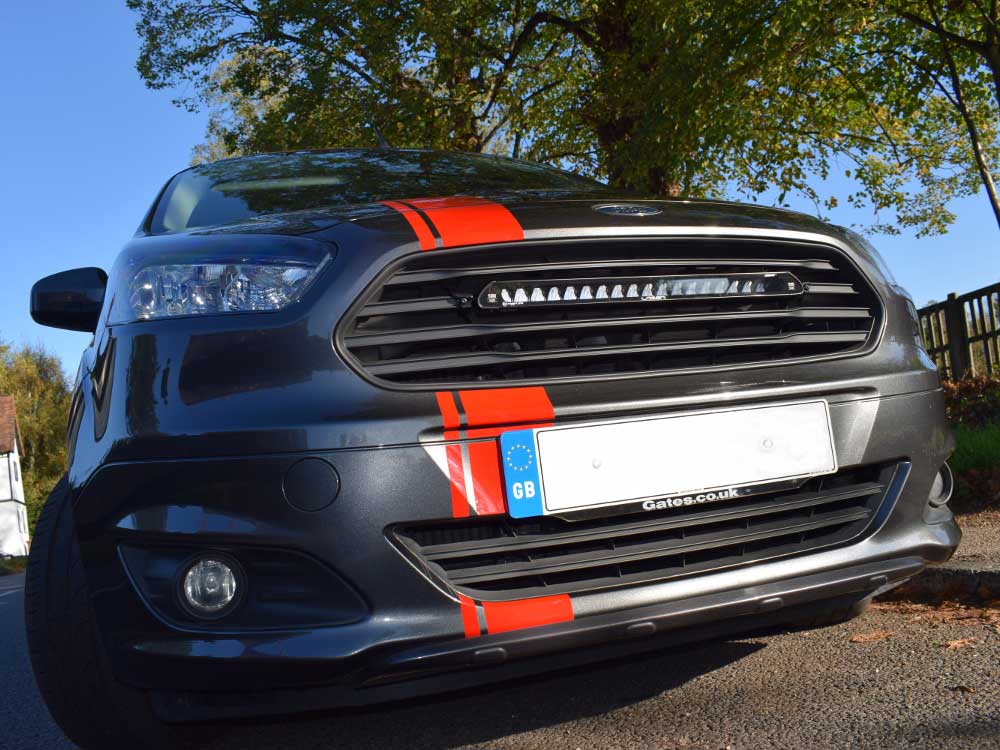

The Ford Transit Courier kit includes a Linear-18 (Standard or Elite grade), High Performance LED driving light, plus wiring kit, alongside a pair of brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.
Please note, the Ford Transit Courier Grille Integration Kit is carefully engineered and optimised for use with our Linear-18 High Performance LED Spotlight.
Key Features
Bespoke vehicle integration kit for Lazer LED Spotlight installation

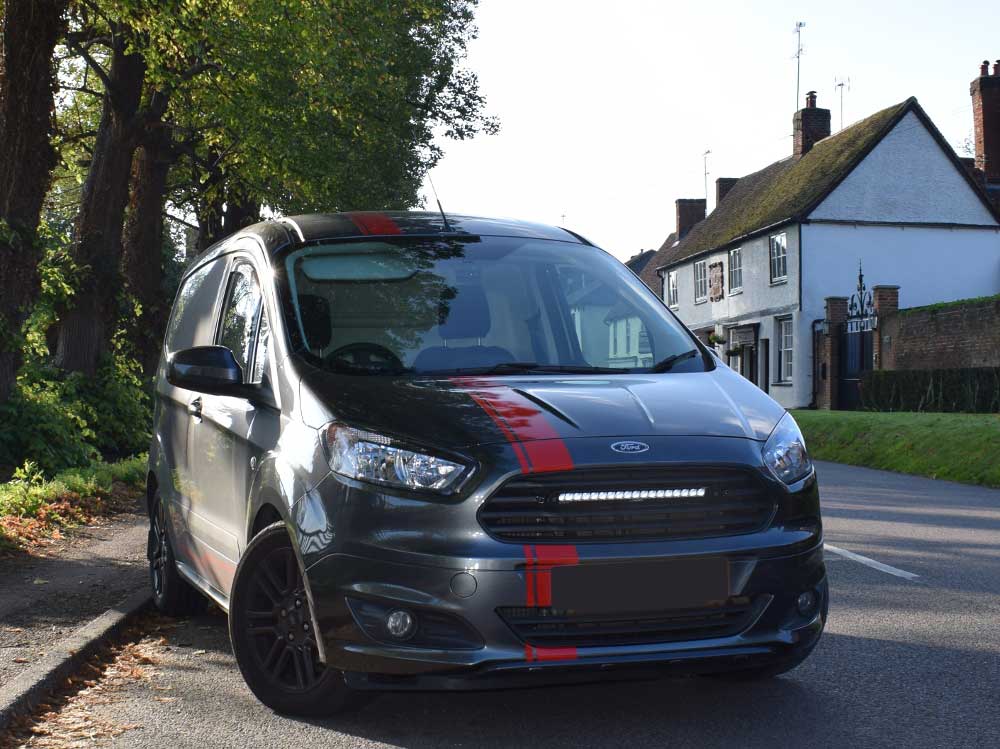

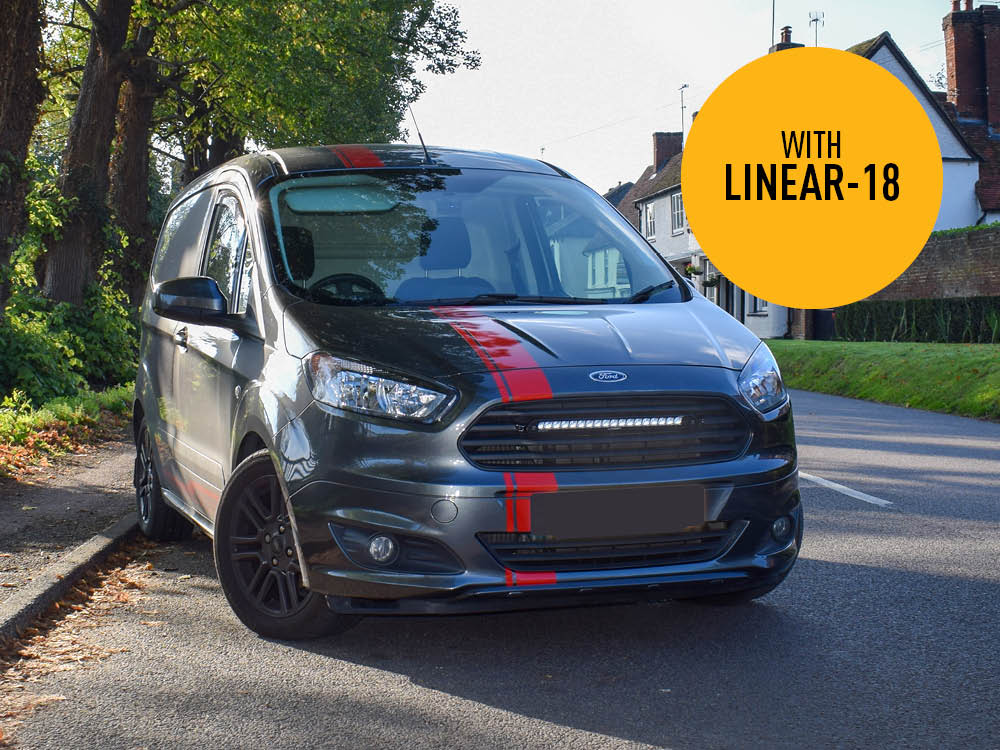

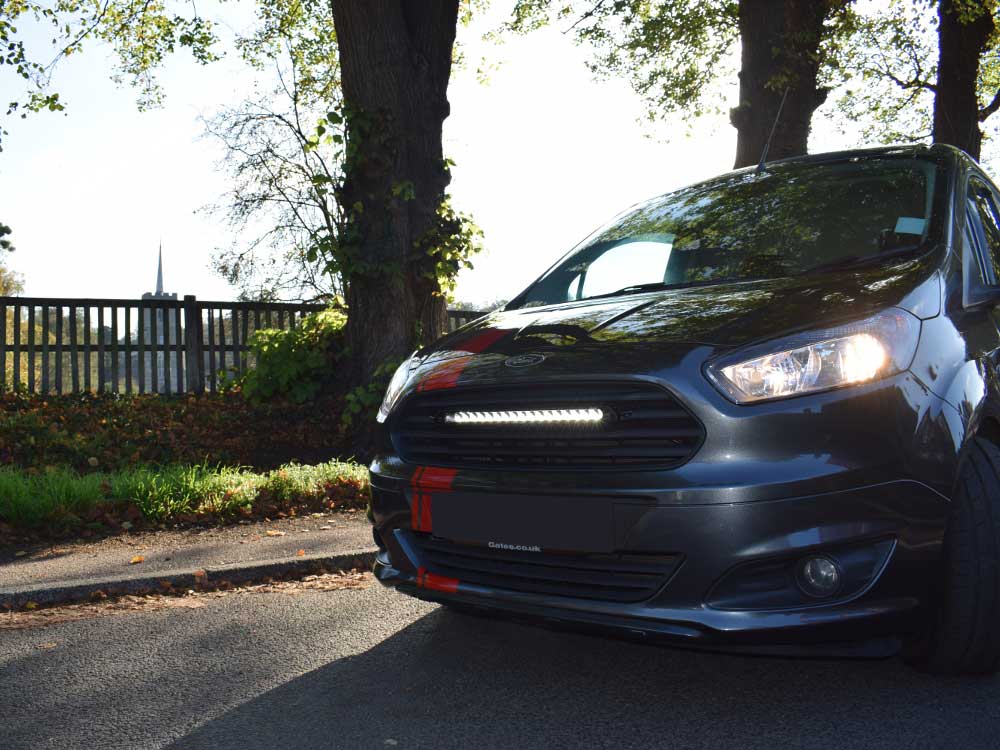

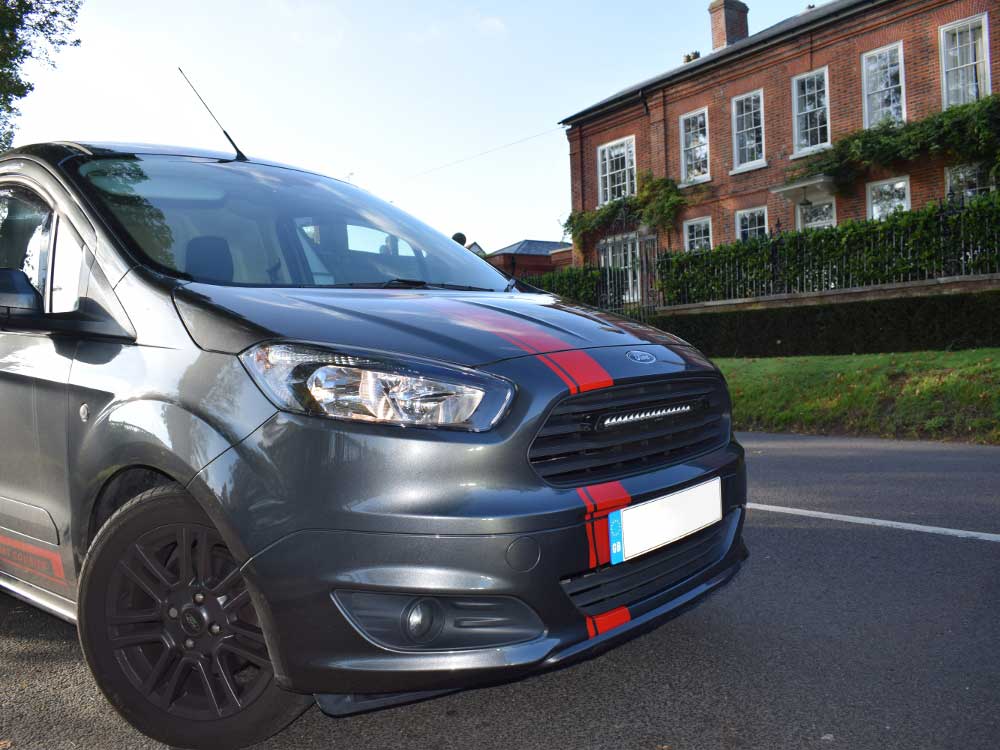

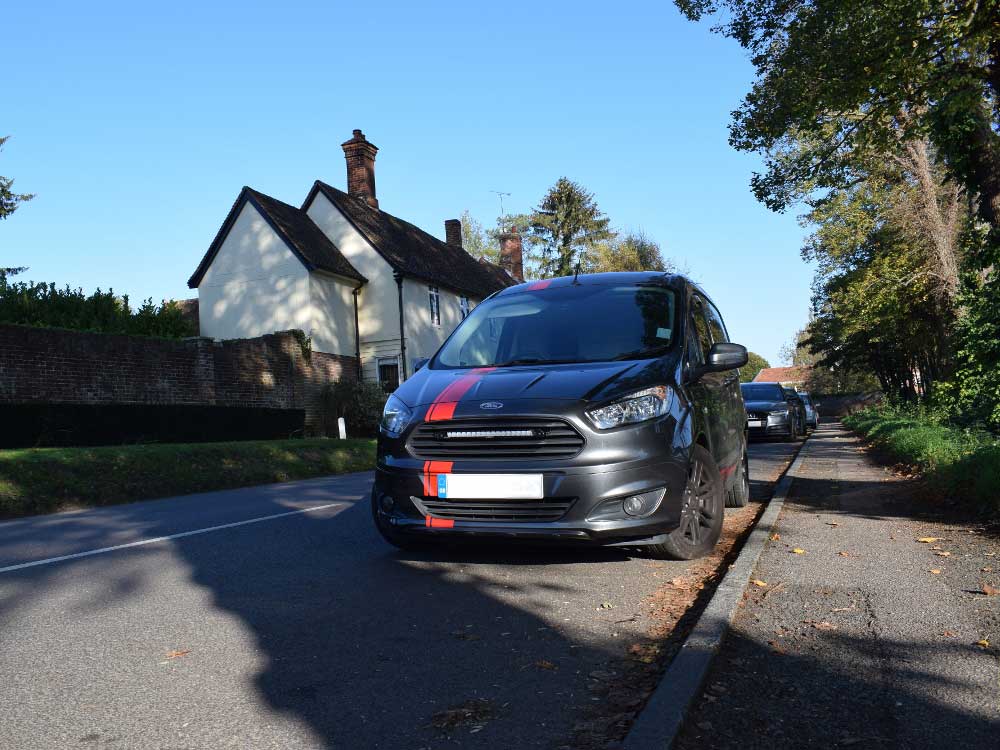

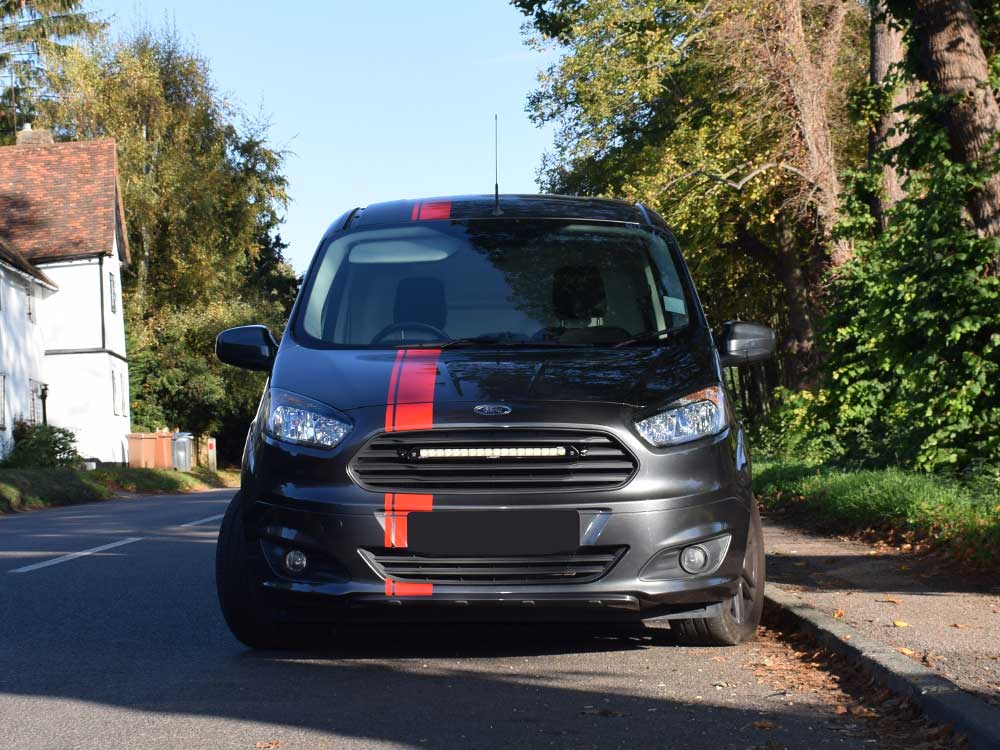

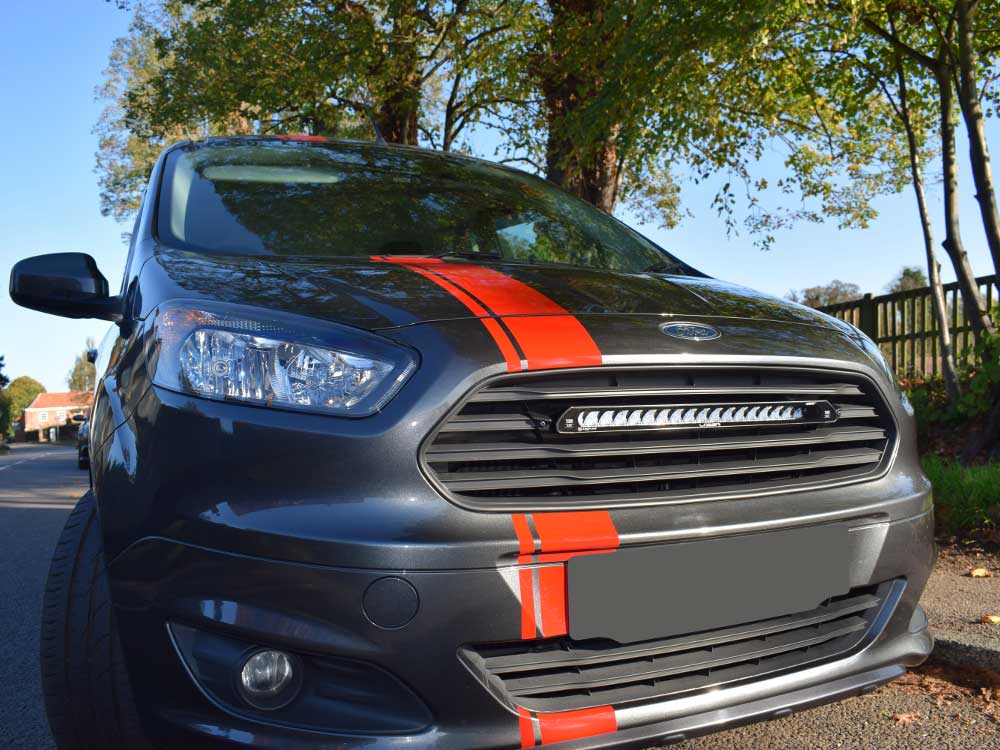

Custom fit for Ford Transit Courier (2014+)
Available with: Linear-18 (Standard or Elite) LED Spotlight
Kit also includes bespoke mounting brackets and wiring kit
Cutting guides included
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain
Technical Information
Based on Elite setup i.e. x1 Linear-18 Elite High Performance LED Lamp:
| Voltage Range | 9-32V |
| LED Life | 50,000 hours |
| Weight | 1090 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 12150 Lm |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 45 |
| DIMENSIONS | |
| Width | 532 mm |
| Depth | 62 mm |
| Height | 40 mm |

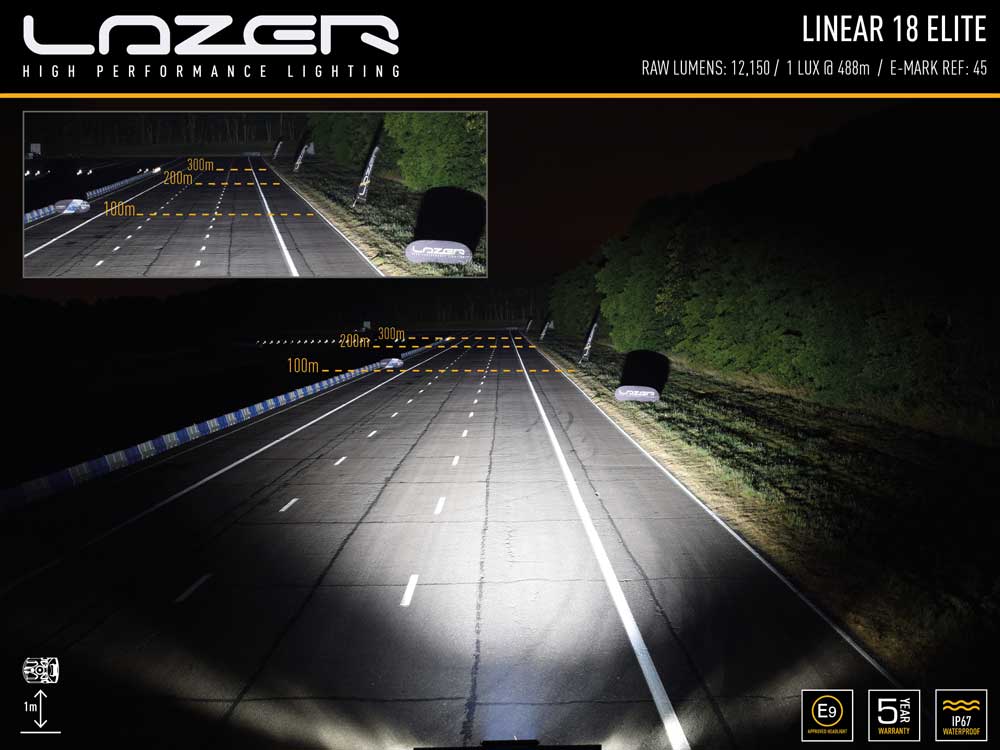

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 Degrees |
| 0.25 lx Line | 975 metres |
| 0.5 lx Line | 690 metres |
| 1 lx Line | 488 metres |
| 3 lx Line | 282 metres |
What’s included
For Linear-18 Elite (GK-FTCOUR-Elite-01K):
– x1 Linear-18 High Performance LED Spotlight Elite (0L18-EL-LNR)

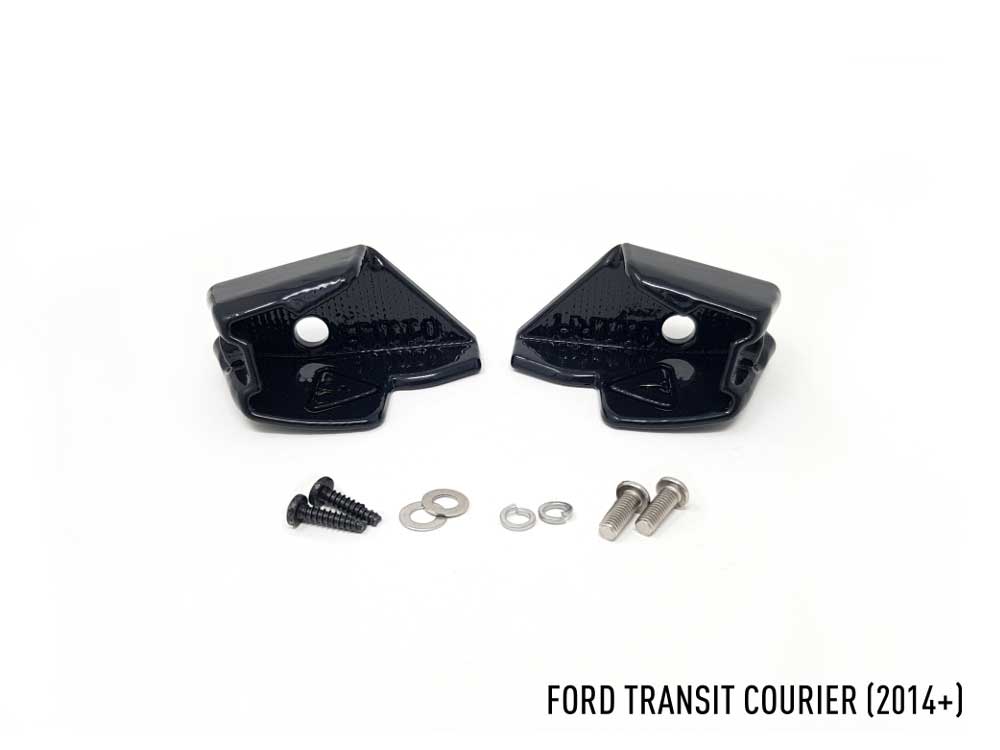

– x1 Mounting Kit (comprising 2x Brackets and fasteners) (GM-FTCOUR-01K)
– x1 Cutting Guide (comprising 2x Brackets)
– x1 One-Lamp Wiring Kit (8226-12V-SP)
– x1 Installation instructions
For Linear-18 STD (GK-FTCOUR-01K):
– x1 Linear-18 High Performance LED Spotlight Standard (0L18-LNR)
– x1 Mounting Kit (comprising 2x Brackets and fasteners) (GM-FTCOUR-01K)
– x1 Cutting Guide (comprising 2x Brackets)
– x1 One-Lamp Wiring Kit (8226-12V-SP)
– x1 Installation instructions
Additional information
| Weight | 2,80000 kg |
|---|
About Lazerlamps
See more... Go Safer... Go faster!
LAZERLAMPS
Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.
Triple-R Series
The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.
The lights are powered by high-quality LEDs, which produce a bright, white light that is optimized for long-range visibility and reduced eye fatigue. The lights also incorporate sophisticated electronics, including thermal management systems and intelligent dimming functions, which ensure that they operate safely and reliably in all conditions.
Overall, the Triple-R Gen2 Series from LazerLamps represents a cutting-edge solution for off-road lighting, providing exceptional performance, durability, and versatility for a range of different applications.

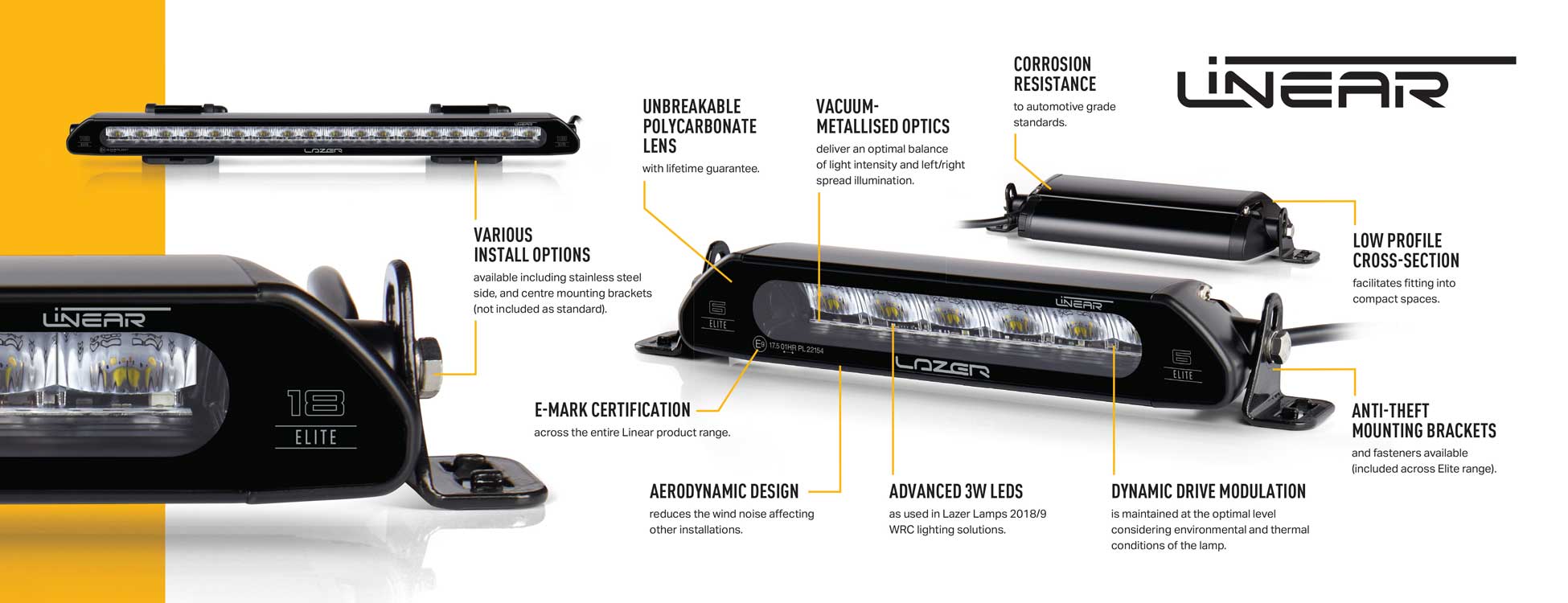

Linear series
