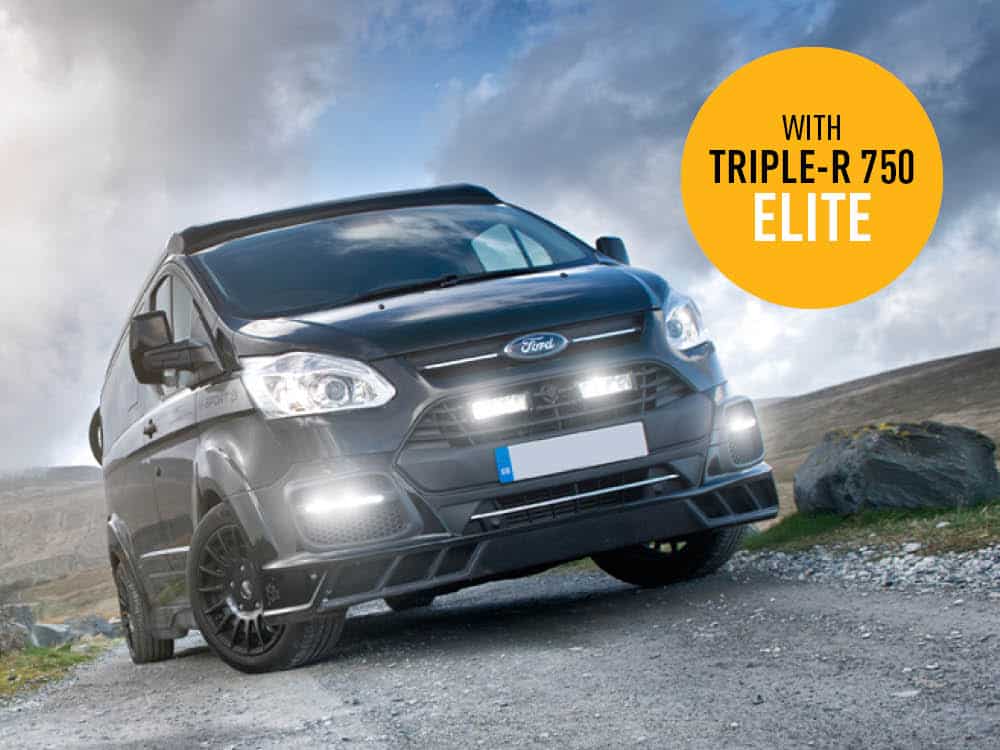

Name: Grille Mount Kit for Ford Transit Custom (2012+) - Triple-R 750 Elite 10136 Lumens
Brand: Lazerlamps
SKU: GK-FTC-Elite-G2-01K
Availability: PreOrder

Description

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
The Ford Transit Custom kit, designed for MY12 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Lazer Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED Spotlights.
Please note – not suitable for vehicles with ACC (Adaptive Cruise Control)

Bespoke vehicle integration kit for Lazer LED Spotlight installation

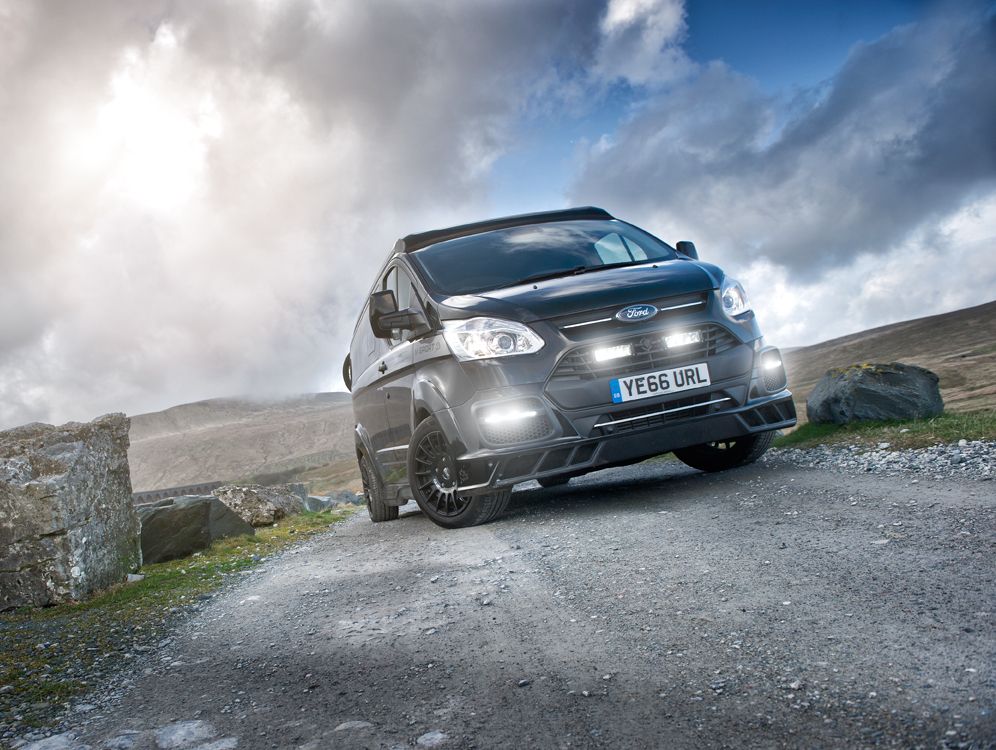

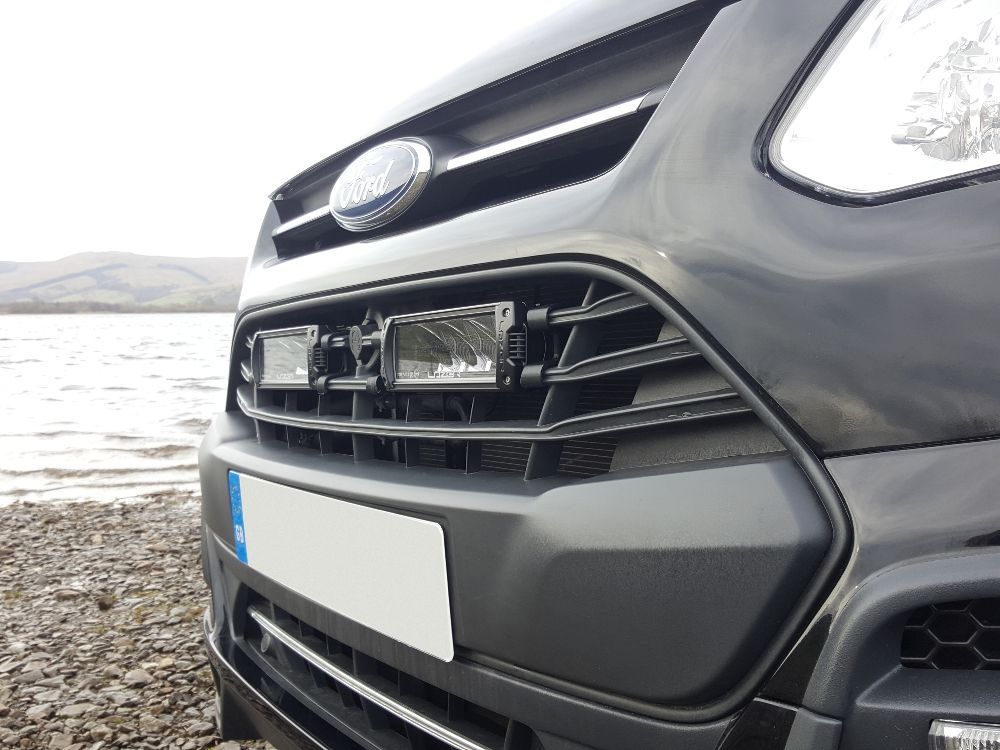

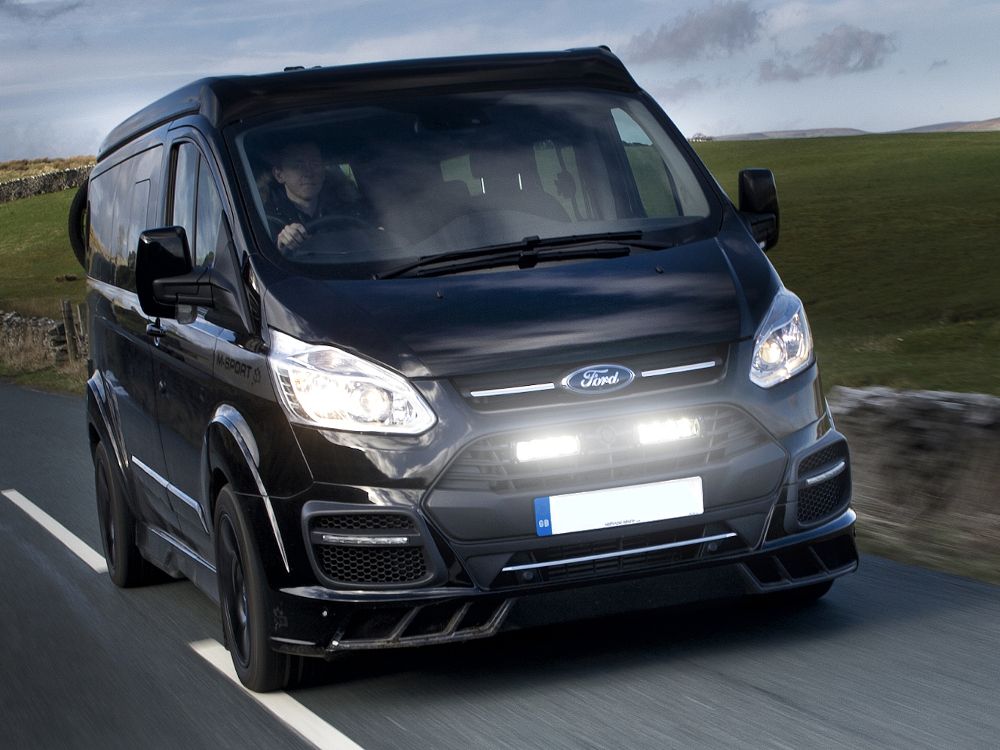

Custom fit for Ford Transit Custom Centre Grille (MY 2012+)
Available with: Triple-R 750 High Performance LED Spotlights
Added option for white or amber position/side light function (Standard model only)
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain

Technical Information

Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:

Voltage Range	9-32V
LED Life	50,000 hours
Weight	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	9240 Lm
Colour Temperature	5000K
Number of High Output LEDs	2 x 4
Power Consumption	88 Watts
Current Draw (at 14.4V)	6.2 Amps
CERTIFICATION
High Beam	ECE R112
E-Mark Ref	35 x2
Position Light (White only)	ECE R7

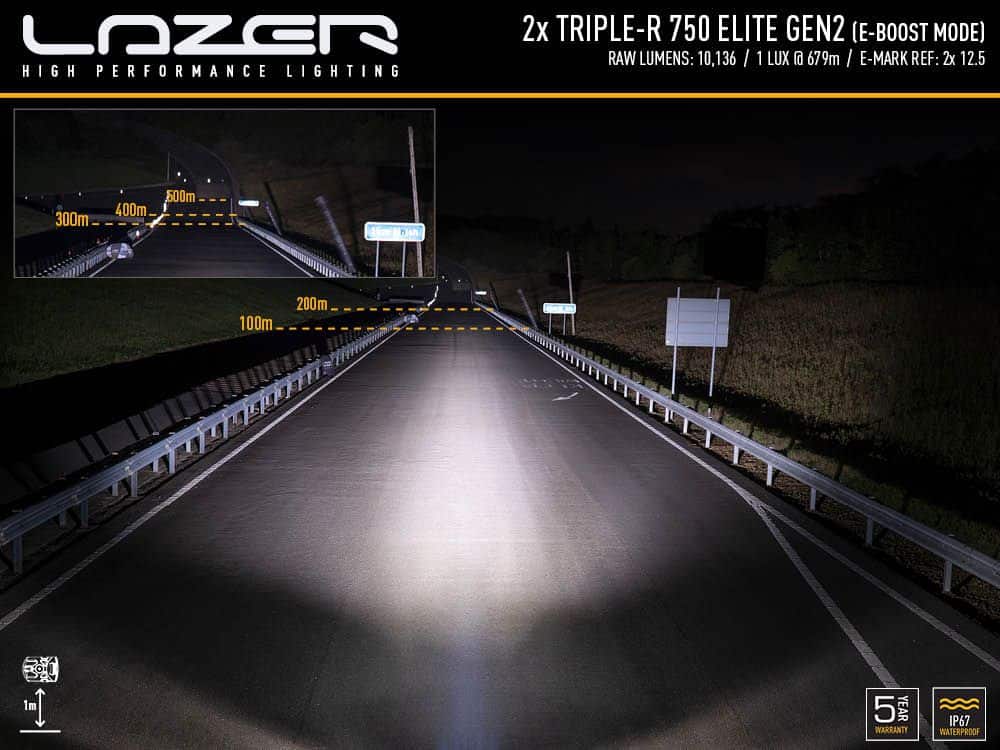

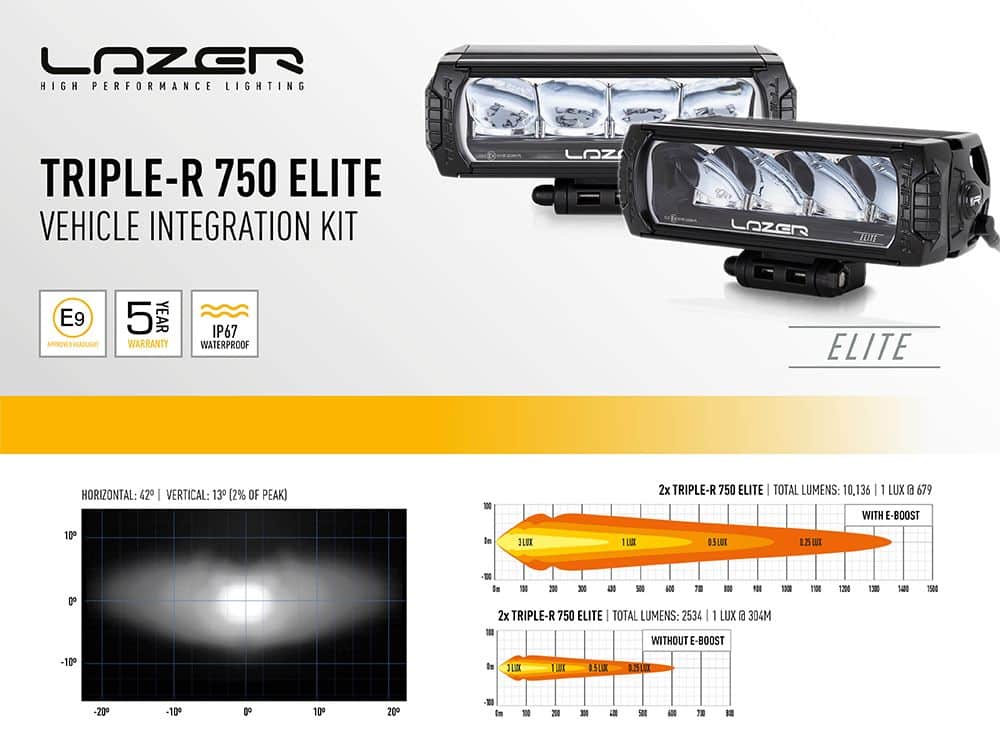

PHOTOMETRIC DATA
Horizontal Beam Angle	19 Degrees
0.25 lx Line	1225 metres
0.5 lx Line	866 metres
1 lx Line	612 metres
3 lx Line	354 metres

What’s included

For Triple-R 750 (GK-FTC-G2-1K)

– x2 Triple-R 750 (00R4-G2-B)

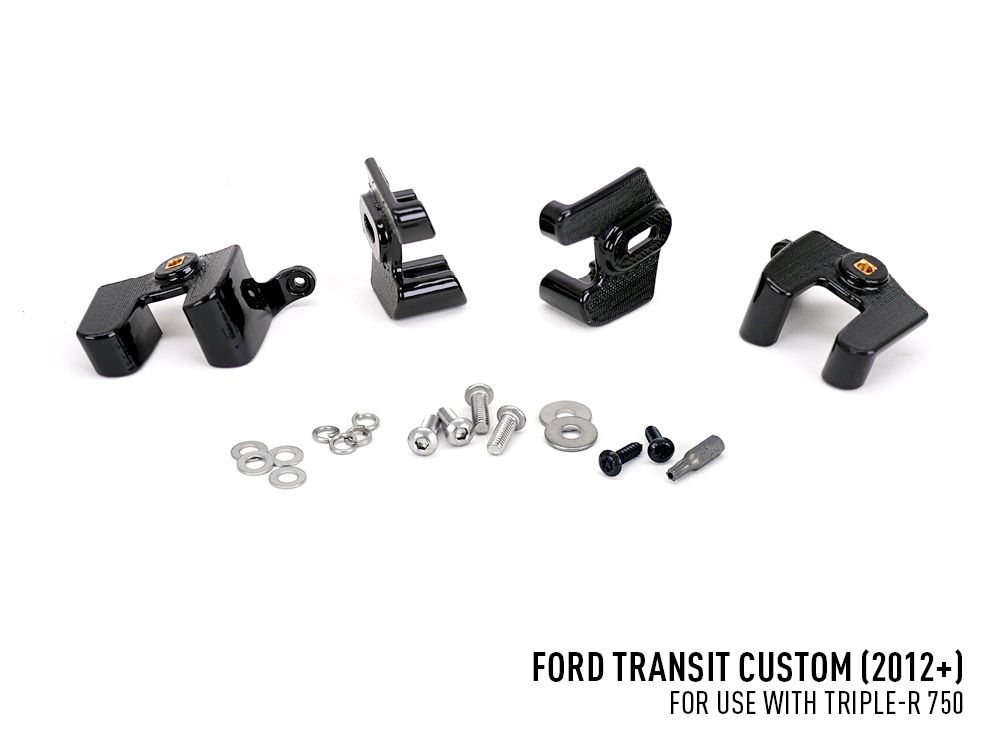

– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-FTC-01K)
– x1 Cutting Guide (comprising 4x Brackets)

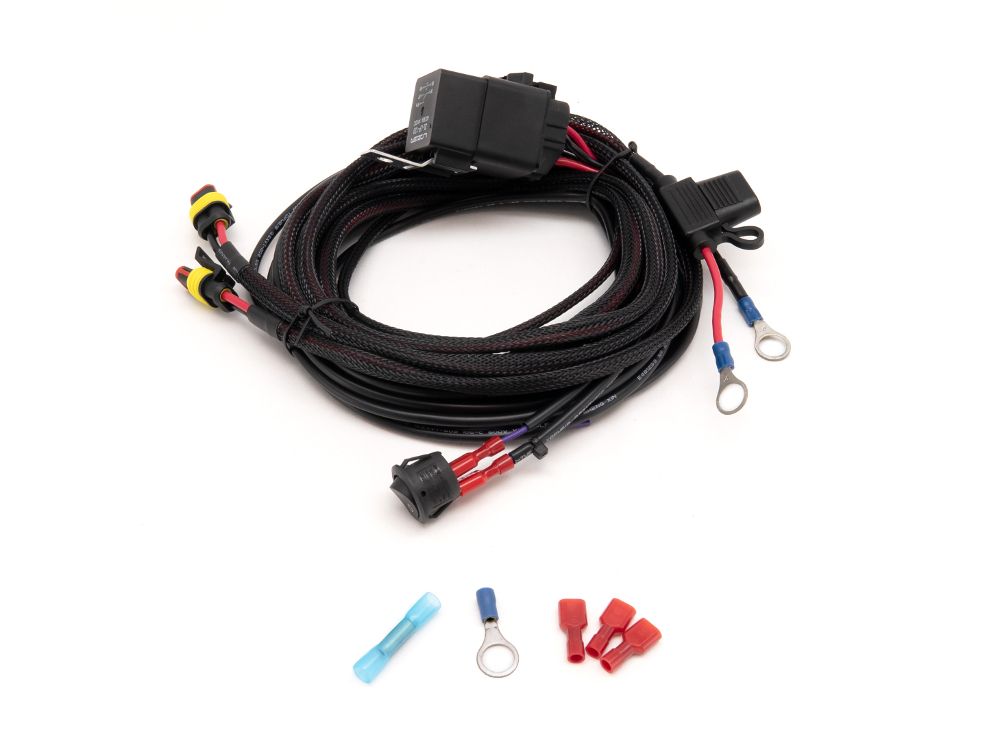

– x1 Two-Lamp Wiring Kit (2L-LP-PL-120)
– x1 Installation instructions

Additional information

Weight	3,00000 kg

About Lazerlamps

See more... Go Safer... Go faster!

LAZERLAMPS

Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.

SHOP NOW

Triple-R Series

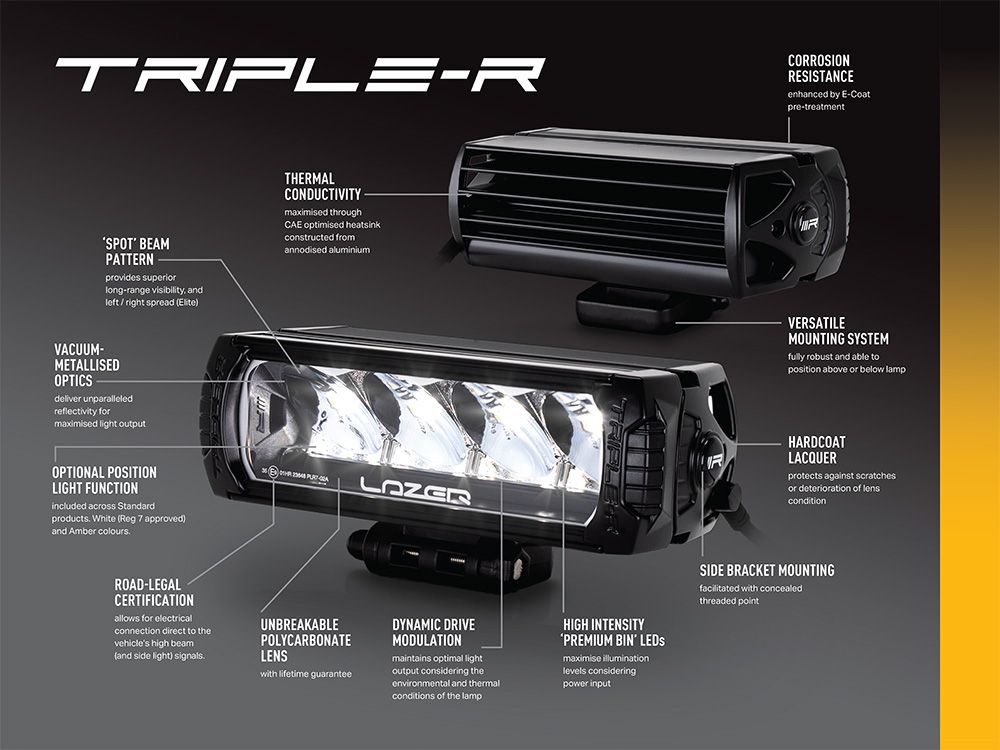

The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.
