For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

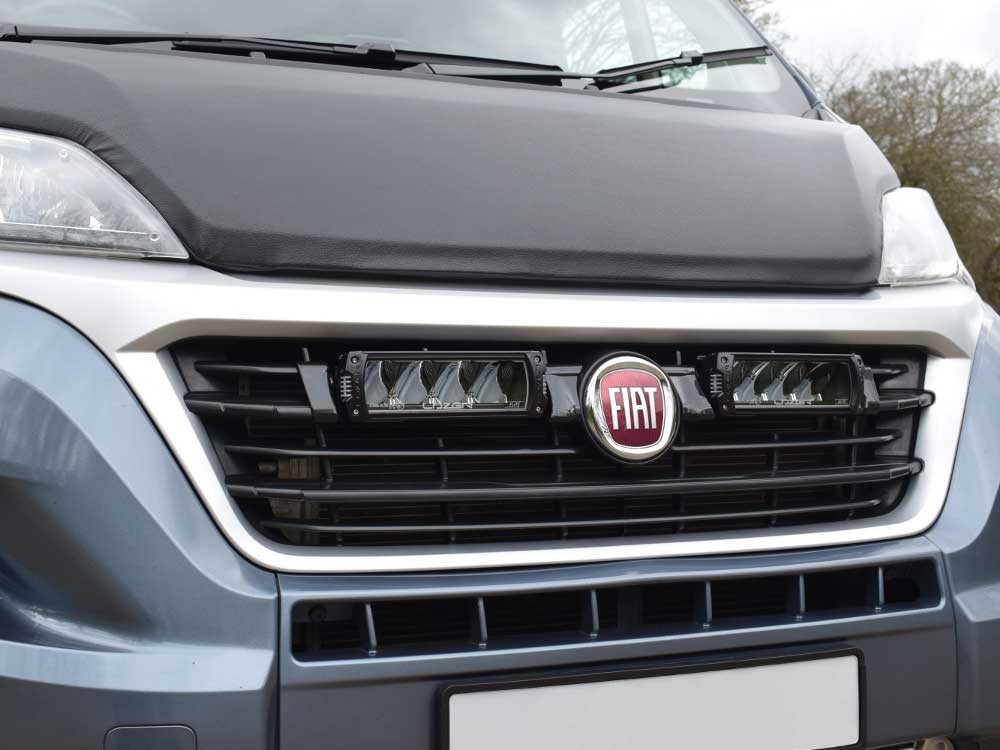

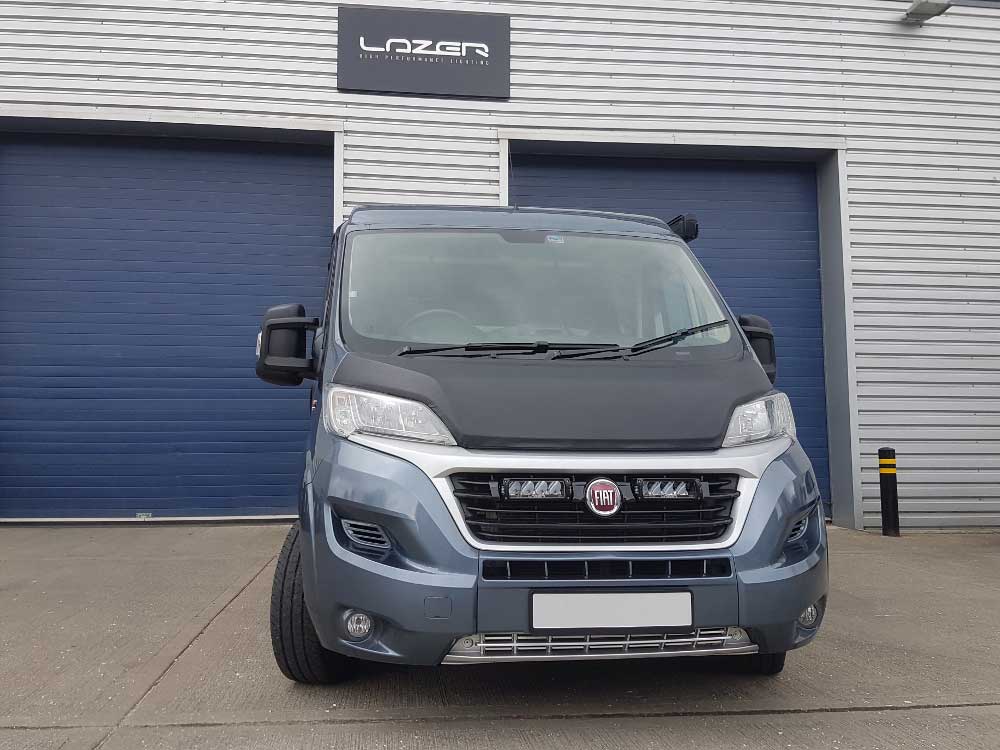

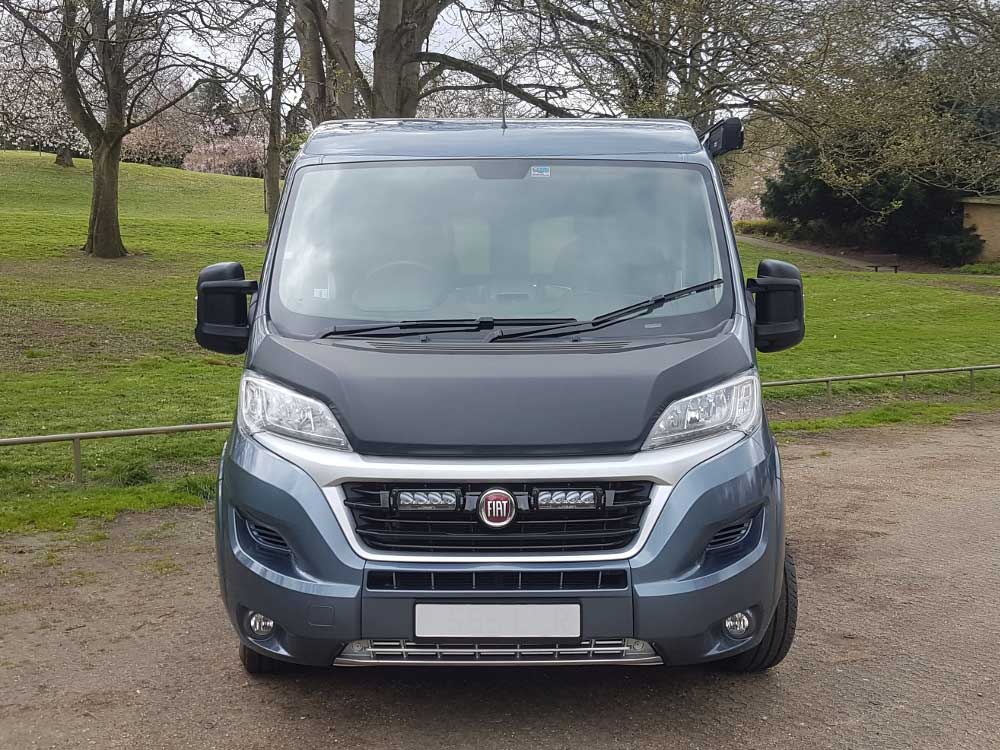

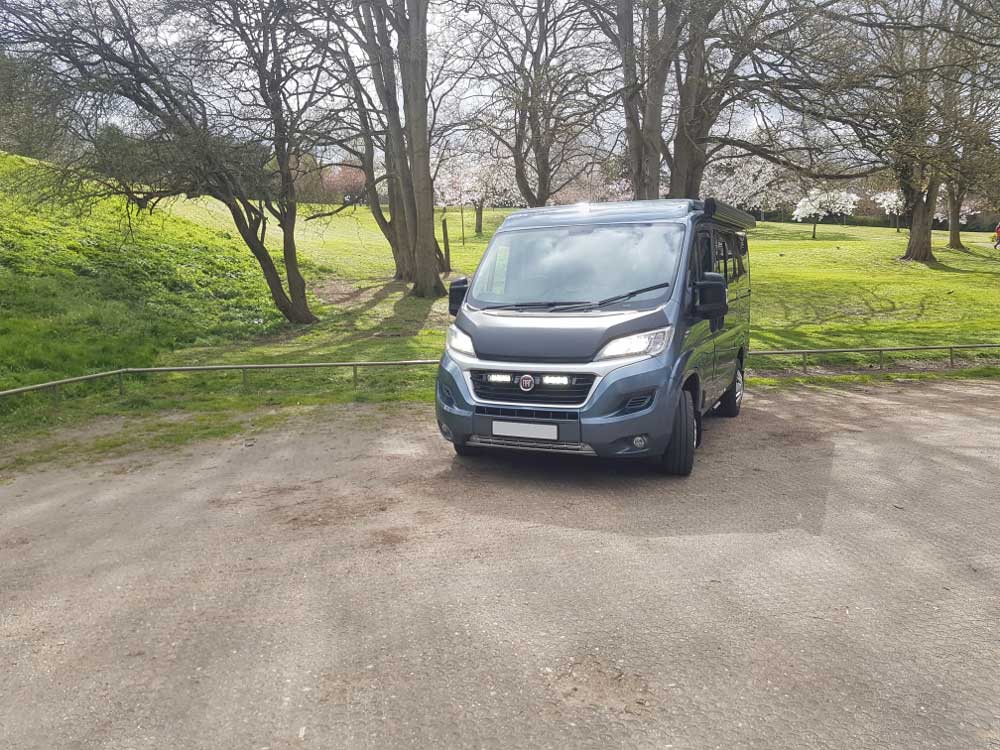

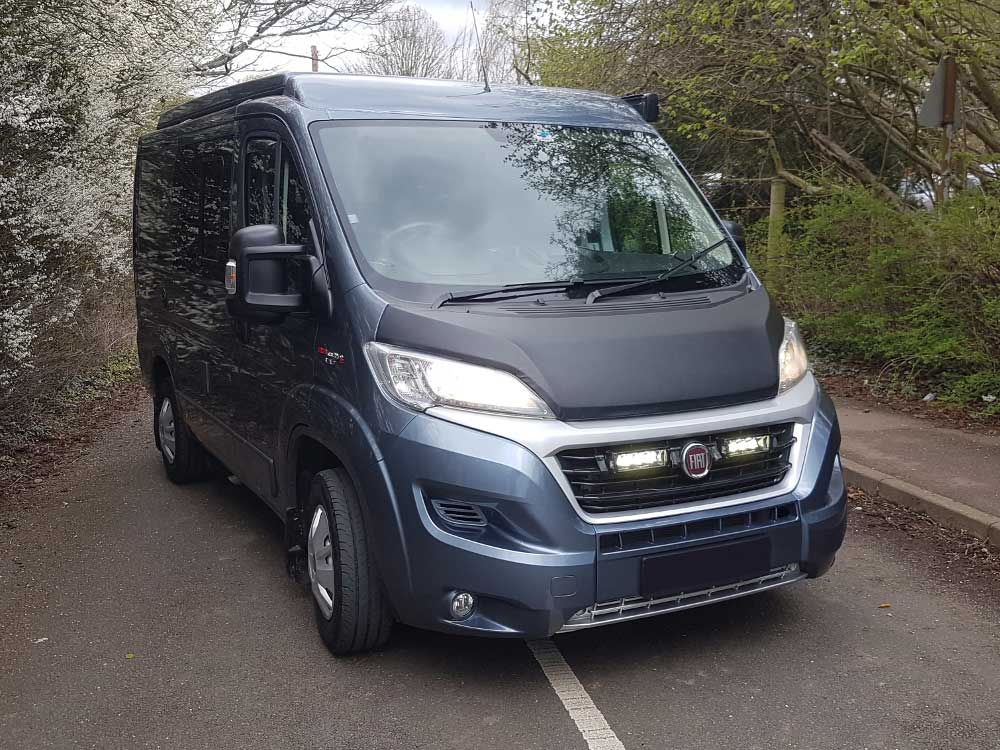

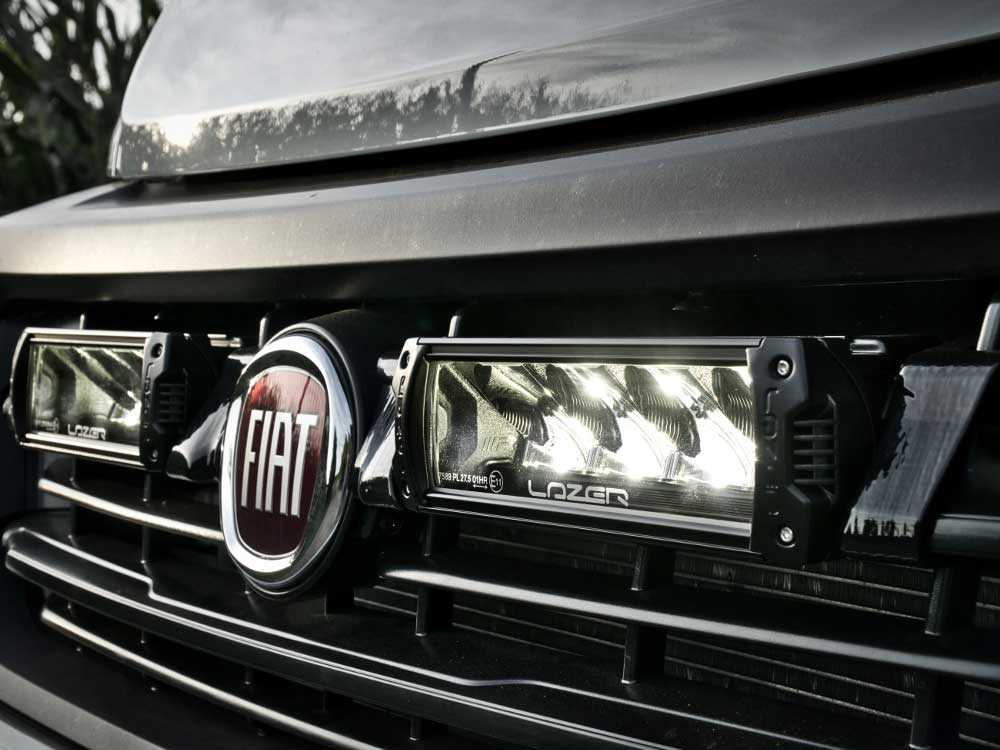

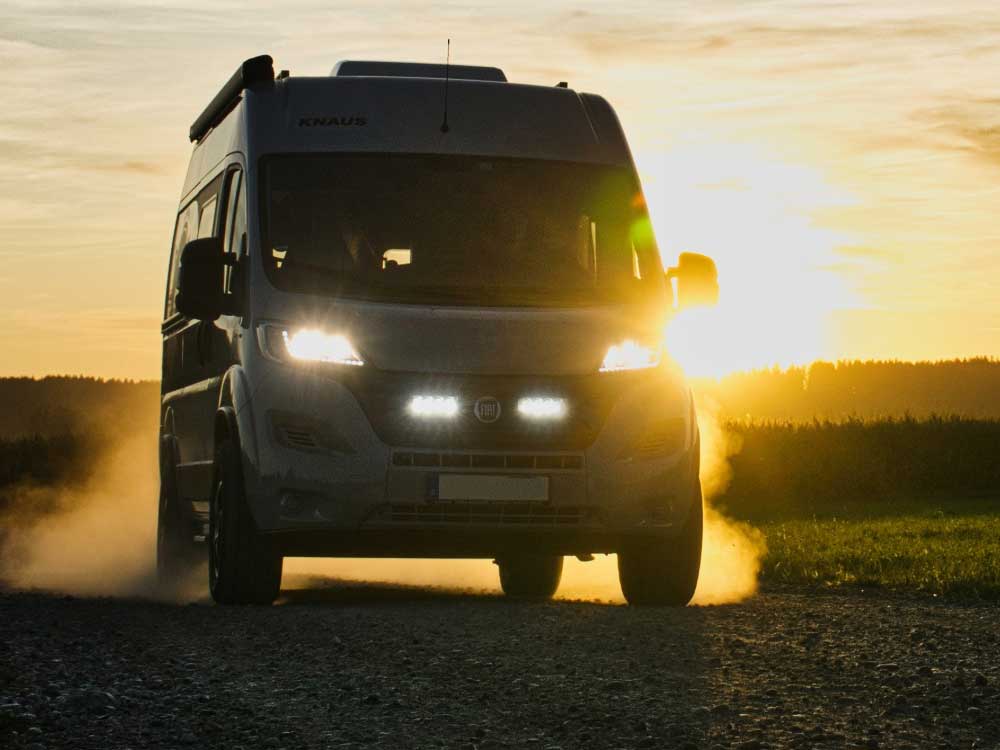

The Fiat Ducato kit, designed for 2014 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
With lighting performance borne out of development and testing work done at the highest levels of professional motorsport, despite the sleek styling and seamless integration, it is at night when the installation really impresses. Complete with Triple-R 750 Std, the kit boasts 8,200 raw lumens, delivering 1 lux to over 600m; lighting performance that needs to be seen to be believed, but still within ECE regulations, meaning the lights can operate with your standard high beam driving lights.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
Key Features
• Bespoke vehicle integration kit for Lazer LED Spotlight installation
• Custom fit for Fiat Ducato (2014+)

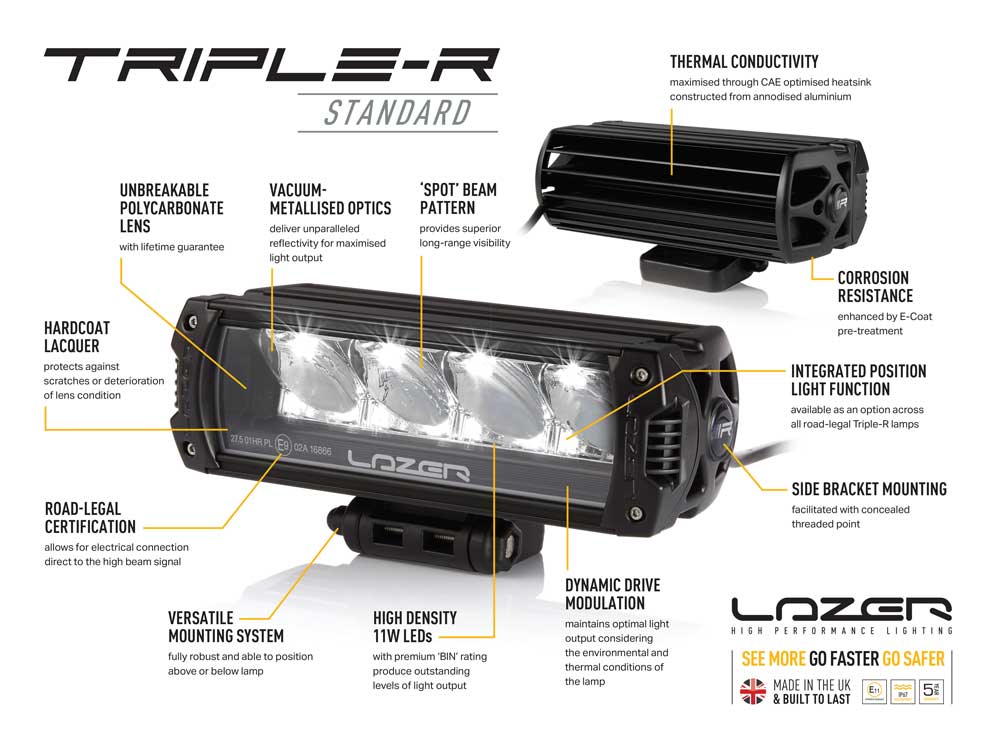

• Designed for use with Triple-R 750 High Performance LED Spotlights
• Kit also includes bespoke mounting brackets and two-lamp wiring kit
• Brackets made from high strength, UV -stable, ASA material
• Fully road-legal
• 5-year warranty
• Made in Britain
Technical Information
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
| Voltage Range | 9-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |

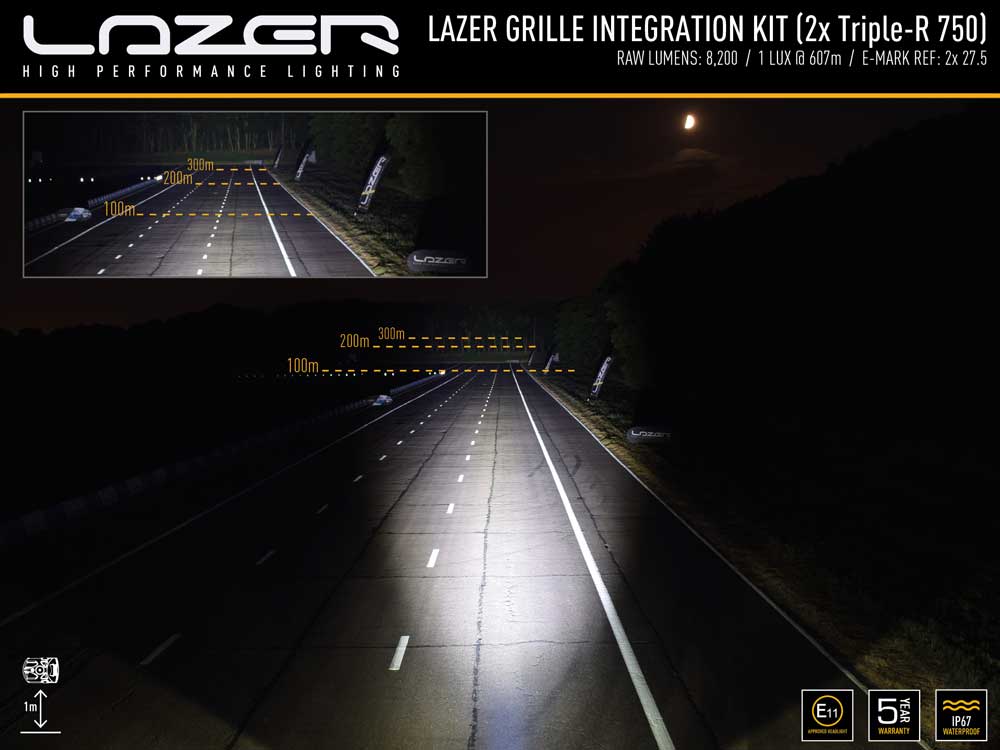

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| 1 lx Line | 612 metres |
| 3 lx Line | 354 metres |
What’s included
For Triple-R 750 (GK-FD-G2-1K)
– x2 Triple-R 750 (00R4-G2-B)

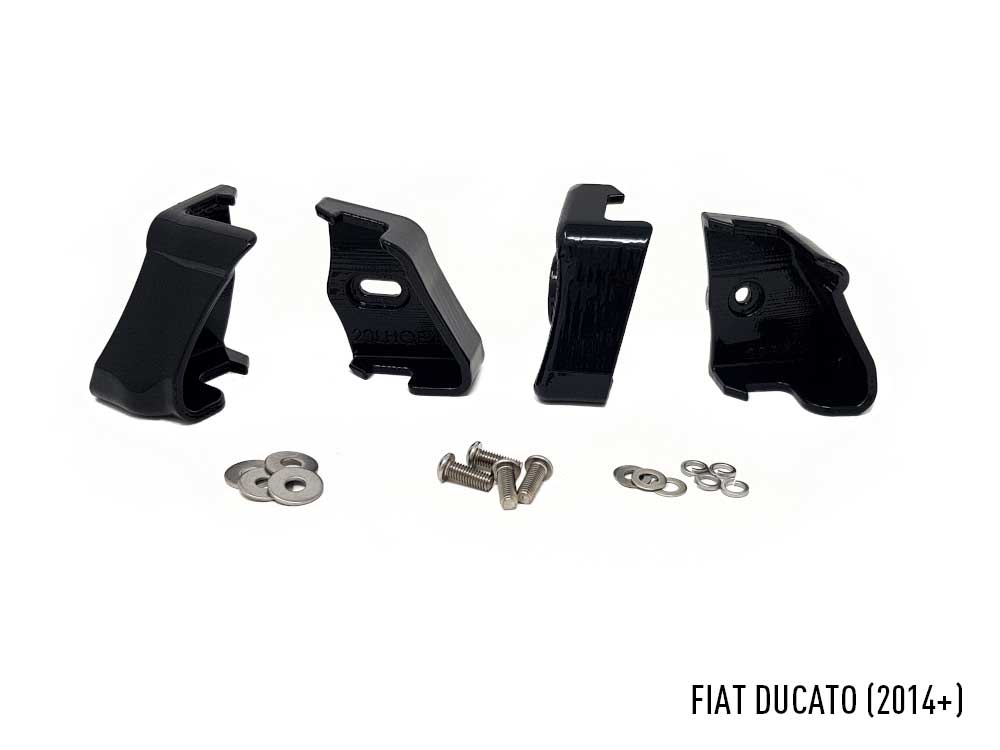

– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-FD-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-PL-120)
– x1 Installation instructions

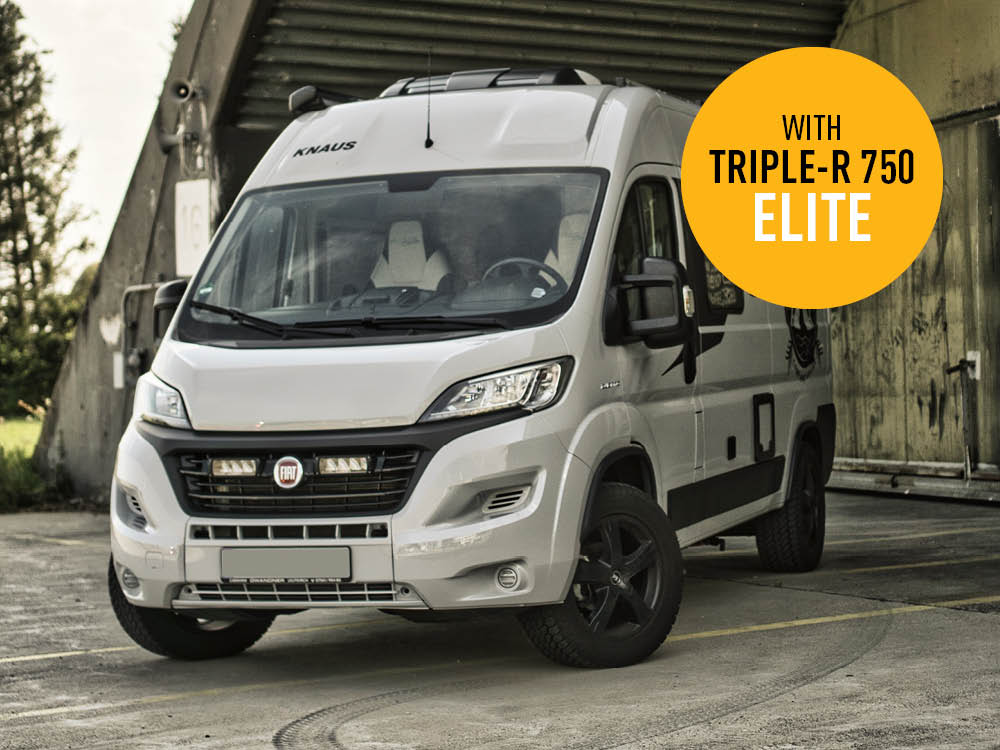

For Triple-R 750 Elite (GK-FD-Elite-G2-1K)
– x2 Triple-R 750 Elite (00R4-G2-EL-B)
– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-FD-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-120)
– x1 Installation instructions
