Σετ γρίλιας για Isuzu D-MAX (2021-2022) με Triple-R 750 Wide 9240 Lumens Lazerlamps
SKU:
GK-DMAX-WIDE-01K
Category: Έτοιμες λύσεις
Description
Για ποιότητα OE, βοηθητική εγκατάσταση προβολέων, τα Lazer Grille Integration Kits περιλαμβάνουν ειδικά στηρίγματα που επιτρέπουν τη γρήγορη και εύκολη τοποθέτηση των προβολέων LED υψηλής απόδοσης Lazer μέσα στην μπροστινή μάσκα των πιο δημοφιλών οδικών αυτοκινήτων, φορτηγών και ελαφρών επαγγελματικών οχήματα. Σχεδιασμένο να συνδυάζεται άψογα με το αρχικό στυλ κάθε οχήματος, η εγκατάσταση φωτισμού παραμένει στιβαρή και ασφαλής, με επιπλέον προστασία από κλοπή.

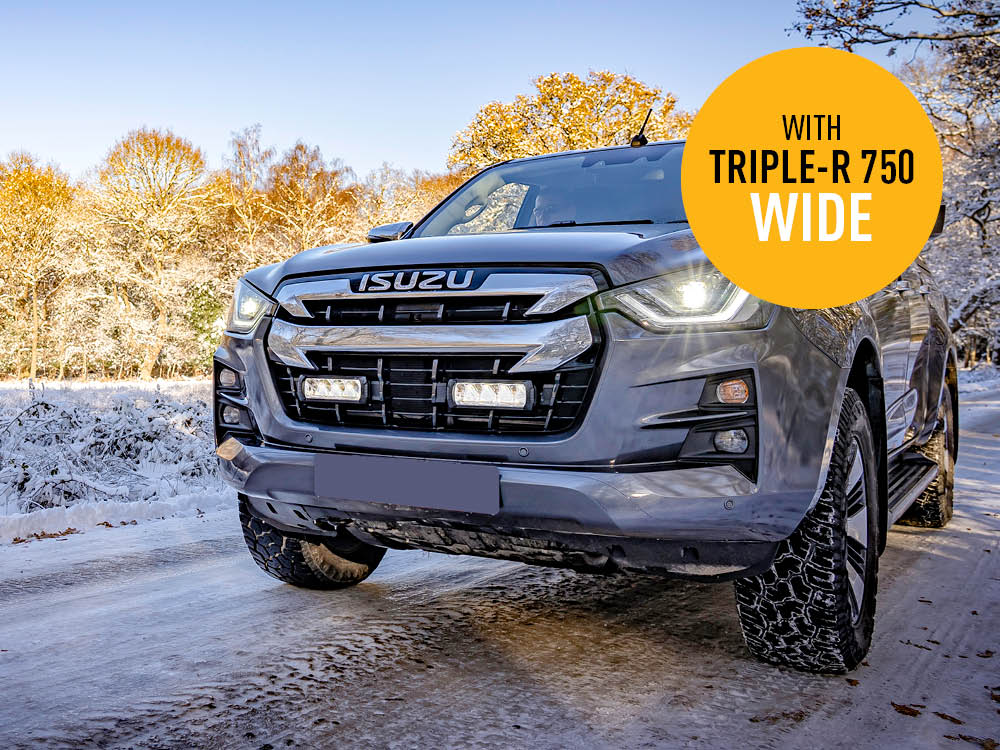

Το Isuzu D-Max, για οχήματα που παράγονται από το 2021+, περιλαμβάνει ένα ζευγάρι φώτα οδήγησης LED Triple-R 750 High Performance, συν κιτ καλωδίωσης, μαζί με ένα ζευγάρι βραχίονες που έχουν σχεδιαστεί με ακρίβεια για να συνδέονται τέλεια με την τυπική κεντρική γρίλια του οχήματος , με πρόσθετη αντοχή και ασφάλεια που παρέχουν οι παρεχόμενες βίδες αυτοεπιπεδώματος (πλαστικές). Κατασκευασμένο από σύνθετο υλικό υψηλής αντοχής, γνωστό ότι είναι εξαιρετικά στιβαρό και σταθερό στην υπεριώδη ακτινοβολία. Οι βραχίονες είναι πλήρως ανθεκτικοί στις καιρικές συνθήκες και στα χημικά για να διασφαλίσουν ότι η εγκατάστασή σας παραμένει σε άριστη κατάσταση χρόνο με το χρόνο.
Παρέχονται μαζί με τα στηρίγματα στήριξης και ένα σετ οδηγών κοπής, σχεδιασμένοι για να διευκολύνουν την εγκατάσταση και να διασφαλίζουν την τέλεια εφαρμογή κάθε φορά, χωρίς αφαίρεση των γρίλιων ή των εξαρτημάτων του προφυλακτήρα.
Λάβετε υπόψη ότι το κιτ ενσωμάτωσης γρίλιας Isuzu D-Max (2021+) είναι προσεκτικά σχεδιασμένο και βελτιστοποιημένο για χρήση με τους προβολείς LED υψηλής απόδοσης Triple-R 750 (Standard ή Elite). Η εγγύησή μας δεν καλύπτει τις βάσεις σχάρας που είναι εφοδιασμένες με επώνυμα προϊόντα της Lazer Lamps.
- Ειδικό κιτ ενσωμάτωσης οχημάτων για εγκατάσταση Spotlight LED Lazer
- Προσαρμοσμένη εφαρμογή για Isuzu D-Max (2021+)
- Συμβατό με προβολείς LED Triple-R 750
- Το κιτ περιλαμβάνει επίσης ειδικά στηρίγματα στήριξης και κιτ καλωδίωσης
- Περιλαμβάνονται οδηγοί κοπής
- Στηρίγματα κατασκευασμένα από υψηλής αντοχής, σταθερό στην υπεριώδη ακτινοβολία, σύνθετο υλικό
- Πλήρως νόμιμο για χρήση δρόμου
- 5 χρόνια εγγύηση
- Κατασκευάζεται στη Βρετανία
Τεχνικές πληροφορίες
2x TRIPLE-750 WIDE | 2x TRIPLE-R 750 | 2x TRIPLE-R 750 BEACON (BOOST MODE) | 2x TRIPLE-R 750 ELITE (BOOST MODE) | |
---|---|---|---|---|
Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
Weight | 2.6 kg | 2.6 kg | 2.6 kg | 2.6 kg |
HIGH BEAM FUNCTION | ||||
Total Luminous Flux | 9240 Lm | 9240 Lm | 10800 Lm | 10136 Lm |
Total Driver ‘FOV’ Flux † | 5266 Lm | 5572 Lm | 2484 Lm | 6680 Lm |
Colour Temperature | 5000K | 5000K | 5000K | 5000K |
Power Consumption | 88 Watts | 88 Watts | 104 Watts | 104 Watts |
Current Draw (14.4V) | 6.2 Amps | 6.2 Amps | 7.4 Amps | 7.2 Amps |
Connector | 2-Pin Superseal (+25cm Cable) | 3-Pin Superseal (+25cm Cable) | 6-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) |
CERTIFICATION | ||||
IP Rating # | IP68 | IP68 | IP68 | IP68 |
High Beam (E9 approval) | ECE R149 – Ref: 2x 20 | ECE R112 – Ref: 2x 35 | ECE R149 – Ref: 2x 10 (Low Output Mode) | ECE R112 – Ref: 2x 12.5 (Low Output Mode) |
Position Light (White) | N/A | ECE R7 | ECE R7 | N/A |
EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |
PHOTOMETRIC DATA | ||||

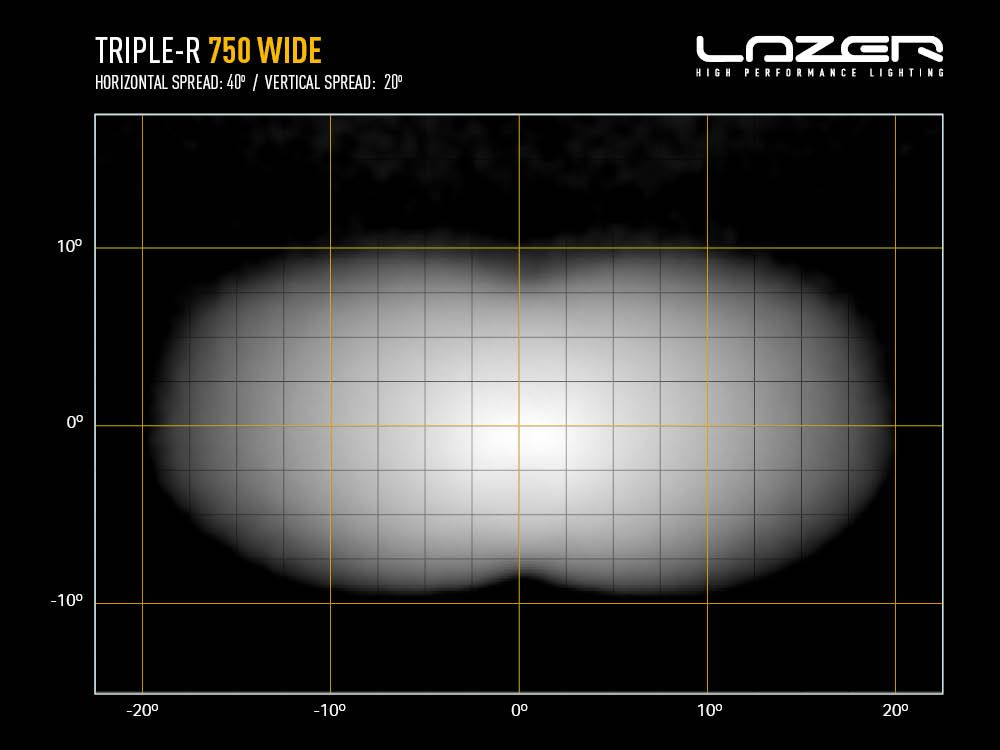

Horizontal / Vertical Beam Angle | 40° / 20° | 19° / 18° | 28° / 16° | 42° / 13° |
0.25 Lux | 829m | 1225m | 1249m | 1358m |
0.5 Lux | 587m | 866m | 883m | 960m |
1 Lux | 415m | 612m | 624m | 679m |
3 Lux | 239m | 354m | 361m | 392m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down.
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
Τι περιλαμβάνεται

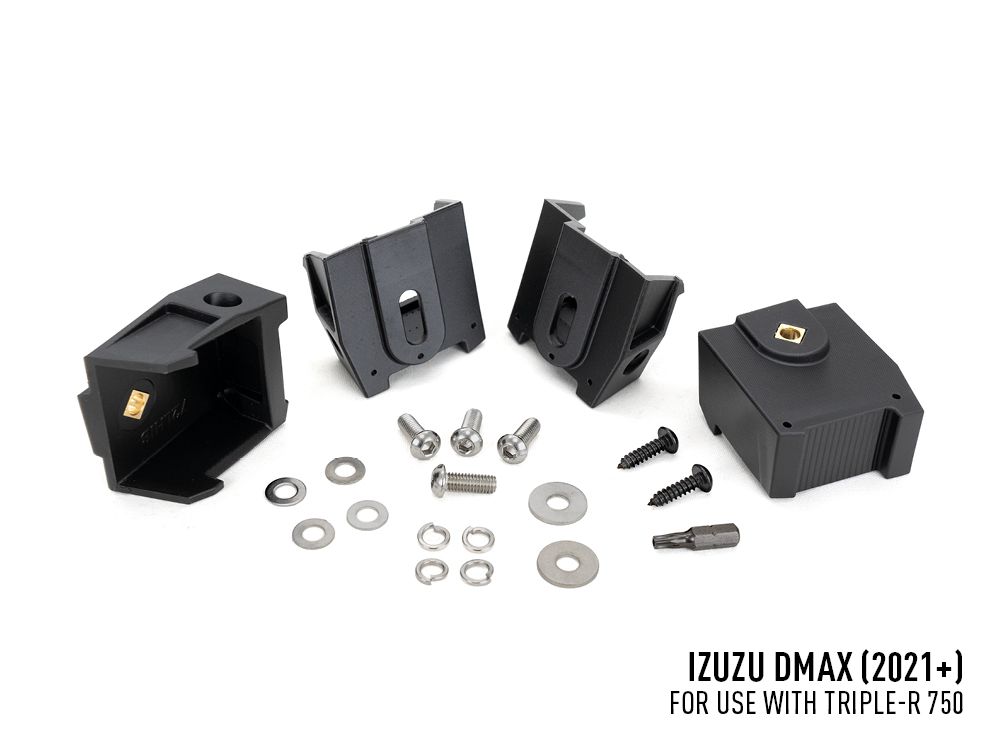

- 1x Κιτ τοποθέτησης γρίλιας (Περιλαμβάνει οδηγούς κοπής)
- 2 Triple-R 750 LED Lamps
- 1x Κιτ καλωδίωσης δύο λαμπτήρων
- Οδηγίες Εγκατάστασης
Βίντεο
Additional information
Weight | 0,00000 kg |
---|
About Lazerlamps
See more... Go Safer... Go faster!
LAZERLAMPS
Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.
Triple-R Series

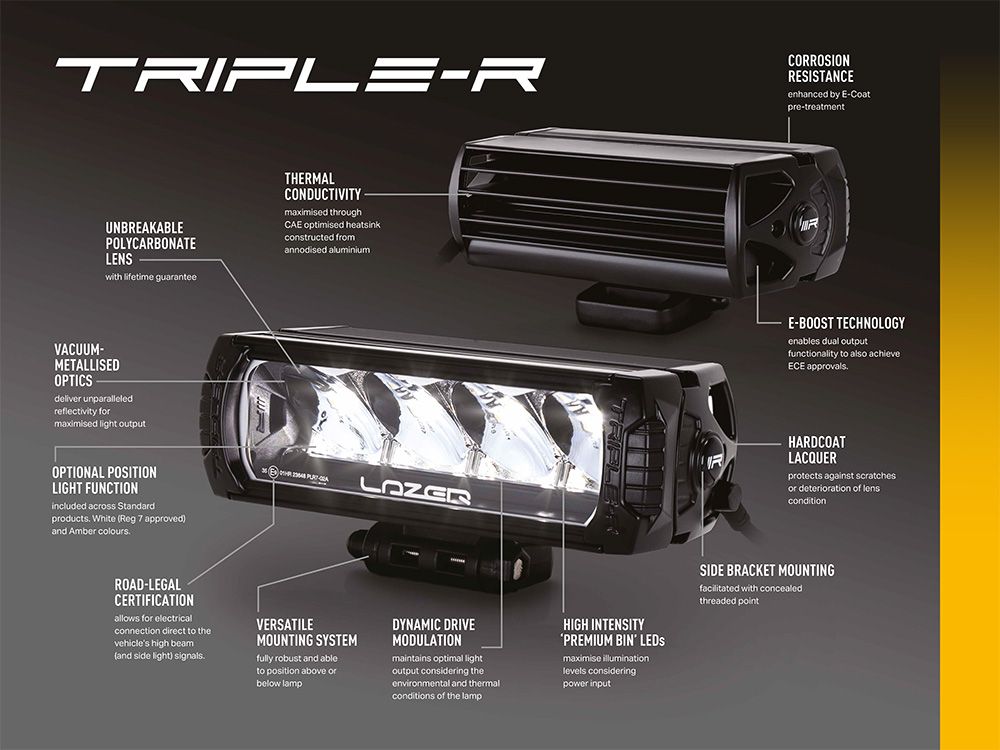

The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.
The lights are powered by high-quality LEDs, which produce a bright, white light that is optimized for long-range visibility and reduced eye fatigue. The lights also incorporate sophisticated electronics, including thermal management systems and intelligent dimming functions, which ensure that they operate safely and reliably in all conditions.
Overall, the Triple-R Gen2 Series from LazerLamps represents a cutting-edge solution for off-road lighting, providing exceptional performance, durability, and versatility for a range of different applications.
Linear series
The Linear Series from LazerLamps is a range of high-performance LED driving lights that have been designed to offer a sleek and streamlined lighting solution for a wide range of vehicles. These lights use advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on cars, trucks, and other vehicles used for on and off-road activities.
Build to last!
All Lazerlamp products have been designed and upgraded from experience in the hardest conditions, like WRC, LeMan, Paris Dakar. With 5 year warranty, you can rest assure that Lazerlamps gives absolute quality.
