Name: Grille Mount Kit for Land Rover Discovery 4 (2014+) - Triple-R 750 Std 9240 Lumens
Brand: Lazerlamps
SKU: GK-DISCO4-G2-01K
Availability: PreOrder

Description

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

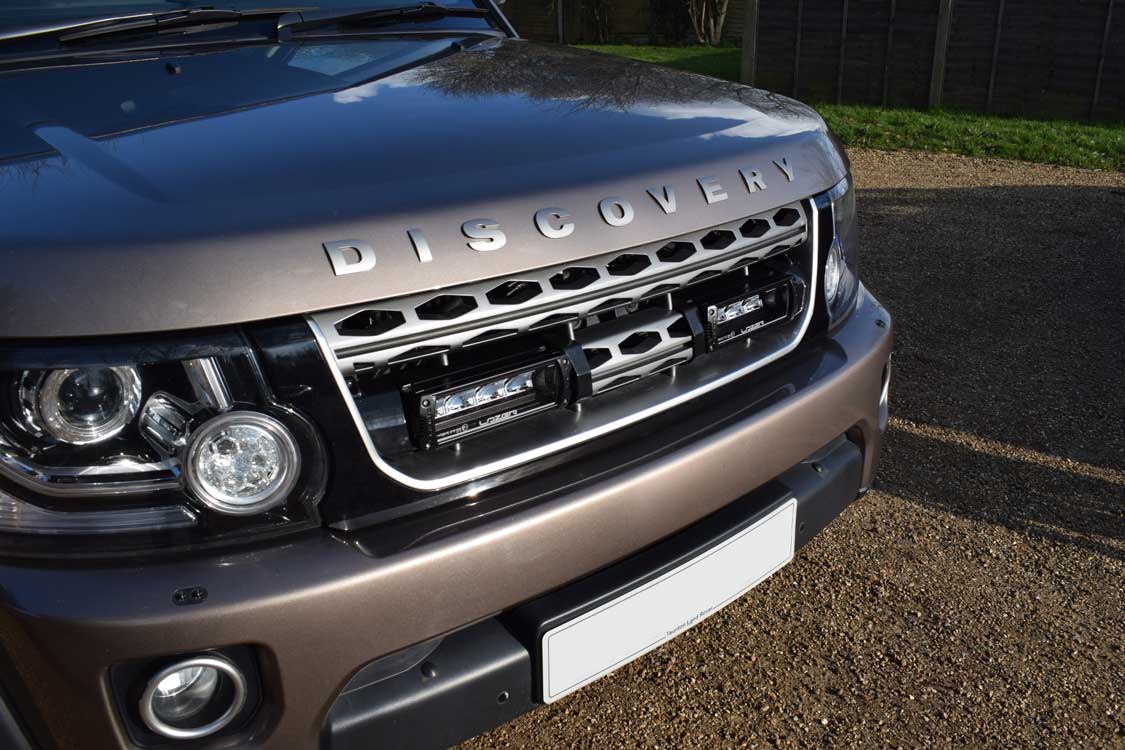

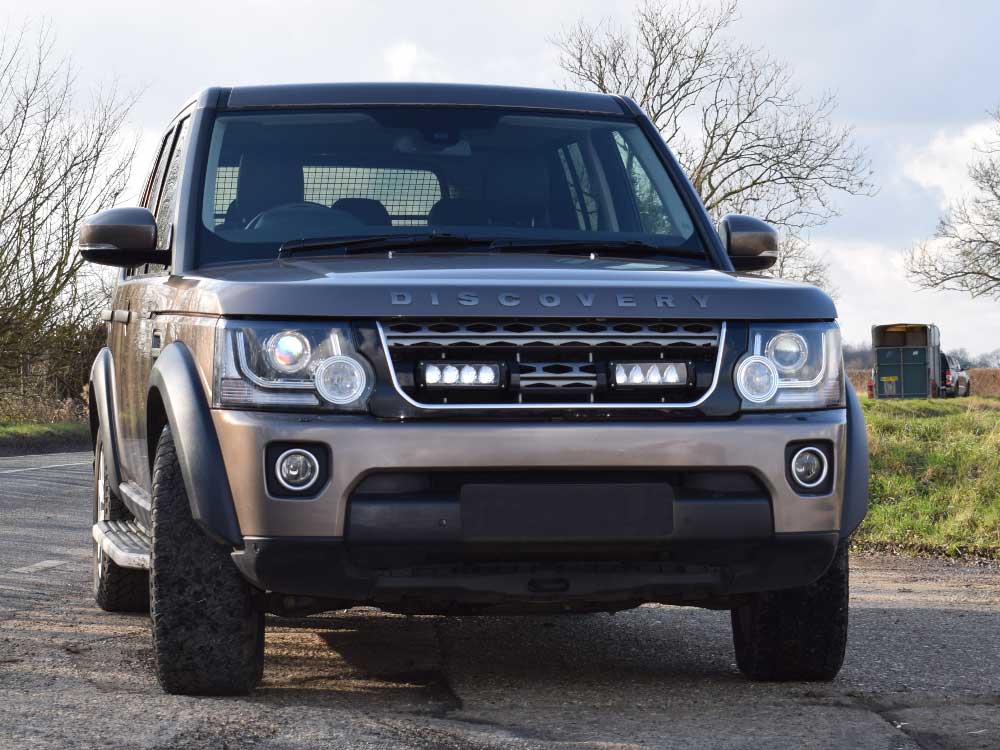

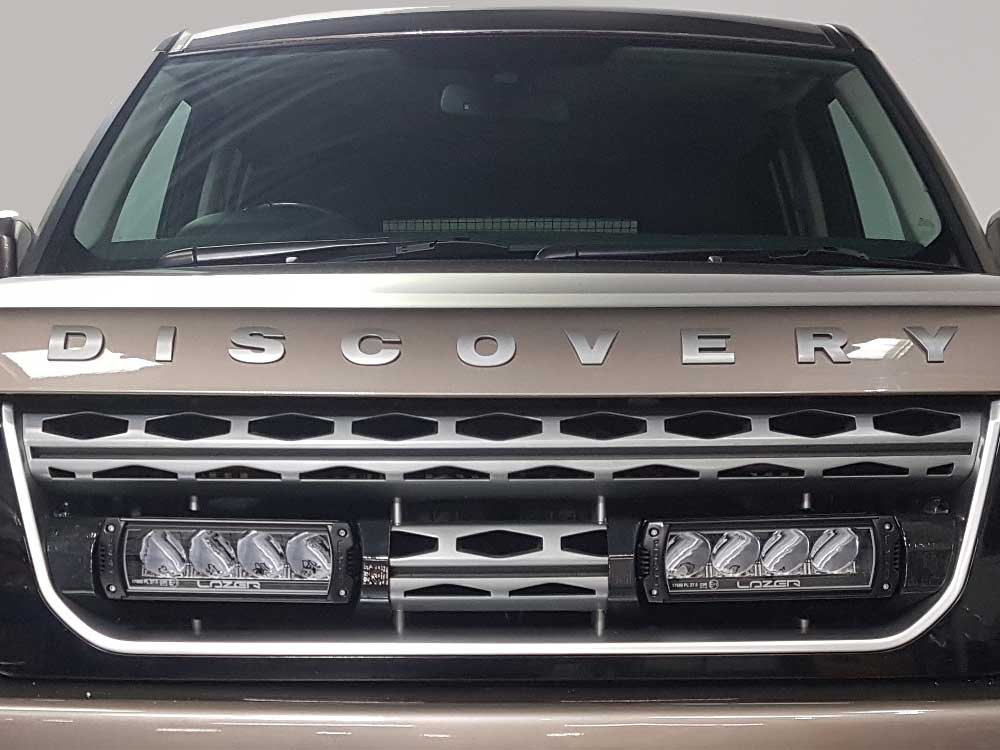

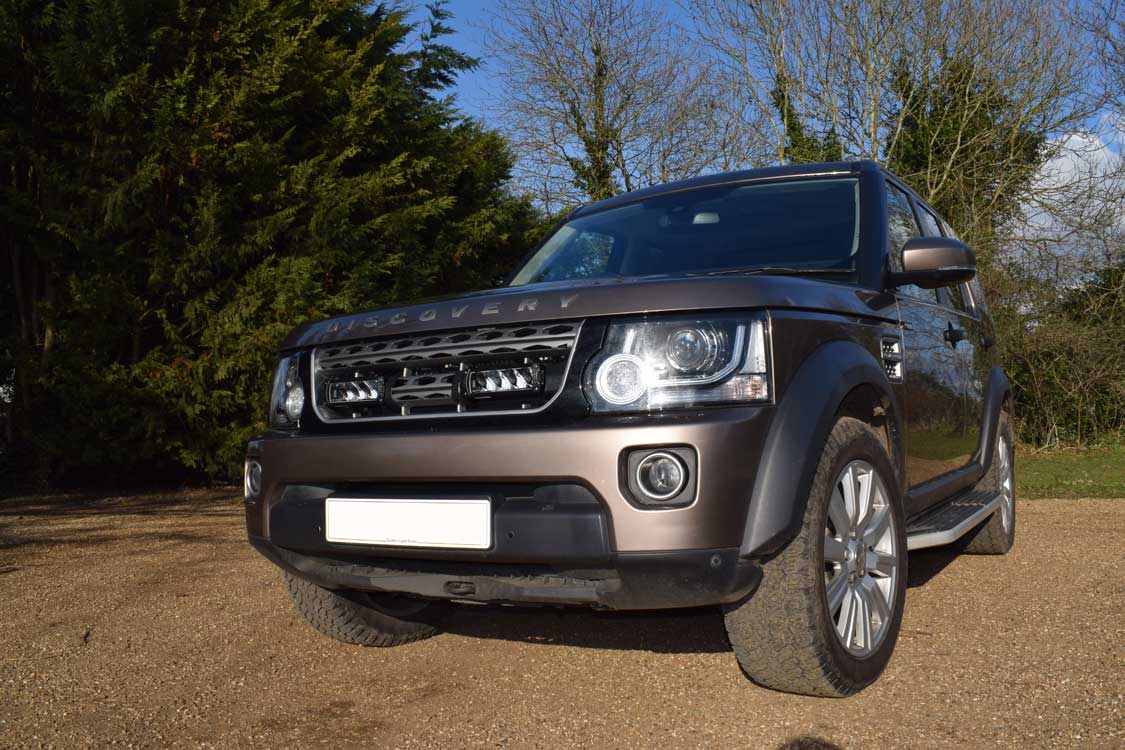

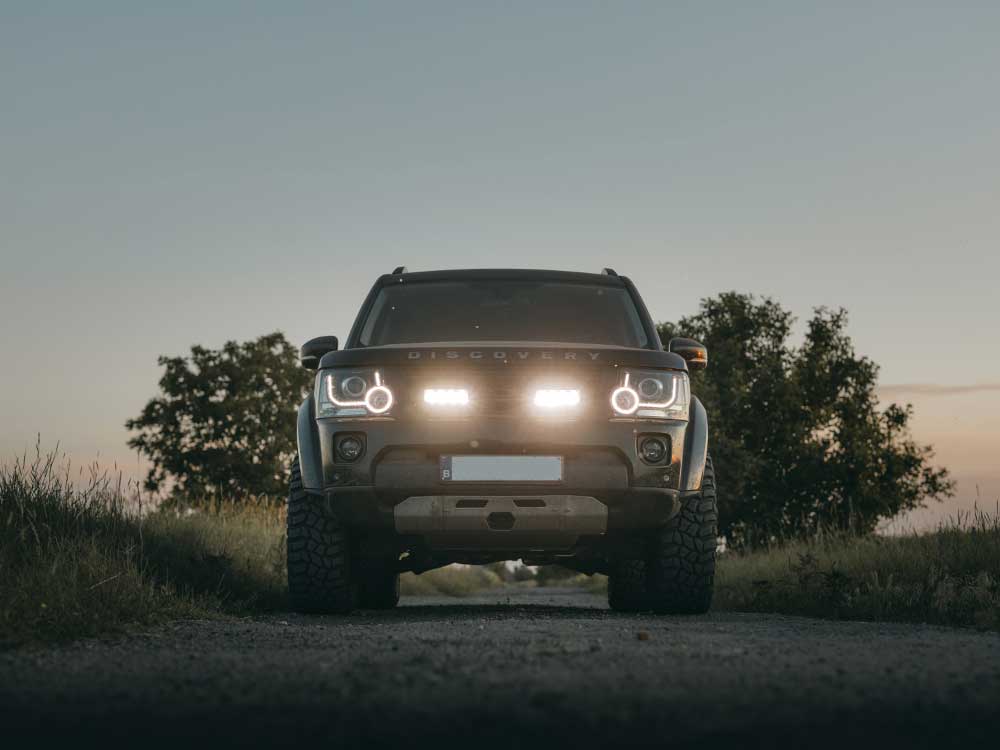

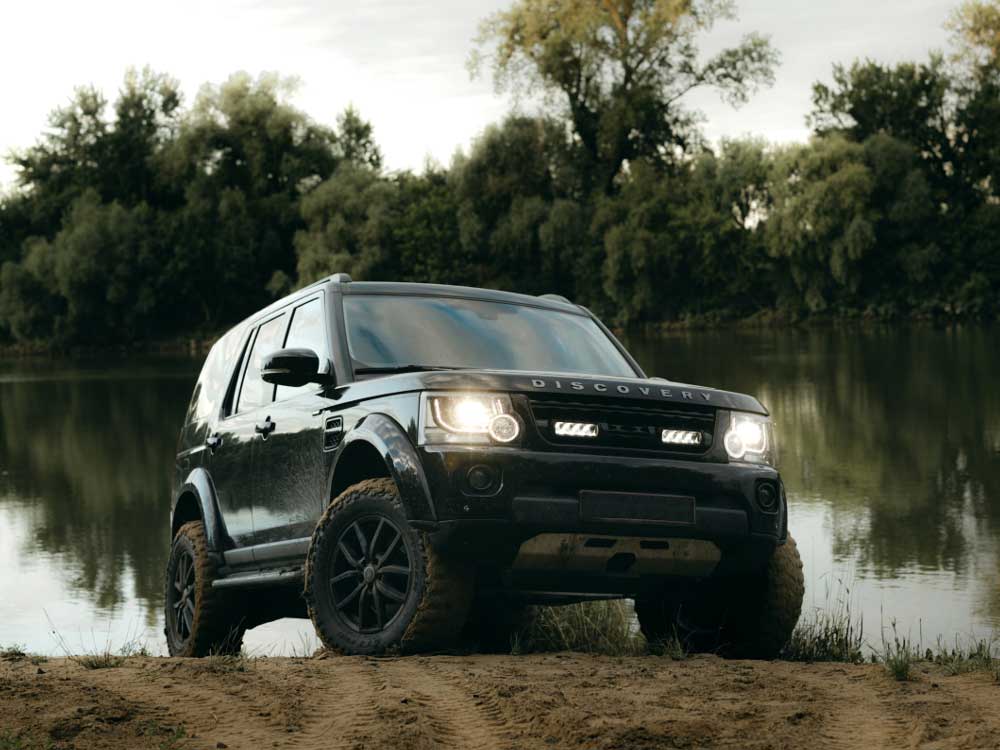

The Land Rover Discovery 4 kit, designed for MY14 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.
Lazer Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED Spotlights.

Key Features

Bespoke vehicle integration kit for Lazer LED Spotlight installation
Custom fit for Land Rover Discovery 4 (MY 2014+)
Available with: Triple-R 750 High Performance LED Spotlights
Kit also includes bespoke mounting brackets and two-lamp wiring kit
Brackets made from high strength, UV -stable, ASA material
Fully road-legal
5-year warranty
Made in Britain

Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:

Voltage Range	9-32V
LED Life	50,000 hours
Weight	2 kg
HIGH BEAM FUNCTION
Total Luminous Flux	9240 Lm
Colour Temperature	5000K
Number of High Output LEDs	2 x 4
Power Consumption	88 Watts
Current Draw (at 14.4V)	6.2 Amps
CERTIFICATION
High Beam	ECE R112
E-Mark Ref	35 x2
Position Light (White only)	ECE R7

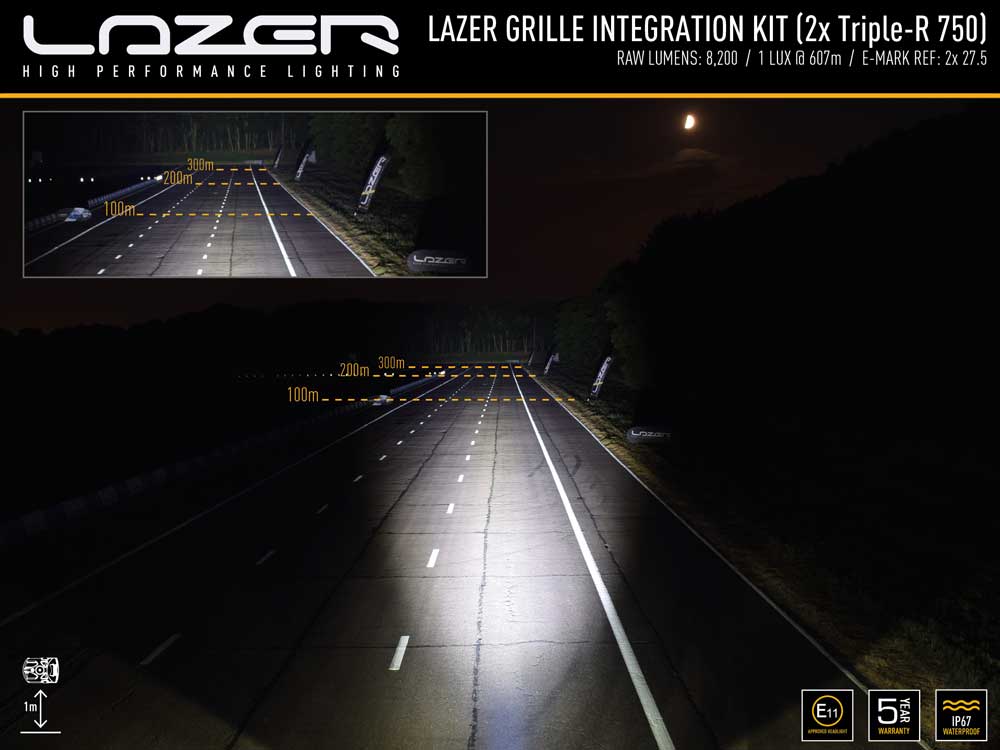

PHOTOMETRIC DATA
Horizontal Beam Angle	19 Degrees
0.25 lx Line	1225 metres
0.5 lx Line	866 metres
1 lx Line	612 metres
3 lx Line	354 metres

What’s included

For Triple-R 750 (GK-DISCO4-G2-1K)

– x2 Triple-R 750 (00R4-G2-B)

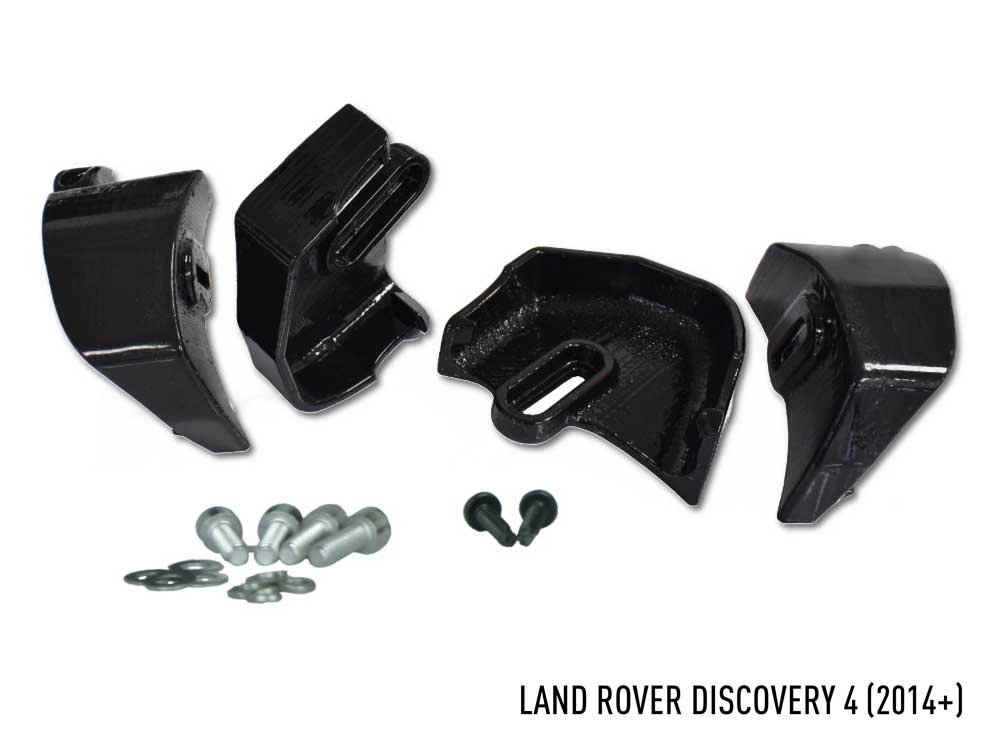

– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-DISCO4-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-PL-120)
– x1 Installation instructions

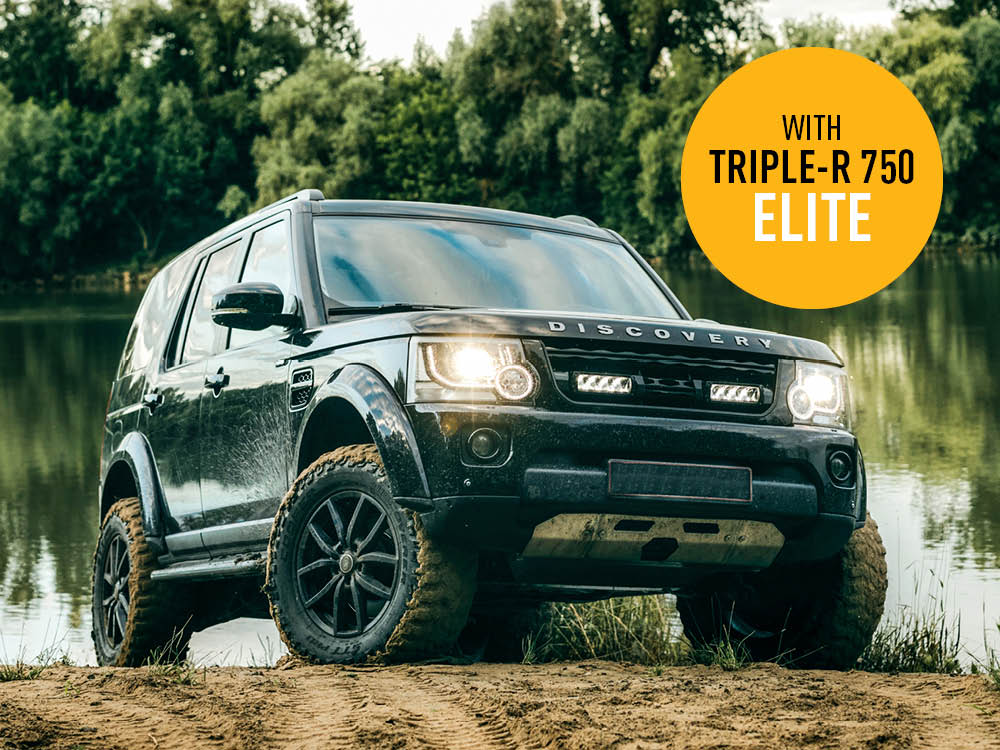

For Triple-R 750 Elite (GK-DISCO4-Elite-G2-1K)

– x2 Triple-R 750 Elite (00R4-G2-EL-B)
– x1 Mounting Kit (comprising 4x Brackets and fasteners) (GM-DISCO4-01K)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit (2L-LP-120)
– x1 Installation instructions

Additional information

Weight	3,00000 kg

About Lazerlamps

See more... Go Safer... Go faster!

LAZERLAMPS

Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.

SHOP NOW

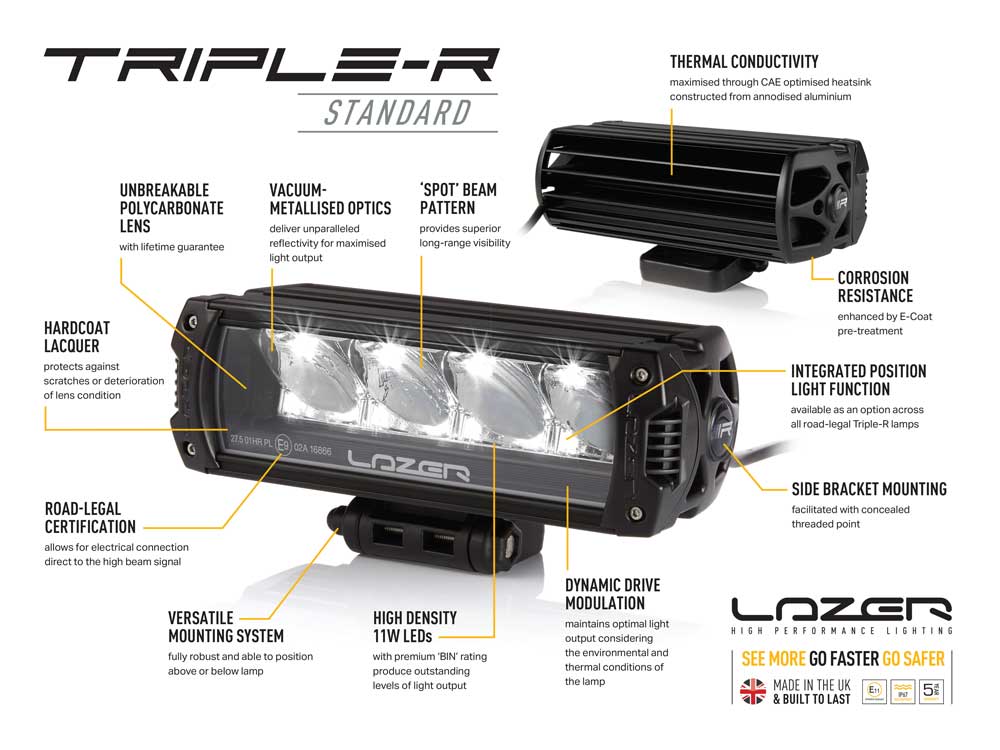

Triple-R Series
