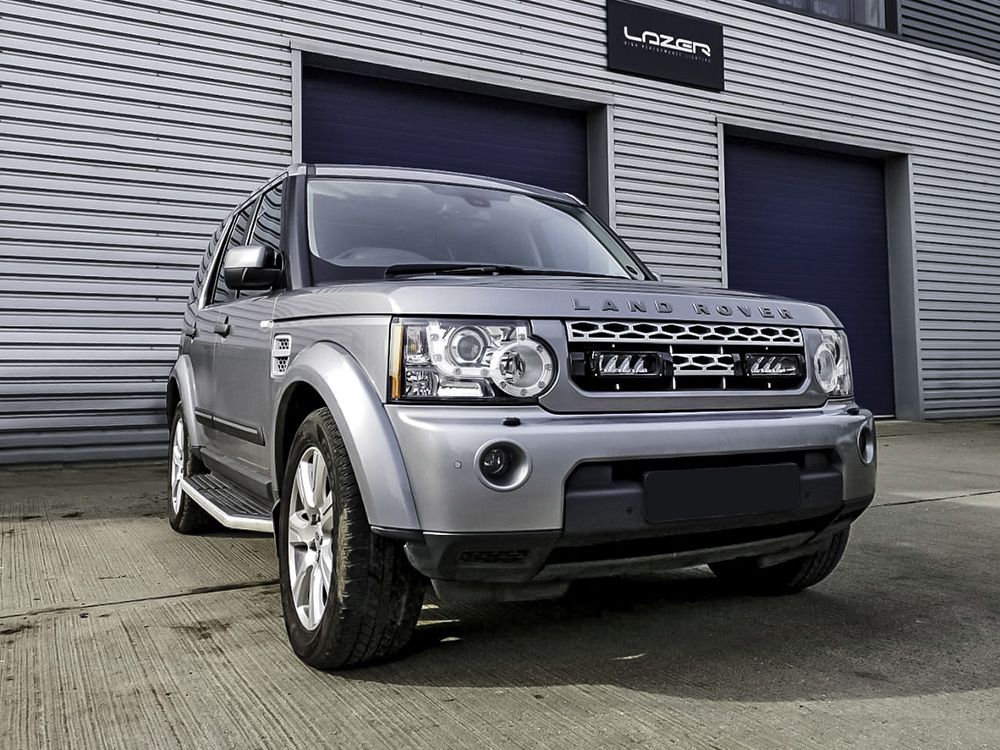

Σετ γρίλιας για Land Rover Discovery 4 (2009-2013) με Triple-R 750 BCN 10800 Lumens Lazerlamps
SKU:
GK-DISCO4-BCN-02K
Category: Έτοιμες λύσεις
Description
Για μια ποιότητα OE, εγκατάσταση βοηθητικού φωτός, τα κιτ ενσωμάτωσης Lazer Grille περιλαμβάνουν ειδικά στηρίγματα στήριξης που επιτρέπουν τη γρήγορη και εύκολη τοποθέτηση των φώτων LED υψηλής απόδοσης Lazer στην μπροστινή μάσκα των πιο δημοφιλών αυτοκινήτων δρόμου, pick-up και ελαφρών εμπορικών οχήματα. Σχεδιασμένο να συνδυάζεται άψογα με το αρχικό στυλ κάθε οχήματος, η εγκατάσταση φωτισμού παραμένει στιβαρή και ασφαλής, με επιπλέον προστασία από κλοπή.

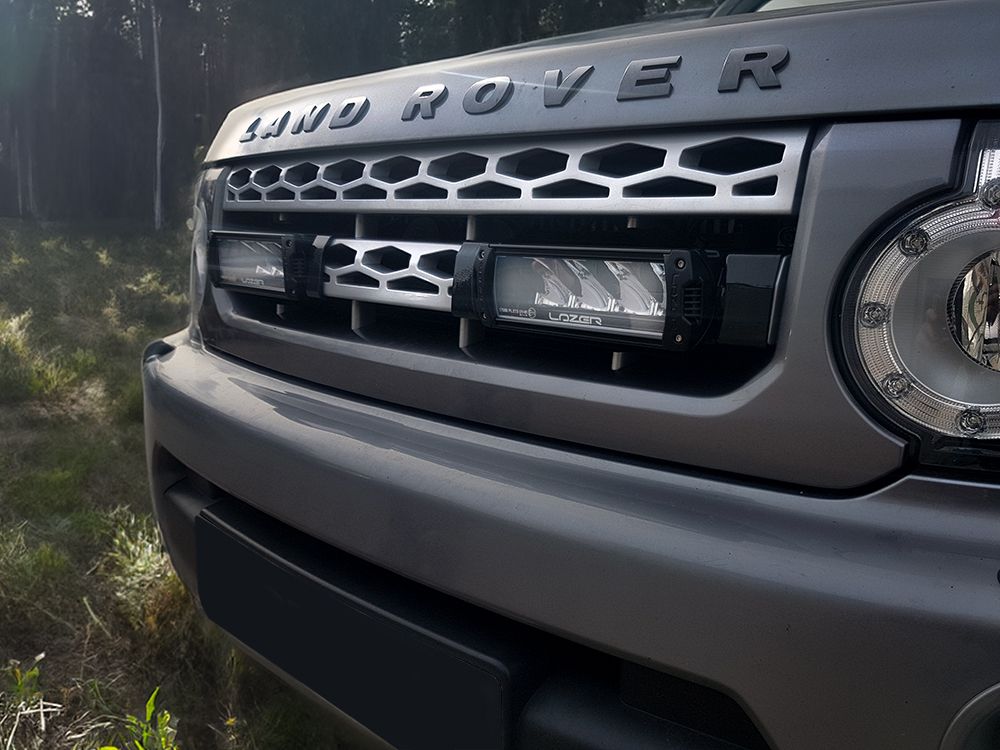

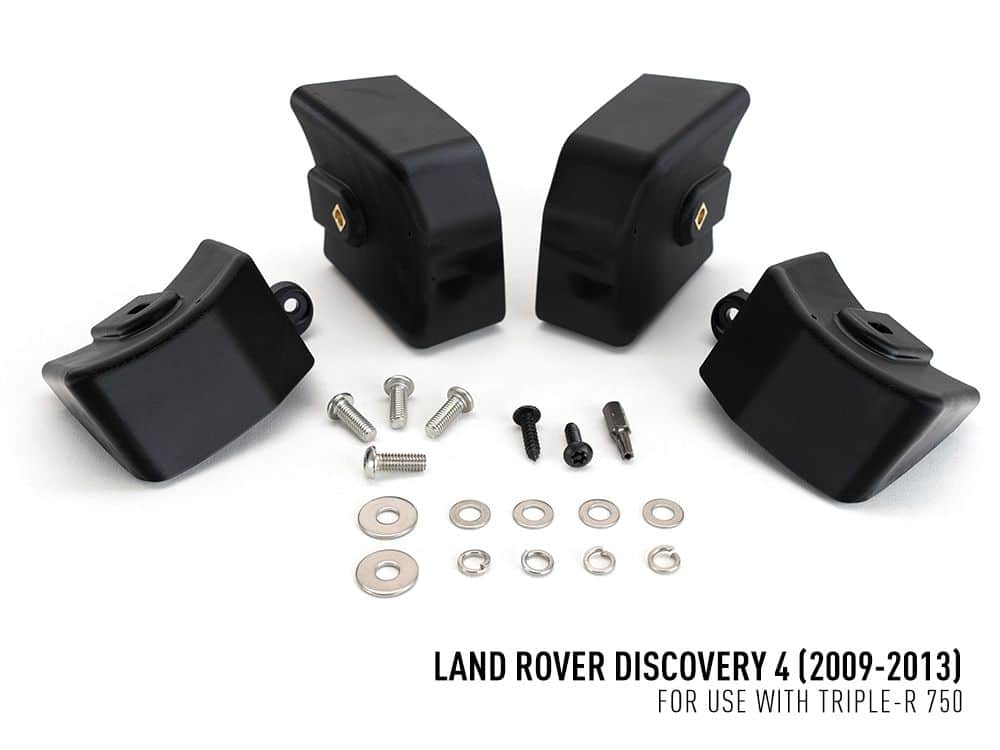

Το κιτ Land Rover Discovery 4, σχεδιασμένο για οχήματα 2009-2013, περιλαμβάνει ένα ζευγάρι φώτα οδήγησης LED Triple-R 750 High Performance, συν κιτ καλωδίωσης, μαζί με βραχίονες 4x που έχουν σχεδιαστεί με ακρίβεια για τέλεια σύνδεση με την τυπική κεντρική γρίλια του οχήματος. με πρόσθετη αντοχή και ασφάλεια που παρέχουν οι παρεχόμενες βίδες αυτοεπιπεδώματος (πλαστικές). Κατασκευασμένα από σύνθετο υλικό, γνωστό για την εξαιρετική του αντοχή και σταθερότητα στην υπεριώδη ακτινοβολία, τα στηρίγματα είναι πλήρως ανθεκτικά στις καιρικές συνθήκες και τα χημικά για να διασφαλίσουν ότι η εγκατάστασή σας παραμένει σε άριστη κατάσταση χρόνο με το χρόνο.
Παρέχονται μαζί με τα στηρίγματα και ένα σετ οδηγών κοπής, σχεδιασμένοι για να διευκολύνουν την εγκατάσταση και να εξασφαλίζουν τέλεια εφαρμογή κάθε φορά.
Το κιτ ενσωμάτωσης γρίλιας Land Rover Discovery 4 (2009-2013) είναι βελτιστοποιημένο για χρήση με φώτα LED υψηλής απόδοσης Triple-R 750. Η εγγύησή μας δεν καλύπτει τις βάσεις σχάρας που είναι εφοδιασμένες με επώνυμα προϊόντα της Lazer Lamps.
- Εξατομικευμένο κιτ ενσωμάτωσης οχήματος για εγκατάσταση φωτιστικών LED Lazer
- Προσαρμοσμένη εφαρμογή για το Land Rover Discovery 4 (ΜΥ 2009-2013)
- Διατίθεται με: Φώτα LED High Performance Triple-R 750
- Με φώς θέσης (λευκό ή θερμό) (Διαθέσιμο μόνο με το Triple-R 750 STD)
- Το κιτ περιλαμβάνει επίσης ειδικά στηρίγματα και κιτ καλωδίωσης δύο λαμπτήρων
- Στηρίγματα κατασκευασμένα από υψηλής αντοχής, σταθερό στην υπεριώδη ακτινοβολία, σύνθετο υλικό
- Πλήρως νόμιμο για χρήση δρόμου
- 5 χρόνια εγγύηση
- Κατασκευάζεται στη Βρετανία
Βίντεο
Τεχνικές πληροφορίες
2x TRIPLE-750 WIDE | 2x TRIPLE-R 750 | 2x TRIPLE-R 750 BEACON (BOOST MODE) | 2x TRIPLE-R 750 ELITE (BOOST MODE) | |
---|---|---|---|---|
Voltage Range (DC) | 10-32V | 10-32V | 10-32V | 10-32V |
LED Life | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
Weight | 2.6 kg | 2.6 kg | 2.6 kg | 2.6 kg |
HIGH BEAM FUNCTION | ||||
Total Luminous Flux | 9240 Lm | 9240 Lm | 10800 Lm | 10136 Lm |
Total Driver ‘FOV’ Flux † | 5266 Lm | 5572 Lm | 2484 Lm | 6680 Lm |
Colour Temperature | 5000K | 5000K | 5000K | 5000K |
Power Consumption | 88 Watts | 88 Watts | 104 Watts | 104 Watts |
Current Draw (14.4V) | 6.2 Amps | 6.2 Amps | 7.4 Amps | 7.2 Amps |
Connector | 2-Pin Superseal (+25cm Cable) | 3-Pin Superseal (+25cm Cable) | 6-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) |
CERTIFICATION | ||||
IP Rating # | IP68 | IP68 | IP68 | IP68 |
High Beam (E9 approval) | ECE R149 – Ref: 2x 20 | ECE R112 – Ref: 2x 35 | ECE R149 – Ref: 2x 10 (Low Output Mode) | ECE R112 – Ref: 2x 12.5 (Low Output Mode) |
Position Light (White) | N/A | ECE R7 | ECE R7 | N/A |
EMC Certification | ECE R10 | ECE R10 | ECE R10 | ECE R10 |
Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 | ISO 9227 |
Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |
PHOTOMETRIC DATA | ||||
Horizontal / Vertical Beam Angle | 40° / 20° | 19° / 18° | 28° / 16° | 42° / 13° |
0.25 Lux | 829m | 1225m | 1249m | 1358m |
0.5 Lux | 587m | 866m | 883m | 960m |
1 Lux | 415m | 612m | 624m | 679m |
3 Lux | 239m | 354m | 361m | 392m |
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down
# – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
Τι περιλαμβάνεται
- 1 Κιτ τοποθέτησης γρίλιας (Περιλαμβάνει οδηγούς κοπής)
- 2 Μπάρες Led Triple-R 750

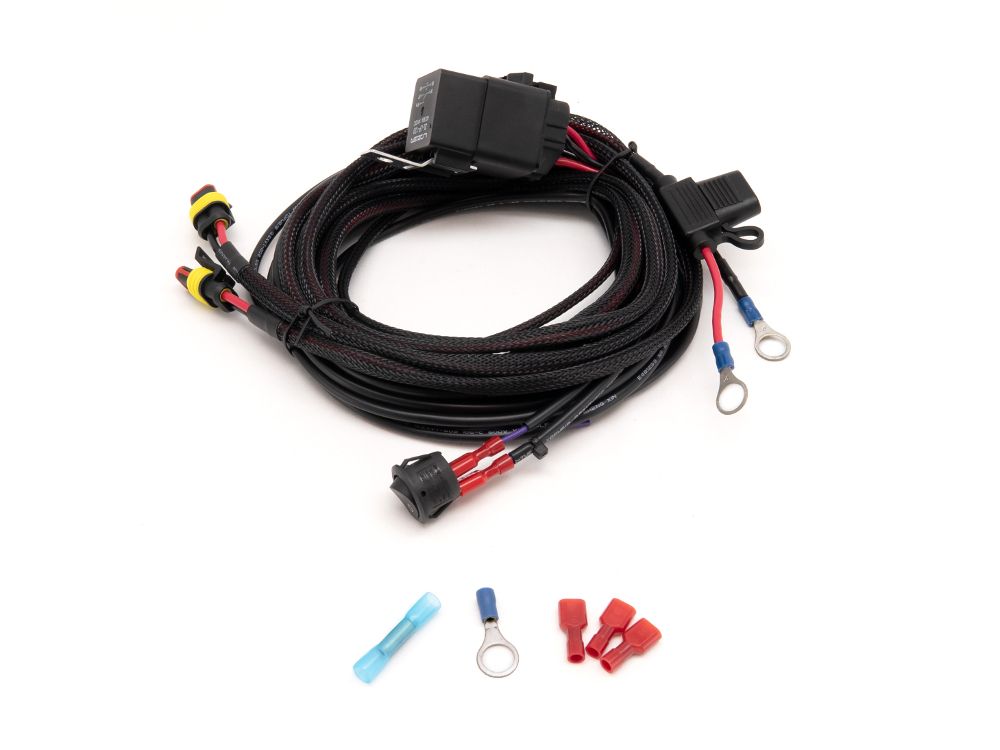

- 1 Κιτ καλωδίωσης δύο προβολέων
- Οδηγίες Εγκατάστασης
Additional information
Weight | 0,00000 kg |
---|
About Lazerlamps
See more... Go Safer... Go faster!
LAZERLAMPS
Lazerlamps are the ultimate solution for additional lighting. Made 100% in UK with 5 year warranty.
Triple-R Series

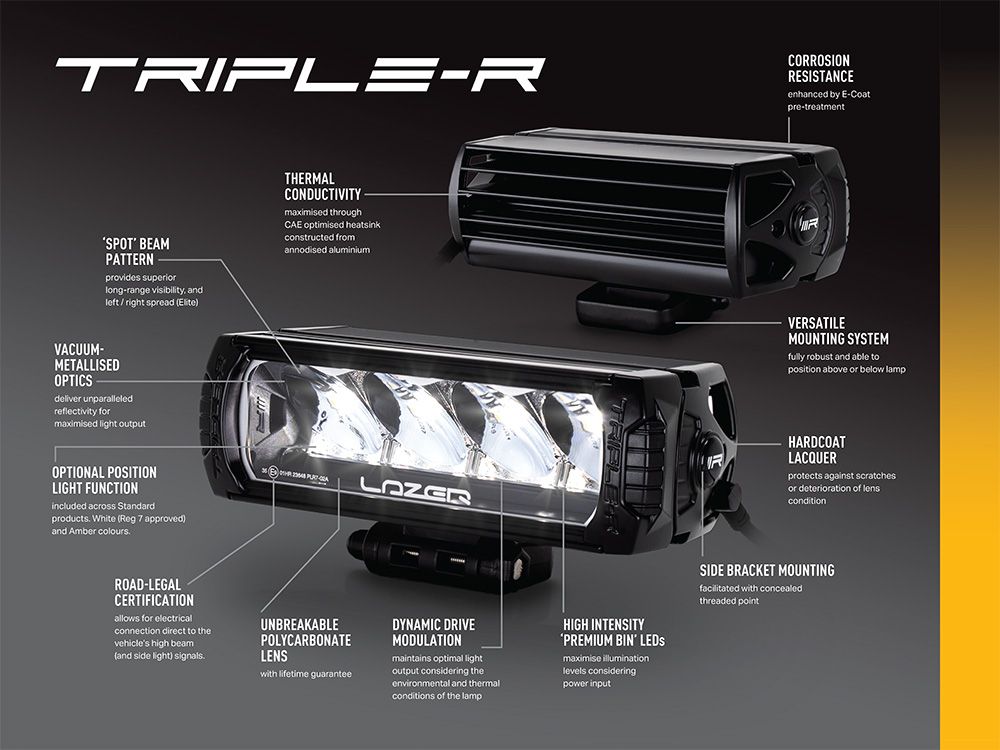

The Triple-R Gen2 Series from LazerLamps is a range of high-performance LED driving lights designed for off-road use in challenging environments. These lights incorporate advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on trucks, SUVs, and other vehicles used for off-road activities.
The lights are powered by high-quality LEDs, which produce a bright, white light that is optimized for long-range visibility and reduced eye fatigue. The lights also incorporate sophisticated electronics, including thermal management systems and intelligent dimming functions, which ensure that they operate safely and reliably in all conditions.
Overall, the Triple-R Gen2 Series from LazerLamps represents a cutting-edge solution for off-road lighting, providing exceptional performance, durability, and versatility for a range of different applications.
Linear series
The Linear Series from LazerLamps is a range of high-performance LED driving lights that have been designed to offer a sleek and streamlined lighting solution for a wide range of vehicles. These lights use advanced optical and electronic technologies to provide exceptional illumination and durability, making them ideal for use on cars, trucks, and other vehicles used for on and off-road activities.
Build to last!
All Lazerlamp products have been designed and upgraded from experience in the hardest conditions, like WRC, LeMan, Paris Dakar. With 5 year warranty, you can rest assure that Lazerlamps gives absolute quality.
