For an OE quality, auxiliary LED driving light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

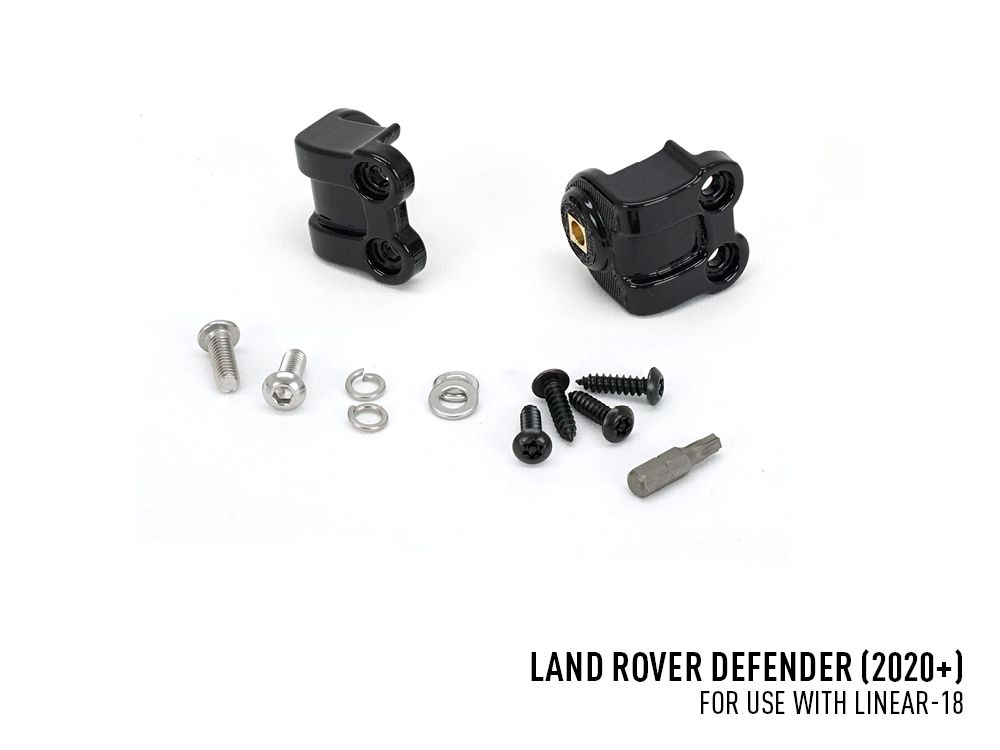

The Land Rover Defender kit, designed for MY20 vehicles onwards, includes either a pair of Triple-R 750 (Standard Or Elite) or a single Linear-18 (Standard, Elite and Elite with I-LBA) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard lower grille on the vehicle, with added strength and security provided by the supplied self-tapping, anti-theft screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
Lazer Grille Integration Kits are optimised for use with Triple-R 750 or Linear-18 High Performance LED driving lights.
- Bespoke vehicle integration kit for Lazer LED Spotlight installation

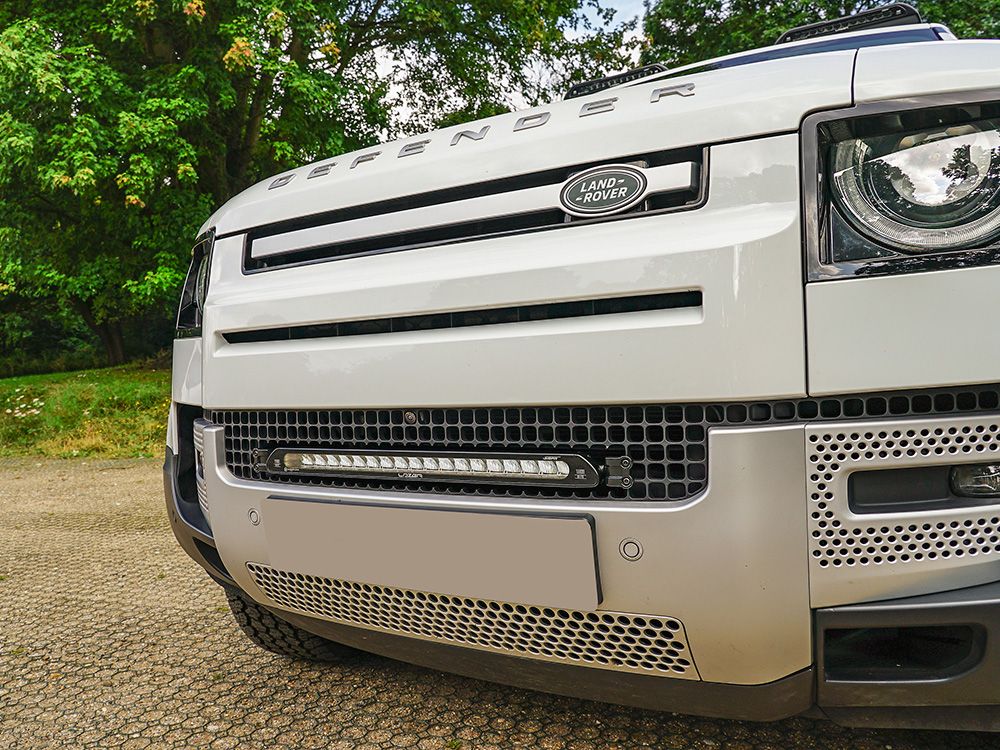

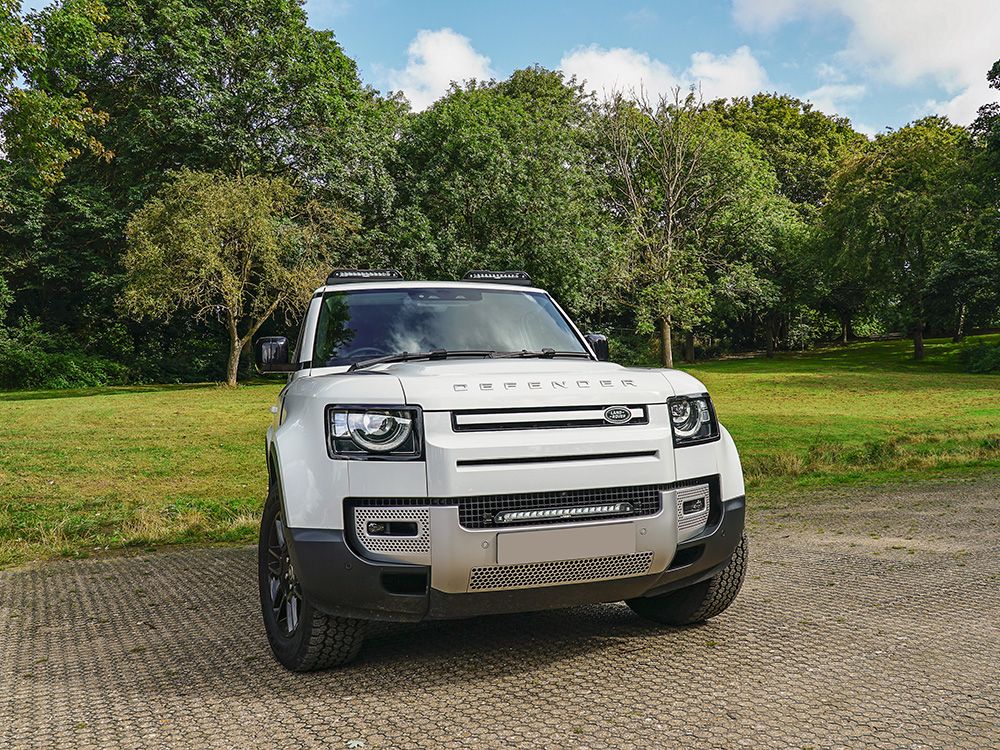

- Custom fit for Land Rover Defender (2020+)
- Designed for use with Linear-18 High Performance LED Spotlights
- Added option for white or amber position/side light function (Standard model only)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Brackets made from high strength, UV -stable, ASA material
- Fully road-legal
- 5-year warranty
- Made in Britain
Technical information
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Total Driver ‘FOV’ Flux † | 5572 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| Start-Up* | 100 ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |

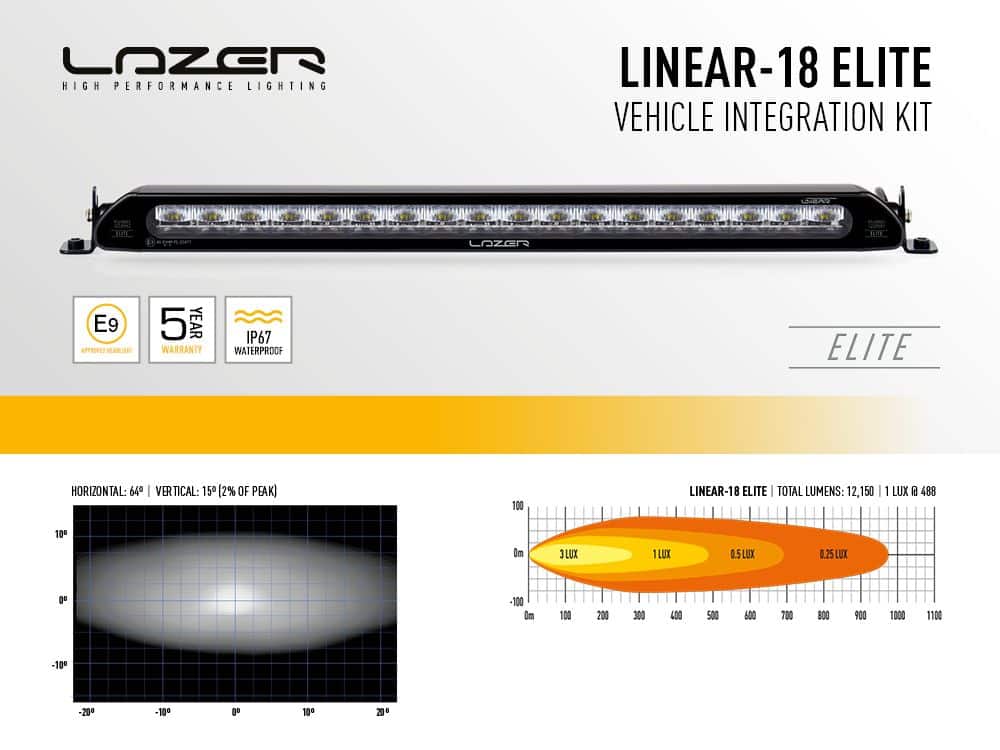

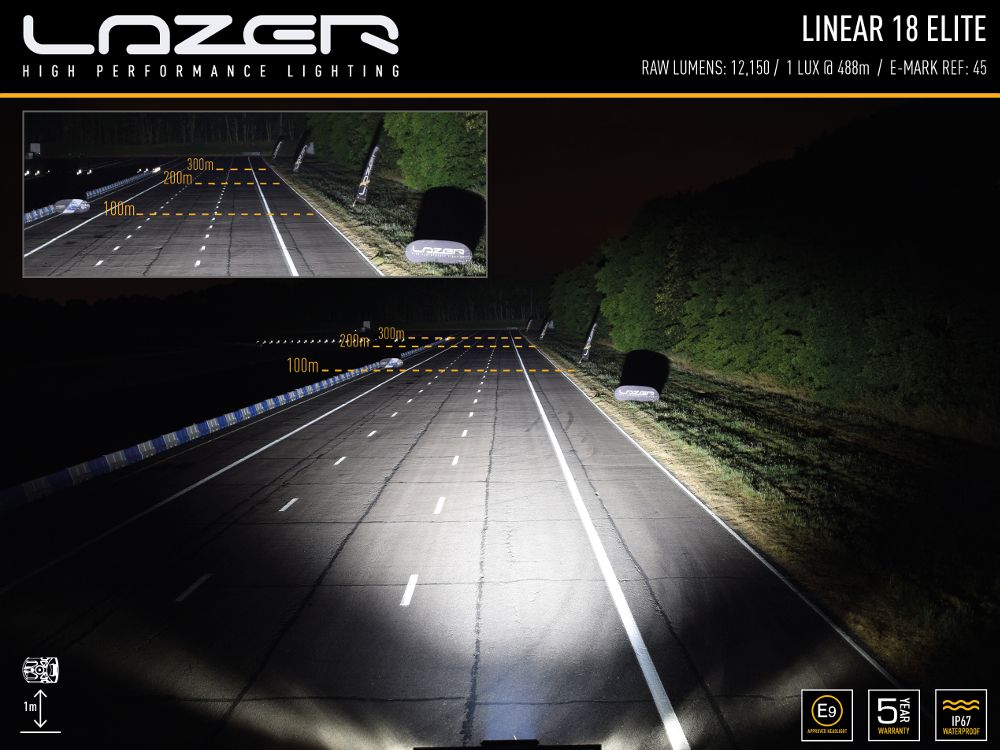

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Total Driver ‘FOV’ Flux † | 5572 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| Start-Up* | 100 ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| 1 lx Line | 612 metres |
| 3 lx Line | 354 metres |
*’Start-up time’ is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.
What’s included
– x2 Triple-R 750 or 1x Linear-18 High Performance LED Spotlights
– x1 Mounting Kit (comprising 4x Brackets and fasteners)
– x1 Cutting Guide (comprising 4x Brackets)

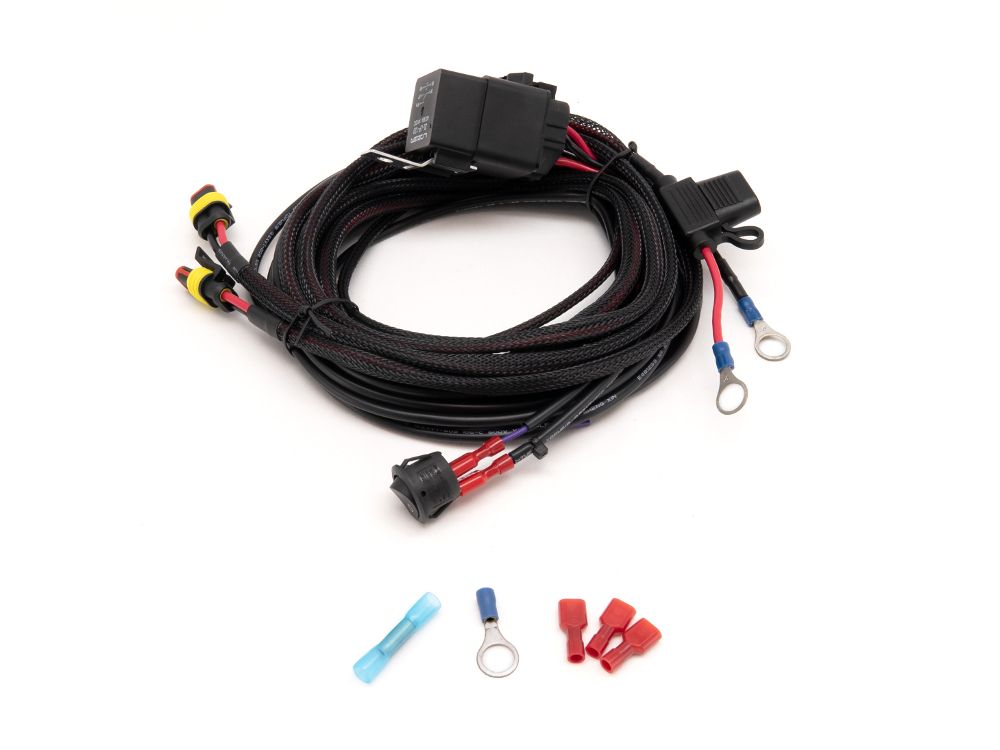

– x1 Two-Lamp Wiring Kit
– x1 Installation instructions
