Name: Grille kit for VW ID Buzz (2023+) – Linear 6 Elite 8100 Lumens
Brand: Lazerlamps
SKU: GK-BUZZ-ELITE-01K
Availability: PreOrder

Description

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

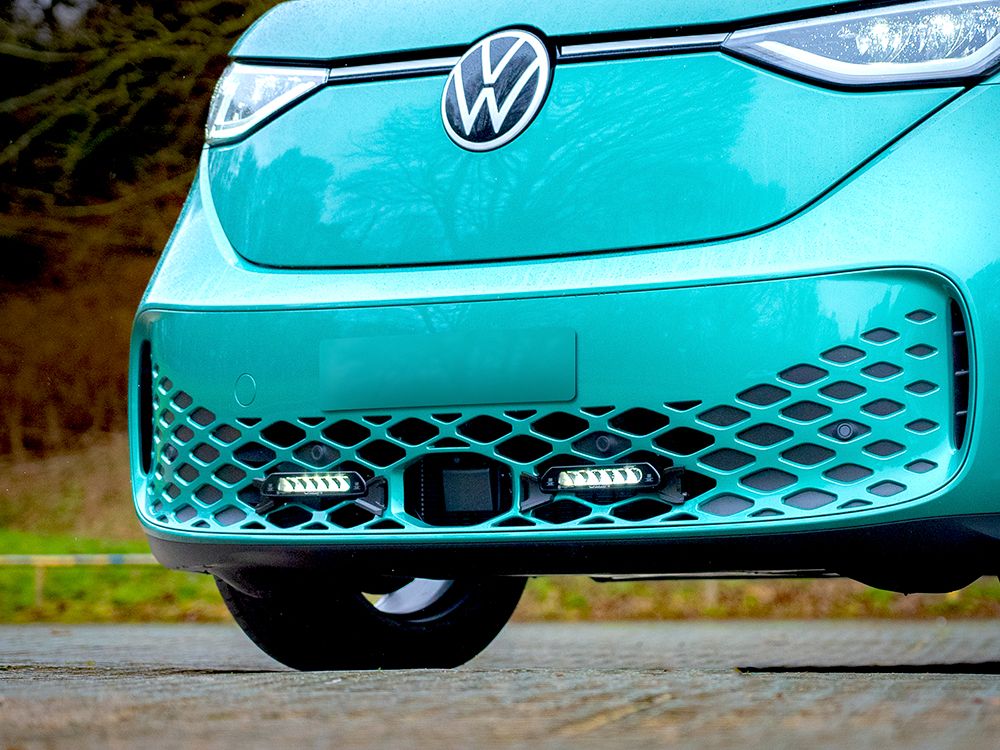

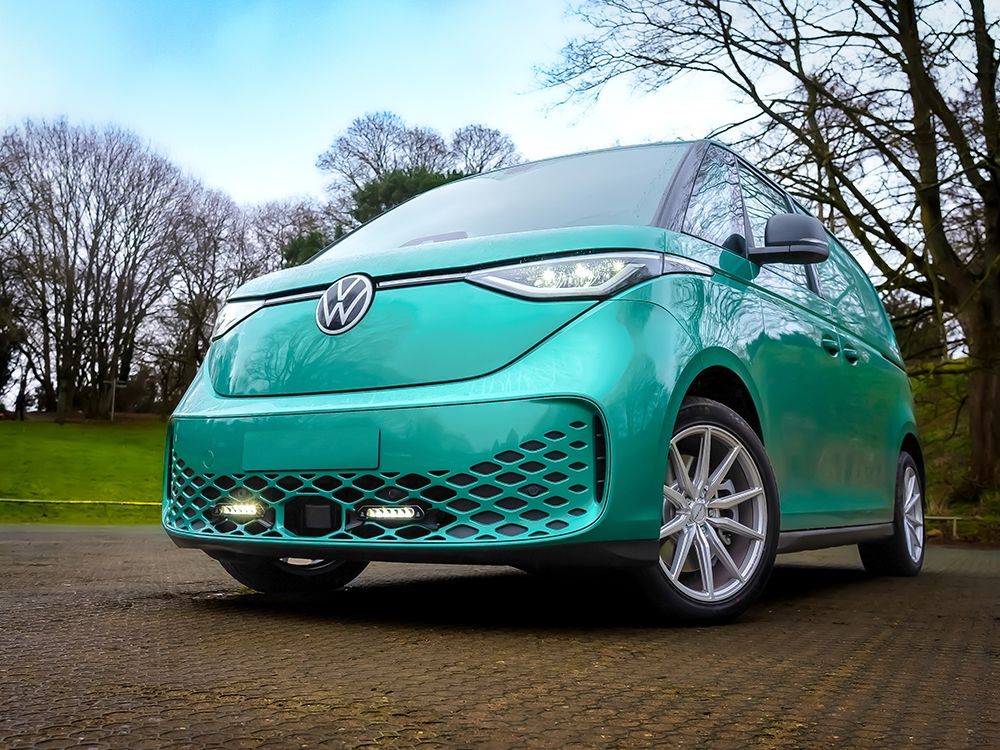

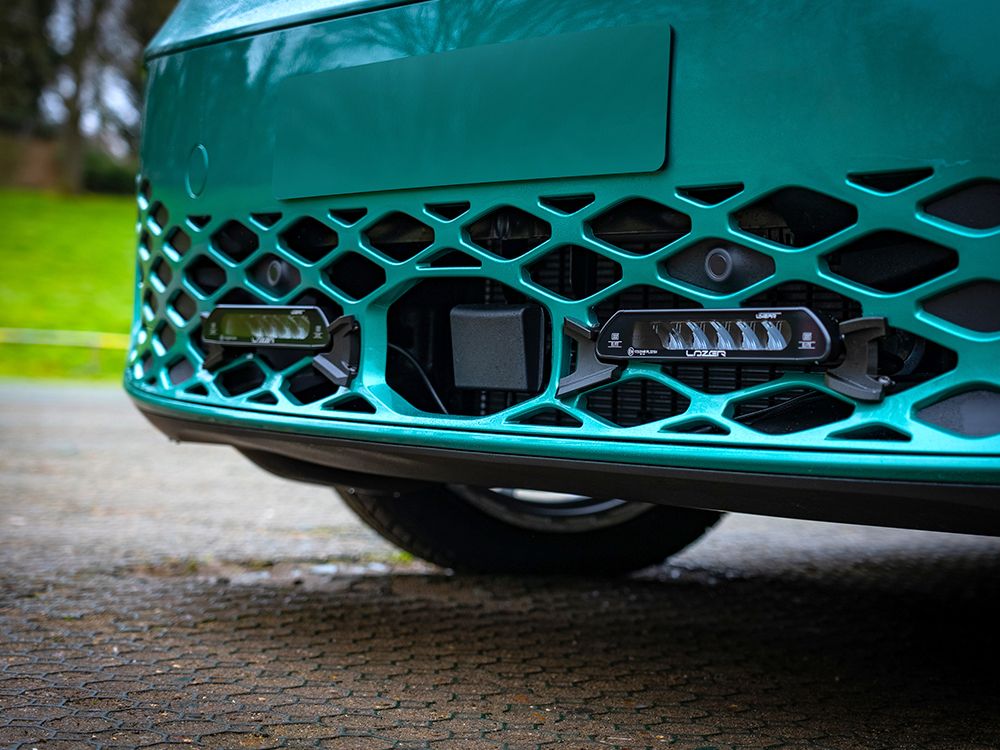

The VW ID Buzz (2023+) integration kit includes a pair of Linear-6 (Standard or Elite) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied anti-theft self-tapping screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

The VW ID Buzz Grille Integration Kits are optimised for use with Linear-6 High Performance LED Spotlights, the lights are fully ECE approved for connecting directly into the vehicle’s electrical system. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal.

Bespoke mounting bracket kit for Lazer LED Spotlight installation
Custom fit for VW ID Buzz (2023+)
Optimised for use with Linear-6 LED Spotlights

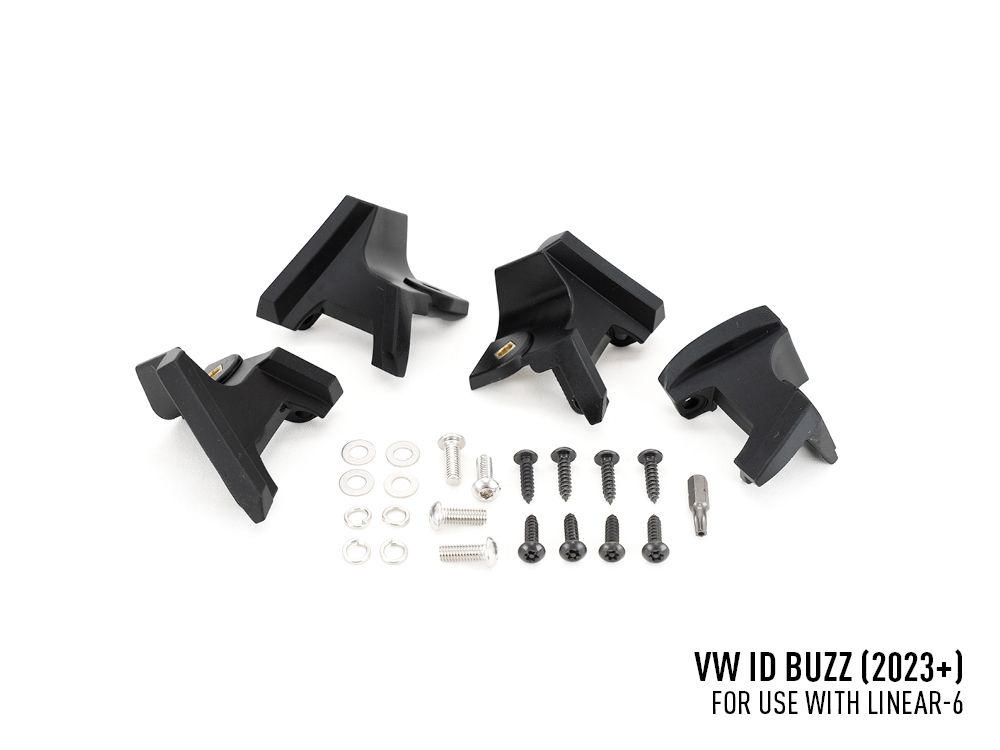

Kits include: 4x brackets, cutting guides, and fasteners
Made from high strength, UV-stable, composite material
5-year warranty
Made in Britain

Technical Information

	2x Linear-6 Elite	2x Linear-6
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hours	50,000 hours
Weight	800 gr	800 gr
HIGH BEAM FUNCTION
Total Luminous Flux	8100 Lm	4500 Lm
Total Driver ‘FOV’ Flux †	5767 Lm	3204 Lm
Colour Temperature	5000K	5000K
Number of High Output LEDs	2 x 12	2 x 6
Power Consumption	84 Watts	42 Watts
Current Draw (at 14.4V)	5.8 Amps	2.92 Amps
CERTIFICATION
High Beam	ECE R112	ECE R112
ECE Reference	2 x 37.5	2 x 27.5

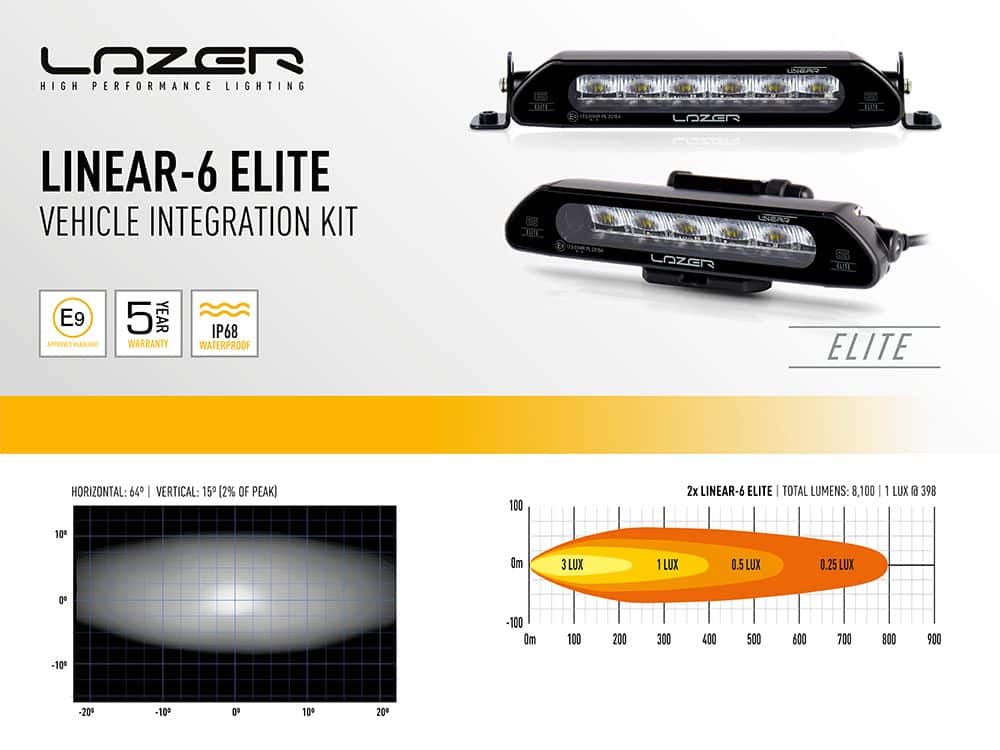

PHOTOMETRIC DATA
Horizontal Beam Angle	64°	56°
0.25 lx Line	796m	698m
0.5 lx Line	563m	494m
1 lx Line	398m	349m
3 lx Line	230m	202m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45^o left/right, and +/- 10^o up/down.

What’s included

1x Grille Mounting Kit (Includes cutting guides)
2x Linear-6 LED Lamps
1x Two-Lamp Wiring Kit
Installation Instructions

Additional information

Weight	2,60000 kg
