Grille kit for VW ID Buzz (2023+) – Linear 6 Std 4500 Lumens
Description
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

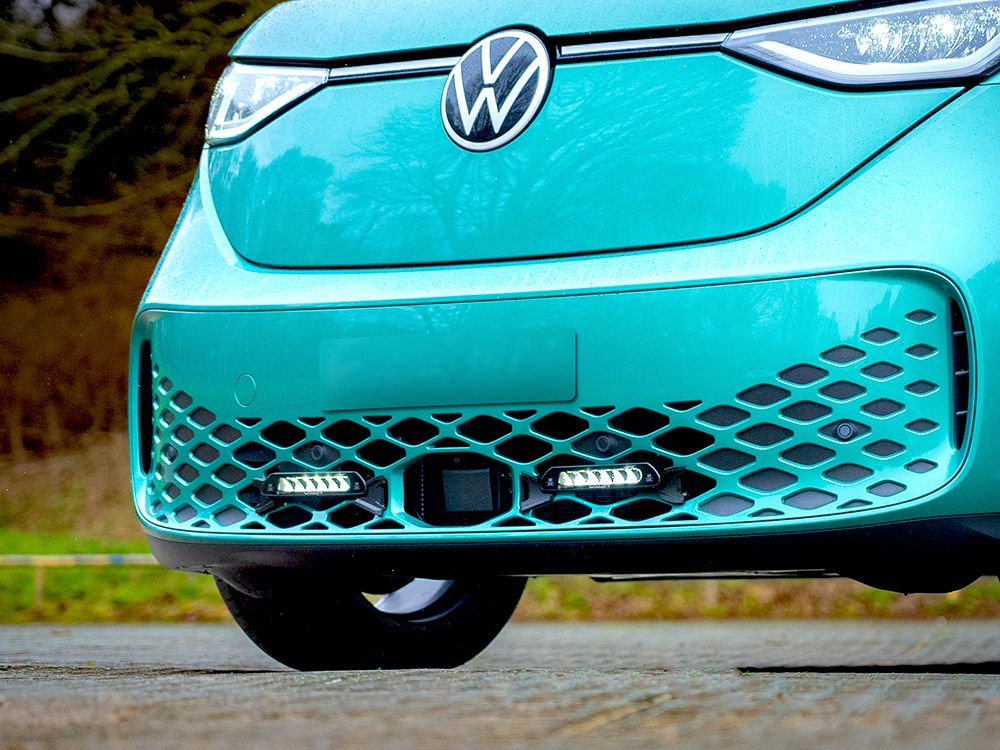

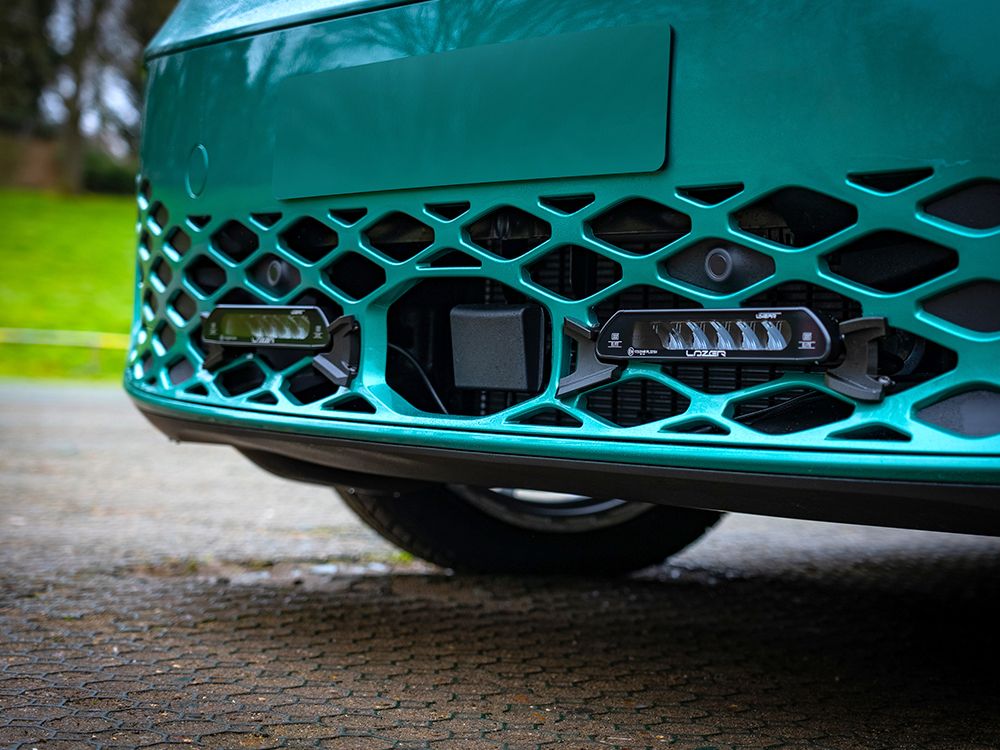

The VW ID Buzz (2023+) integration kit includes a pair of Linear-6 (Standard or Elite) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied anti-theft self-tapping screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The VW ID Buzz Grille Integration Kits are optimised for use with Linear-6 High Performance LED Spotlights, the lights are fully ECE approved for connecting directly into the vehicle’s electrical system. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal.
- Bespoke mounting bracket kit for Lazer LED Spotlight installation
- Custom fit for VW ID Buzz (2023+)
- Optimised for use with Linear-6 LED Spotlights

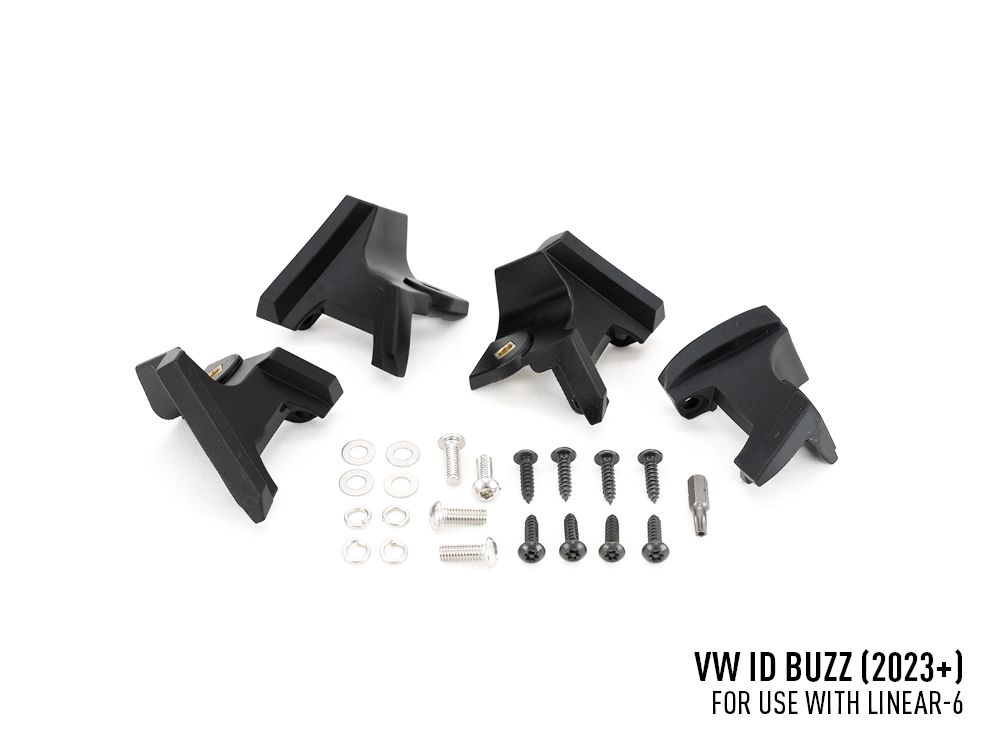

- Kits include: 4x brackets, cutting guides, and fasteners
- Made from high strength, UV-stable, composite material
- 5-year warranty
- Made in Britain
Technical Information
| 2x Linear-6 Elite | 2x Linear-6 | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 800 gr | 800 gr |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 8100 Lm | 4500 Lm |
| Total Driver ‘FOV’ Flux † | 5767 Lm | 3204 Lm |
| Colour Temperature | 5000K | 5000K |
| Number of High Output LEDs | 2 x 12 | 2 x 6 |
| Power Consumption | 84 Watts | 42 Watts |
| Current Draw (at 14.4V) | 5.8 Amps | 2.92 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| ECE Reference | 2 x 37.5 | 2 x 27.5 |

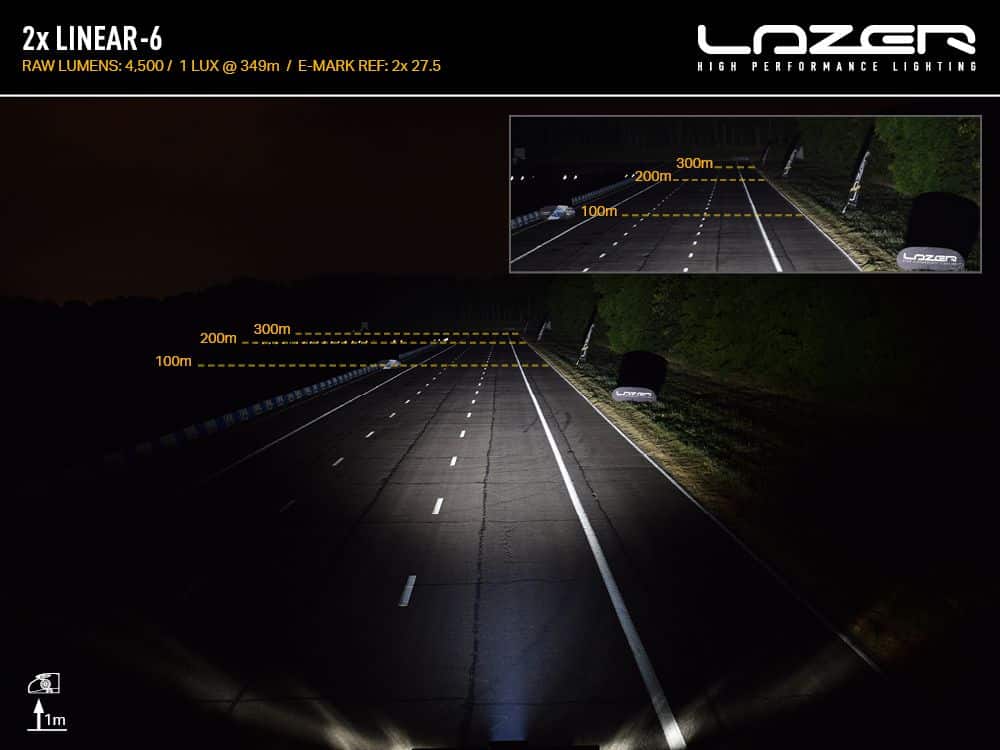

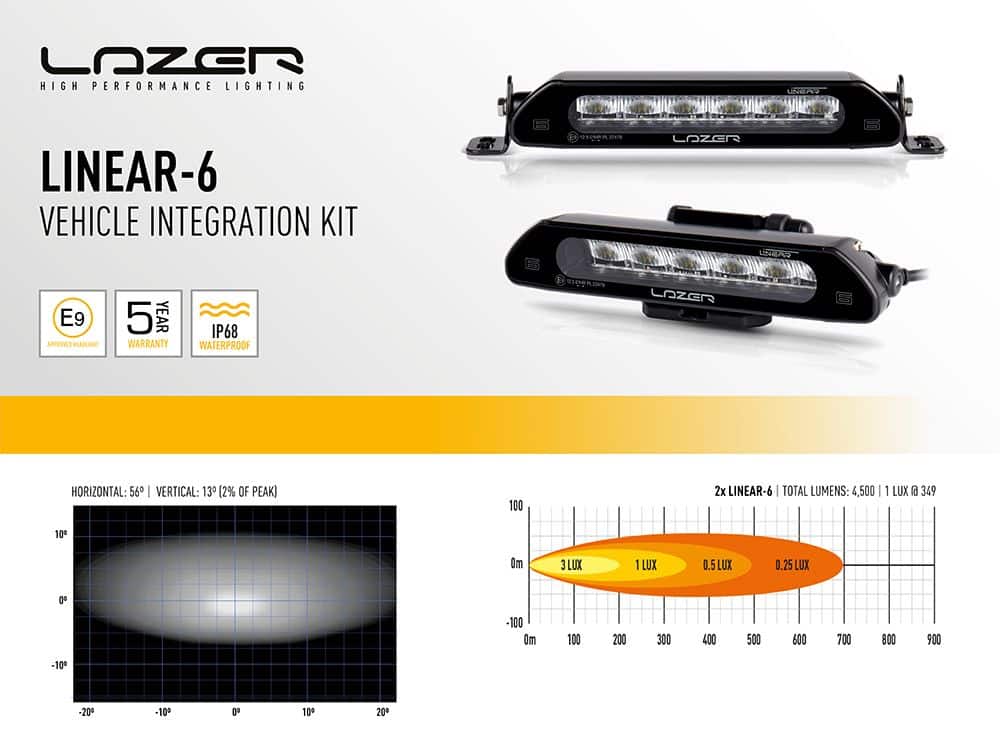

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 64° | 56° |
| 0.25 lx Line | 796m | 698m |
| 0.5 lx Line | 563m | 494m |
| 1 lx Line | 398m | 349m |
| 3 lx Line | 230m | 202m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45o left/right, and +/- 10o up/down.
What’s included
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Linear-6 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
Additional information
| Weight | 2,60000 kg |
|---|
