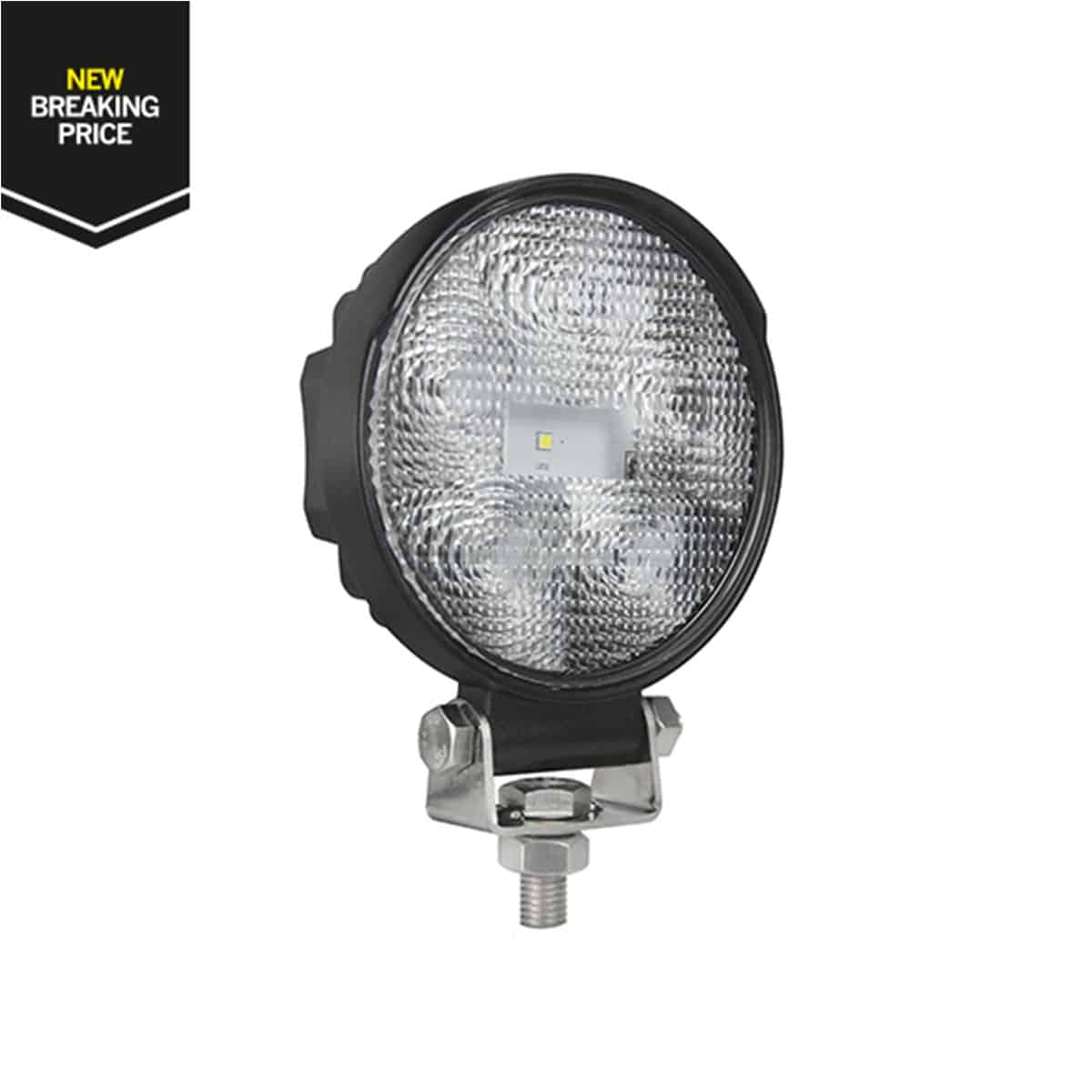

Our new unique series of working lamps requires less power. Our traditional 15w is replaced by 809516 that now demands a smaller amount of power, but provide more lumen. Instead of 15W it now consumes only 9W. The new manufacturing technique reduces the power consumption with near 50%
In this series of working lamps, we utilize Osram diodes, which is of a greater class of quality than the normal diodes from Epistar/Teho – LED etc. We always present you with the theoretical and the real (actual) lumen for our work lights. Due to the fact that we use first class diodes we can deliver working lights that surpasses today’s standards.
Our lamps are very slim and crave less space for mounting. The housing is smaller which make the lamp less exposed to wear and tear and provides an easier installation process for the customer. The lamps are fully radio interference free (EMC – approved). They are also R10, IP67 and IP69K approved.
| WEIGHT | 0,682 kg |
| TARIC CODE | 85122000 |
| TYPE OF LAMP | LED |
| TYPE OF LED | OSRAM |
| VOLTAGE (V DC) | 9-32V DC |
| CONSUMPTION (W) 12V | 9 |
| CONSUMPTION (W) 24V | 9 |
| THEORETICAL LUMEN | 950 |
| ACTUAL LUMEN | 600 |
| IP-CLASS | 67/69K |
| COLOUR HOUSING | Black |
| COLOUR LENS | Clear |

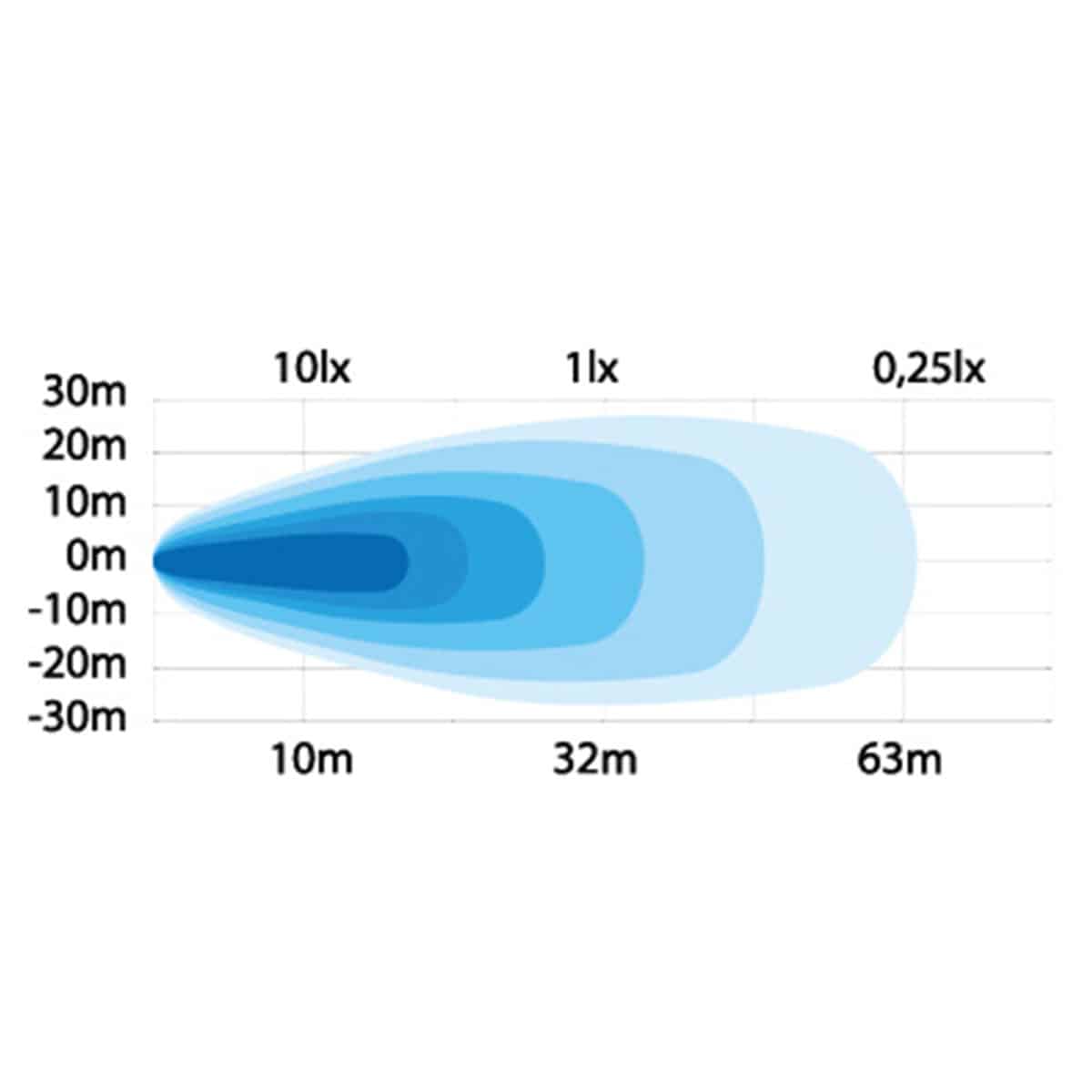

| BEAM PATTERN | Flood |
| CONNECTION | Cable |
| CABLE LENGTH (MM) | 520 |
| MATERIAL BRACKET | Stainless steel |
| MATERIAL HOUSING/CHASSI | Aluminium |
| MATERIAL LENS | Polycarbonate |
| DEPTH (MM) | 41.5 |
| DIAMETER (MM) | 107 |
| OPERATING TEMPERATURE | -30°C – +65°C |
| ADR-APPROVED | No |
| E-APPROVED | No |
| EMC | ECE R10 |
