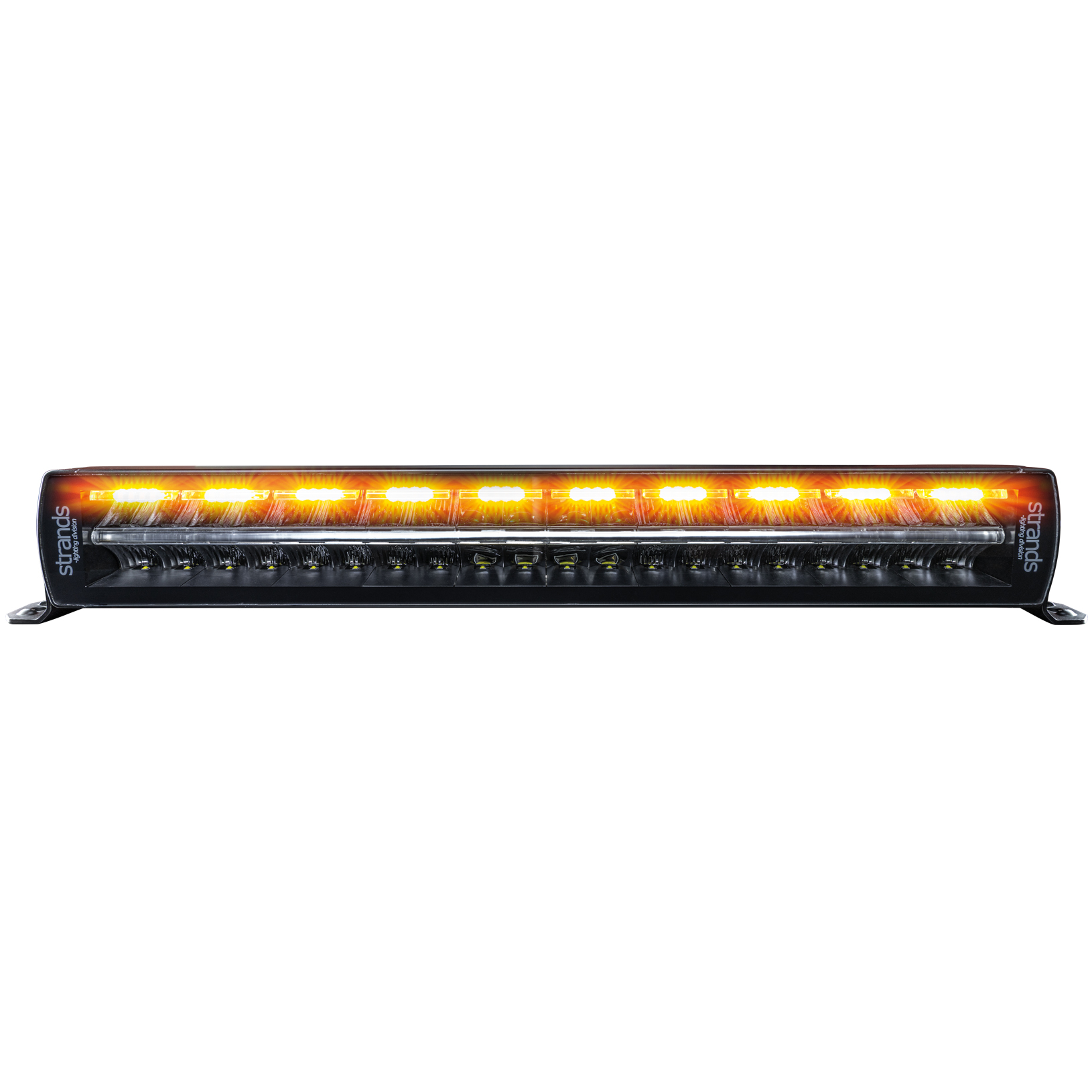

Reinventing innovation. Siberia Night Guard is developed for hard work challenges. You can now fit all your lighting needs into one single lamp. An extremely powerful warning light that also provides an unbeatable high beam. Embrace the simplicity and give yourself a night guard with the highest level of reliability. Multifunctional light providing safety in all weathers and in the darkest of darkness.
- WARNING LIGHT WITH DRIVING LIGHT FUNCTION
- E-APPROVED
- FIVE SIZES – DR 12″ & 22″, SR 20″, 32″ & 38″
- DUAL POSITION LIGHT
| WEIGHT | 3,1 kg |
| TYPE OF LAMP | LED |
| TYPE OF LED | OSRAM |
| PCS LED´S | 40 |
| VOLTAGE (V DC) | 9-35V DC |
| CONSUMPTION (W) 12V | 92.4 |
| CONSUMPTION (W) 24V | 92.4 |
| FUNCTIONS | Dual position light, High Beam, Warning light |
| THEORETICAL LUMEN | 16000 |
| ACTUAL LUMEN | 5911 |

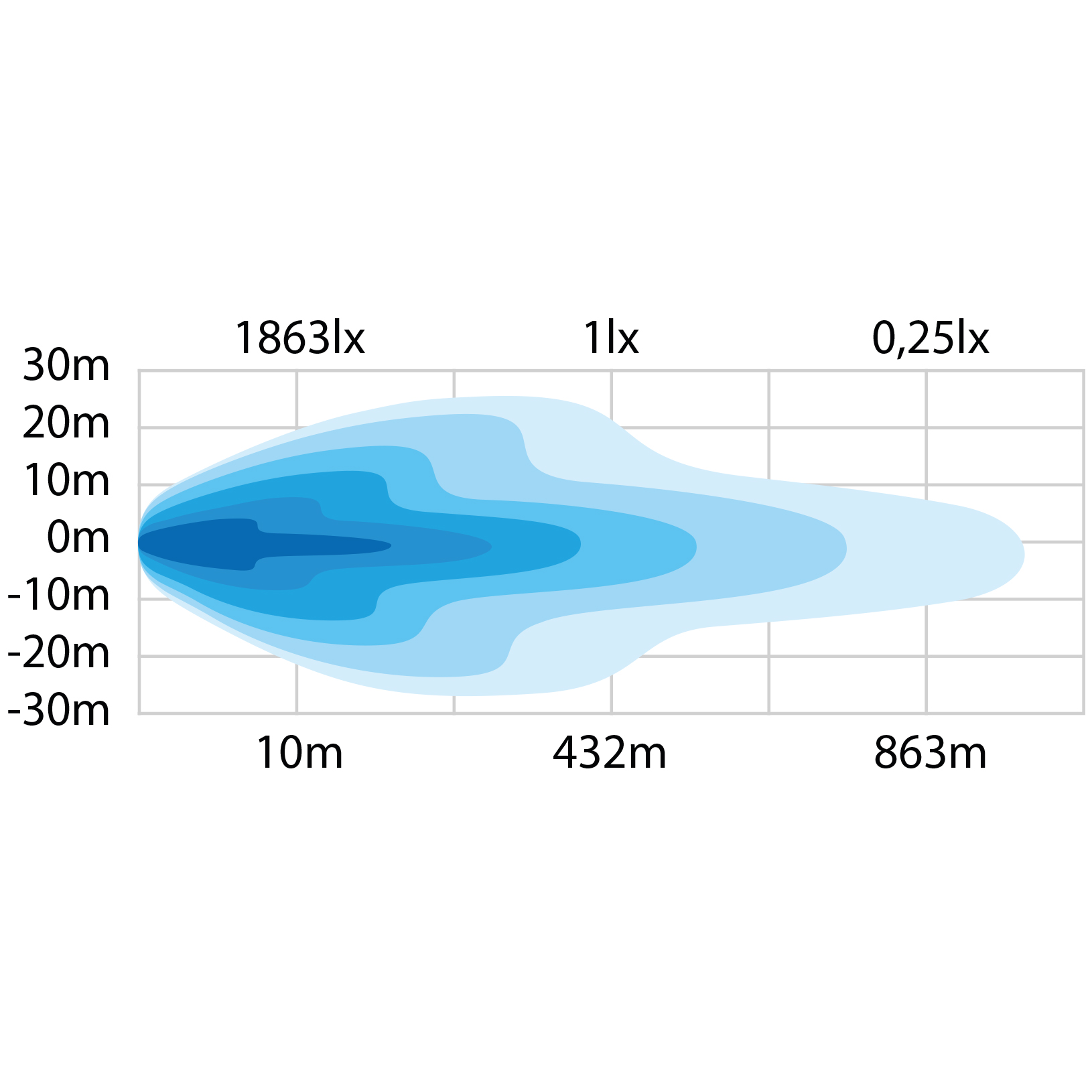

| 1 LUX AT METERS | 432 |
| KELVIN | 6000 |
| IP-CLASS | 67/69K |
| COLOUR HOUSING | Black |
| COLOUR LENS | Clear |
| COLOUR LED´S | Amber, White |
| BEAM PATTERN | Combo |
| POSITION LIGHT | Yes amber and white |
| CONNECTION | Cable |
| CABLE LENGTH (MM) | 2500 |

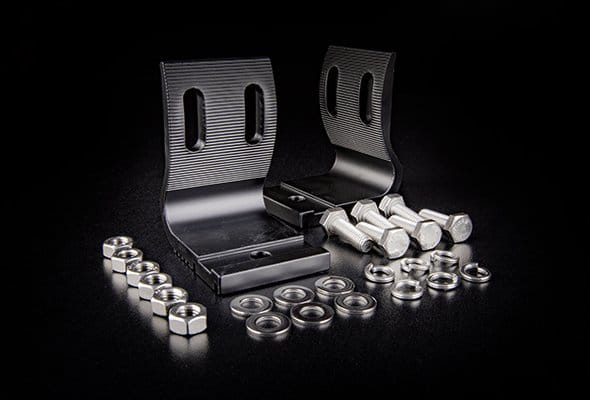

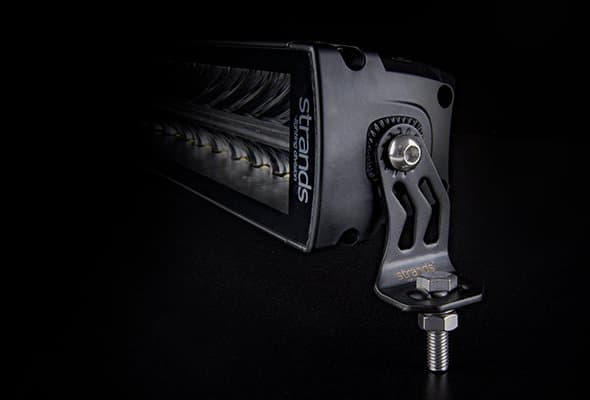

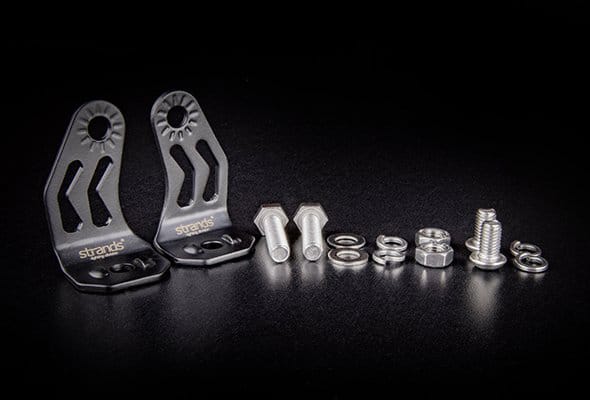

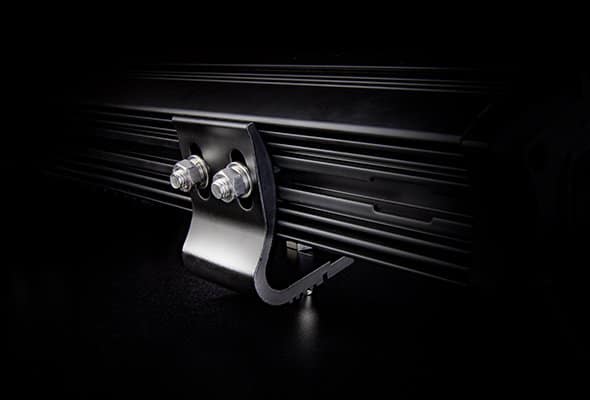

| MATERIAL BRACKET | Stainless steel |
| MATERIAL HOUSING/CHASSI | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (MM) | 562 |
| DEPTH (MM) | 71.6 |
| HEIGHT (MM) | 76 |
| HEIGHT INCLUDING BRACKET (MM) | 89 |
| OPERATING TEMPERATURE | -30°C – +65°C |
| ADR-APPROVED | No |
| E-APPROVED | Yes |
| ACCORDING TO REGULATION | ECE R7, ECE R65, ECE R112 |
| REFERENCE NUMBER | 45 |
| EMC | ECE R10 |
