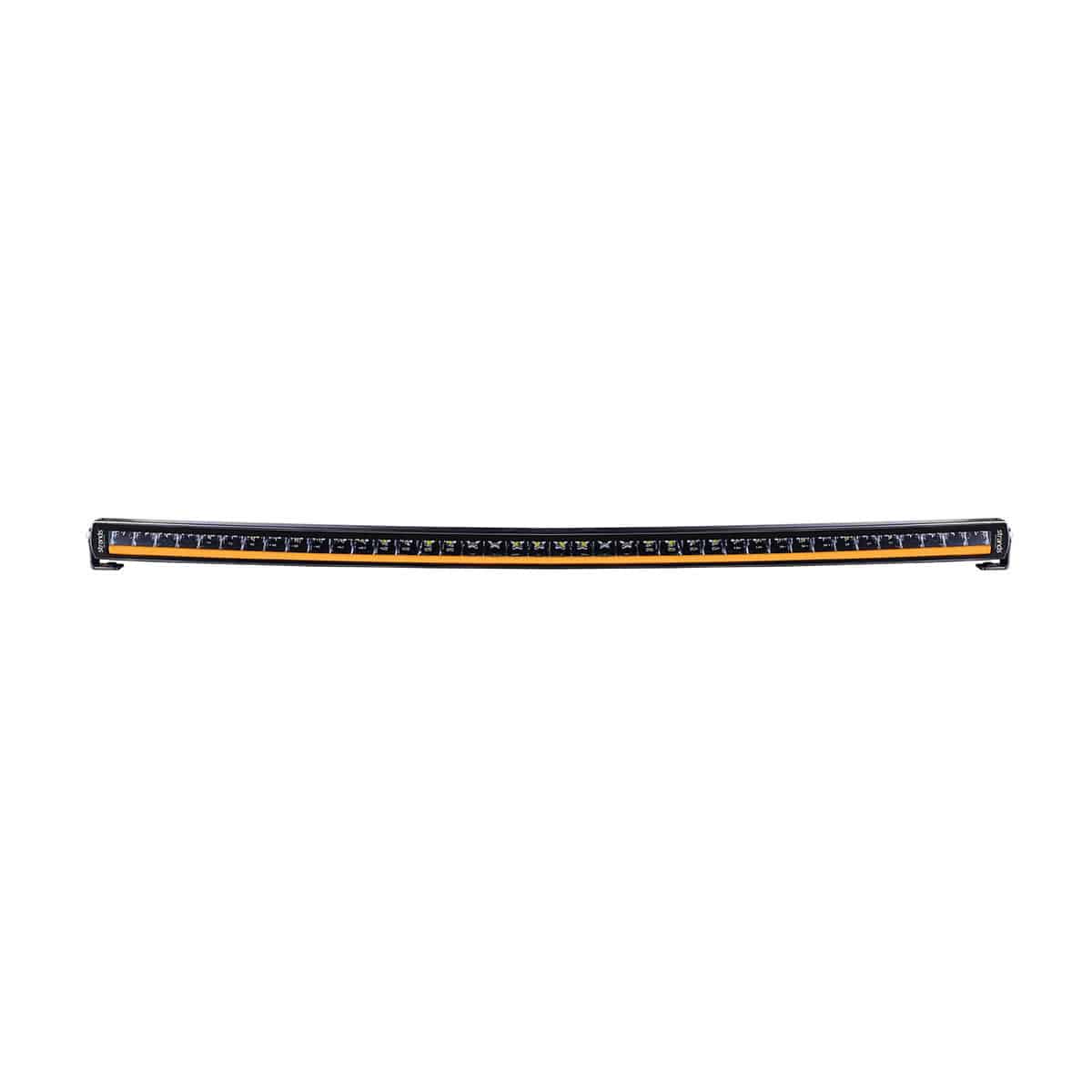

CURVED ELEGANCE, IMPRESSIVE LIGHT SPREAD.
Pioneering design and incredible light capacity. Let yourself be enchanted by Siberia Curved. A curved shape, appealing from all angles. An elegant look, even during the bright hours of the day. Exclusive material choices. Innovative features that provide freedom of choice. Make your own mark and choose between amber and white position light. And of course – Siberia Curved offers an optimized light beam that provides maximum width, without losing length.
- CURVED SHAPE
- SINGLE ROW
- OPTIMIZED LIGHT BEAM
CURVED DESIGN
Comes in 22 “, 32”, 42 “and 50”. Available in both single-row and double-row versions. The 22” version is E-approved. The exclusive costume gives an unbeatable overall impression. Slim, dark and sophisticated. The lens extends from edge to edge with an extremely thin frame. Every little element is created to bring out the highest possible performance and interact in perfect harmony.
The rounded design fits perfectly on vehicles with a curved front. Siberia enhances the impression of your vehicle – and fits perfect with it. Like it has always been a part of the original look. The shape also contributes to a wider light distribution and efficiency on completely new levels, on all roads and in all conditions.
OPTIMIZED LIGHT BEAM
Siberia Curved comes with the established Siberia light beam – now optimized to perform maximally in a curved shape. An extended light distribution that gives you a lot of light to the sides. In addition, it provides a lot of light ahead, thanks to an increased number of spot reflectors. A phenomenal combination. It increases your safety and makes your driving experience extraordinary. The combined light beam makes the Siberia Curved suitable for varied driving, perfect for all kinds of roads and vehicles.
DUO POSITION LIGHT
The well-known Siberia position light creates a powerful character and runs in a line along the bottom of the LED bar. Express your style and personality by choosing color between amber and white.
| WEIGHT | 3,75 kg |
| TYPE OF LAMP | LED |
| TYPE OF LED | OSRAM |
| PCS LED´S | 40 |
| VOLTAGE (V DC) | 10-40V DC |
| CONSUMPTION (W) 12V | High beam: 199.2 White position light: 10 Amber position light: 25 |
| CONSUMPTION (W) 24V | High beam: 193.1 White position light: 10 Amber position light: 25 |
| THEORETICAL LUMEN | 16000 |
| ACTUAL LUMEN | 9472 |
| 1 LUX AT METERS | 532 |
| KELVIN | 6000 |
| IP-CLASS | 67/69K |
| COLOUR HOUSING | Black |
| COLOUR LENS | Clear |
| COLOUR LED´S | Amber, White |
| BEAM PATTERN | Combo |
| POSITION LIGHT | Yes |
| CONNECTION | Cable |
| CABLE LENGTH (MM) | 2500 |
| MATERIAL BRACKET | Stainless steel |
| MATERIAL HOUSING/CHASSI | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (MM) | 1070.35 |
| DEPTH (MM) | 55.5 |
| HEIGHT (MM) | 45 |
| HEIGHT INCLUDING BRACKET (MM) | 65 |
| OPERATING TEMPERATURE | -30°C – +65°C |
| ADR-APPROVED | No |
| E-APPROVED | No |
| EMC | ECE R10 |
