Welcome to the future. This is Siberia. A double row LED bar, made for your truck. It is more than innovative. Siberia is pushing the boundaries and redefines what an LED bar is. We talk cutting-edge design in combination with revolutionary features. All models are E-approved.
SIBERIA
THE LED BAR THAT REDEFINES EVERYTHING
| WEIGHT | 3,1 kg |
| TYPE OF LAMP | LED |
| TYPE OF LED | OSRAM |
| PCS LED´S | 40 |
| VOLTAGE (V DC) | 10-40V DC |
| CONSUMPTION (W) 12V | 91 |
| CONSUMPTION (W) 24V | 91 |
| CONSUMPTION SPECIFIC FUNCTION (W) 12V | White position light: 5.5 Amber position light: 14.5 |
| CONSUMPTION SPECIFIC FUNCTION (W) 24V | White position light: 5.5 Amber position light: 14.5 |
| THEORETICAL LUMEN | 16000 |
| ACTUAL LUMEN | 6316 |

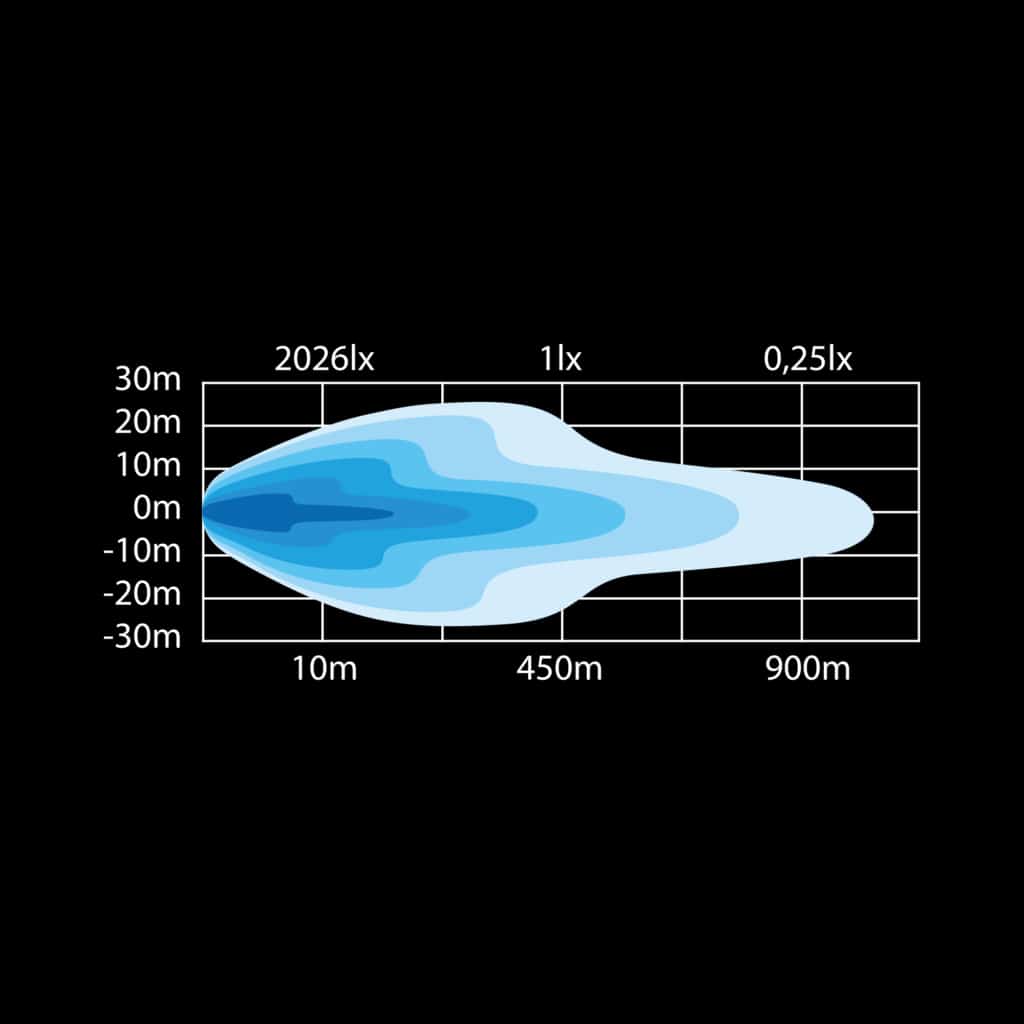

| 1 LUX AT METERS | 450 |
| KELVIN | 6000 |
| IP-CLASS | 67/69K |
| COLOUR HOUSING | Black |
| COLOUR LENS | Clear |
| COLOUR LED´S | White |
| BEAM PATTERN | Combo |
| POSITION LIGHT | Yes amber and white |
| CONNECTION | DT-4 |
| CABLE LENGTH (MM) | 500 |

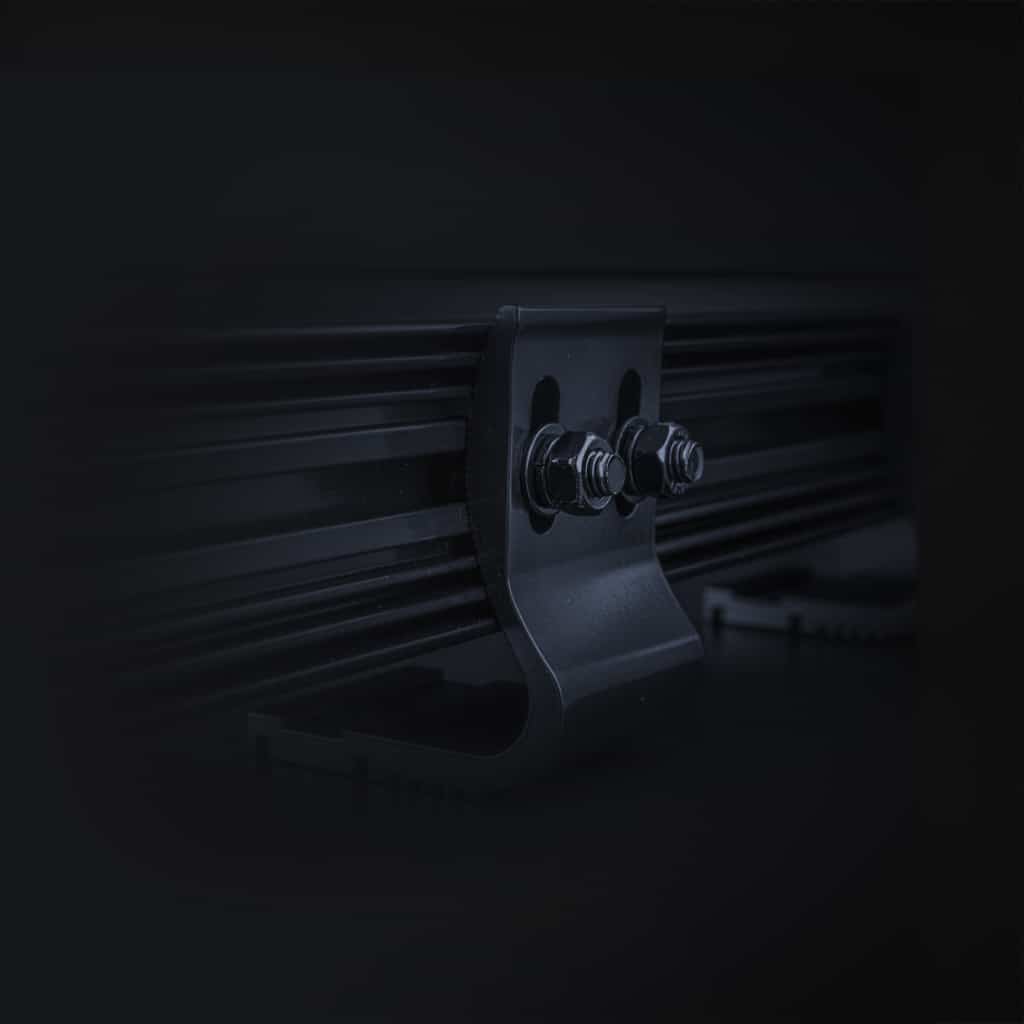

| MATERIAL BRACKET | Stainless steel |
| MATERIAL HOUSING/CHASSI | Aluminium |
| MATERIAL LENS | Polycarbonate |

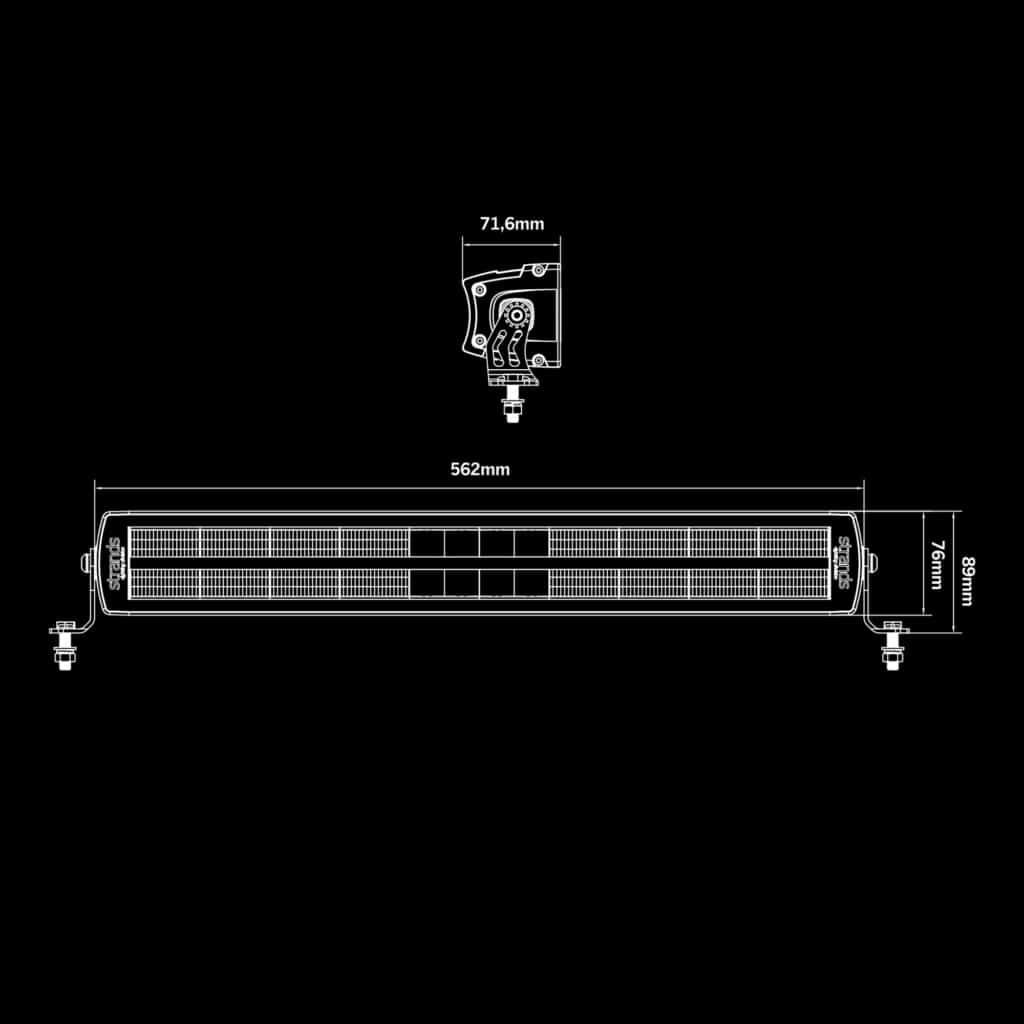

| LENGTH (MM) | 562 |
| DEPTH (MM) | 71.6 |
| HEIGHT (MM) | 76 |
| HEIGHT INCLUDING BRACKET (MM) | 89 |
| OPERATING TEMPERATURE | -30°C – +65°C |
| ADR-APPROVED | No |
| E-APPROVED | Yes |
| ACCORDING TO REGULATION | ECE R112 |
| REFERENCE NUMBER | 45 |
| EMC | ECE R10 |
