Μπάρα Led Arcum Κυρτή 30″ (810mm) 12920 Lumens Strands
Description
Tired eyes in traffic is history. Arcum LED bar is designed to provide the optimal light experience. High performance driving lights does not necessarily guarantee a safer journey. Light with a strong near-light or long spot beam can cause eye strain, which can lead to an unpleasant driving experience. Arcum is developed with this in mind. It is the result of many years of experience, a lot of tests and a close collaboration with professional drivers. The optimized light beam makes it suitable for both curved roads and straight sections.
Available in three lengths – 20”, 30” and 40”. All lengths are E-approved according to ECE R112, with reference numbers between 45 and 50. The brackets are placed both on the back and the sides, which makes it possible to mount in several ways.

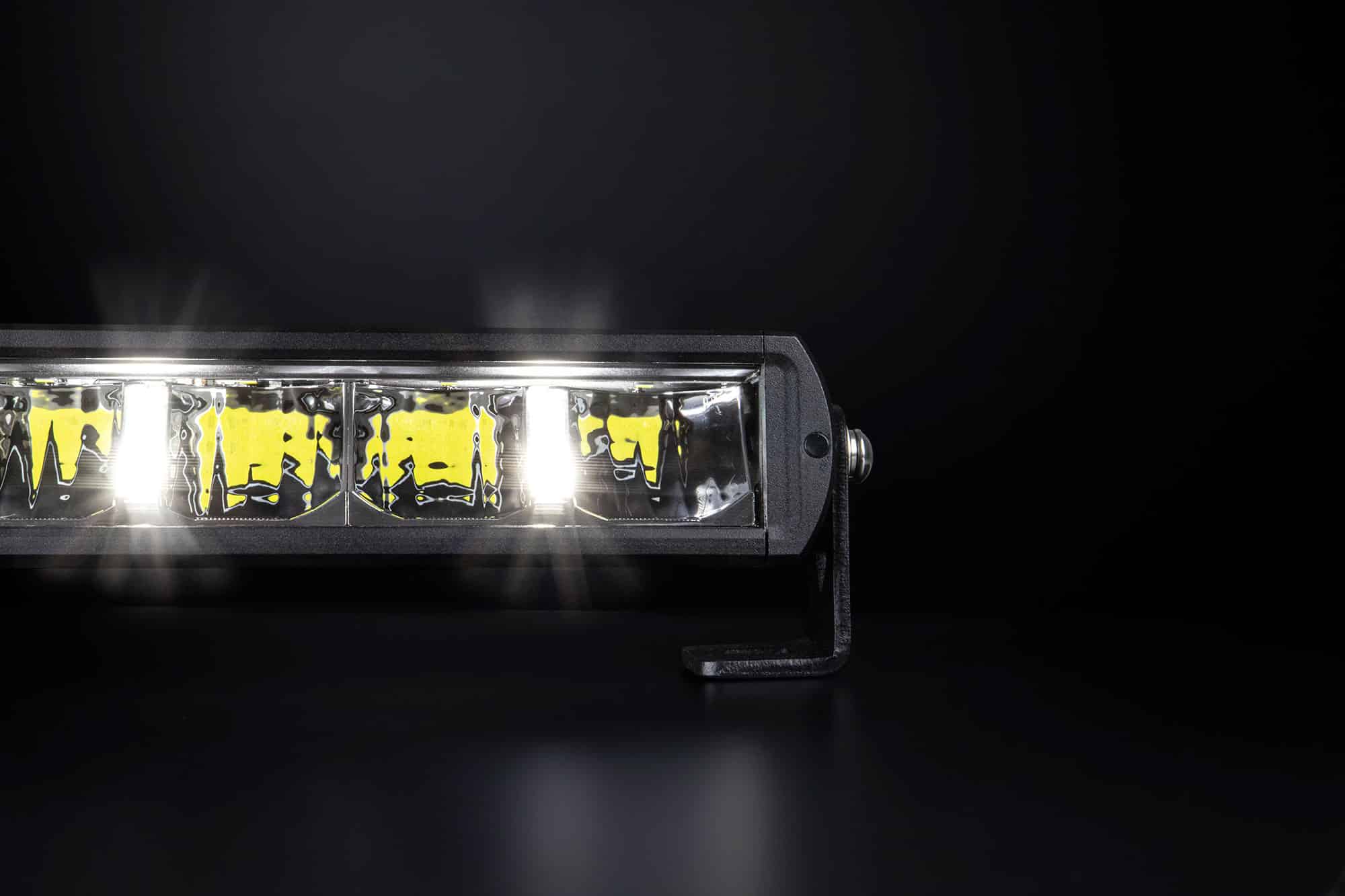

Comes with a characteristic position light, where the lights are placed vertically one after the other, which gives an attractive effect. Has an arched, curved shape that fits well together with today’s aerodynamic vehicles.
| WEIGHT | 3,27 kg |
| TYPE OF LAMP | LED |
| TYPE OF LED | ETI |
| PCS LED´S | 16 |
| VOLTAGE (V DC) | 9-36V DC |
| CONSUMPTION (W) 12V | 123 |
| CONSUMPTION (W) 24V | 120 |
| THEORETICAL LUMEN | 15200 |
| ACTUAL LUMEN | 12920 |

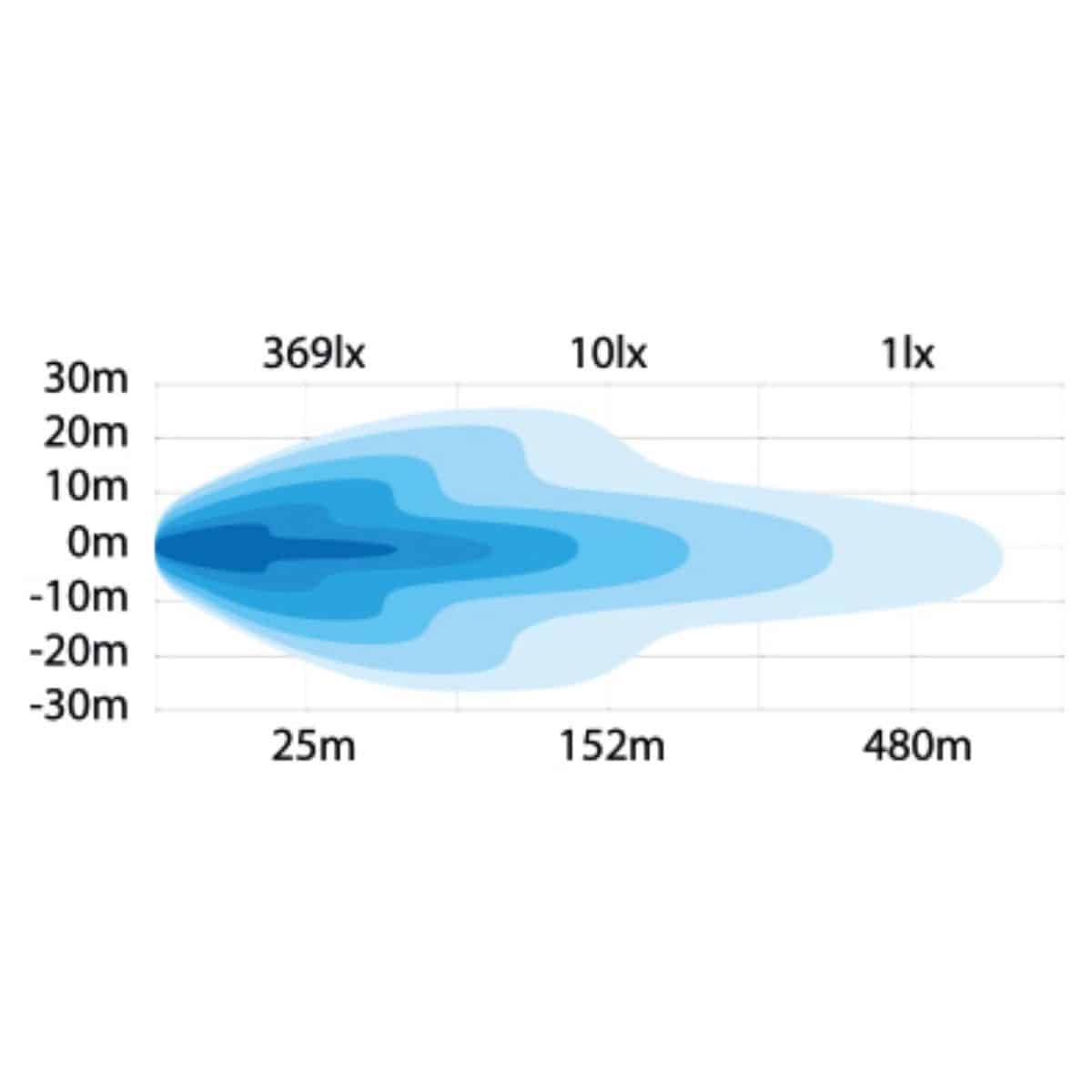

| 1 LUX AT METERS | 480 |
| KELVIN | 6500 |
| IP-CLASS | 68 |
| COLOUR HOUSING | Black |
| COLOUR LENS | Clear |
| COLOUR LED´S | White |
| BEAM PATTERN | Combo |
| POSITION LIGHT | Yes |
| CONNECTION | ATP |
| CABLE LENGTH (MM) | 500 |
| MATERIAL BRACKET | Stainless steel |
| MATERIAL HOUSING/CHASSI | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (MM) | 810 |
| DEPTH (MM) | 73 |
| HEIGHT (MM) | 56 |
| HEIGHT INCLUDING BRACKET (MM) | 72.5 |
| OPERATING TEMPERATURE | -40 – +60°C |
| ADR-APPROVED | No |
| E-APPROVED | Yes |
| ACCORDING TO REGULATION | ECE R7, ECE R112 |
| REFERENCE NUMBER | 45 |
| EMC | ECE R10 |
Additional information
| Weight | 3,27000 kg |
|---|
