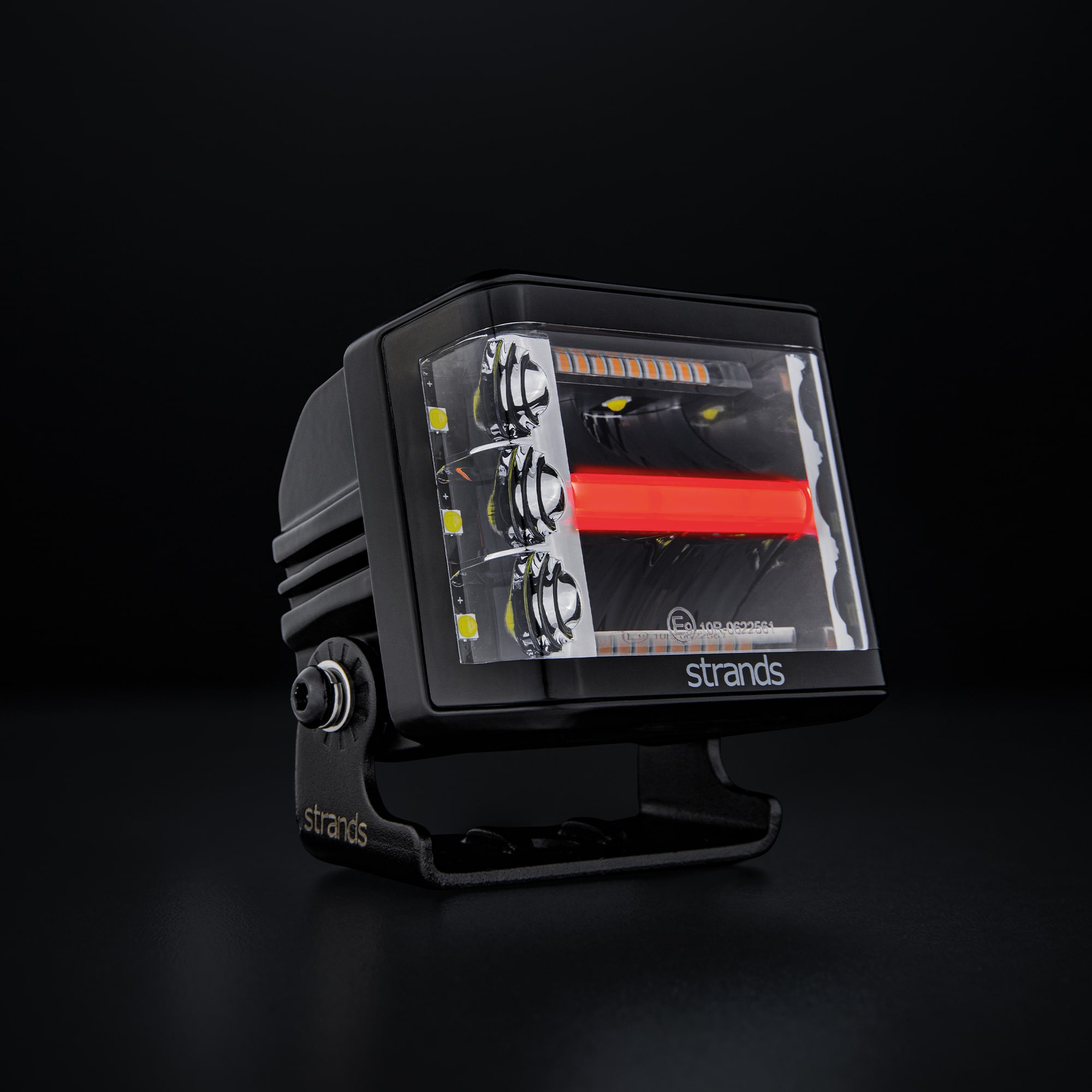

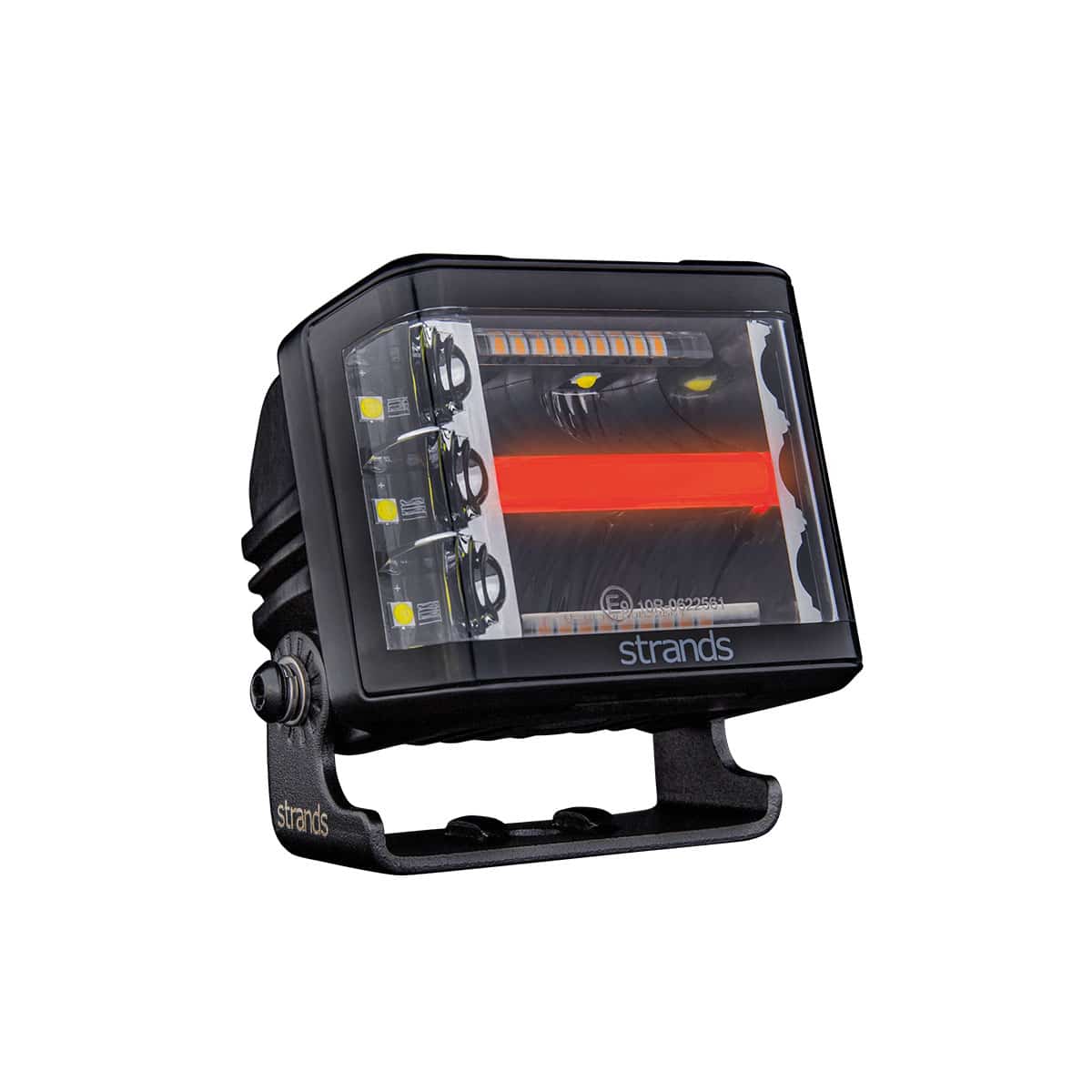

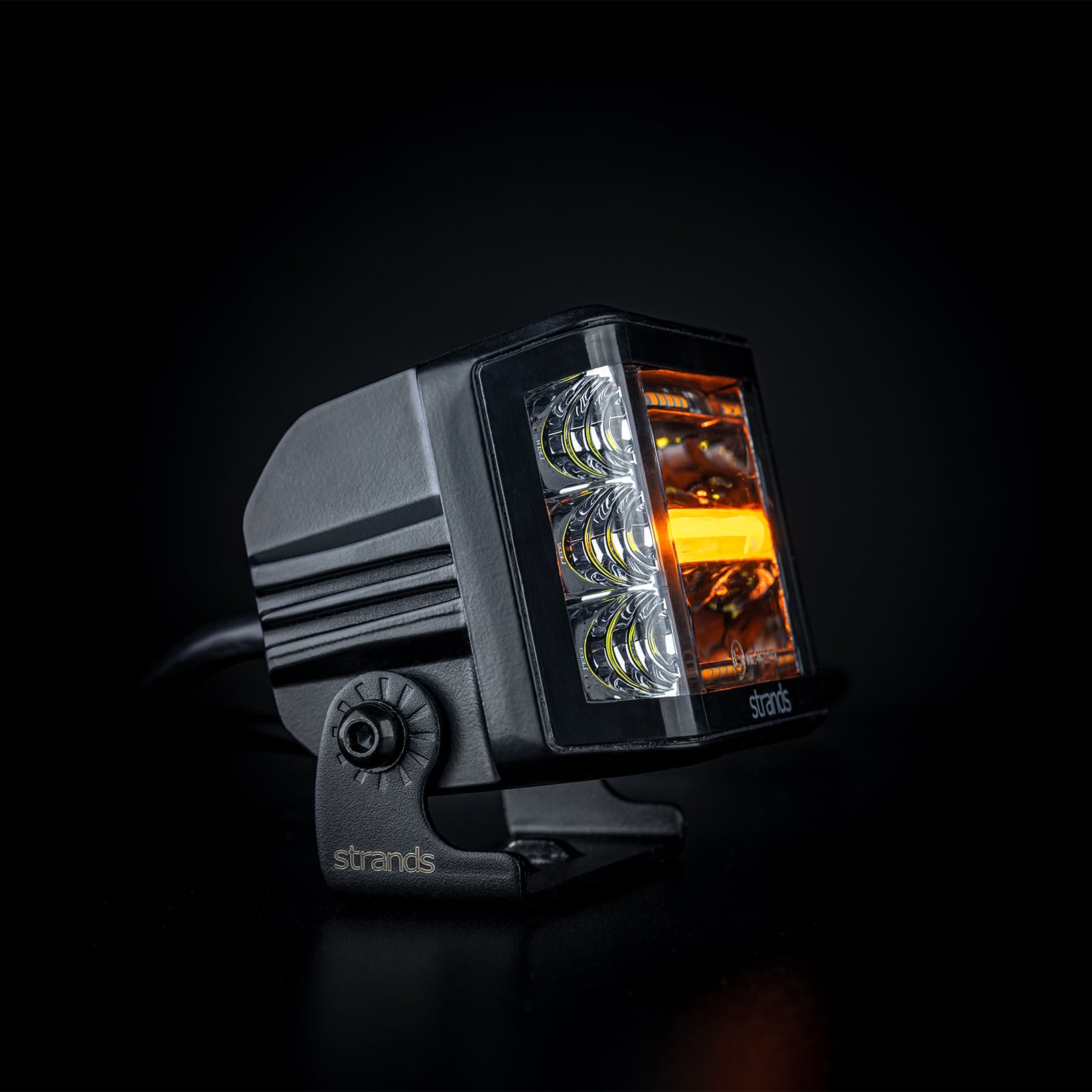

Built to revolutionize how accessory lighting works and looks. A bold new side shooter work light in a category of its own. With Siberia Red Fox you get it all. The ultra-wide and long-distance coverage light beam, the powerful warning light and the Siberia position light. This is the Red Fox that easily lives up to its name. Made to turn heads with a breathtaking look. Made to be brave and powerful in a compact package.
- 3500 ACTUAL LUMENS
- RED AND AMBER POSITION LIGHT
- SIDE SHOOTER WORK LIGHT AND WARNING LIGHT
- 160° BEAM ANGLE

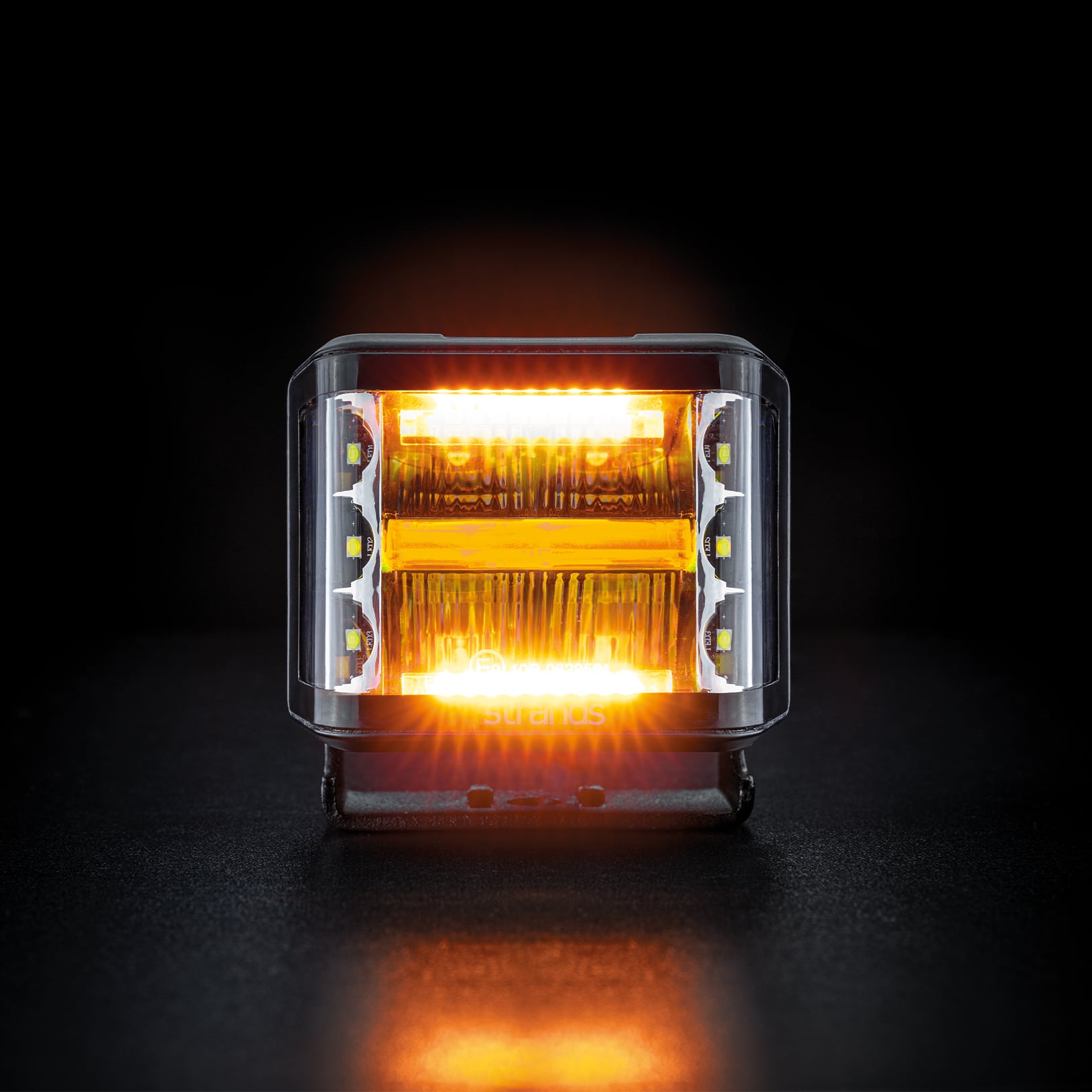

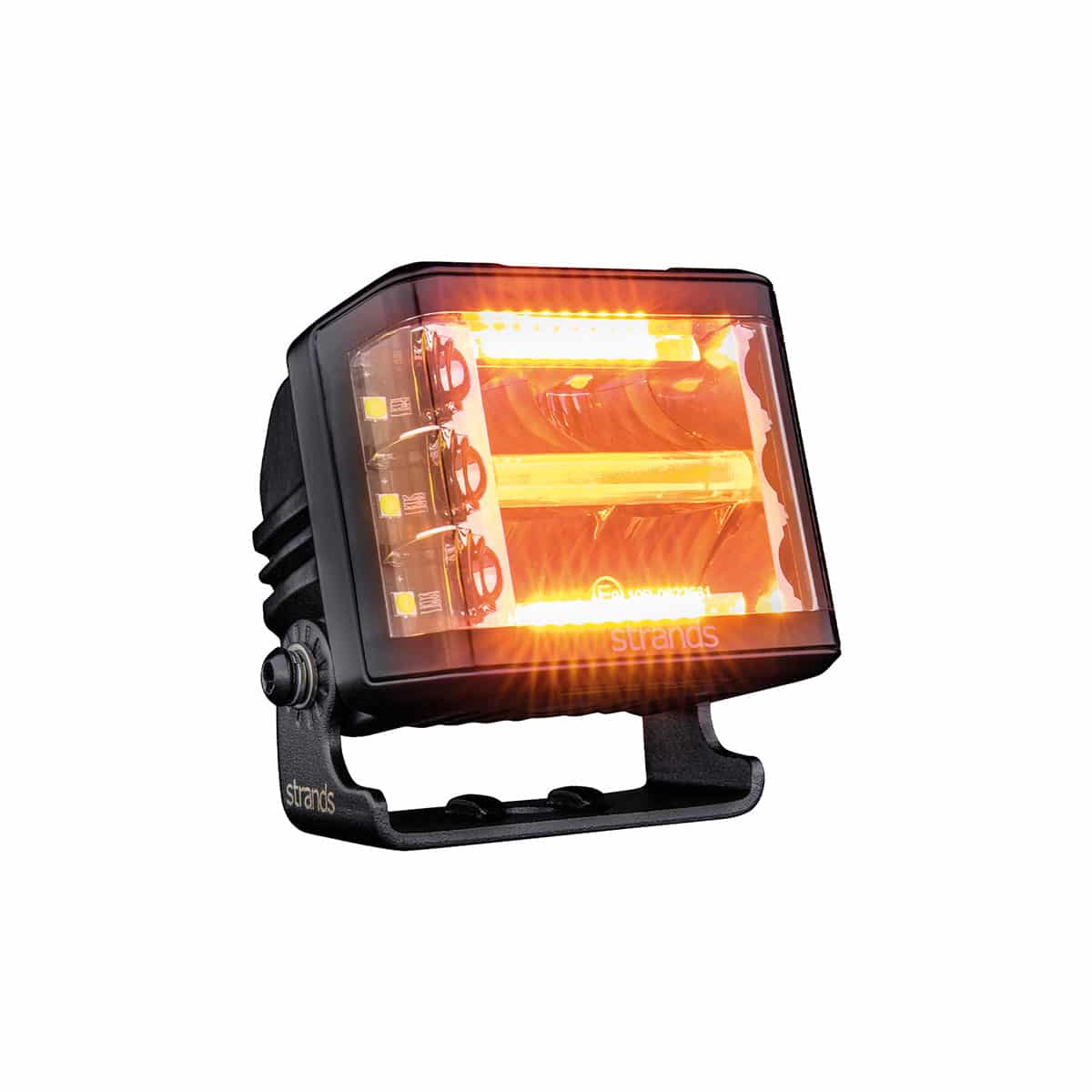

The massive amount of lighting knowledge that’s packed into Red Fox leaves no one disappointed. This is the next generation of multifunctional side shooters. The ultra-wide, long-distance beam and the extremely effective warning light – packed into one compact lamp. The strobe LED´s are placed along the top and bottom of the lamp to provide maximum performance. The all-in-one solution simplifies installation, eliminates the need to mount several different lamps, while helping your vehicle to look smoother from all angles.

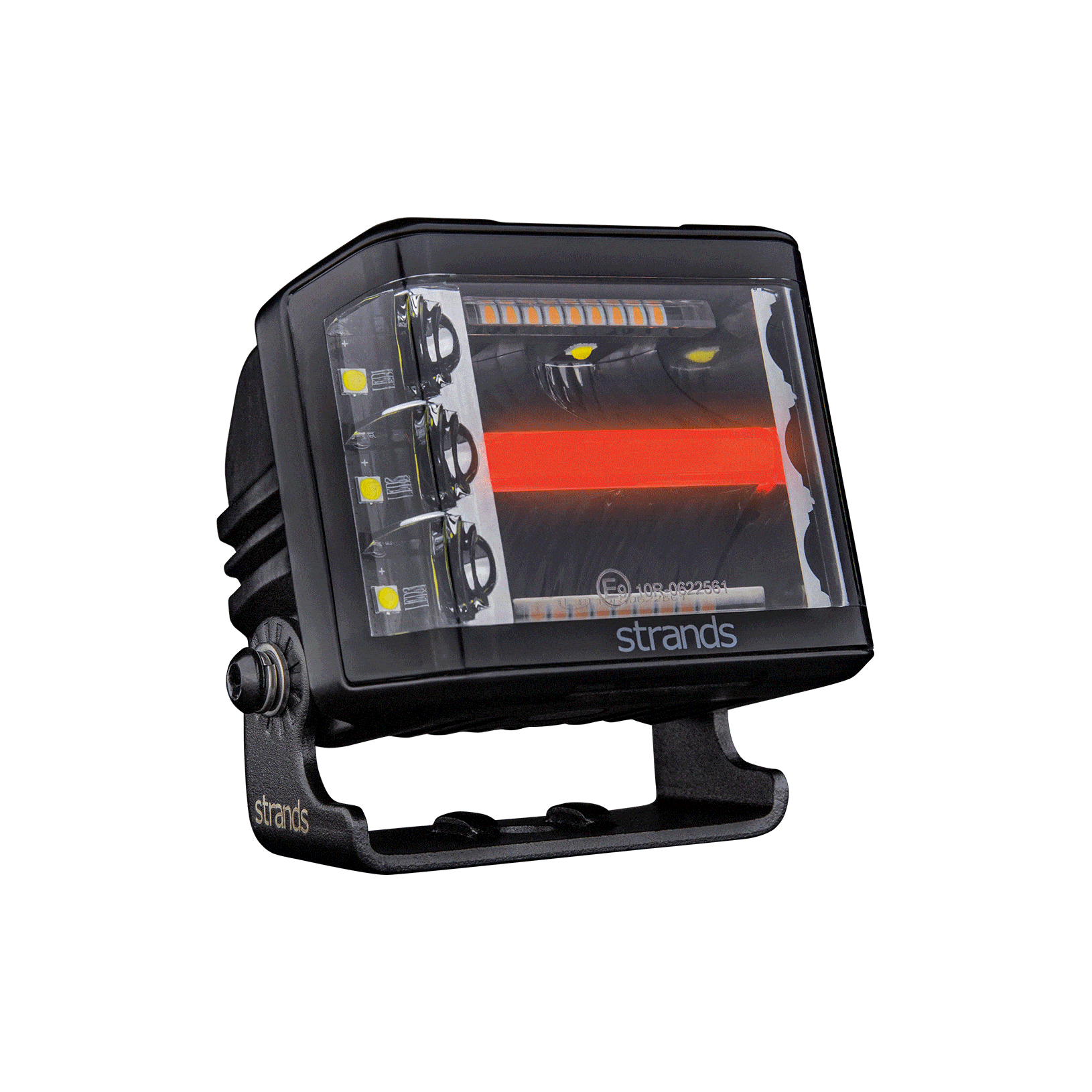

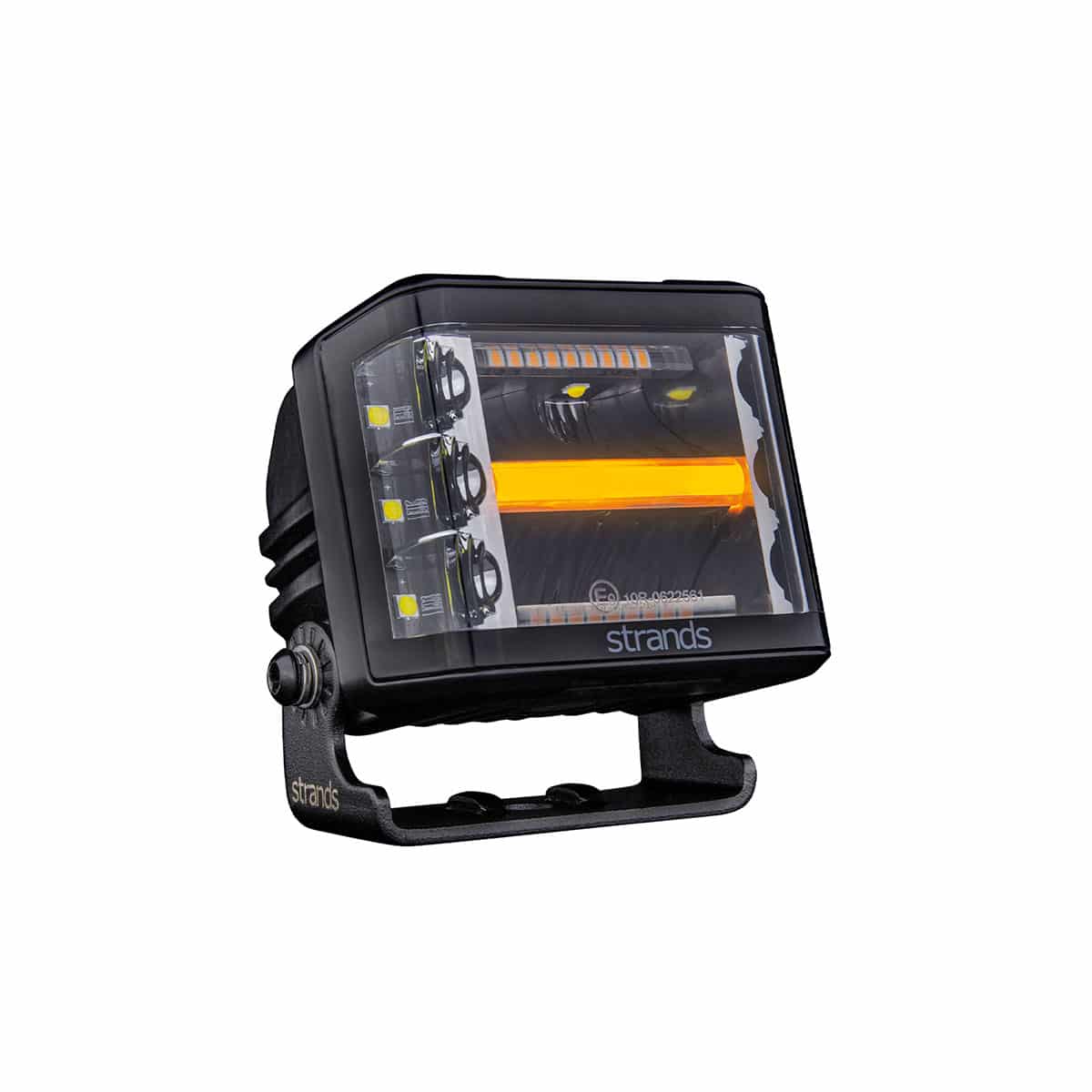

Personalize the look and choose which position light color you prefer. Go for the warm and intense amber color, reminding you of the most beautiful of sunsets – or be the fire and dare to choose the red color.
Perfectly sized with endless of mounting possibilities. Mount it alone or in pairs. Off road and on road. Motorcycles, on the stairs of a truck, dirt bikes, ATV, UTV. Ideal on any vehicle in need of an ultra-wide, long-distance coverage light beam and a warning light. Combine it with other lamps from the Siberia series for the perfect overall look.

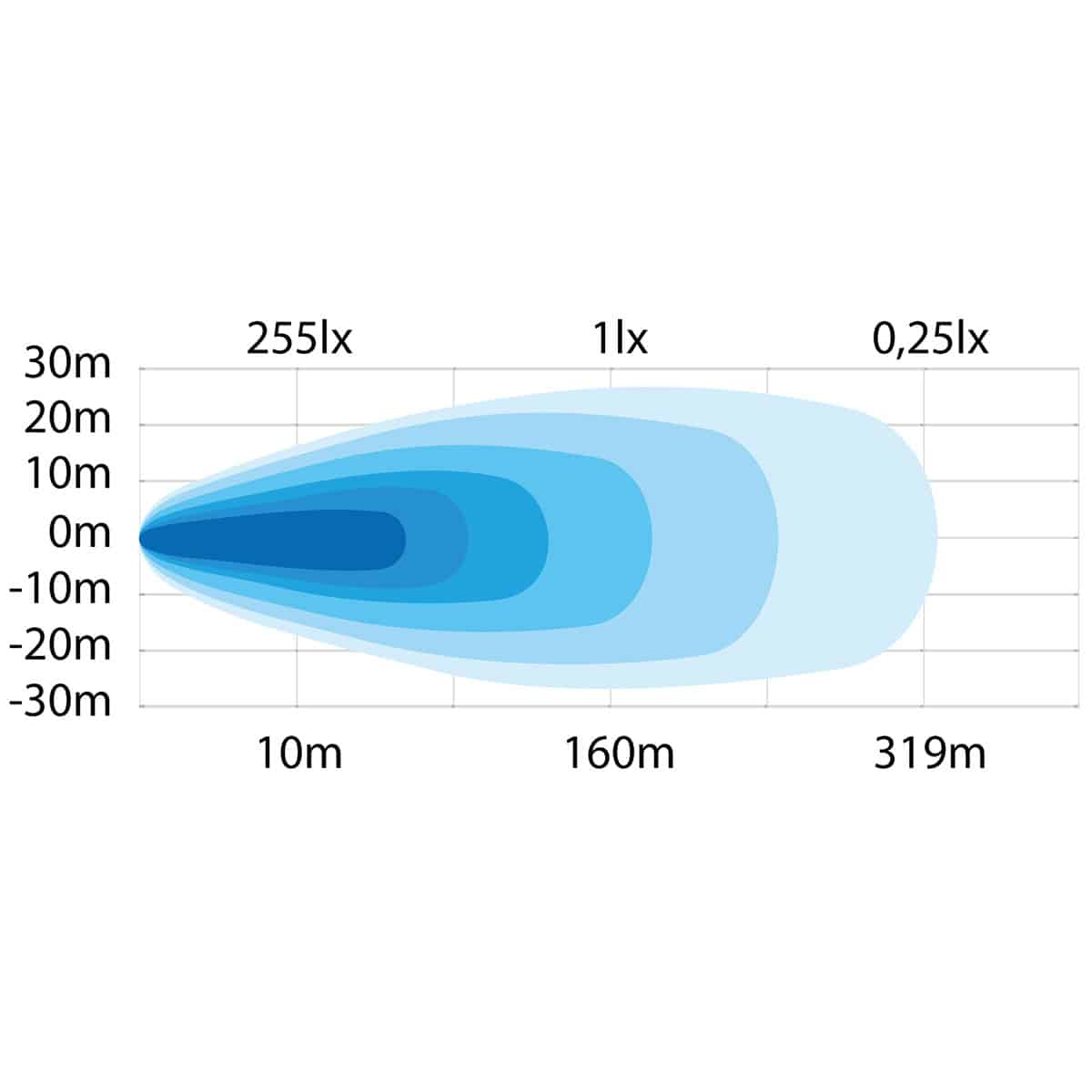

With Red Fox you can be sure no unexpected dangers will sneak up on you. The ultra-wide, long-distance beam with forward and side facing LEDs, produces a light pattern of 160° beam angle. Red Fox simply keeps an eye on as much as possible of your surroundings to increase your visibility and safety.
| TYPE OF LAMP | LED |
| TYPE OF LED | OSRAM |
| PCS LED´S | 32 |
| VOLTAGE (V DC) | 9-32V DC |
| CONSUMPTION SPECIFIC FUNCTION (W) 12V | Work light: 41W Warning light: 22.5W Amber position light: 1.5W Red position light: 1.5W |
| CONSUMPTION SPECIFIC FUNCTION (W) 24V | Work light: 40.9W Warning light: 22.5W Amber position light: 1.6W Red position light: 1.6W |
| PATTERNS | 1 |
| FUNCTIONS | Position light, Warning light, Work light |
| THEORETICAL LUMEN | 8400 |
| ACTUAL LUMEN | 3583 |
| 1 LUX AT METERS | 160 |
| KELVIN | 6000 |
| IP-CLASS | 67/69K |
| COLOUR HOUSING | Black |
| COLOUR LENS | Clear |
| COLOUR LED´S | Amber, Red, White |
| BEAM PATTERN | Flood |
| POSITION LIGHT | Amber, Red |
| CONNECTION | DT-6 |
| CABLE LENGTH (MM) | 500 |
| MATERIAL BRACKET | Stainless steel |
| MATERIAL HOUSING/CHASSI | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (MM) | 92.93 |
| DEPTH (MM) | 74.57 |
| HEIGHT (MM) | 74.1 |
| HEIGHT INCLUDING BRACKET (MM) | 87.56 |
| OPERATING TEMPERATURE | -30°C – +65°C |
| ADR-APPROVED | No |
| E-APPROVED | No |
| EMC | ECE R10 |
