Description

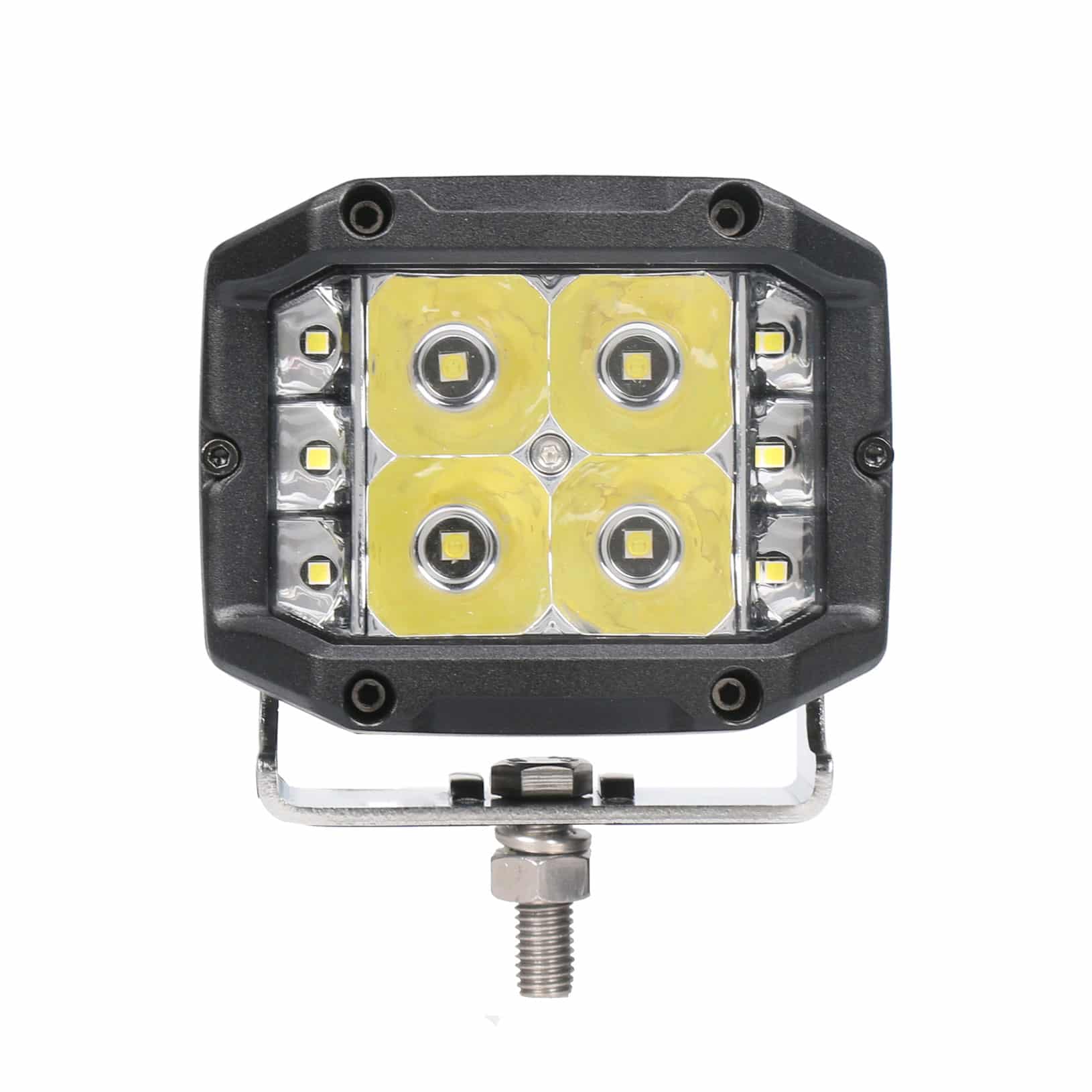

Side Shooter is a powerful LED bar in mini format and should not be underestimated for its small size with 1 lux at a full 221 meters. The LED bar got its name because it has three diodes on each short side that direct the light to the sides. This gives a light angle of as much as 140 degrees. Side shooter is also E-marked according to ECE R112 with reference number 12.5. Comes with a three-year warranty.
| WEIGHT | 0,95 kg |
| TYPE OF LAMP | LED |
| TYPE OF LED | OSRAM |
| PCS LED´S | 10 |
| VOLTAGE (V DC) | 9-32V DC |
| CONSUMPTION (W) 12V | 27 |
| CONSUMPTION (W) 24V | 27 |
| THEORETICAL LUMEN | 3540 |
| ACTUAL LUMEN | 2097 |

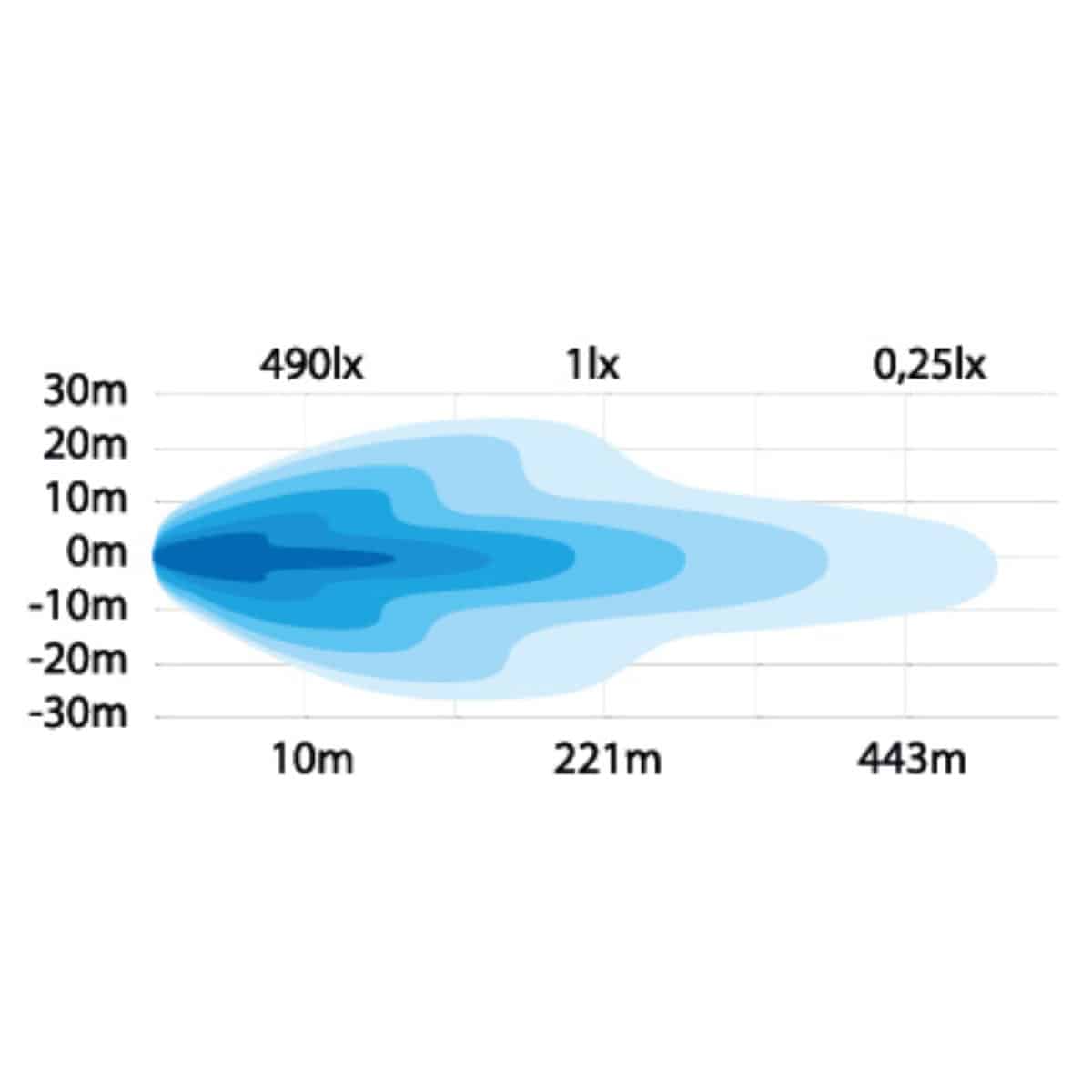

| 1 LUX AT METERS | 221 |
| KELVIN | 6000 |
| IP-CLASS | 67/69K |
| COLOUR HOUSING | Black |
| COLOUR LENS | Clear |
| BEAM PATTERN | Combo |
| POSITION LIGHT | No |
| CONNECTION | Cable |
| CABLE LENGTH (MM) | 520 |
| MATERIAL BRACKET | Stainless steel |
| MATERIAL HOUSING/CHASSI | Aluminium |
| MATERIAL LENS | Polycarbonate |
| LENGTH (MM) | 97 |
| DEPTH (MM) | 73 |
| HEIGHT (MM) | 78 |
| HEIGHT INCLUDING BRACKET (MM) | 89 |
| OPERATING TEMPERATURE | -20℃ +45℃ |
| ADR-APPROVED | No |
| E-APPROVED | Yes |
| ACCORDING TO REGULATION | ECE R112 |
| REFERENCE NUMBER | 12.5 |
| EMC | ECE R10 |
