Sentinel Elite – Black

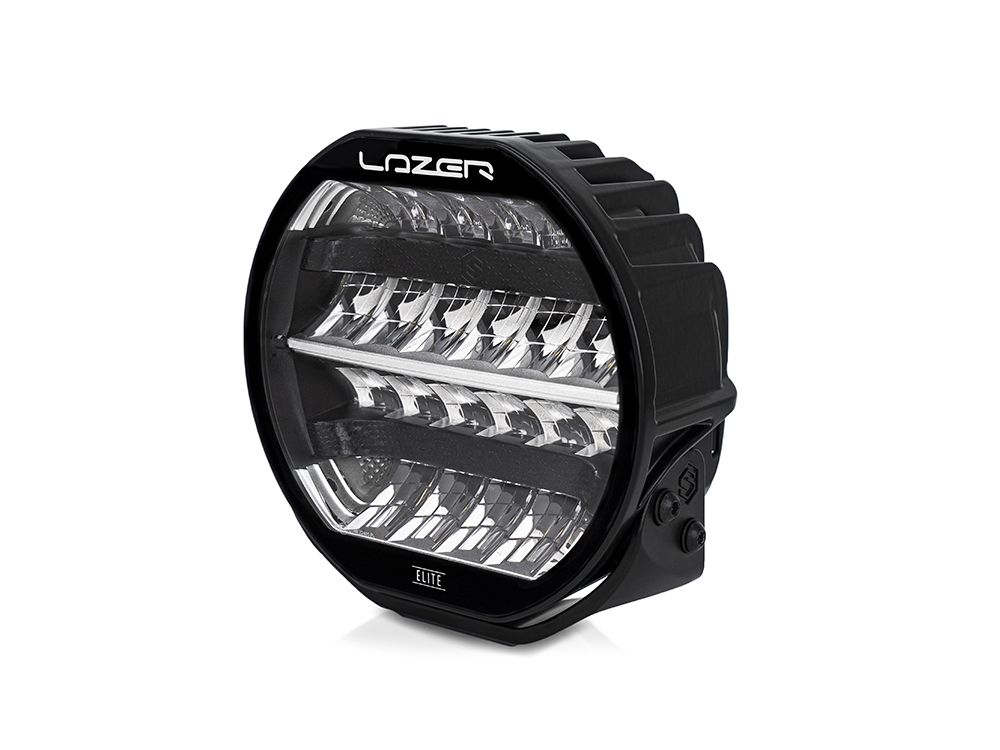

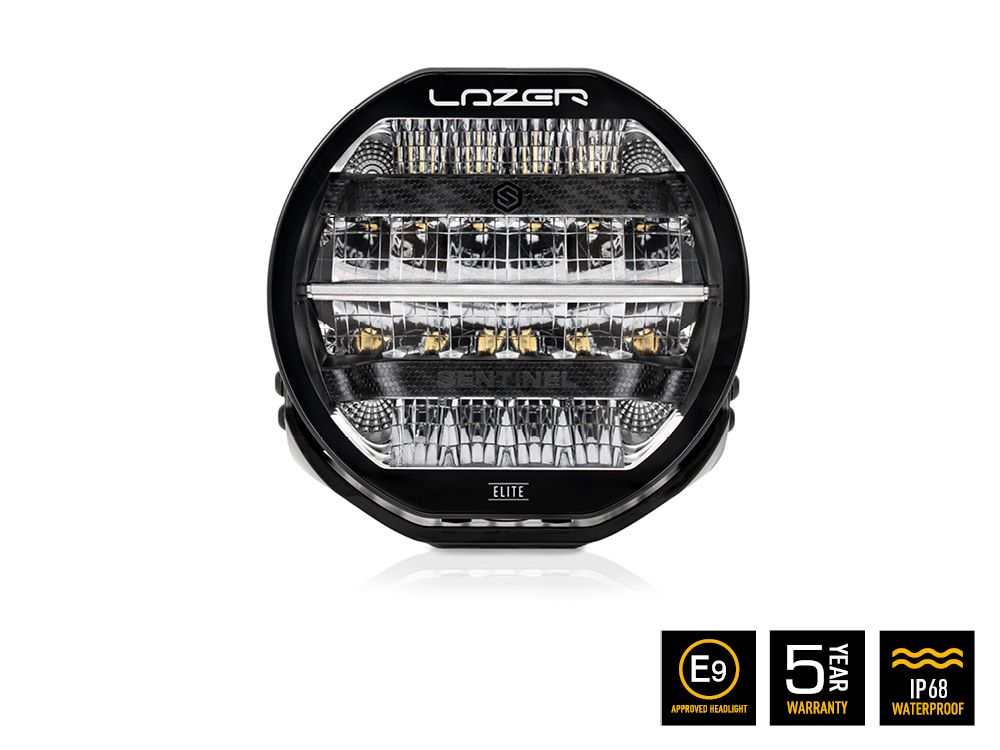

New for 2021, the Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. The Sentinel Elite product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling ensures this is a product that stands out for all the right reasons.

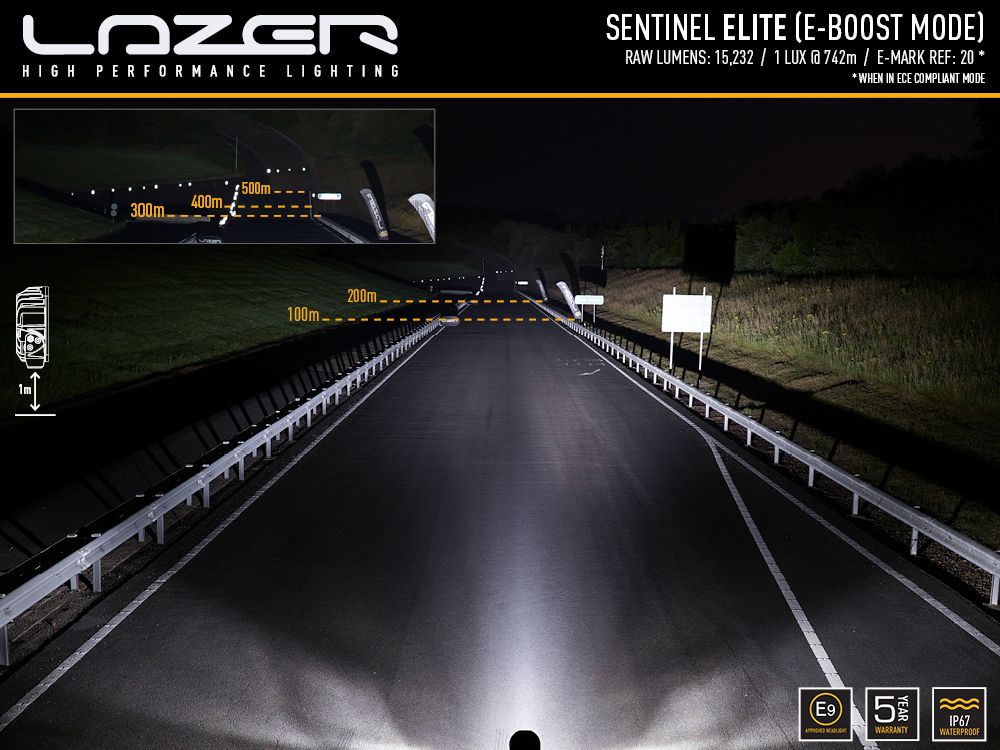

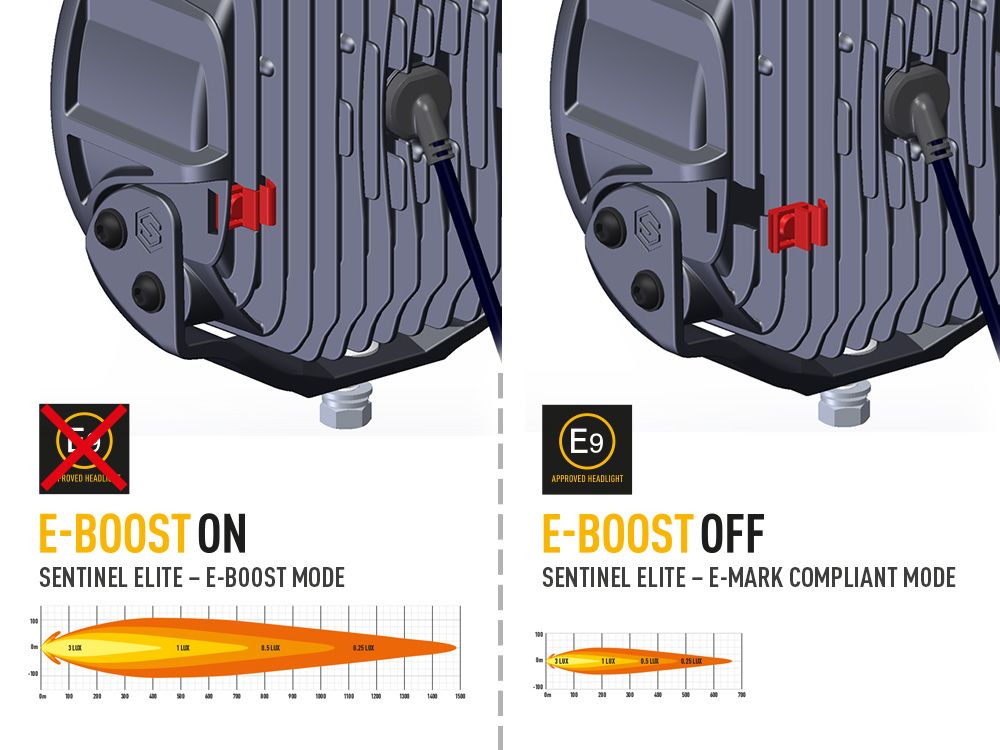

Emitting 15,232 raw lumens, the lamps deliver 1 lux to 742m, but it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range that the Sentinel Elite really comes into its own. For a demonstration of the lighting performance, please click the videos section below. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.

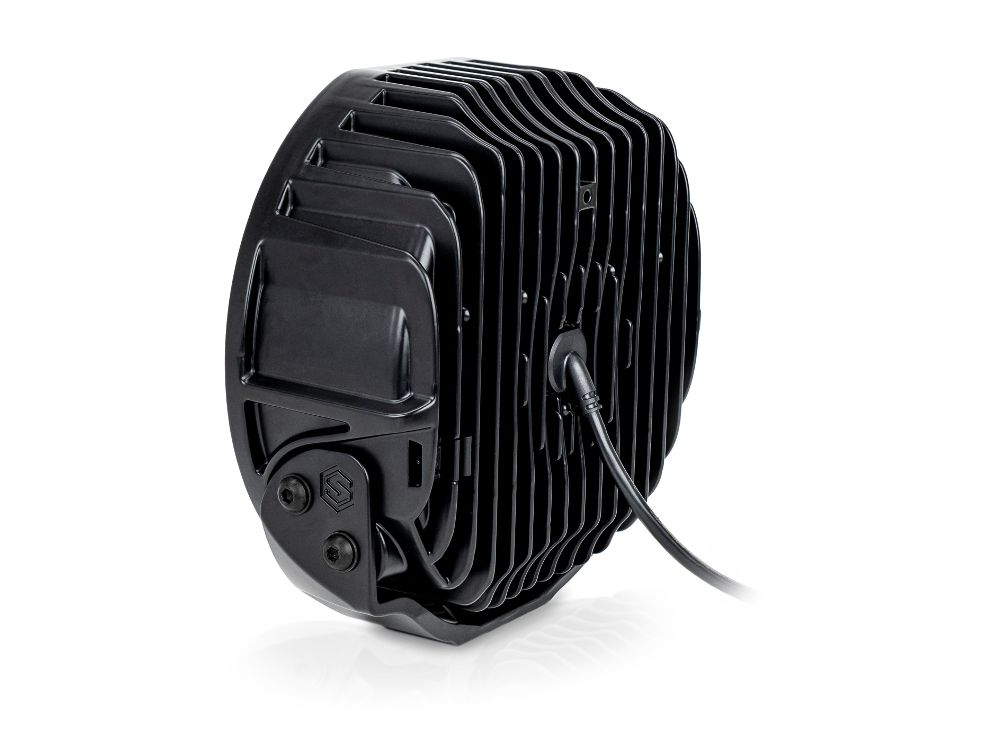

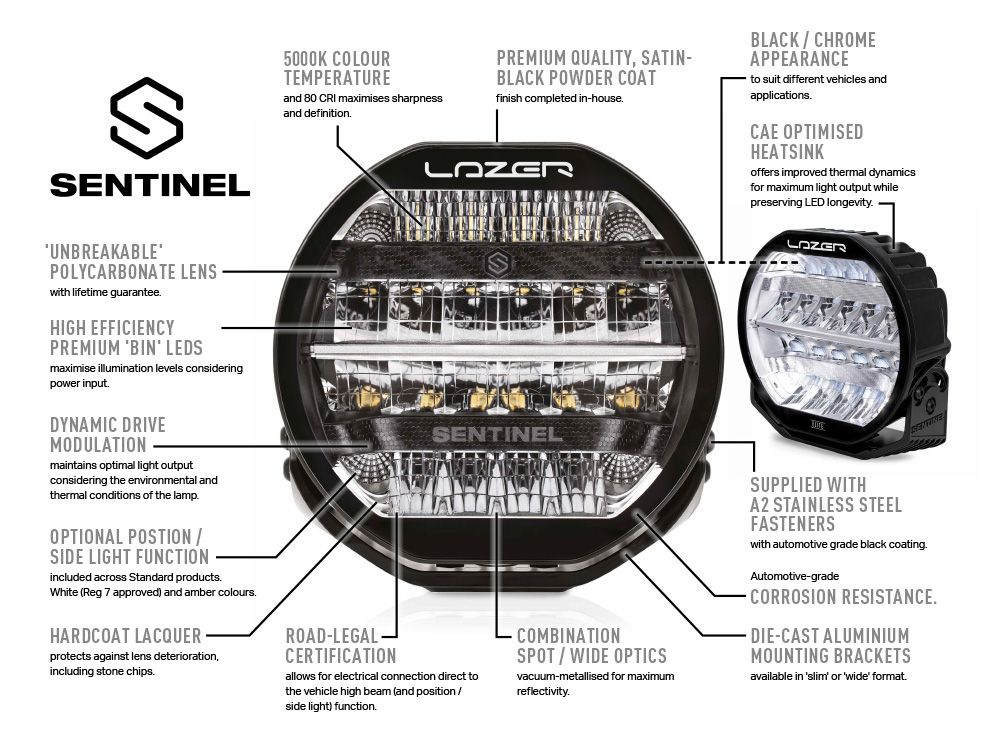

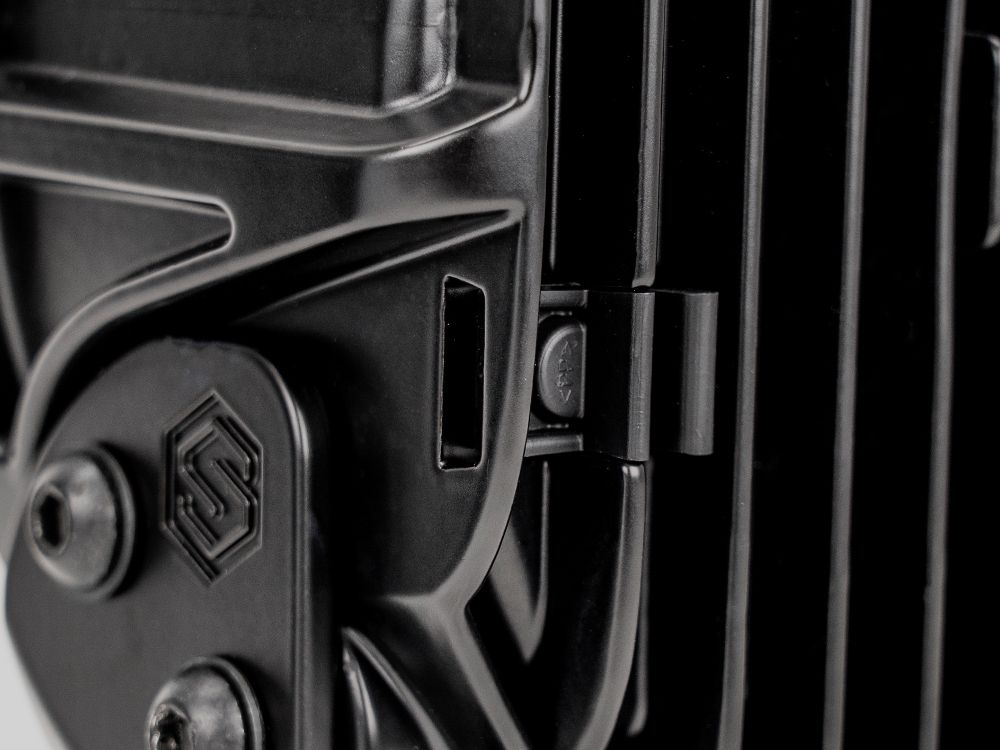

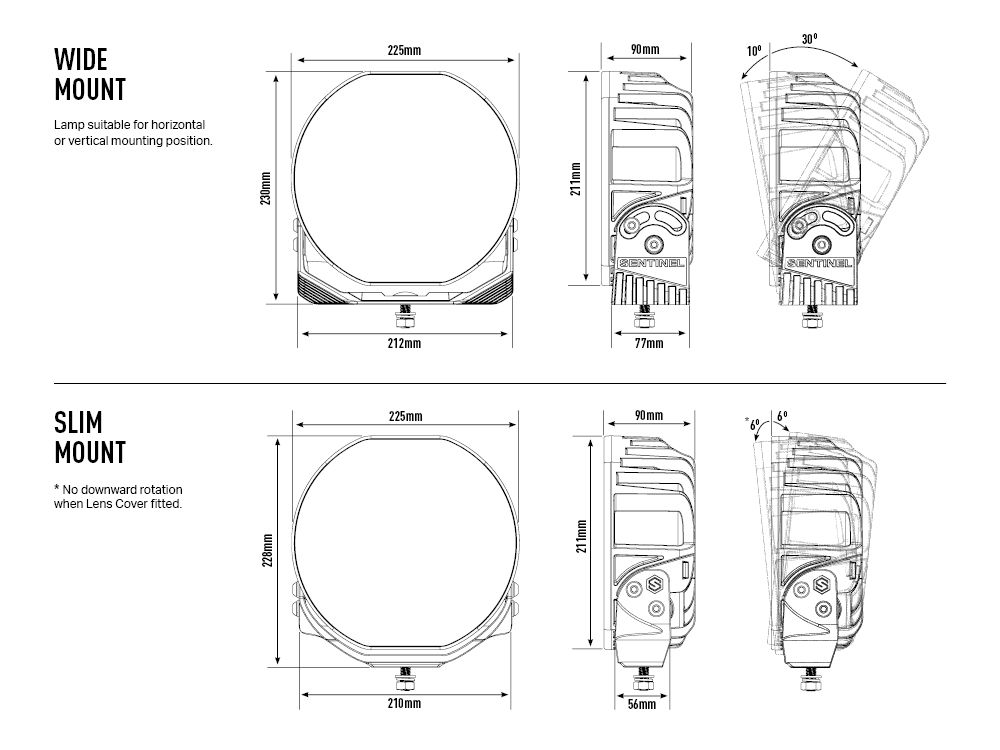

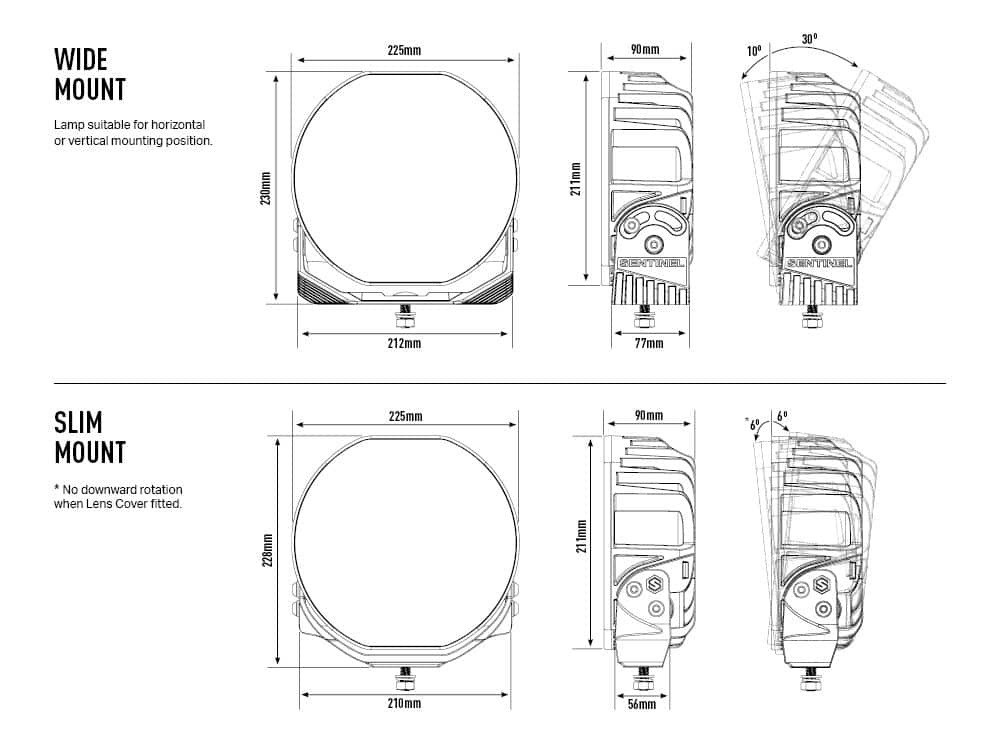

The stealth design of the black variant of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion. An alternative ‘wide’ mounting bracket, along with a range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.
As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.
Technical Information
| E-Boost | E-Mark Mode | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 2.5 kg | 2.4 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 15232 Lm | 3046 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 32 | 32 |
| Power Consumption | 145 Watts | 29 Watts |
| Peak Current Draw (10v) | 14.7 Amps | 2.9 Amps |
| Current Draw (at 14.4V) | 10.1 Amps | 2 Amps |
| Start-Up Time* | 5ms | 5ms |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 20 |

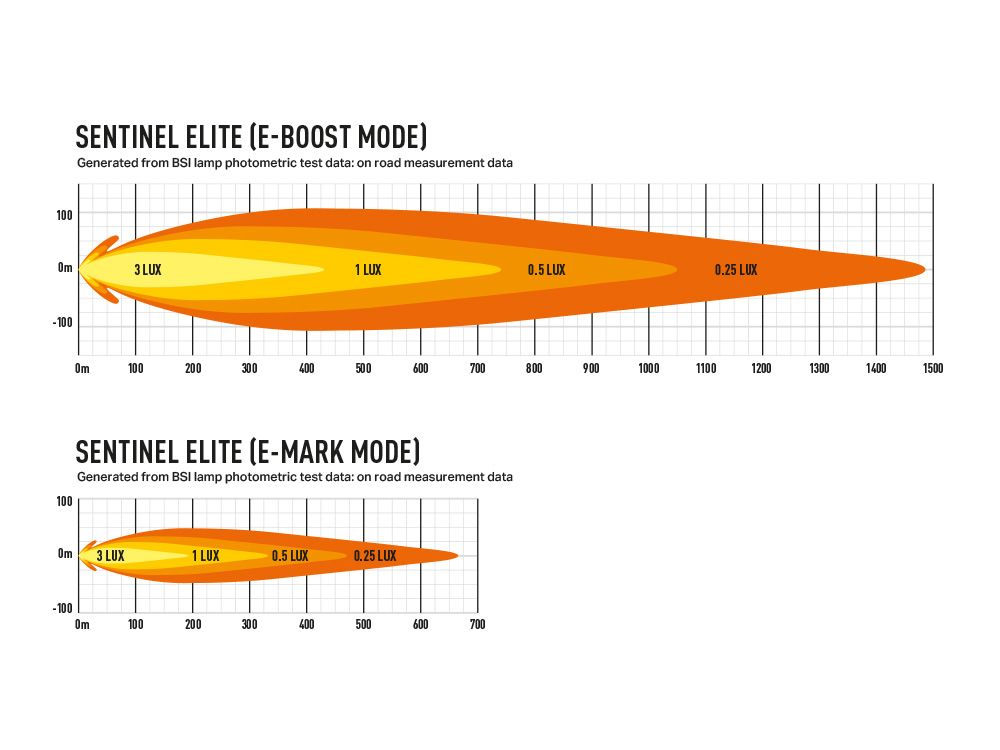

| PHOTOMETRIC DATA | ||

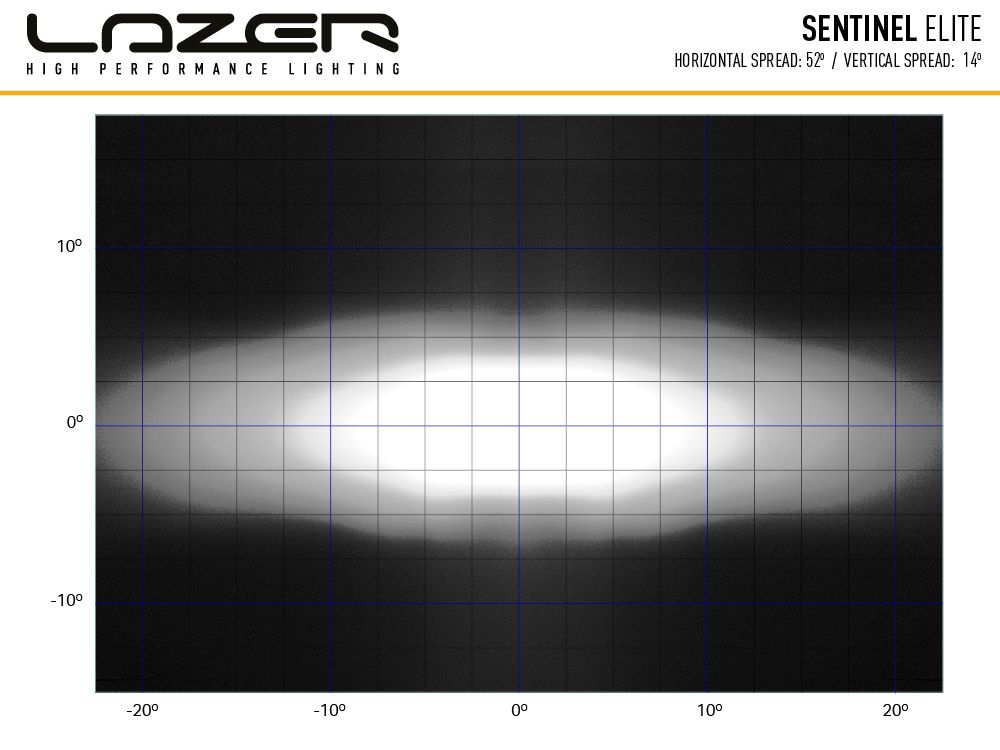

| Horiz Beam Angle | 52 Deg | 52 Deg |
| 0.25 lx Line | 1483 metres | 663 metres |
| 0.5 lx Line | 1049 metres | 469 metres |
| 1 lx Line | 742 metres | 332 metres |
| 3 lx Line | 428 metres | 191 metres |
* ‘Start-up time’ is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
What’s included
– x1 Sentinel Elite (Black) LED Lamp
– x1 ‘Slim’ Mount Kit (1141k)
– x1 ‘Lazer’ Black Lens Cover (LC-BLK-0S9)
– x1 Installation Instructions
