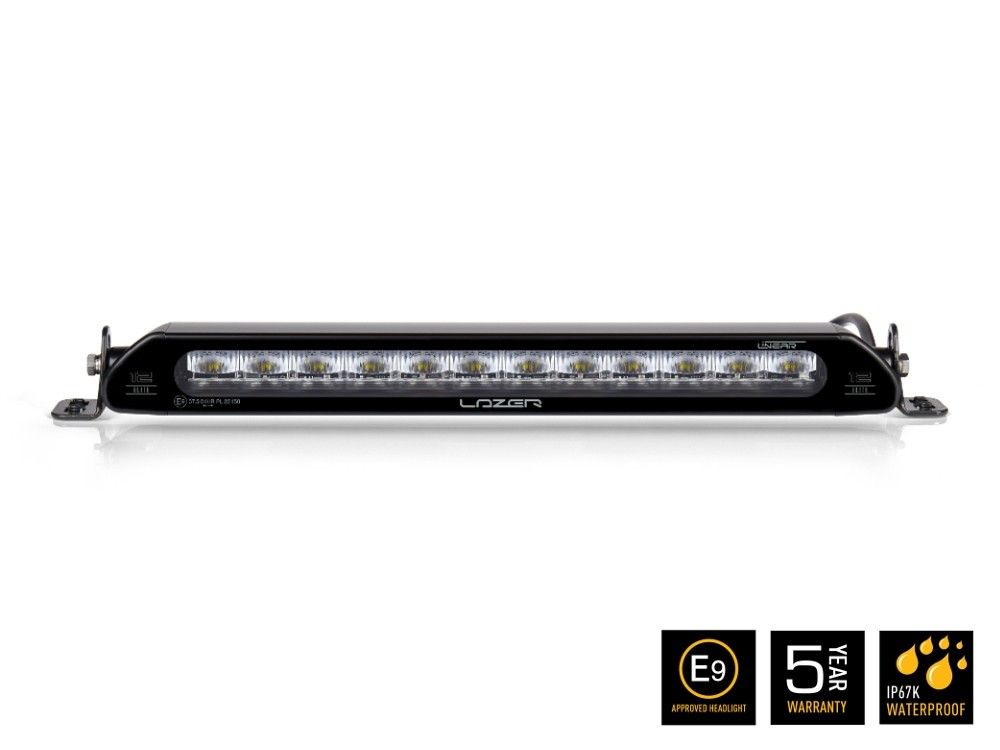

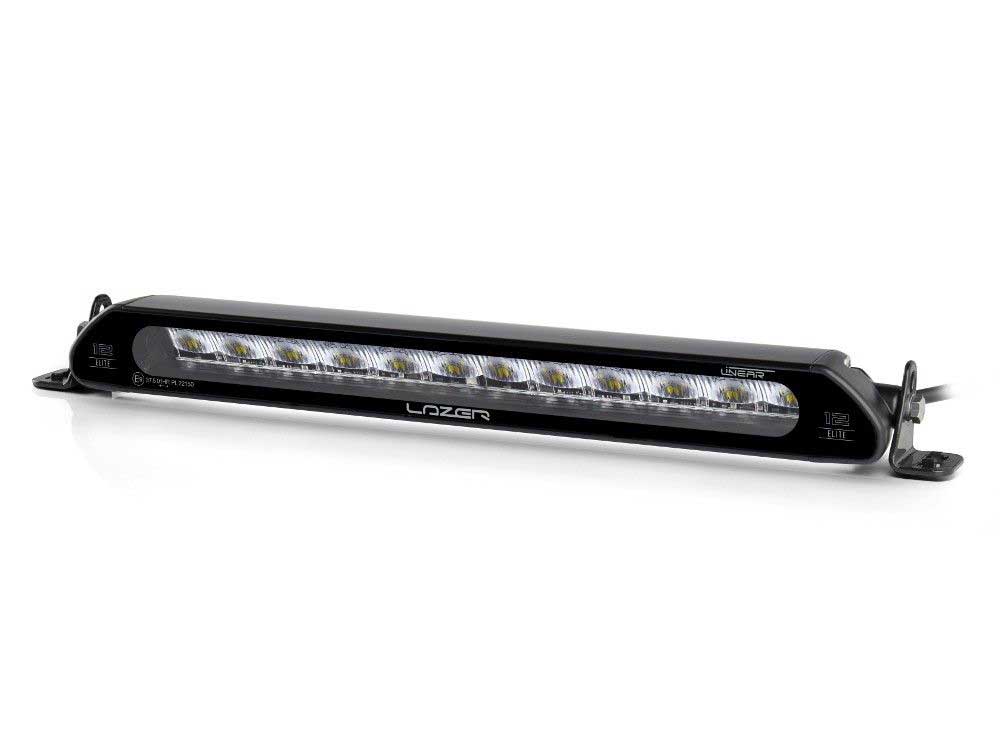

Take no chances with low light and night driving with the Linear-12 Elite, an exceptional auxiliary LED lighting solution that can be mounted as a single lamp fixture or in pairs, for an ECE approved solution that provides superior levels of light output, optimised for everyday road use, where either space is a limiting factor in regards any installation, or the preference is for a sleek, aerodynamic solution to get noticed more at night than during the day.
The Linear-12 Elite utilises a combination of highly efficient 3W LEDs, the same as used in our 2018 WRC lighting solutions, which together deliver 8,100 lumens, and 1 lux to 400m. Impressive considering the lamp weighs 800grams and has power consumption of just 84W. While this foundation of the Linear Elite’s lighting performance appears good on paper, it is through advances in our material and electronics design, that the Linear Elite really stands apart. In particular, the vacuum-metallised high-reflectivity optics carefully designed and engineered utilising the latest CAD design and light simulation software, that provide for superior light distribution when out on the road, where it really matters. A reduced vertical spread enables more light to be directed to the sides of the road, while the high intensity of the LEDs ensures enviable distance illumination.

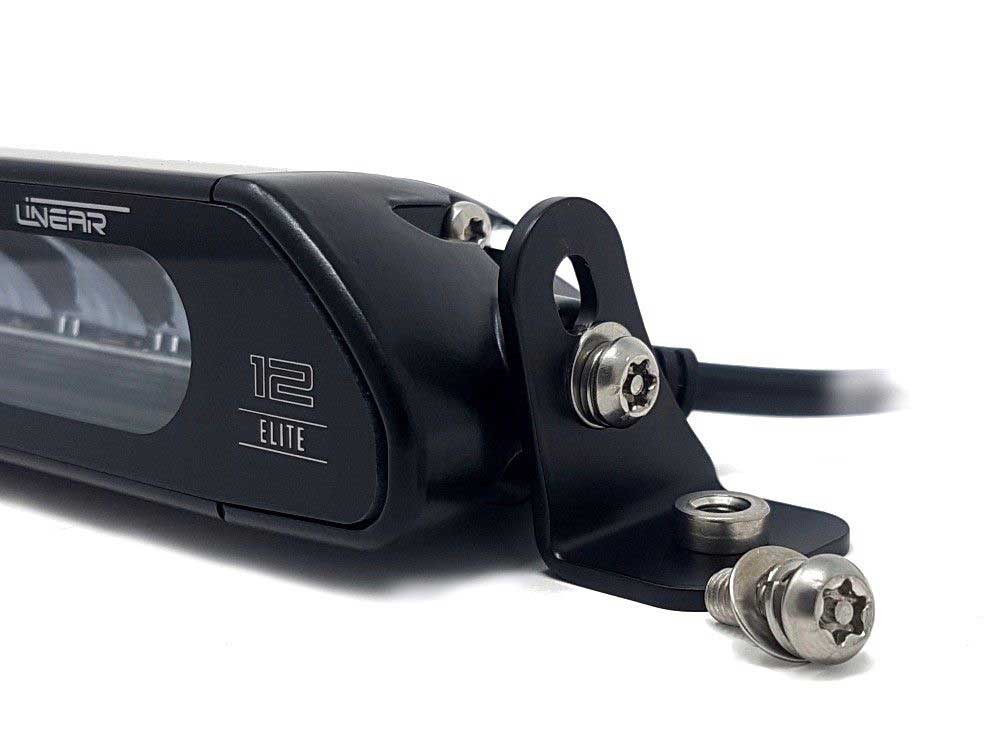

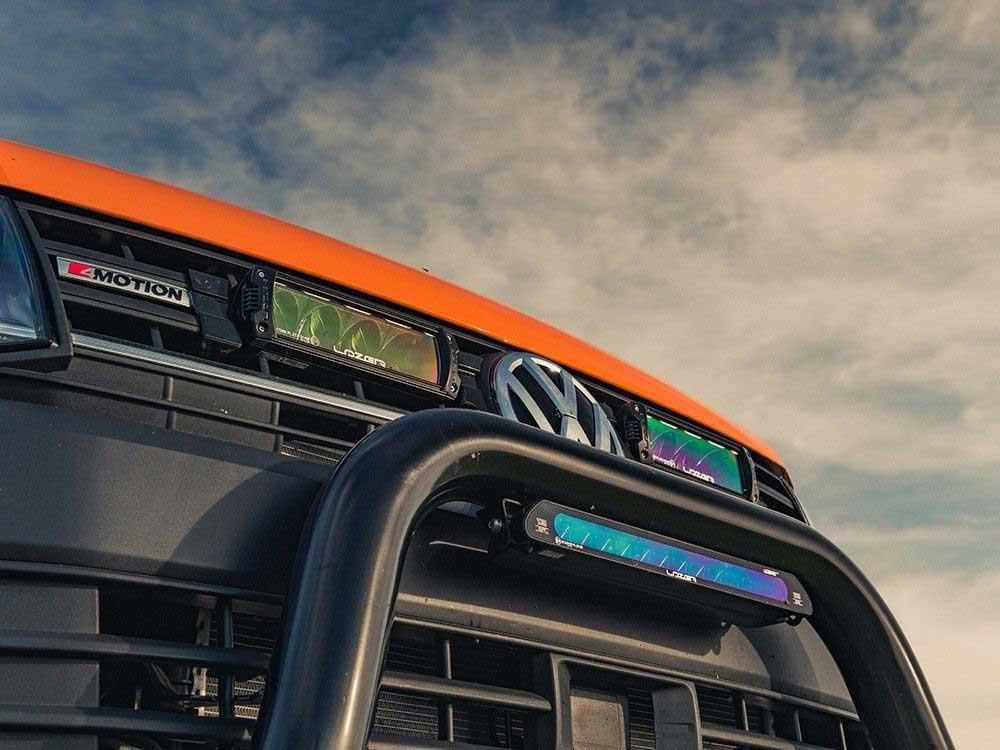

At just 382mm in length and 40mm in height, the Linear-12 Elite is engineered to be easy to fit in tight and confined spaces. The clean design of the Linear range provides for a premium look and feel, that also ensures minimal impact on airflow around any installation. The supplied stainless steel side brackets allow flexibility in the mounting location and position, while stainless steel anti-theft fasteners (included as standard), means the light will stay safe and secure.
Fully ECE approved for on-road use, the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens with hardcoat lacquer. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

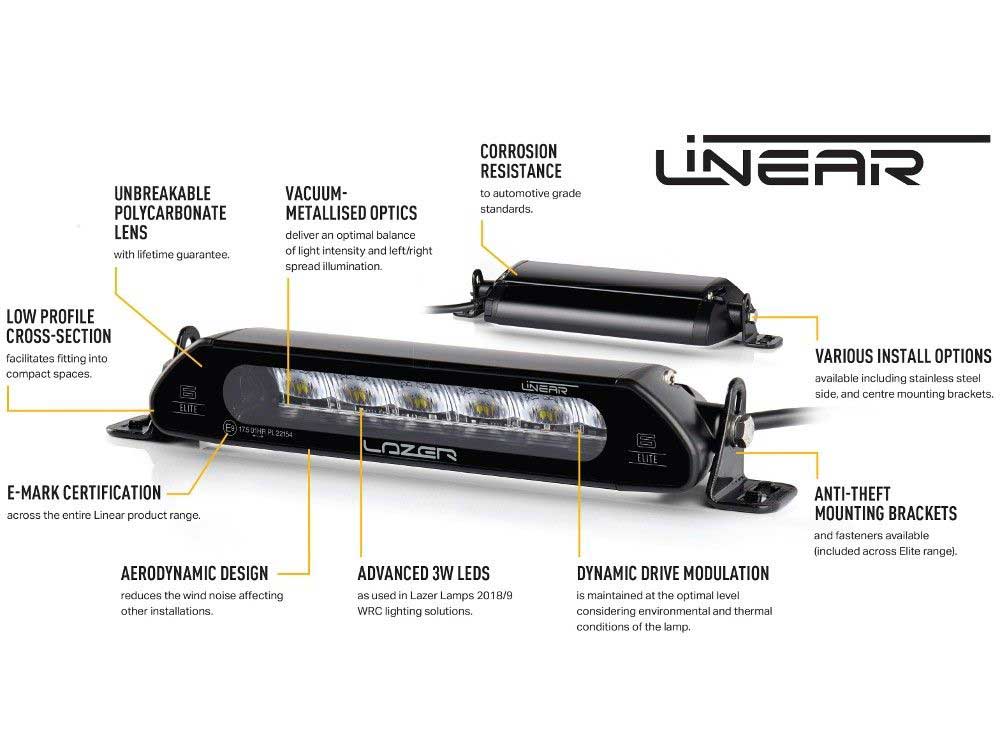

- Combination of highly efficient 3W ‘premium bin’ LEDs
- Vacuum-metallised optics deliver wide spread of light
Flexible mounting options – anti-theft mounting brackets included - Sleek, low profile design facilitates installation
- Electronic thermal management
- ‘Unbreakable’ and hardcoated polycarbonate lens*

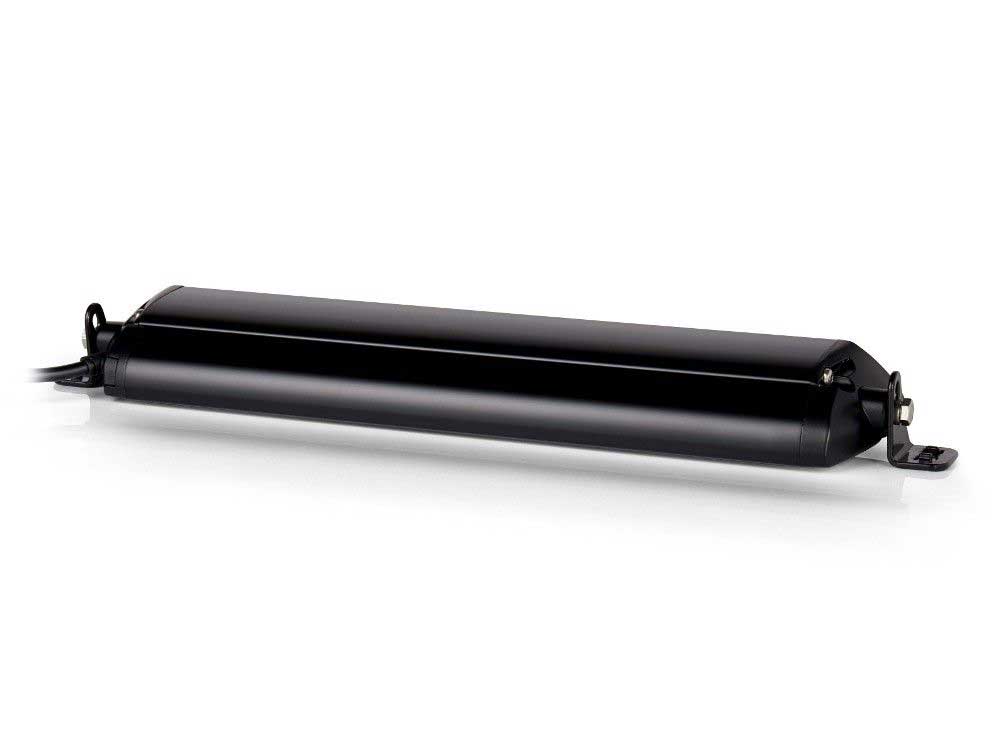

- Anodised aluminium heatsink provides for improved thermal dynamics (see Download section for Care Instructions)
- ECE approved for on-road use
- IP67 watertight
- 5 year warranty
- Supplied with male/female connectors (pre-wired)
- Designed & manufactured in Britain
- *Conditions apply
What’s included
– x1 Linear-12 Elite LED Lamp
– x1 Anti-Theft Side Mount (1127k)
– x1 Wiring and Installation Instructions
TECHNICAL SPECIFICATIONS | |
Voltage Range | 9-32V |
LED Life | 50,000 hours |
Weight | 800 gr |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 8100 Lm |
Colour Temperature | 5000K |
Number of High Output LEDs | 24 |
Power Consumption | 84 Watts |
Current Draw (at 14.4V) | 5.8 Amps |
CERTIFICATION | |
High Beam | ECE R112 |
ECE Reference | 37.5 |

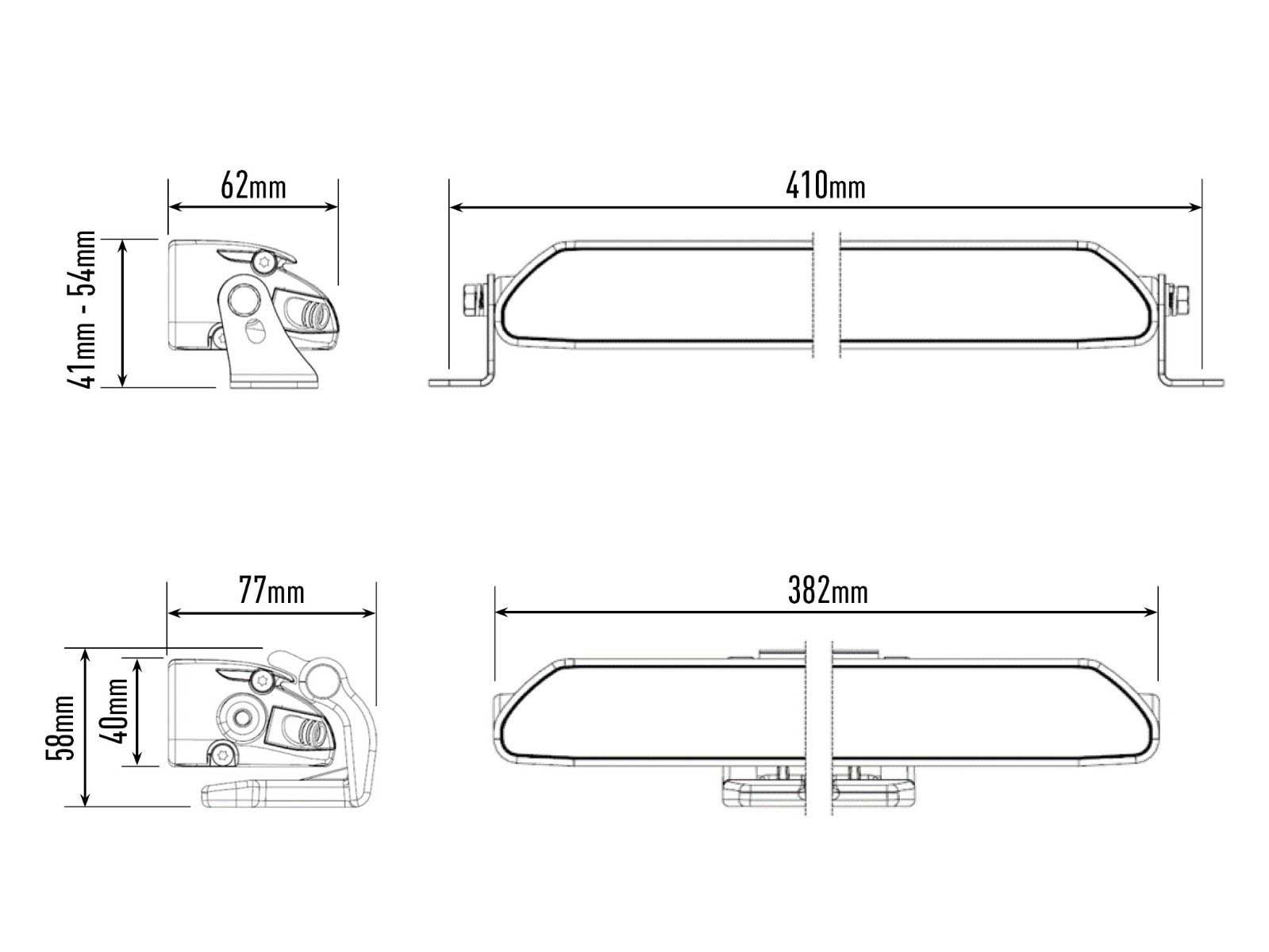

DIMENSIONS | |
Width | 382 mm |
Depth | 62 mm |
Height | 40 mm |

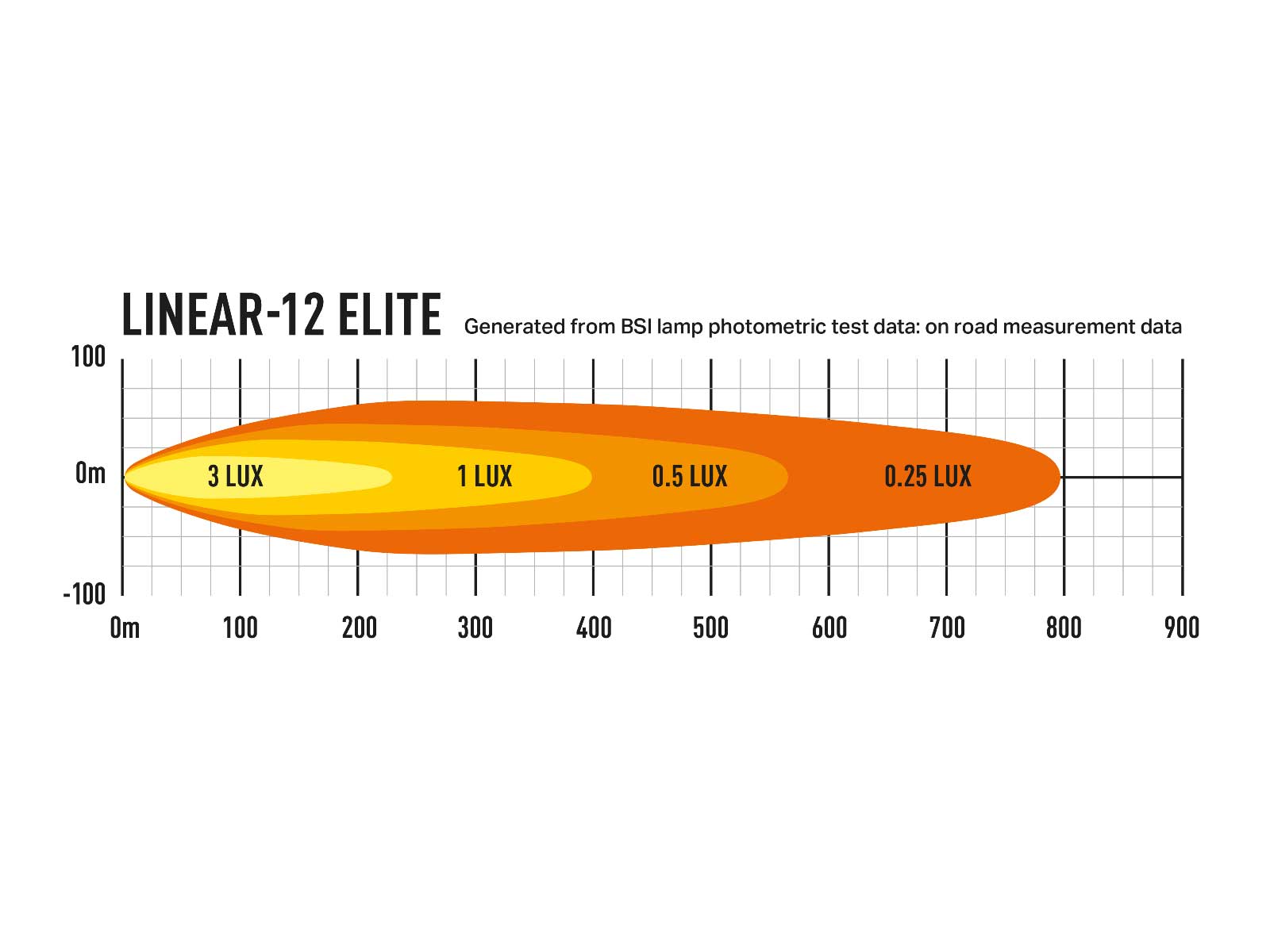

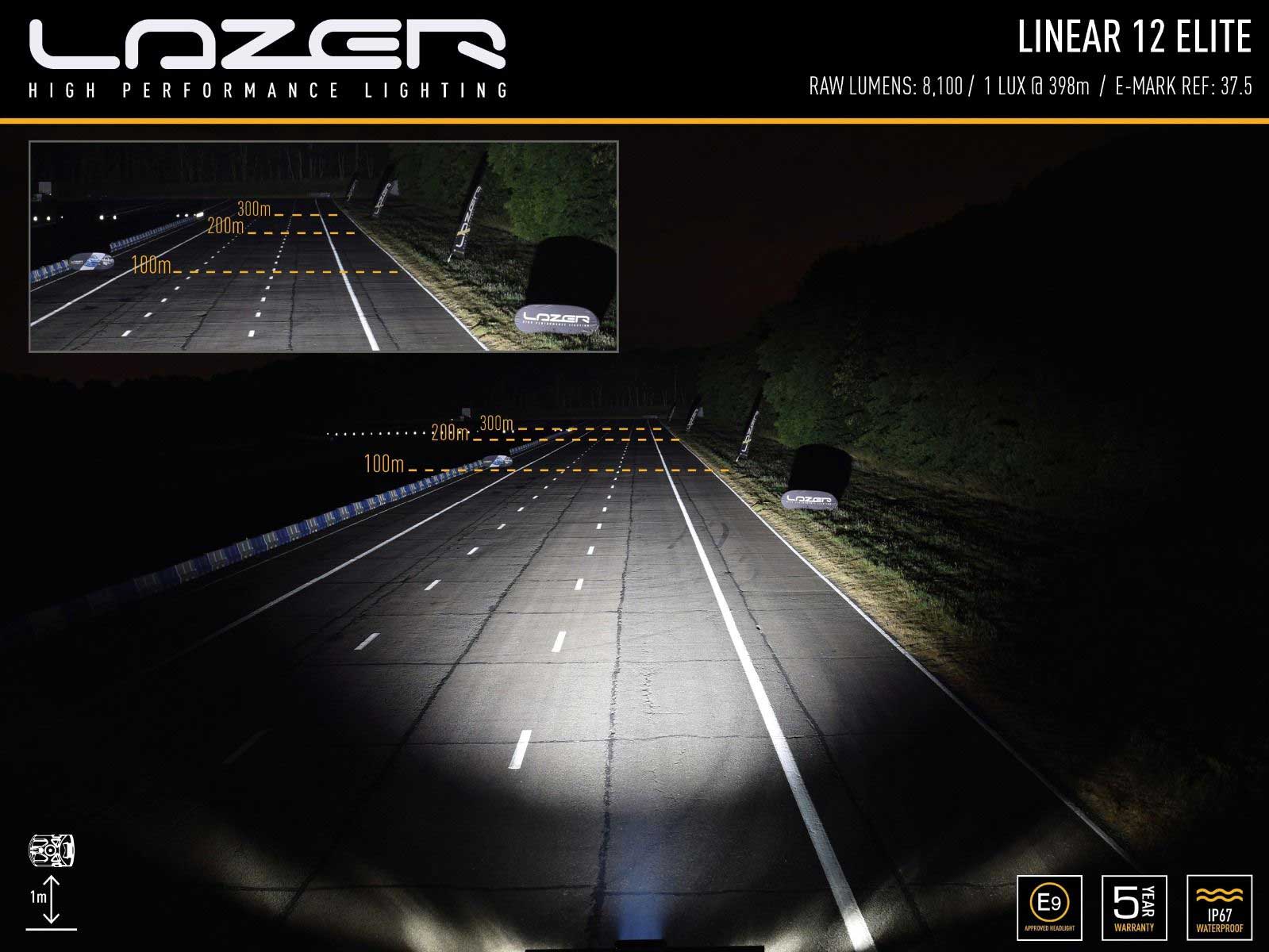

PHOTOMETRIC DATA | |

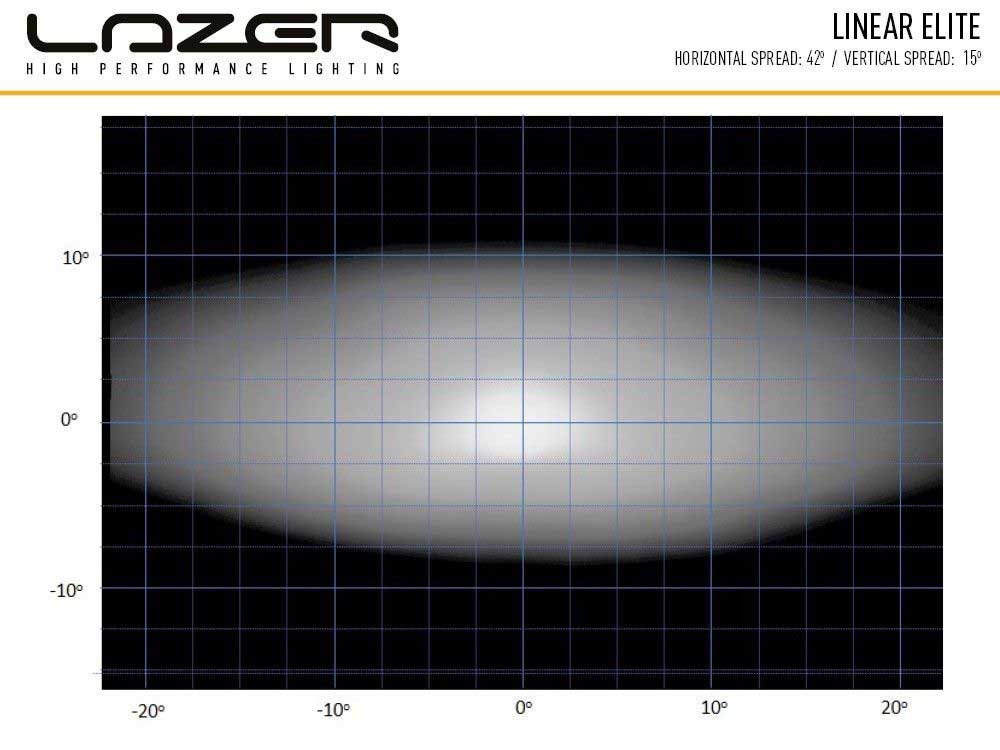

Horizontal Beam Angle | 42 degrees |
0.25 lx Line | 796 metres |
0.5 lx Line | 563 metres |
1 lx Line | 398 metres |
3 lx Line | 230 metres |
