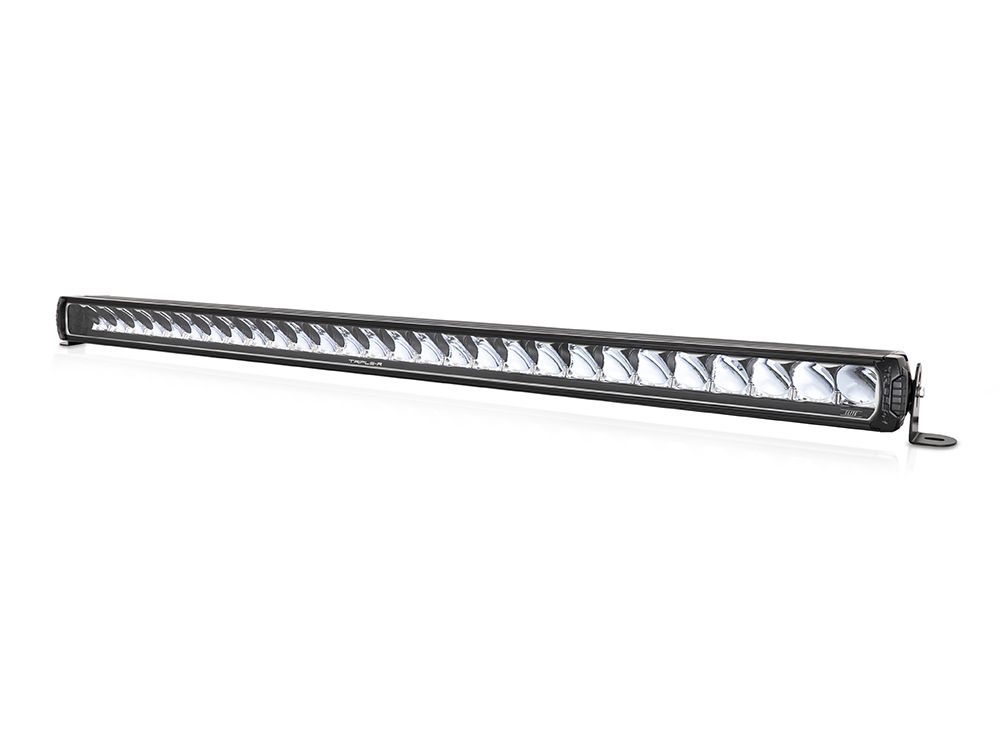

Upgraded for 2020/21, the Triple-R 28 has been given Elite level performance through the adoption of a combination of the latest high efficiency LED technologies and modified optics, used to deliver more distance illumination and more left/right spread of light. Borne out of extensive testing at the highest levels of professional track and rally motorsport, the Triple-R Elite represents the pinnacle of LED driving light technology. Subtle styling updates have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles.

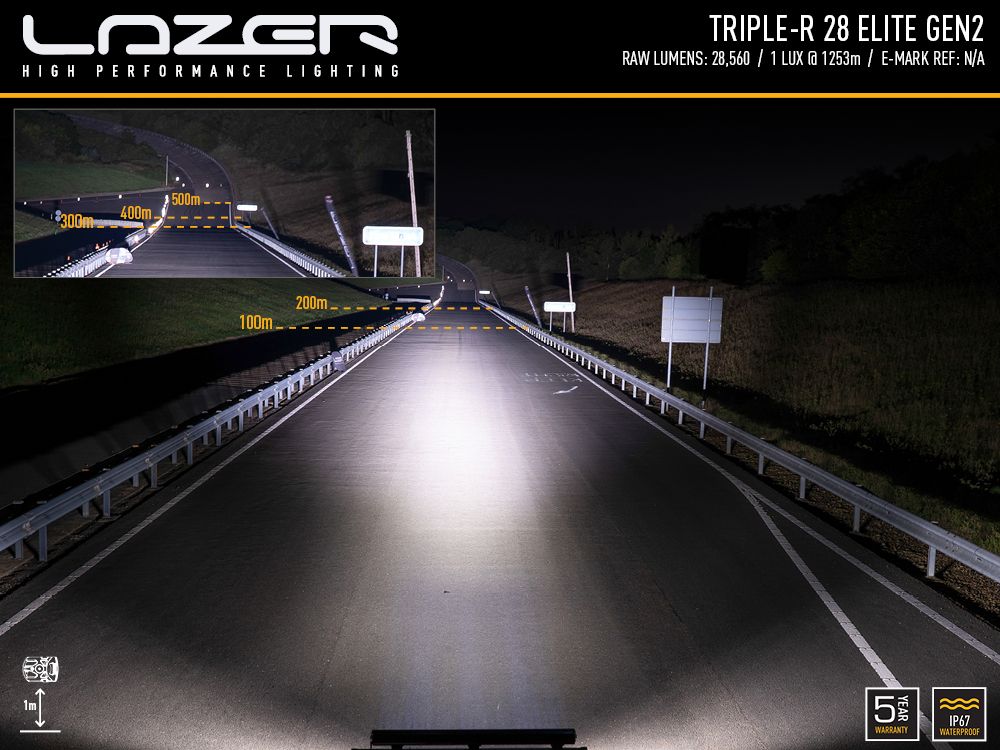

Boasting 28,560 lumen, delivering 1 lux to 1253m, the next generation of Triple-R 28 Elite delivers incredible distance illumination. Still it is through the improved left/right spread of light that this market leading driving light really impresses. A combination of LEDs on the outer reflectors delivers the superior visibility at the sides of the road, which is really evident to see and appreciate. At the same time the up/down spread of light has been flattened, which considering the typical mounting position of the lamp, is preferable to ensure a clean distribution of light in front of your vehicle, and also reducing glare which can otherwise come from some roof mount installs.
Ultimately, the benefits are a safer more relaxing night driving experience. It’s nothing less than you would expect from the very best in-house UK design, engineering, and manufacture to ensure all component parts combine to produce a perfectly homogenous beam pattern without flat spots, and with a colour of light, at 5000k, which ensures perfect definition of any obstacles ahead, whilst ensuring a comfortable drive even over prolonged periods of time. Additional benefits are had from a modified design to the aluminium housing, which has improved wind noise performance which in the past might otherwise have occurred with some roof mount installations.
The exceptional design of the Triple-R range is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty. A fully aluminium enclosure, advanced silicon Gore-Tex breather membrane, and polycarbonate lens (with lifetime guarantee), are just some features which ensure the lamp is best suited to even the toughest environments.

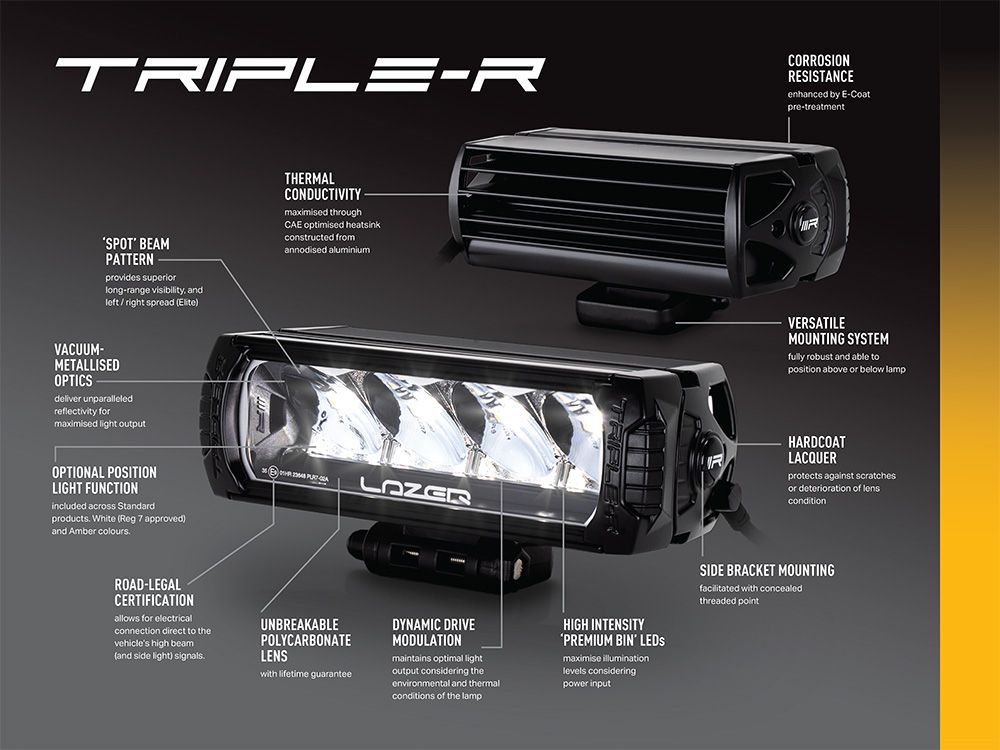

- Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
- Highly efficient LED technologies (upgraded for 2020/21)
- 5000K LED colour temperature and 80CRI maximises sharpness and definition
- Ultra-reflective vacuum-metallised optics deliver spot beam pattern
- Contemporary lamp design
- Improved aero design benefits low wind noise performance

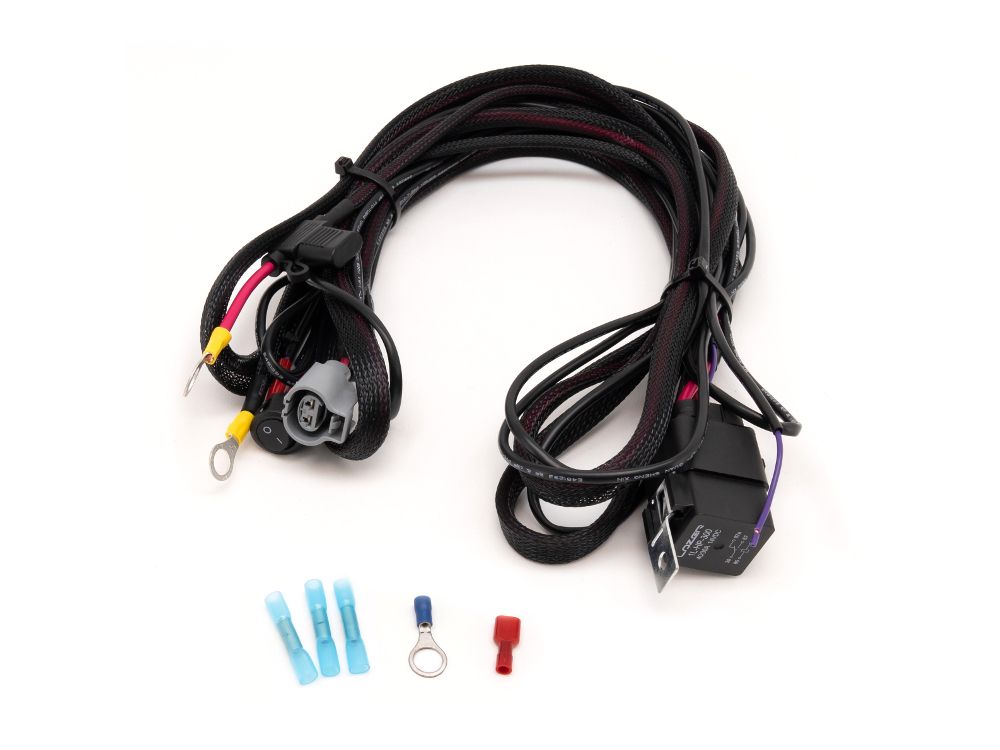

- Vehicle wiring kit included (1L-HP-300)
- Includes ‘Centre Mount’ and Side Mount Kit
- Electronic thermal management system optimises light output to preserve longevity of the LEDs
- Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
- CAE optimised heatsink offers improved thermal dynamics
- Over voltage protected
- Reverse polarity protected
- ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
- UNECE approved Reg 10
- IP67 watertight
- 5-year warranty
- Supplied with pre-wired male/female 2-pin Superseal connectors
- Designed & manufactured in UK
| TECHNICAL SPECIFICATIONS | |
| Voltage Range | 9-32V |
| LED Life | 50,000 hrs |
| Weight | 4.78 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 28560 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 28 |
| Power Consumption | 326 Watts |
| Current Draw (at 14.4V) | 22.6 Amps |
| CERTIFICATION | |
| High Beam | N/A |
| E-Mark Ref | N/A |
| PHOTOMETRIC DATA | |

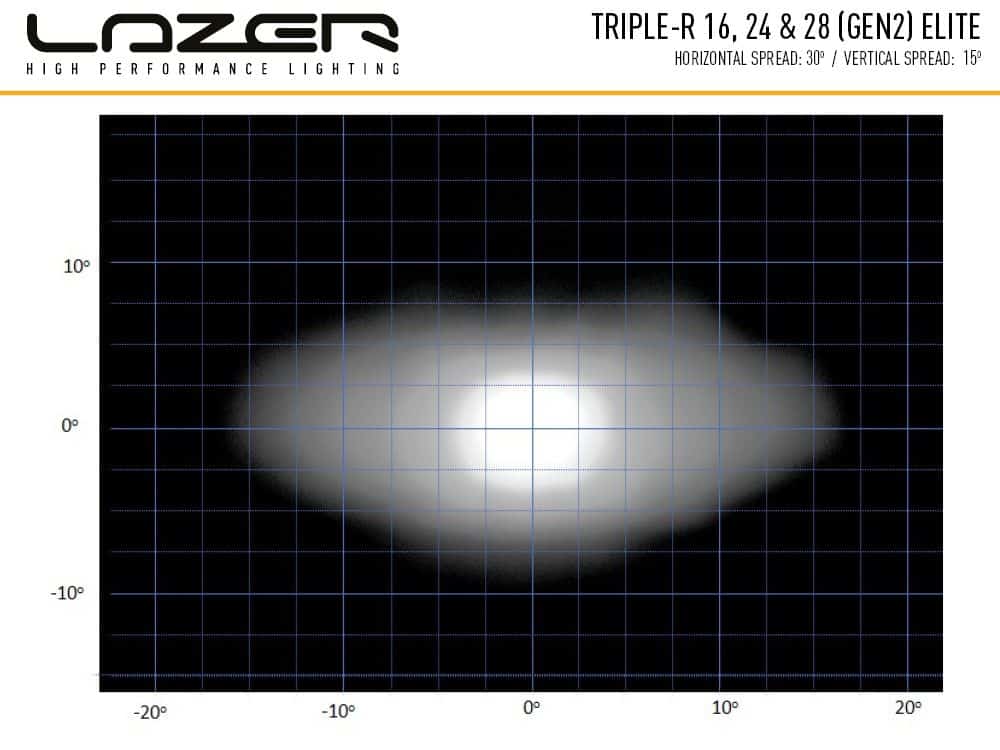

| Horiz Beam Angle | 30 Deg |

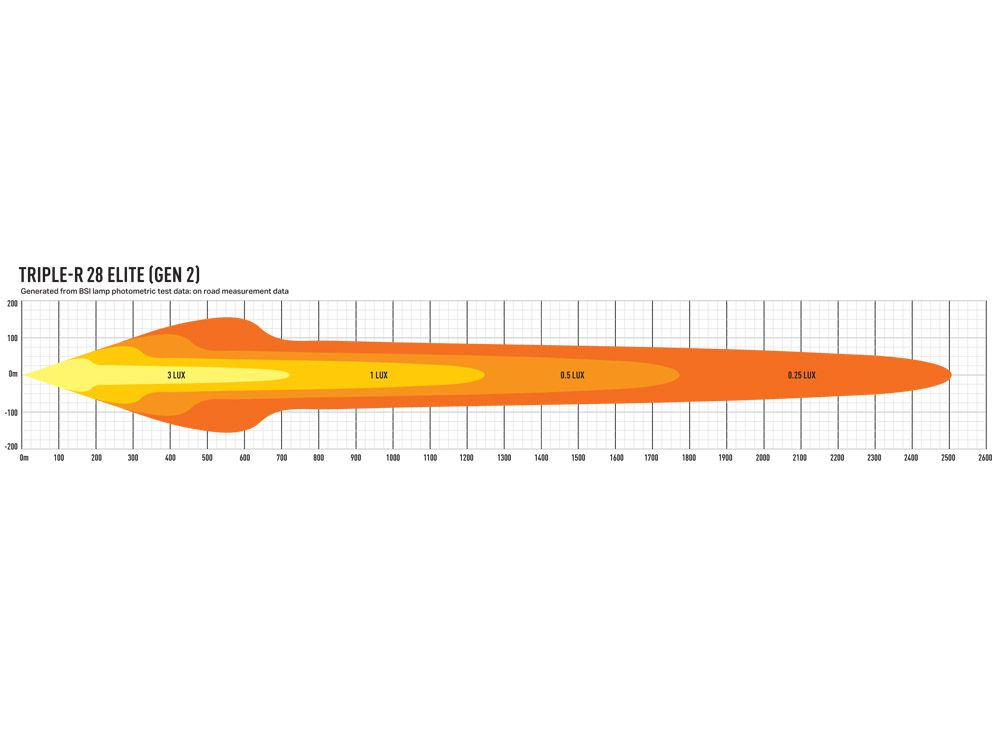

| 0.25 lx Line | 2506 metres |
| 0.5 lx Line | 1772 metres |
| 1 lx Line | 1253 metres |
| 3 lx Line | 724 metres |
