Description

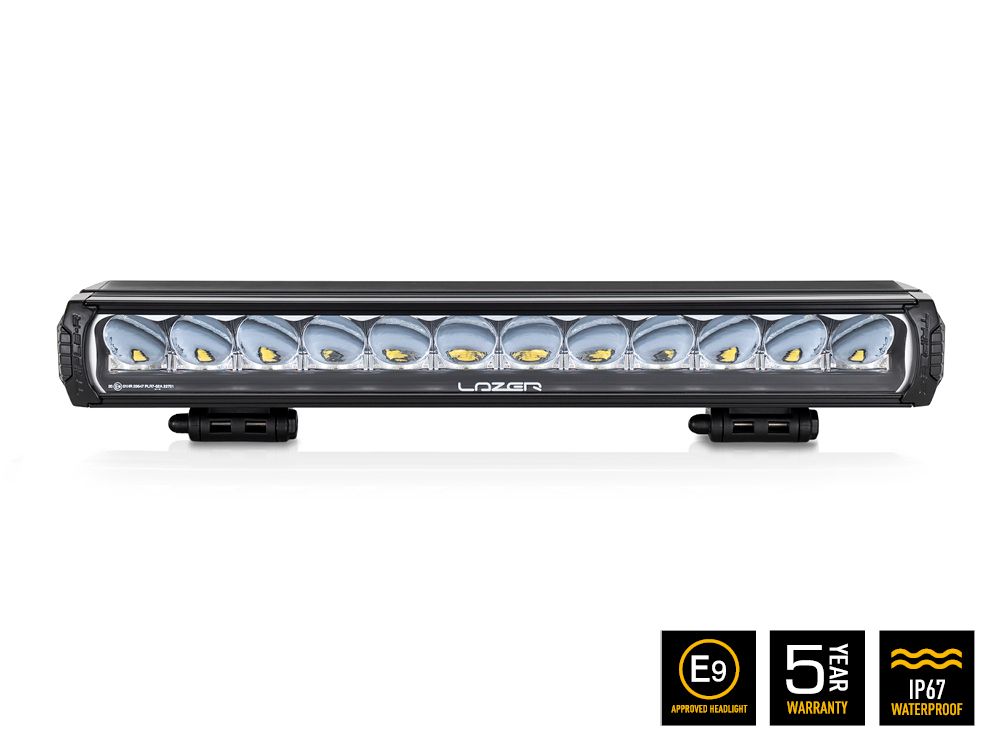

The iconic Triple-R range is upgraded for 2020/21. Boasting the very latest high efficiency LED technology, the Triple-R 1250 is a high-performance driving light that delivers a spot beam pattern well suited to both road and off-road applications. Subtle styling updates have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. With the possibility to connect a white or amber position light function, the styling and safety benefits of the 2nd generation Triple-R 1250 are enhanced even further.
Boasting 13,860 lumen, delivering 1 lux to 750m  (E-Boost mode), the auxiliary LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle (e.g. heavy trucks). Highly-reflective, vacuum-metallised optics, designed and engineered in-house, in the UK, using advanced CAD design software, mean more light is directed to where you need it, across a perfectly homogenous beam pattern without flat spots. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time.

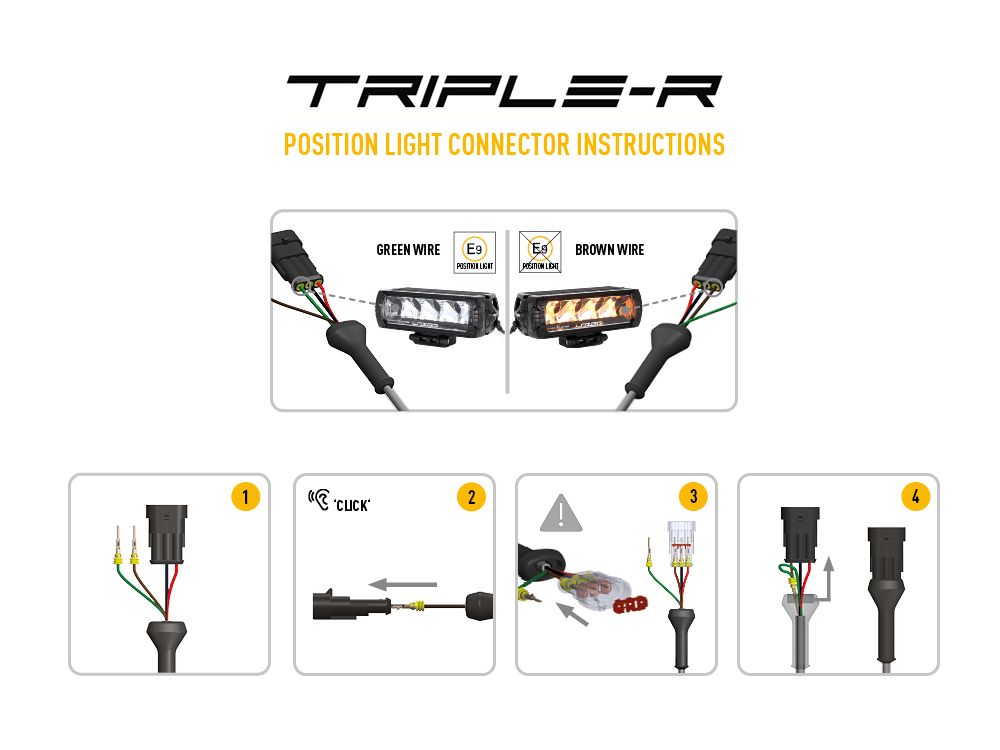

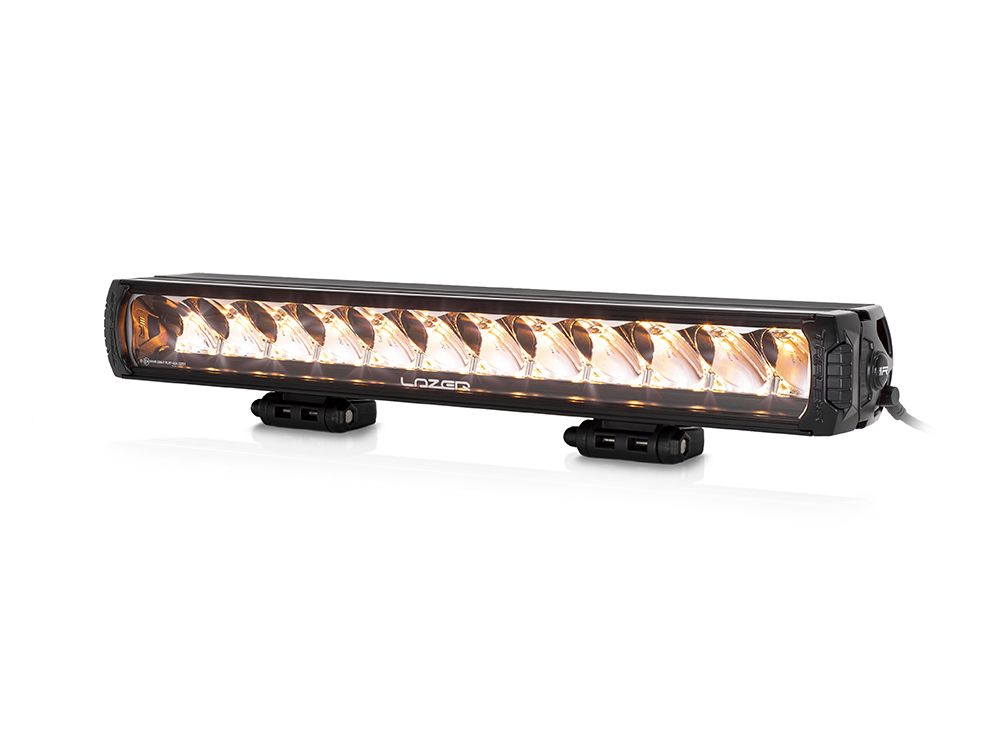

The Triple-R 1250 comes with the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 1250 act as a high beam driving light only. The position light function (white only) is approved to ECE regulation 7, to operate in parallel with your standard vehicle lights.

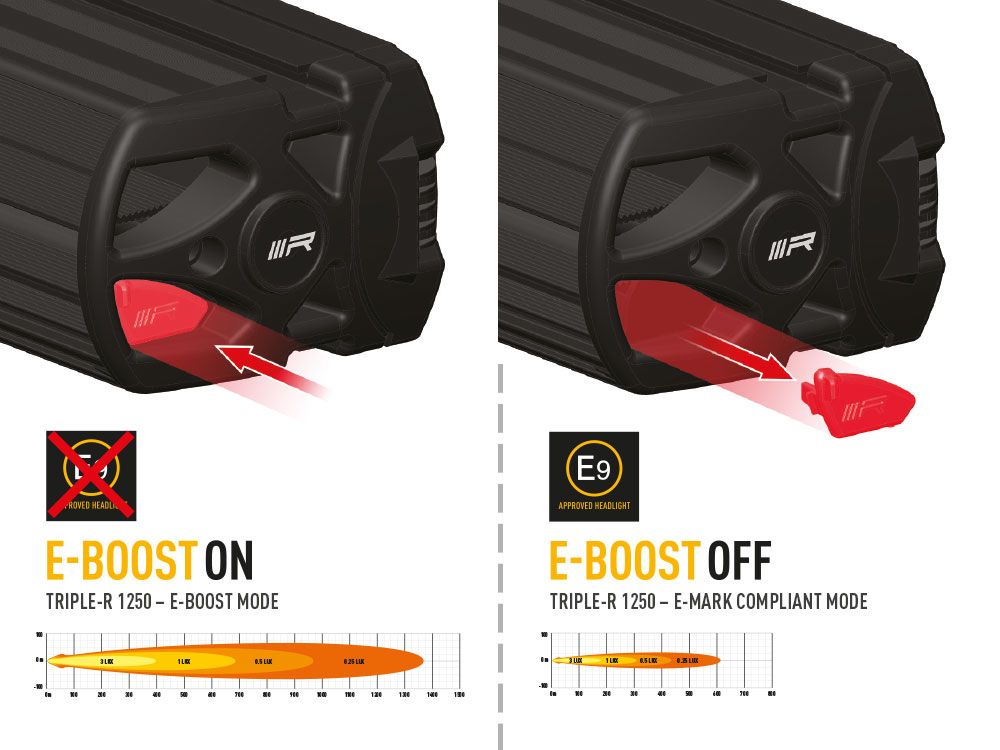

Through the adoption of dual-output ‘E-Boost’ technology, the lamp achieves approval to ECE Regulation 112, allowing the lamp to be connected directly to your vehicle’s standard high beam driving lights (where UNECE regulations are recognised). Operating at 100% the light output is beyond the permissible limit of the regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.
The exceptional design of the Triple-R range is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty. A fully aluminium enclosure, advanced silicon Gore-Tex breather membrane, and polycarbonate lens (with lifetime guarantee), are just some features which ensure the lamp is best suited to even the toughest environments.

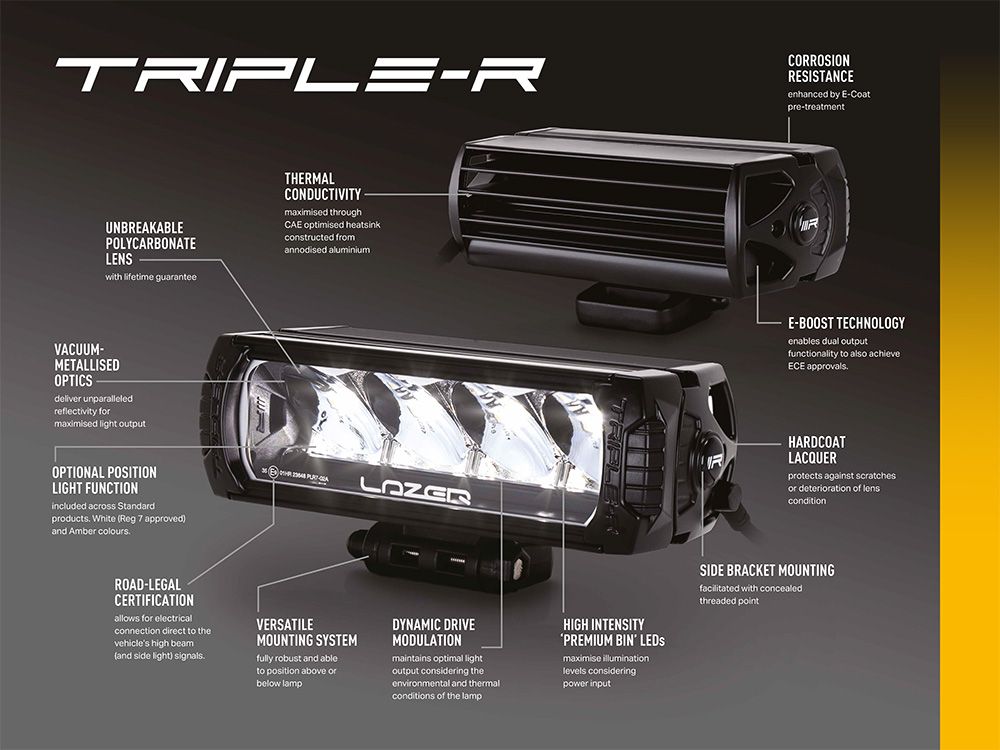

  • Highly efficient 11W LED technology (upgraded for 2020/21)
  • Integrated white or amber position lights function
  • Ultra-reflective vacuum-metallised optics deliver spot beam pattern
  • ECE approved for on-road high beam (E-Boost technology) and position/side light function (white only)
  • Contemporary lamp design
  • Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
  • CAE optimised heatsink offers improved thermal dynamics
  • Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
  • Electronic thermal management
  • ‘Unbreakable’ and hardcoated polycarbonate lens
  • IP67 watertight
  • 5-year warranty
  • Vehicle wiring kits available
  • Designed & manufactured in Britain
Technical information
 E-BoostE-Mark Mode
Voltage Range 9-32V9-32V
LED Life 50,000 hrs50,000 hrs
Weight 2.4 kg2.4 kg
HIGH BEAM FUNCTION
Total Luminous Flux13860 Lm2772 Lm
Colour Temperature5000k5000k
Number of High Output LEDs 1212
Power Consumption125 Watts25 Watts
Current Draw (at 14.4V)8.7 Amps1.7 Amps
CERTIFICATION
High BeamN/AECE R112
E-Mark RefN/A20
Position Light (White)ECE R7ECE R7

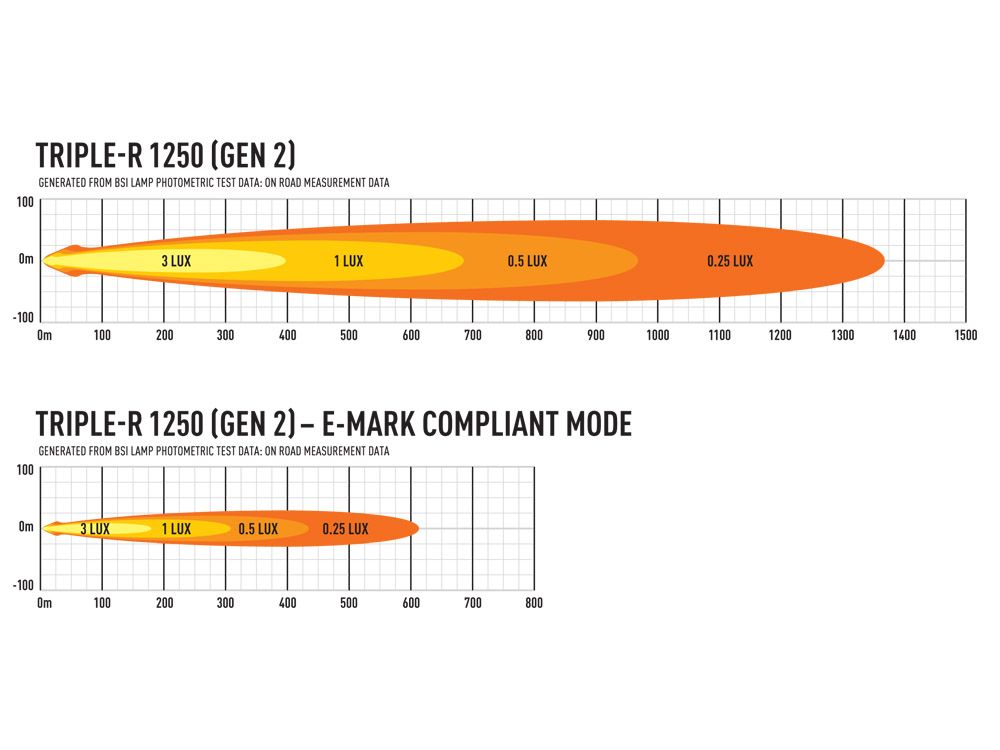

PHOTOMETRIC DATA

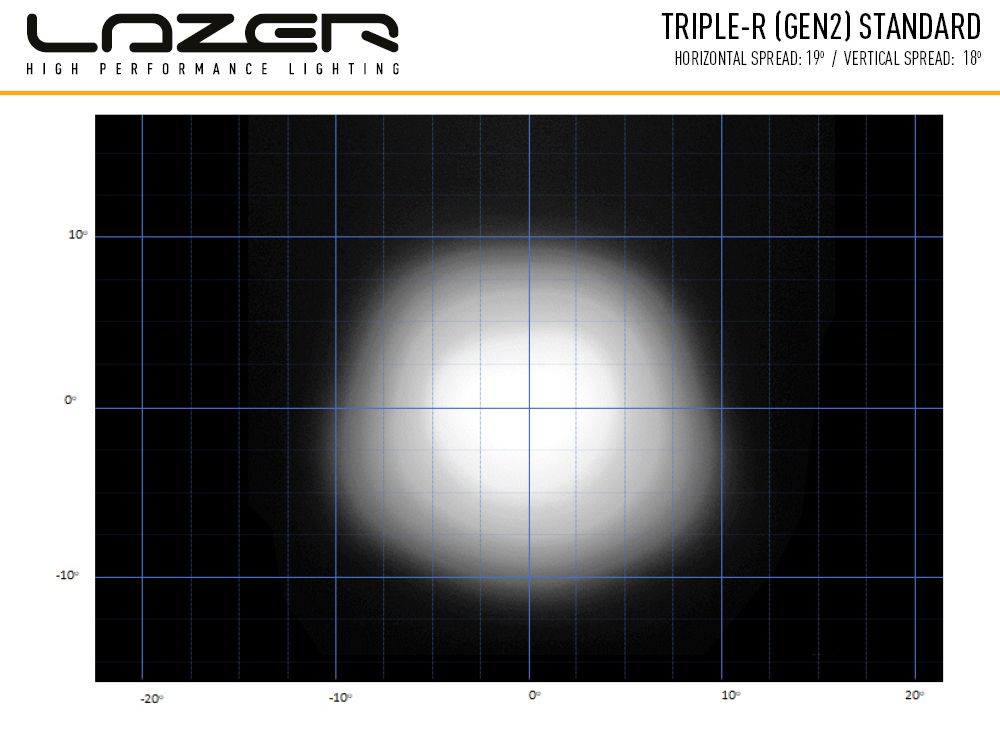

Horiz Beam Angle19 Deg19 Deg
0.25 lx Line1500 metres671 metres
0.5 lx Line1061 metres474 metres
1 lx Line750 metres335 metres
3 lx Line433 metres194 metres
Additional information
Weight 3,10000 kg
