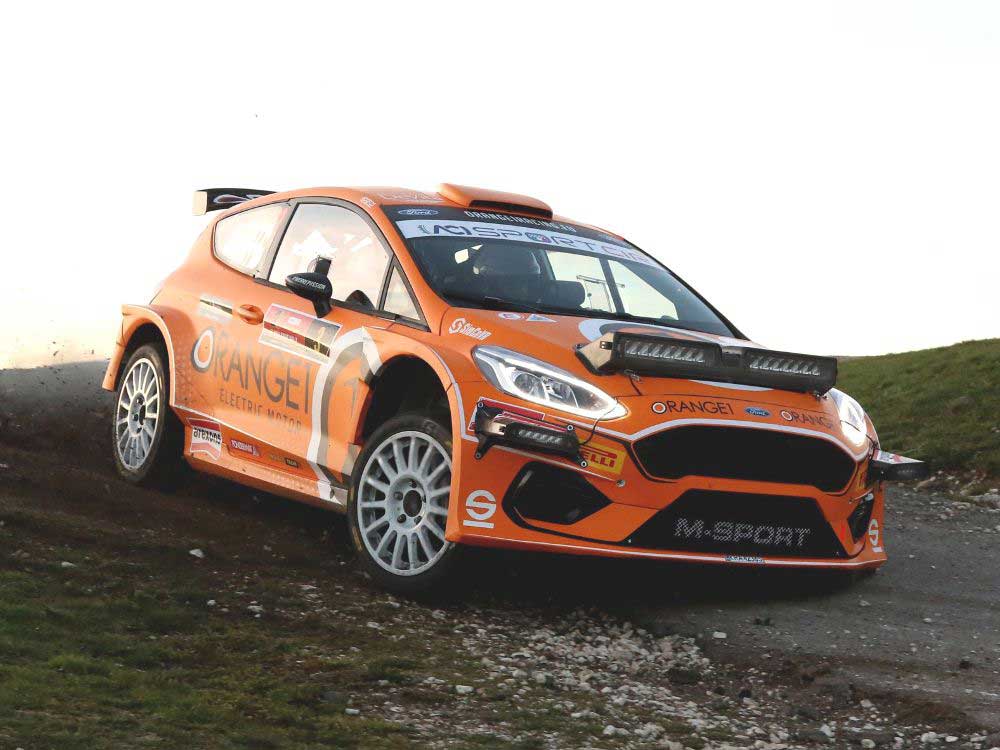

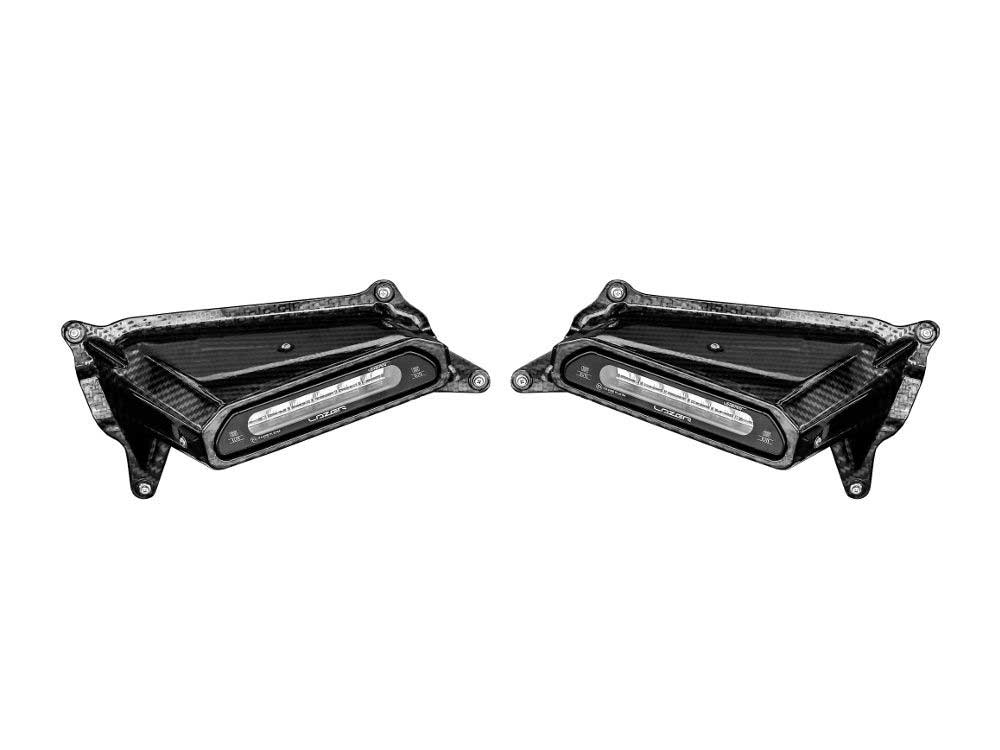

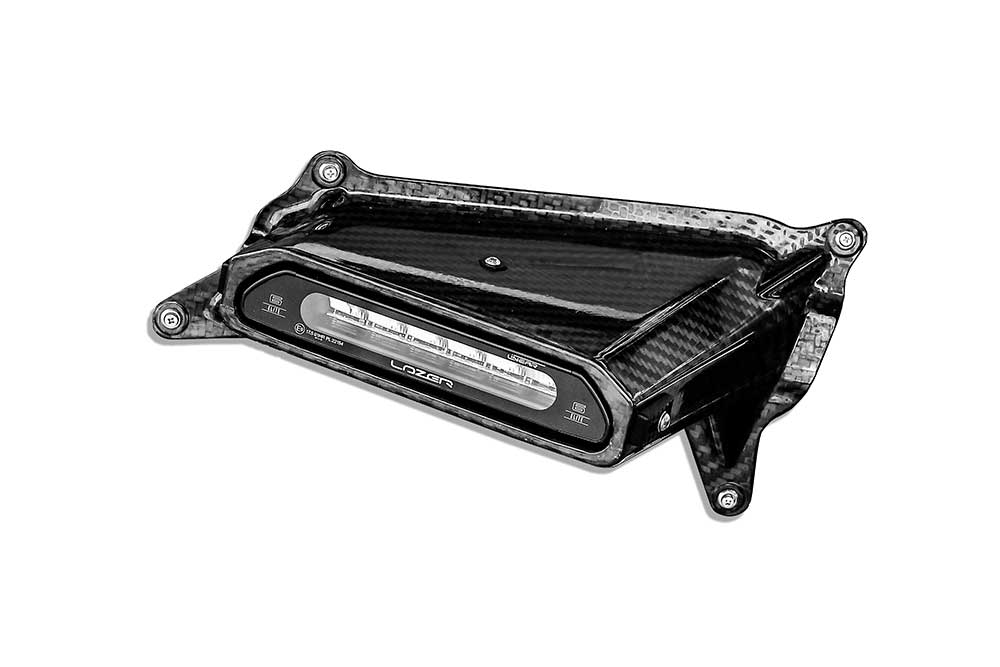

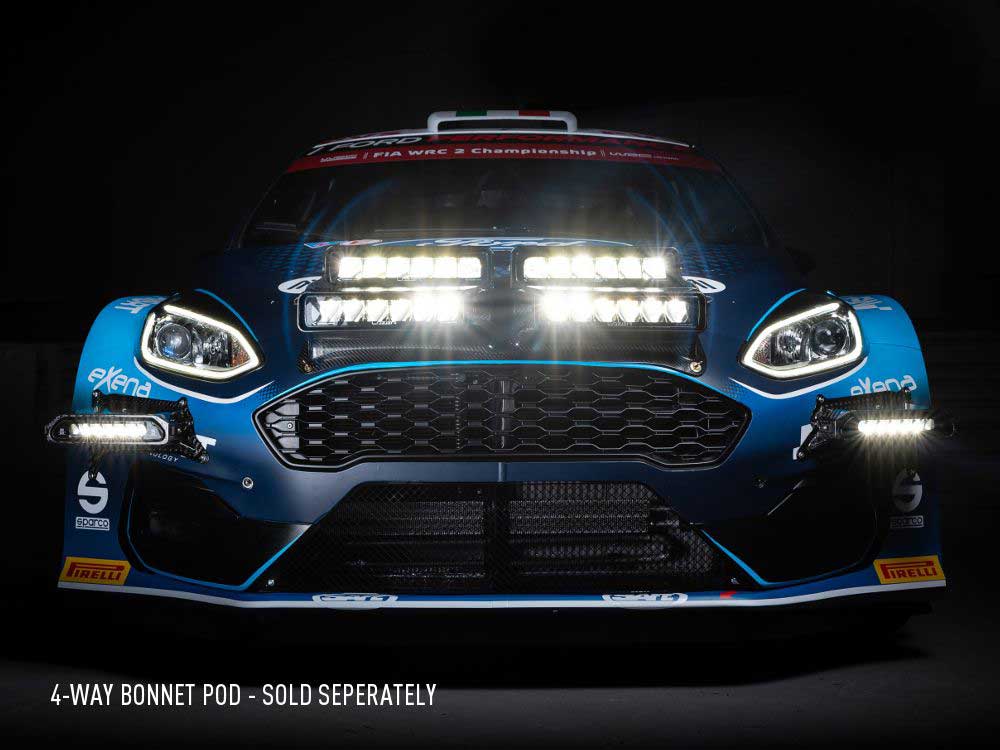

Optimised for Skoda R5 rally cars, the Lazer Lamps Corner Rally Pods utilise our Linear-6 Elite high-performance LED spotlights pre-mounted within lightweight and aerodynamic Glass & Carbon-fibre composite pods. Carefully selected for their superior light output and low-profile design, the light output from the corner pods delivers short to mid-range corner lighting which compliments perfectly the long-range illumination provided by either our 2-Way or 4-Way Bonnet Pods.
With each pod weighing 0.85kg, this is a corner lighting solution which delivers weight saving gains over traditional systems, while simultaneously delivering lighting performance unrivalled considering the lamps’ size and low power consumption. Moreover, the products are designed, engineered, and manufactured in the UK to the most exacting standards, and benefit from input received from the very highest levels of professional rally motorsport.
Each lamp utilises a combination of highly efficient 3W LEDs which delivers 4,050 lumens and 1 lux to over 280m, impressive performance considering each lamp only requires 42W. Carefully selected LEDs, with a colour temperature of 5000k to match our bonnet pod solutions, provide maximum sharpness and definition of the road and objects ahead. E-mark certification on the lamps, coupled with the pods themselves being manufactured from carbon-fibre with glass laminate layers, ensure compliance with most FIA regulated series.

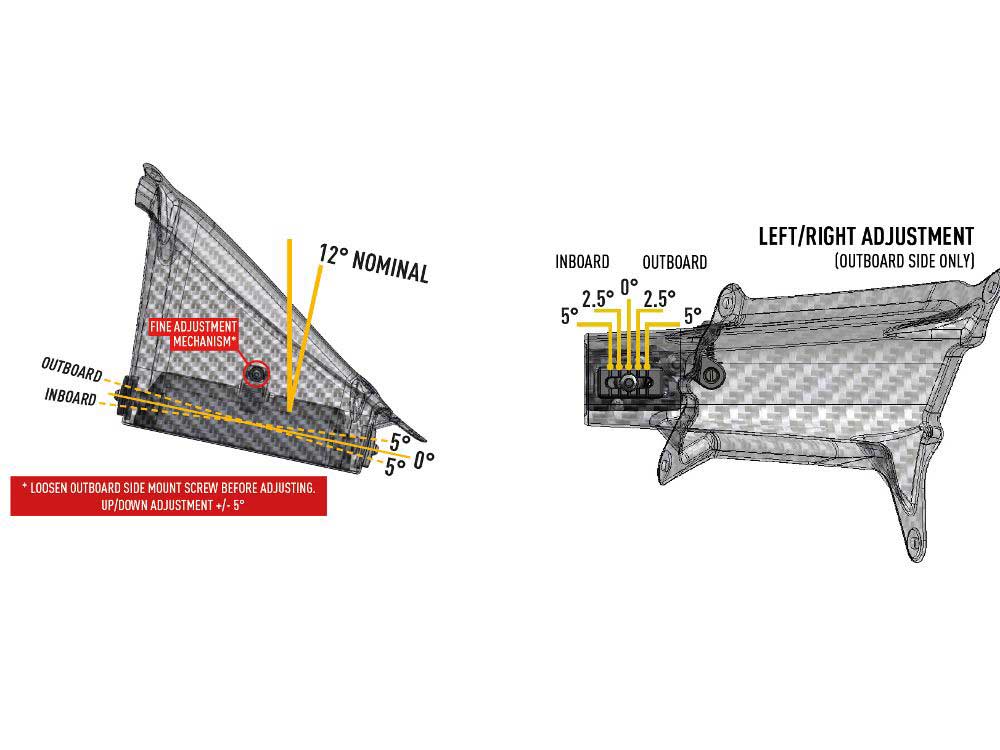

A fine-adjustment mechanism allows for quick and easy vertical adjustment of the lights +/-5o, alongside +/-5o inboard/outboard adjustment permitting more left/right spread of light.
Key Features
• Pre-mounted Linear-6 Elite high-performance driving lights
• Ultra-lightweight carbon-fibre with glass laminate corner pods
• Optimised for Skoda R5
• Compatible with 2-Way and 4-Way Rally Lamp Pods
• Road-legal in accordance with FIA regulations (for some rally series)
• Low profile design for improved aerodynamic performance
• Fine adjustment mechanisms
• Bumper fixtures not included
• Carefully selected LED colour temperature maximises sharpness and definition
• Electronic thermal management
• ‘Unbreakable’ polycarbonate lens
• IP67 watertight
• 5-year warranty
• Designed & manufactured in Britain
| TECHNICAL SPECIFICATIONS | |
| Voltage Range | 9-32V |
| LED Life | 50,000 hours |
| Weight | 850 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 4050 Lm |
| Number of High Output LEDs | 12 |
| Power Consumption | 42 Watts |
| Current Draw (at 14.4V) | 2.9 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 17.5 |
| DIMENSIONS | |
| Width | 232 mm |
| Depth | 62 mm |
| Height | 40 mm |

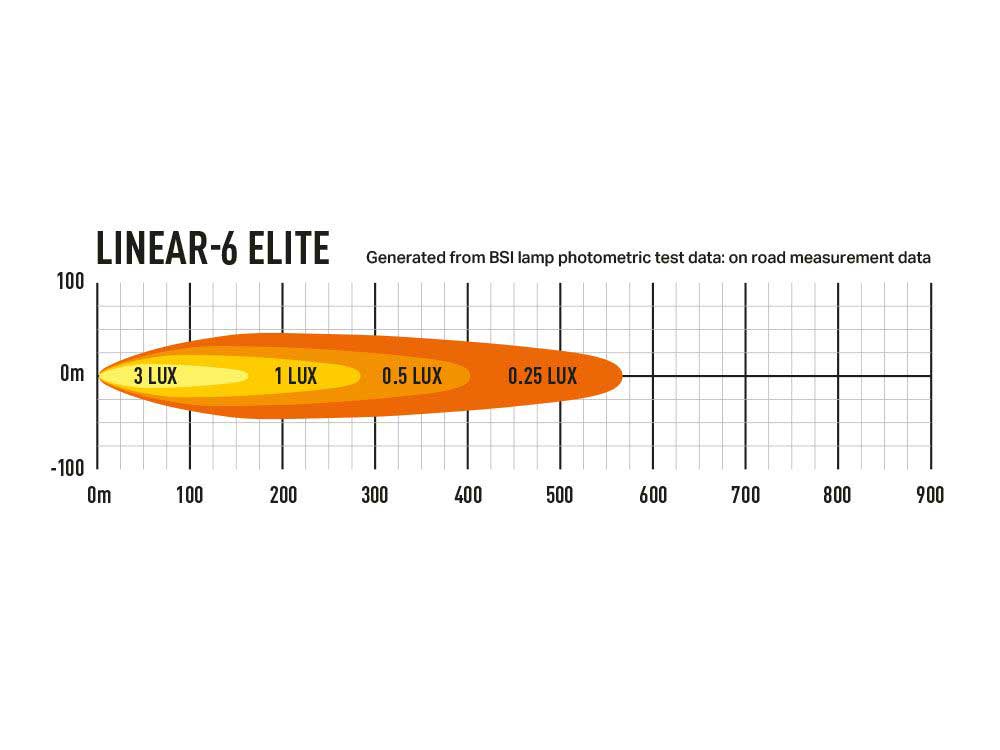

| PHOTOMETRIC DATA | |

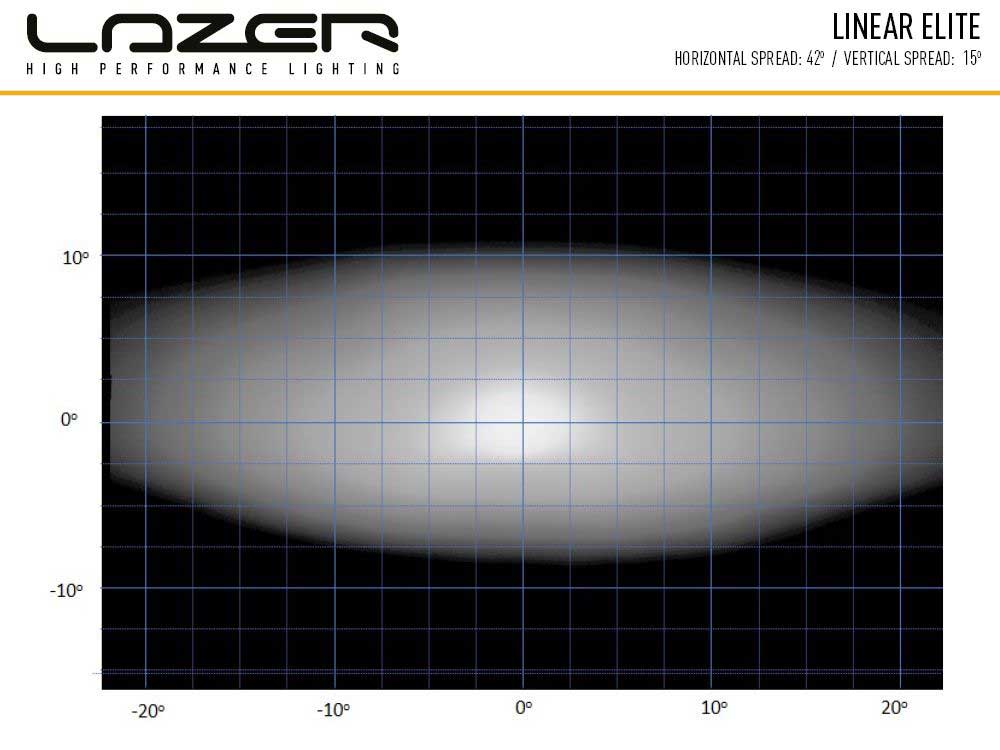

| Horizontal Beam Angle | 42 Degrees |
| 0.25 lx Line | 563 metres |
| 0.5 lx Line | 398 metres |
| 1 lx Line | 282 metres |
| 3 lx Line | 163 metres |
