Description

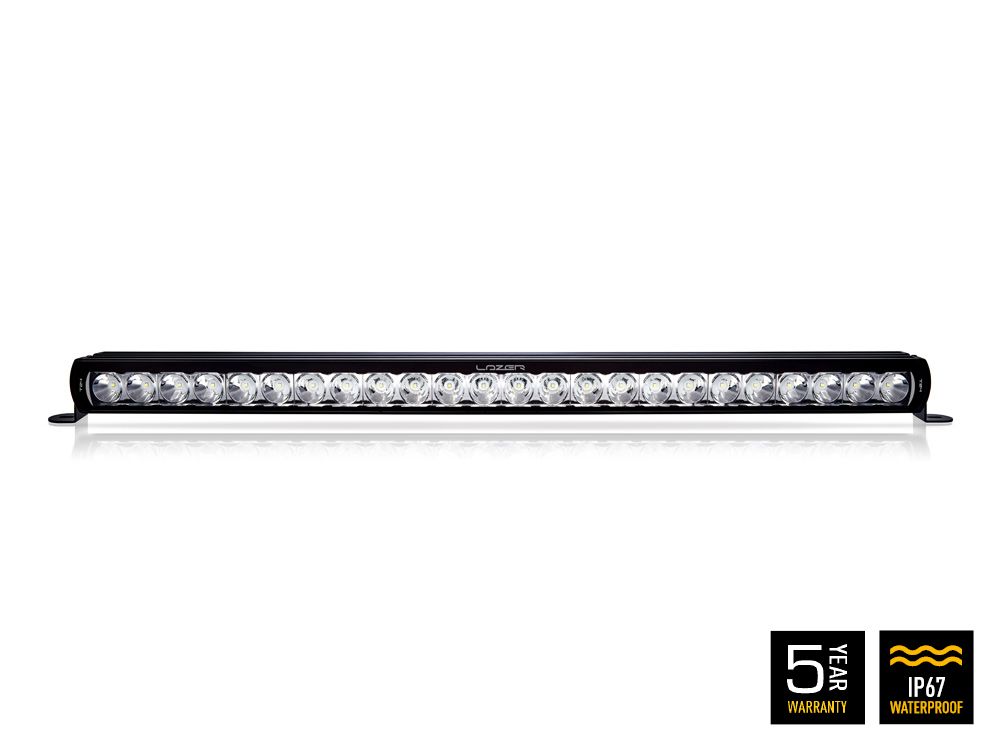

The ultimate in off-road lighting for many years, the T24 Evolution represents the re-engineering and re-design of a lamp which needs to be seen to fully appreciate the incredible performance and build quality. At 1m in length, the T24 is often considered the perfect fit mounted across stainless steel bars, off roof racks, or bespoke roof mounts. Whatever the mounting location, the T24 delivers: 24,816 lumen and useable light to over 1.3km (0.25 lux).
Upgraded high-density 11W LEDs which are carefully selected for their high ‘bin’ rating, are the driving force behind the T24’s enviable performance – 1 lux is achieved at 680m. Advanced electronic design, combined with sophisticated thermal management systems, and ultra-reflective vacuum-metallised reflectors, harness the light output into a ‘Drive’ beam pattern optimised for lower speed applications where the priority is for good all-round visibility, albeit still with enviable distance illumination. The colour temperature of the LEDs at 5000 kelvin has also been specifically selected to maximise sharpness and definition, while proven to reduce eye-strain associated with some higher (blue-white) colour temperatures.
Performance aside, the T24 Evolution is built to last. With a 5 year warranty as standard, and a lifetime guarantee on the ‘unbreakable’ polycarbonate lens, which is coated with a hardcoat lacquer to protect against any scratches, the lamp is capable of withstanding the harshest environments. An IP69K rating certifies the lamp will not be subjected to moisture or dust ingress, with additional counter-measures to ensure the unit remains fully contained even in the most extreme of temperatures and humidity. The full aluminium housing gives the lamp its strength and rigidity, while an e-coat pre-treatment provides automotive quality corrosion resistance. Dynamic drive modulation optimises light output considering the thermal conditions of the lamp (preserving the longevity of the LEDs).
With a seamless, low profile design, the new T Evolution range is now not only easier to install, but is more resistant to dirt, snow and ice accumulations, and the contemporary styling is guaranteed to complement and enhance the appearance of modern vehicles.

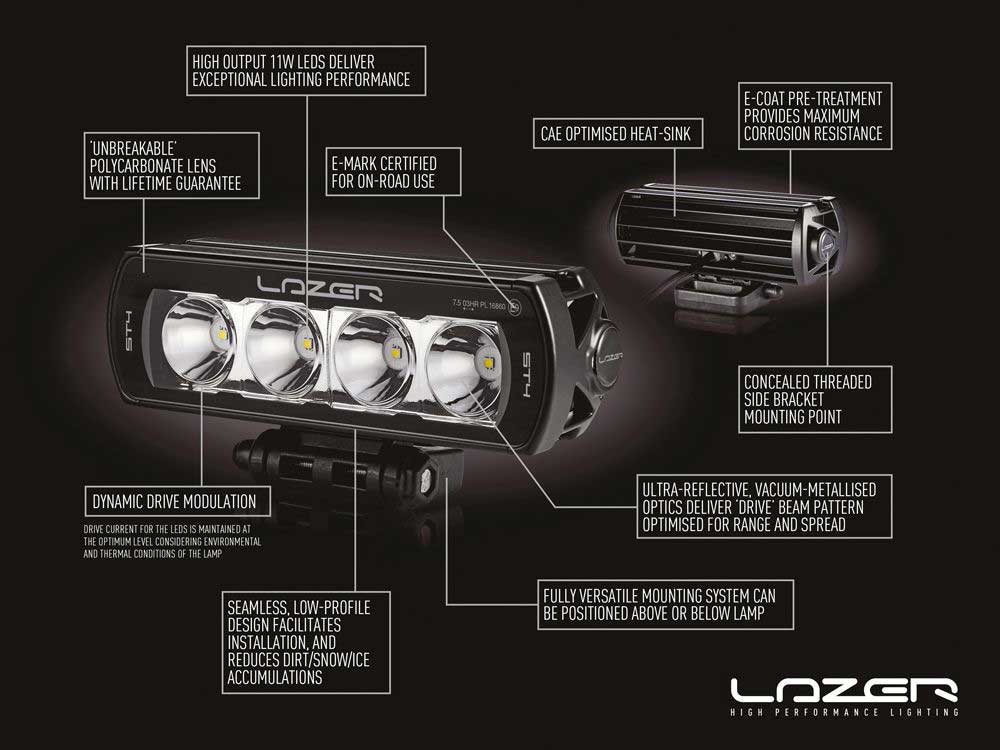

  • 24x high density 11W LEDs (premium ‘bin’)
  • Seamless, low profile design facilitates installation
  • Dynamic drive modulation optimises light output to preserve longevity of the LEDs
  • Ultra-reflective optics deliver ‘Drive’ beam pattern
  • CAE optimised heatsink
  • E-coat pre-treatment provides maximum corrosion resistance
  • Anodised aluminium heatsink provides for improved thermal dynamics (see Download section for Care Instructions)
  • 5 Year Warranty
  • ‘Unbreakable’ polycarbonate lens with lifetime guarantee*
  • IP69K rating
  • Comes as standard with 30cm cable, including pre-wired male & female connectors
  • Made in Britain
  • *Conditions apply
TECHNICAL SPECIFICATIONS
Voltage Range9-32V
LED Life50,000 hours
Weight3084 gr
HIGH BEAM FUNCTION
Total Luminous Flux24816 Lm
Colour Temperature5000K
Number of High Output LEDs24
Power Consumption262 Watts
Current Draw (at 14.4V)18.2 Amps
CERTIFICATION
High BeamNot certified
DIMENSIONS
Width1004 mm
Depth68 mm
Height64 mm
PHOTOMETRIC DATA

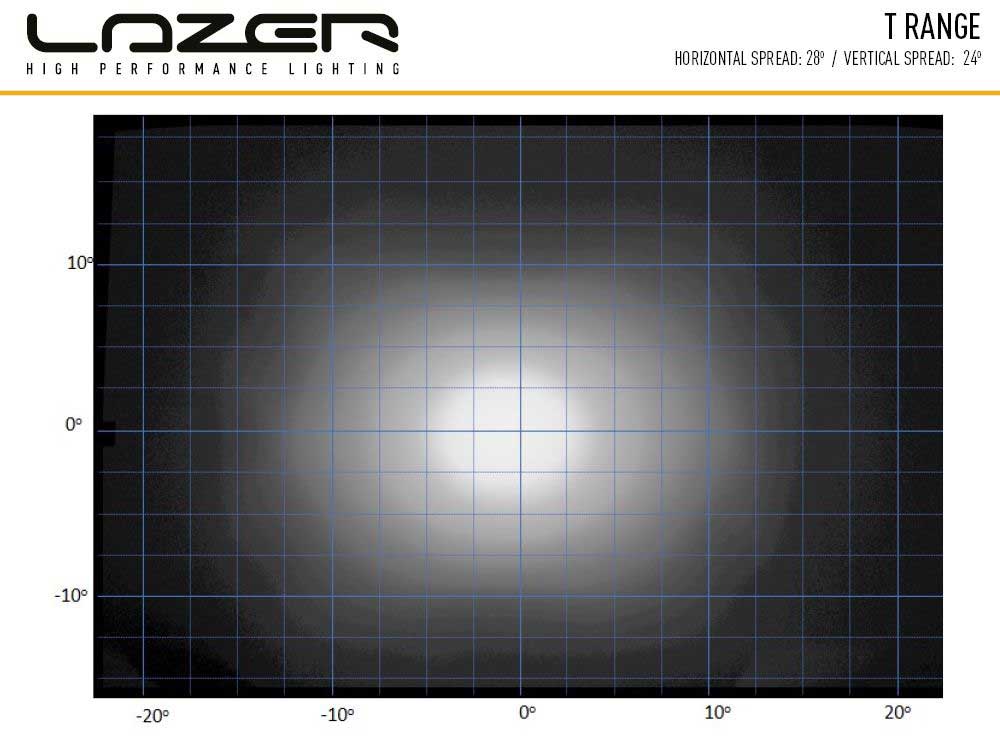

Horizontal Beam Angle28 degrees
0.25 lx Line1361 metres
0.5 lx Line962 metres
1 lx Line680 metres
3 lx Line393 metres



Additional information
Weight 3,30000 kg
